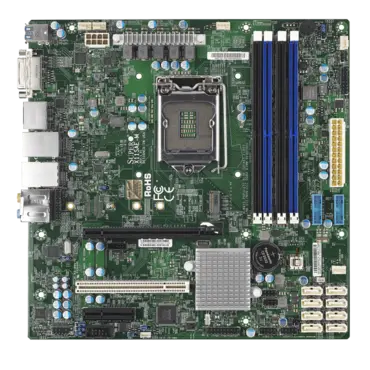

X11SAE-M, Intel C236, LGA 1151, DDR4-2133 64GB ECC UDIMM / 4, HDMI, M.2, USB 3.1, GbLAN / 2, microATX OEM

SKU: 10087778

Manufacturer: SUPERMICRO

MPN: MBD-X11SAE-M-B

Availability: Low Stock


Price: $243.54
or as low as $8/month
Quantity:
  • Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5,
    Intel® 6th Gen. Core™ i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots
  • Single GbE LAN with Intel® i210-AT,
    Single GbE LAN with Intel® i219LM
  • 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280/22110)
  • 6x USB 3.0 (2 rear + 4 via header)
    6x USB 2.0 (2 rear + 4 via headers)
    2x USB 3.1 (10Gbps, rear)
Product SKUs
MBD-X11SAE-M -B
  • X11SAE-M (Bulk Pack)
Physical Stats
Form Factor
  • micro ATX
Dimensions
  • 9.6" x 9.6", (22.4cm x 22.4cm)
Processor/Cache
CPU
  • Intel® 6th Generation Core™ i3 series
  • Intel® 6th Generation Core™ i5 series
  • Intel® 6th Generation Core™ i7 series
  • Intel® Xeon® processor E3-1200 v5 series
  • Socket H4 (LGA 1151) supported; CPU TDP support Up to 95W TDP
System Memory
Memory Capacity
  • Up to 64GB Unbuffered ECC/non-ECC
  • UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C236 chipset
SATA
  • Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10; + 1 PCIe M.2(PCIe x4, 2242/2260/2280/22110)(No Raid Support)
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Intel® PHY I219LM LAN controlle
Audio
  • ALC 888S HD Audio
Input / Output
USB
  • 6 USB 2.0 ports (2 rear, 4 via header)
  • 6 USB 3.0 ports (2 rear, 4 via header)
  • 2 USB 3.1 (10 Gb/s) ports (2 Rear)
Video Output
  • 1 DVI - D, 1 DP (DisplayPort), 1 HDMI
  • ***DP support up to DP1.2, HDMI support up to HDMI1.4***
Serial Port / Header
  • 1x COM port (1 header)
TPM
  • 1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x16 slot
  • 1x PCI-E 3.0 x4 slot
  • 1x 5V PCI 32bit slot
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 3.0
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Management
Software
  • AMT
  • SuperDoctor® 5
  • vPro
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Power-on mode for AC power recovery
PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • Fan speed control
  • Overheat LED indication
Temperature
  • CPU thermal trip support
  • I2C temperature sensing logic
  • PECI
  • Thermal Monitor 2 (TM2) support
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL
