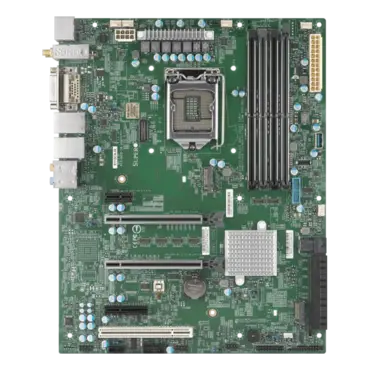

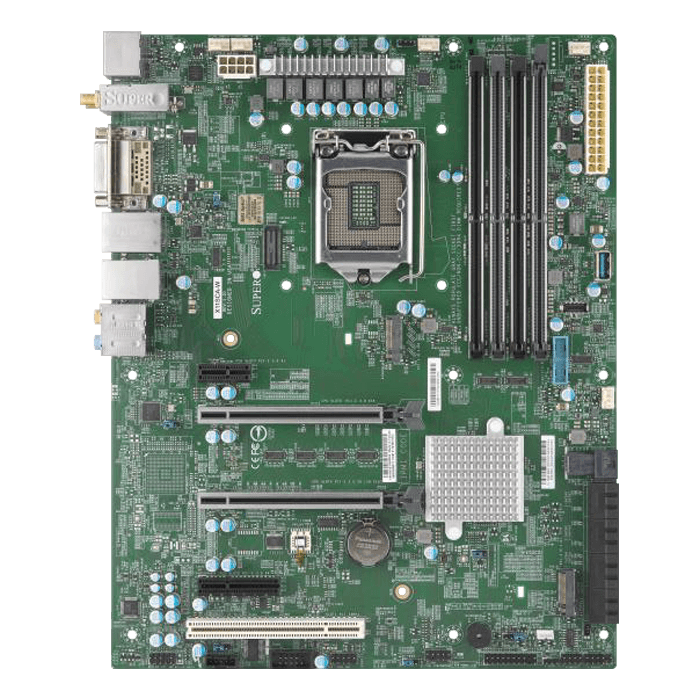

X11SCA-W, Intel C246, LGA 1151, DDR4-2666 64GB UDIMM / 4, HDMI, M.2 / 2, GbLAN / 2, ATX Retail

Quantity:

SKU: 12242306
Manufacturer: SUPERMICRO
MPN: MBD-X11SCA-W-O
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Starting At

$379.78

8th Generation Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
Intel® C246
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 PCI,
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 & 1
M.2 Form Factor: 22110
M.2 Key: M-Key
M.2#1~2 are shared with SATA #6~7, M.2#2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port,
HDMI is HDMI2.0a, DP is DP1.2,
Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
Support vPro

Product SKUs
MBD-X11SCA-W	X11SCA-W
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU	8th Generation Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® E processor (Coffee Lake-S) Server, Intel® Xeon® E processor (Coffee Lake-S) Workstation. Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity	Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type	N/A
DIMM Sizes	1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® C246
SATA	Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Support vPro
Graphics	HDMI is HDMI2.0a, DP is DP1.2,
Input / Output
LAN	2 1GbE LAN ports
USB	2 USB 2.0 ports (2 headers), 4 USB 3.0 ports (2 rear + 2 headers), 4 USB 3.1 ports (2 rears (1 Type A + 1 Type C) + 2 headers); There is a Type C on Rear, and one Type C header on board
Video Output	1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, HDMI is HDMI2.0a, DP is DP1.2,
Serial Port / Header	1 COM Port (1 header)
TPM	1 TPM Header
Expansion Slots
PCI-E	1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 2 PCI-Ex16 slots are running at NA/16, or 8/8 1 PCI, 1 - 5V PCI 32bit
M.2	M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 & 1 Form Factor: 22110 Key: M-Key M.2#1~2 are shared with SATA #6~7, M.2#2 is shared with U.2
System BIOS
BIOS Type	UEFI 128Mb
Management
Software	AMT, SuperDoctor® 5, vPro, Watchdog
System Mangement Software	SuperDoctor 5 version. 5
Power Configurations	ACPI Power Management ATX Power connector Power-on mode for AC power recovery Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, VBAT
FAN	5 fans with tachometer status monitoring, Fan speed control, Low noise fan speed control, PWM fan speed control
Temperature	N/A
LED	Standby alert LED
Other Features	8-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, RoHS, WOL
Operating Environment
Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X11SCA-W	1	X11SCA-W Motherboard
SATA cable	CBL-0044L	6	SATA3 Cable
IO shield	MCP-260-00122-0N	1	X11SCA Series IO Shield
M.2 Folder	MCP-450-00005-0B	2	M.2 SSD Folder
WiFi+BT Antenna	CBL-ANTDB-SMA	1	WiFi+BlueTooth Antenna(2 pcs a set)
Quick Reference Guide	MNL-2087-QRG	1	X11SCA Series Quick Reference Guide
