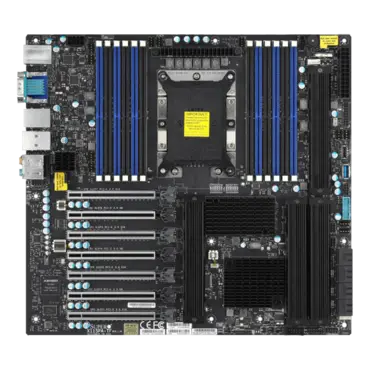

MBD-X11spa-t |
|
Physical Stats |
Form Factor |
|
Dimensions |
- 12" x 13" (30.48cm x 33.02cm)
|
Processor/Cache |
CPU |
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Intel® Xeon® W-32xx Processor
- Single Socket LGA-3647 (Socket P) supported, CPU TDP supports 205W TDP
|
Cores / Cache |
|
System Memory |
Memory Capacity |
- Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz
- Up to 3TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MHz, in 12 DIMM slots;
- Xeon-W 32xx supports up to 2TB 3DS ECC RDIMM/LRDIMM, Xeon-W 32xx supports up to 1TB 3DS RDIMM/LRDIMM. ;
- Xeon-W32xx series processors don't support DCPMM.
|
Memory Type |
|
DIMM Sizes |
- 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
|
Memory Voltage |
|
On-Board Devices |
Chipset |
|
SATA |
- Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
IPMI |
|
Network Controllers |
-
Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Aquantia® AQC107 10G Ethernet Controller
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
|
Audio |
|
Graphics |
- ASPEED AST2500 BMC
- VGA connector is dedicated for IPMI.
|
Input / Output |
LAN |
- 1 1GbE LAN ports
- 1 RJ45 10GBase-T ports
|
USB |
- 2 USB 2.0 ports (2 via headers)
- 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers)
- 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)
|
Video Output |
- 1 VGA port,
- VGA connector is dedicated for IPMI.
|
Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
|
TPM |
|
Expansion Slots |
PCI-E |
- 4 PCI-E 3.0 x16,
- 3 PCI-E 3.0 x8 (in x16 slot),
- PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
- (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
- (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8)
|
M.2 |
- M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
- Form Factor: 2242/2260/2280/22110
- Key: M-Key
- M.2 support RAID 0,1(up to RAID 5, 10), VROC key is required for Raid.
|
System BIOS |
BIOS Type |
- 256Mb SPI Flash with AMI BIOS
|
BIOS Features |
- ACPI 3.0 / 4.0
- SMBIOS 2.7
- PCI FW 3.0
- RTC (Real Time Clock) Wakeup
|
Management |
Software |
- IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog
|
System Management Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- SUM OOB Bios refresh is not supported
- SuperDoctor 5
|
Power Configurations |
- ACPI Power Management
- Main Switch Override Mechanism
- Power-on mode for AC power recovery
- CPU thermal trip support for processor protection
|
PC Health Monitoring |
Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
|
Temperature |
- CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
|
LED |
- CPU / System Overheat LED, Suspend static indicator LED
|
Other Features |
- Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL
|
Operating Environment |
Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
Non-Operating Relative Humidity Range |
- 10% ~ 95% (non-condensing)
|
