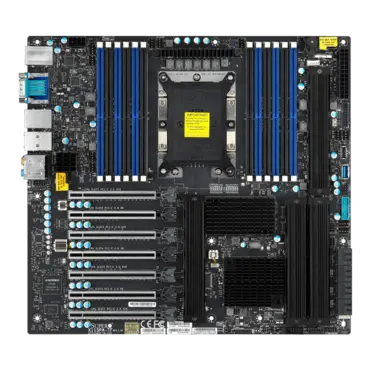

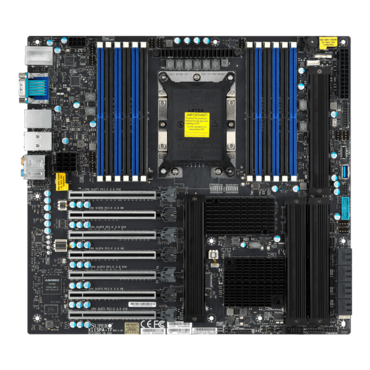

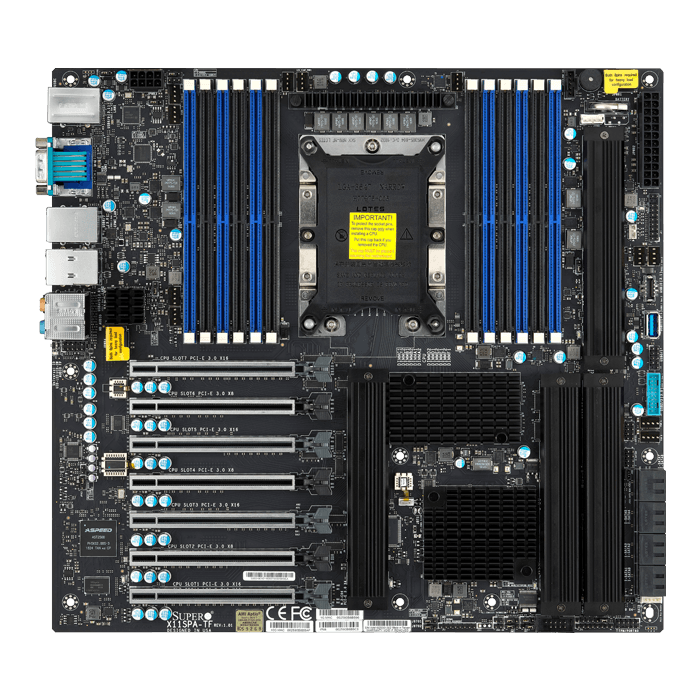

X11SPA-TF, Intel® C621, LGA 3647, DDR4-2933 3TB 3DS LRDIMM / 12, VGA, M.2 / 4, 10GbE / 1, 1GbE / 1, E-ATX Retail

SKU: 12730062

Manufacturer: SUPERMICRO

MPN: MBD-X11SPA-TF-O

Availability: Out of Stock


Price: $553.14
or as low as $18/month
  1. 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
    Single Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP
  2. Intel® C621
  3. Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
    Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots
  4. 4 PCI-E 3.0 x16,
    3 PCI-E 3.0 x8 (in x16 slot),
    PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)

    M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
    M.2 Form Factor: 2242/2260/2280/22110
    M.2 Key: M-Key

    M.2 support RAID 0,1(up to RAID 5, 10). M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for Raid. PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
  5. 1 VGA port,
    VGA connector is dedicated for IPMI.
  6. Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
    Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Product SKUs
MBD-X11SPA-TF
  • X11SPA-TF
Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU
  • 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors.
  • Single Socket P (LGA 3647) supported, CPU TDP support Up to 205W TDP
Cores / Cache
  • Up to 28 cores
System Memory
Memory Capacity
  • Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
  • Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots
Memory Type
  • N/A
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210-AT
    Single LAN with Aquantia® AQC107 10G Ethernet Controller
    Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2500 BMC
  • VGA connector is dedicated for IPMI.
Input / Output
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (2 headers, Type A))
  • 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 headers)
  • 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)
Video Output
  • 1 VGA port,
  • VGA connector is dedicated for IPMI.
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16,
  • 3 PCI-E 3.0 x8 (in x16 slot),
  • PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
M.2
  • M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
  • M.2 support RAID 0,1(up to RAID 5, 10). M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for Raid. PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8)
System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 3.0 / 4.0
  • SMBIOS 2.7
  • PCI FW 3.0
  • RTC (Real Time Clock) Wakeup
Management
Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog
System Mangement Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • CPU thermal trip support for processor protection
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
FAN
  • 10x 4-pin fan headers (up to 10 fans), 10x fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control, Status monitoring for speed control
  • <br>2 CPU Fan + 1 Water Cooler Radiator power connector + 8 System Fans.
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
  • CPU / System Overheat LED, Suspend static indicator LED
Other Features
  • Chassis intrusion header, CPU thermal trip support for processor protection, Dual Cooling Zones, Intel Smart Response Technology, RoHS, UID, WOL
Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
