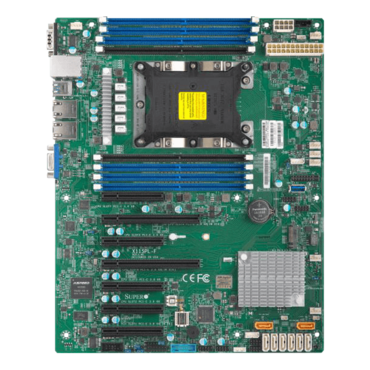

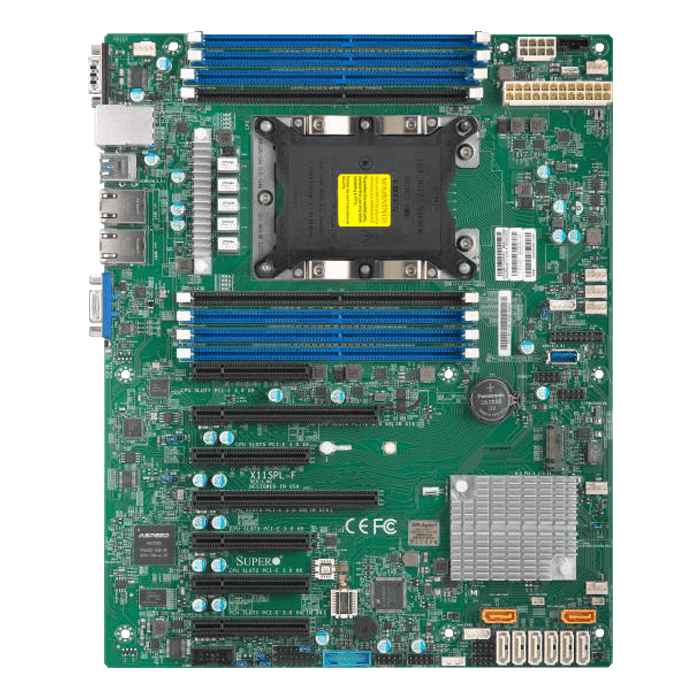

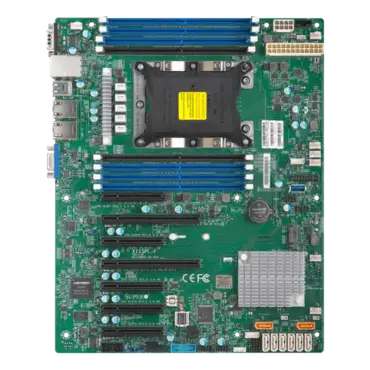

X11SPL-F, Intel C621, LGA 3647, DDR4-2666 1024GB 3DS LRDIMM / 8, VGA, M.2, GbLAN / 2, ATX OEM

Quantity:

SKU: 11423352
Manufacturer: SUPERMICRO
MPN: MBD-X11SPL-F-B
Availability: USUALLY SHIPS WITHIN 3-5 DAYS

Starting At

$450.80

Intel® Xeon® Processor Scalable Family, Single Socket P (LGA 3647) supported, CPU TDP support 165W
Intel® C621 Chipset
Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots
Expansion slots:
2 PCI-E 3.0 x8 (in x16),
4 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
2 GbE LAN ports
8 SATA3 (6Gbps) ports
I/O: 1 VGA, 2 COM, TPM header
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)
M.2 NGFF connector

Product SKUs
MBD-X11SPL-F	X11SPL-F (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU	Intel® Xeon® Processor Scalable Family. Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache	Up to 28 cores
System Memory
Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM
Memory Type	2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes	RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C621
SATA	Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with 1GbE with Intel® I210
Graphics	Aspeed AST2500 BMC
Input / Output
USB	8 USB 2.0 ports (2 rear + 6 via header(s)), 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
Video Output	1 VGA port(s)
Serial Port / Header	2 COM Ports (1 rear, 1 header(s))
TPM	TPM Header
Expansion Slots
PCI-E	2 PCI-E 3.0 x8 (in x16 slot), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
M.2	Interface: PCIe 3.0 x4 and SATA Form Factor: 2280, 22110
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or late
Management
Software	Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN	7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature	CPU thermal trip support PECI
LED	CPU / System Overheat LED UID/Remote UID Suspend static indicator LED
Other Features	ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
Operating Environment
Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)
