Product SKUs |

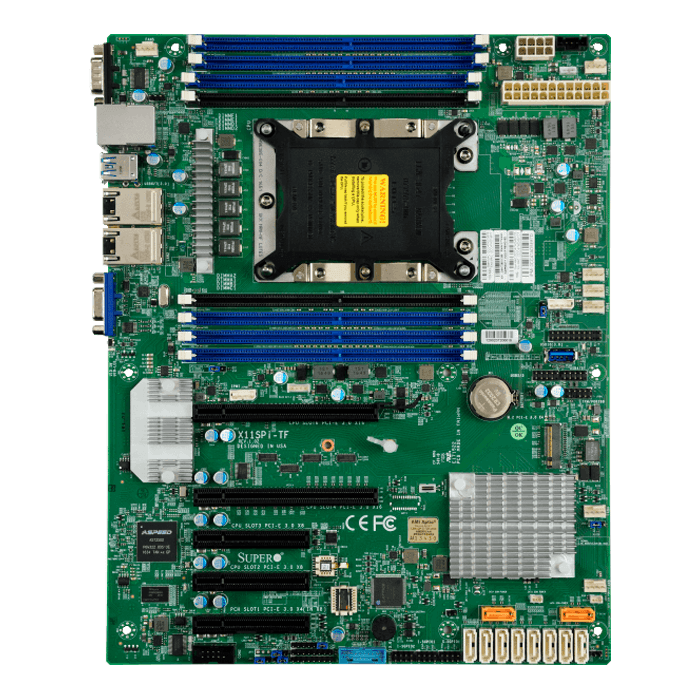

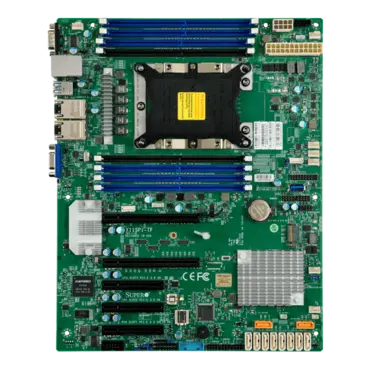

MBD-X11SPi-TF |
|
Physical Stats |
Form Factor |
|
Dimensions |
- 12" x 9.6" (30.48cm x 24.38cm)
|
Processor/Cache |
CPU |
- Intel® Xeon® Processor Scalable Family.
- Single Socket P (LGA 3647) supported, CPU TDP support 205W
|
Cores / Cache |
|
System Memory |
Memory Capacity |
- 8x 288-pin DDR4 DIMM slots
- Up to 1TB ECC 3DS LRDIMM
- Up to 512GB ECC LRDIMM
- Up to 256GB ECC RDIMM
|
Memory Type |
- 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
|
DIMM Sizes |
- RDIMM: 4GB, 8GB, 16GB, 32GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 64GB, 128GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
|
On-Board Devices |
Chipset |
|
SATA |
- Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
IPMI |
|
Network Controllers |
- Dual LAN with 10GBase-T with Intel® X557
|
Graphics |
|
Input / Output |
USB |
- 6 USB 2.0 ports (2 rear + 4 via header(s)),
- 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)
|
Video Output |
|
Serial Port / Header |
- 2 COM Ports (1 rear, 1 header(s))
|
TPM |
|
Expansion Slots |
PCI-E |
- 1 PCI-E 3.0 x16,
- 1 PCI-E 3.0 x16 (x16 or x8 ),
- 1 PCI-E 3.0 x8 (x0 or x8 ),
- 1 PCI-E 3.0 x8,
- 1 PCI-E 3.0 x4 (in x8 slot)
|
M.2 |
- Interface: PCIe 3.0 x4 and SATA
- Form Factor: 2280, 22110
|
System BIOS |
BIOS Type |
|
BIOS Features |
- ACPI 6.0
- RTC (Real Time Clock) Wakeup
- SMBIOS 3.0 or late
|
Management |
Software |
- Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
|
Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
PC Health Monitoring |
Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
|
FAN |
- 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
|
Temperature |
- CPU thermal trip support
- PECI
|
LED |
- CPU / System Overheat LED
- UID/Remote UID
- Suspend static indicator LED
|
Other Features |
- ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL
|
Operating Environment |
Operating Temperature Range |
- 0°C ~ 50°C (32°F ~ 122°F)
|
Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
