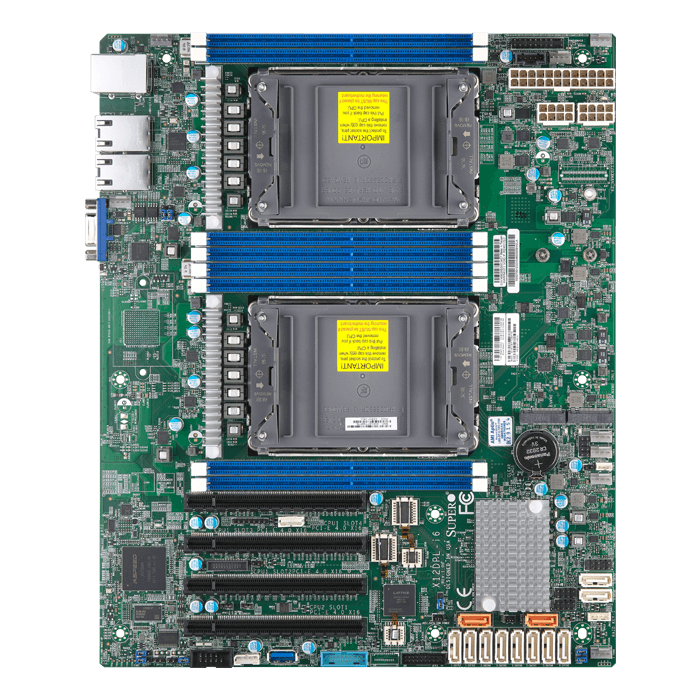

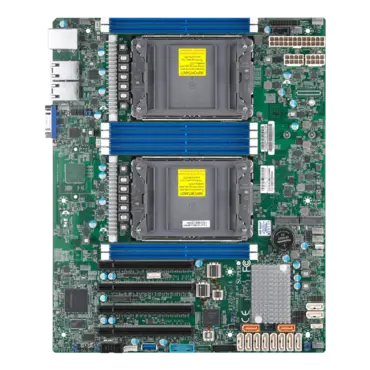

X12DPL-i6, Intel® C621A, LGA 4189 / 2, DDR4-3200 2TB 3DS ECC LRDIMM / 8, VGA, GbLAN / 2, ATX, Retail

Quantity:

SKU: 14618519
Manufacturer: SUPERMICRO
MPN: MBD-X12DPL-I6-O
Availability: TEMPORARILY OUT OF STOCK

Starting At

$694.53

Product SKUs
MBD-X12DPL-i6	X12DPL-i6
Physical Stats
Form Factor	ATX
Dimension	12.23" x 10" (31.06cm x 25.4cm)
Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
System Memory
Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type	3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes	256GB LRDIMM: 256GB RDIMM: 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C621A
SATA	Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Graphics	ASPEED AST2600 BMC
Network Controllers	Dual LAN with Intel® i210 Gigabit Ethernet Controller

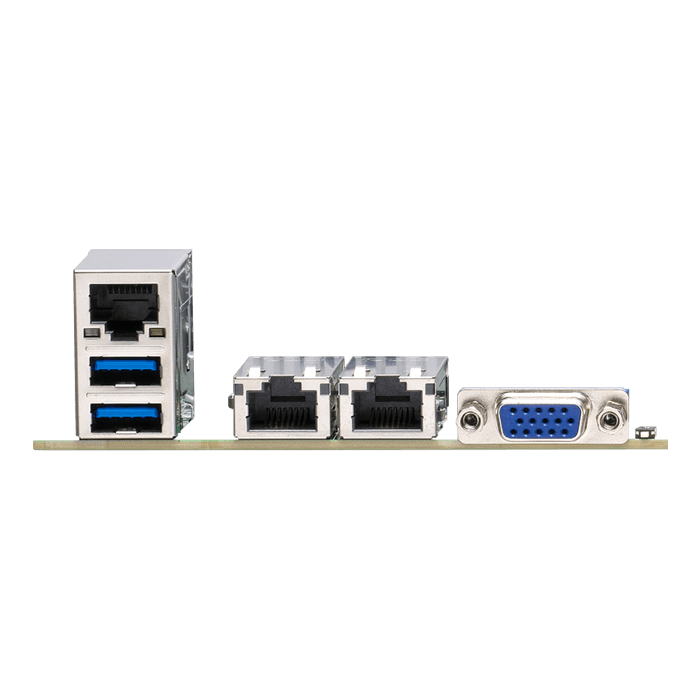

Input / Output
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	2 SATA DOM (Disk on Module) power connector support
TPM	1 TPM Header
Expansion Slots
PCI-E	4 PCI-E 4.0 x16
M.2	M.2 Interface: 1 PCI-E 4.0 x4; 1 PCI-E 4.0 x4 Form Factor: 2280/22110, 2280 Key: M-Key, M-Key
System BIOS
BIOS Type	AMI UEFI
Management
Software	SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software	IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
Power Configurations	ACPI Power Management
PC Health Monitoring
Voltage	Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, 8 -fan status
LED	UID/Remote UID BMC/IPMI Heartbeat LED
Temperature	CPU thermal trip support PECI
FAN	8x 4-pin fan headers (up to 8 fans) PWM fan speed control Overheat LED indication
Other Features	UID Node Manager Support Dual Cooling Zones CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss Chassis intrusion header Chassis intrusion detection ATX Power connector ACPI power management RoT NCSI header
Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
