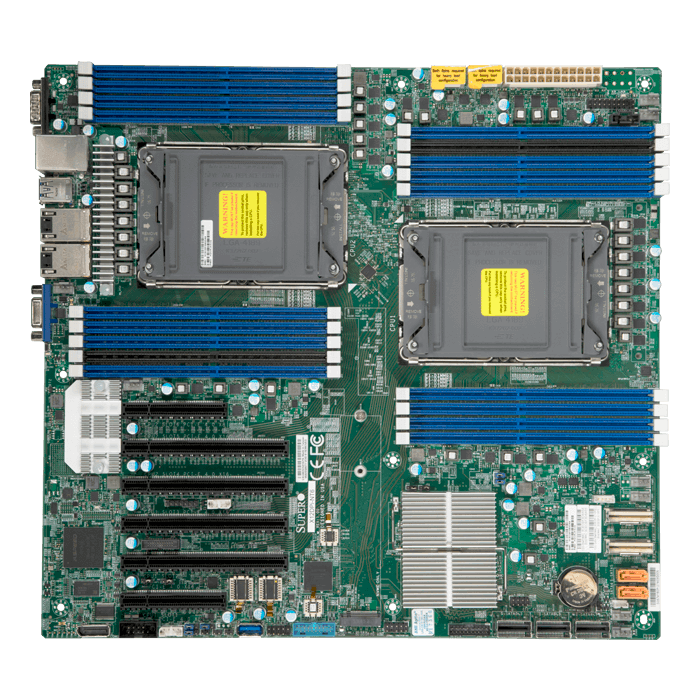

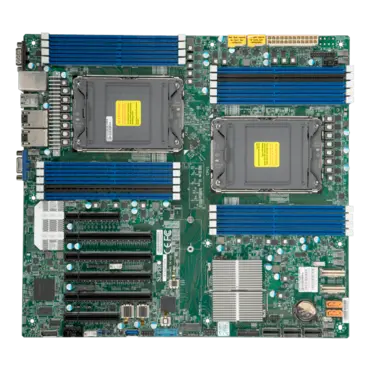

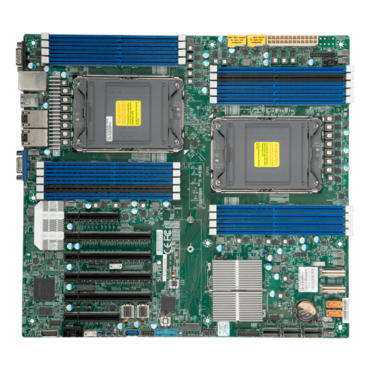

X12DPi-N6, Intel® C621A, LGA 4189 / 2, DDR4-3200 4TB 3DS ECC LRDIMM / 18, VGA, 1GbE LAN / 2, E-ATX, Retail

Quantity:
  • SKU: 14618539
  • Manufacturer: SUPERMICRO
  • MPN: MBD-X12DPI-N6-O
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$878.47
Quantity:
Product SKUs
MBD-X12DPi-N6
  • X12DPi-N6
Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)
Processor/Cache
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Cores / Cache
  • Up to 40 cores
System Memory
Memory Capacity
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type
  • 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 256GB
  • LRDIMM: 256GB
  • 3DS LRDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with Intel® i350 Gigabit Ethernet Controller

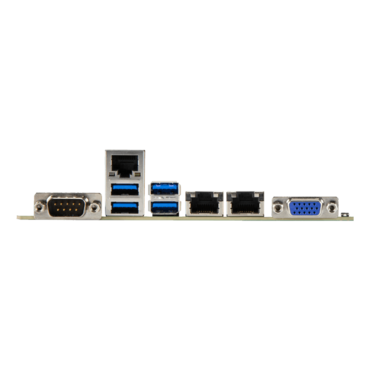

Input / Output
SATA
  • 14 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 ports (2 via headers)
  • 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A)
Video Output
  • 2 VGA (1 rear bezel, 1 front panel) ports
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 2 PCI-E 4.0 x8,
  • 4 PCI-E 4.0 x16
M.2
  • M.2 Interface: 1 PCI-E 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • IPMICFG
  • IPMIView for Linux/Windows
  • SMCIPMITool
  • SSM
  • SUM
  • SuperDoctor 5
  • SPM
PC Health Monitoring
Voltage
  • +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, CPU temperature, LAN temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
LED
  • BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID
Other Features
  • ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID, WOL
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
