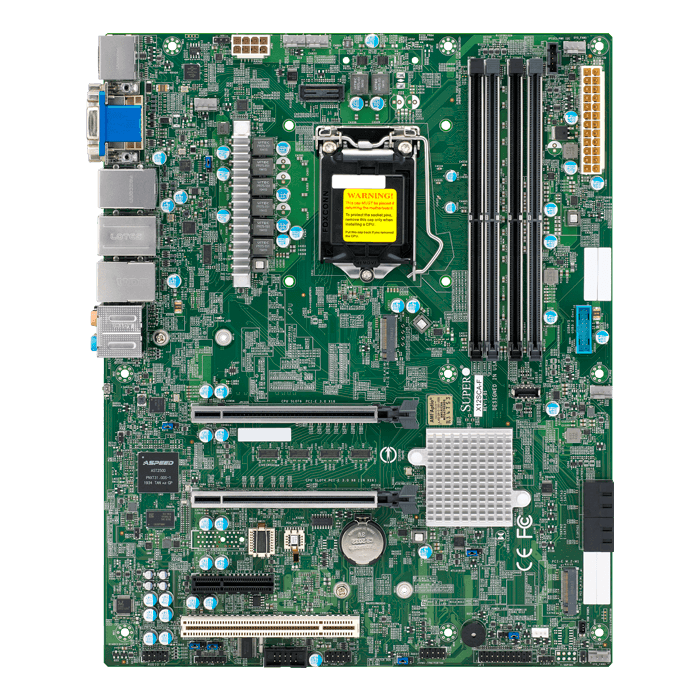

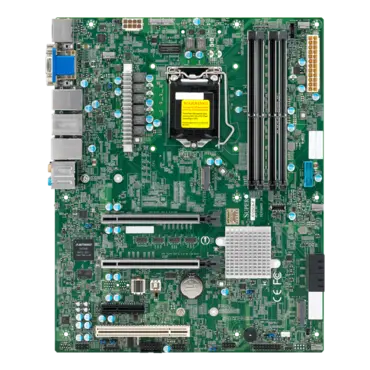

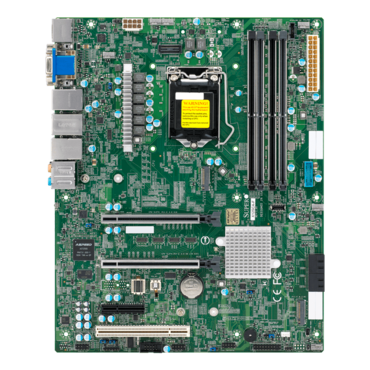

X12SCA-F, Intel® W480, LGA 1200, DDR4-2933 128GB ECC UDIMM / 4, DP, GbLAN / 2, ATX, Retail

Quantity:

SKU: 13607343
Manufacturer: SUPERMICRO
MPN: MBD-X12SCA-F-O
Availability: TEMPORARILY OUT OF STOCK

Starting At

$463.43

Product SKUs
MBD-X12SCA-F	X12SCA-F
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU	10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
Cores / Cache	Up to 10 cores
System Memory
Memory Capacity	128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
Memory Type	Up to 128GB of Unbuffered (UDIMM) ECC/non-ECC memory, with speeds of up to 2933MHz (2DPC)
DIMM Sizes	2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® W480
SATA	Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500 Dedicated IPMI LAN Port
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro Single LAN with Intel® Ethernet i225LM
Audio	ALC 888S HD Audio
Graphics	VGA port is dedicated for IPMI
Input / Output
LAN	1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port 1 RJ45 2.5 Gigabit Ethernet LAN port
USB	2 USB 2.0 ports (2 via headers) 3 USB 3.2 Gen1 ports (1 via header + 2 Type A) 5 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C, 1 via header)
Video Output	1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port, VGA port is dedicated for IPMI
Serial Port / Header	1 COM Port (1 header)
TPM	1 TPM Header
Expansion Slots
PCI-E	1 PCI-E 3.0 x4, 2 PCI-E 3.0 x16 slots (16/NA or 8/8) 1 - 5V PCI 32bit
M.2	M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	256Mb SPI Flash with AMI BIOS
BIOS Features	ACPI 6.0 Plug and Play (PnP) BIOS rescue hot keys Riser card auto-detection support SMBIOS 3.0 or later
Management
Software	AMT, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SSM, SUM, SuperDoctor® 5, vPro, Watchdog
System Management Software	SuperDoctor 5 IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support *** OOB Bios refresh is not supported on X12SCA-F
Power Configurations	ACPI Power Management Power-on mode for AC power recovery Power button override mechanism Wake-on-LAN Power supply monitoring
PC Health Monitoring
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, CPU temperature, CPU thermal trip support, LAN temperature, Memory temperature, PCH temperature, System temperature, VBAT, VRM temperature
Temperature	N/A
LED	BMC/IPMI Heartbeat LED, UID/Remote UID, Power LED, Catastrophic Error LED
Other Features	8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, UID, WOL
Operating Environment
Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
