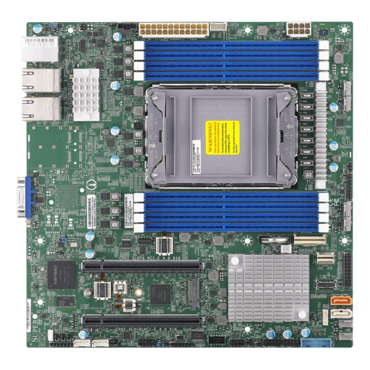

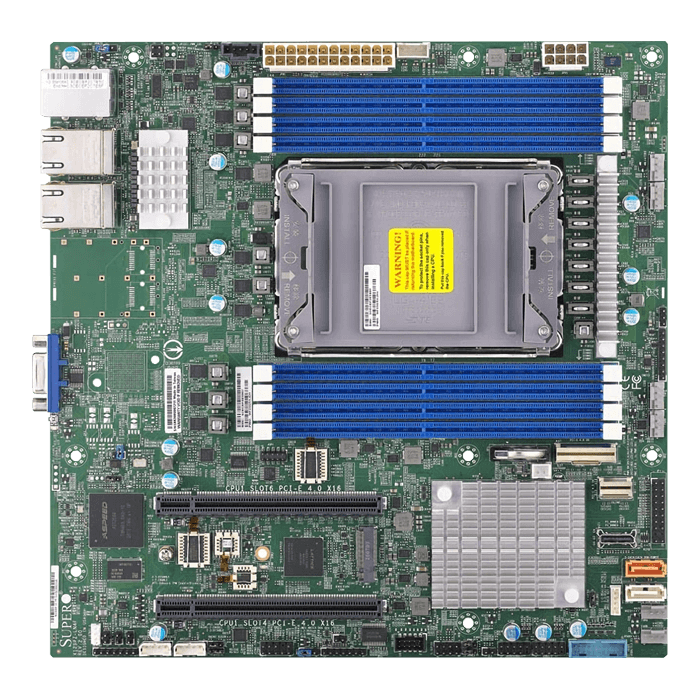

X12SPZ-LN4F, Intel® C621A Chipset, LGA 4189, 4x 1GbLAN, microATX Motherboard

SKU: 15045678
Manufacturer: SUPERMICRO
MPN: MBD-X12SPZ-LN4F-O
Availability: TEMPORARILY OUT OF STOCK

Price

$768.20

3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
2 PCI-E 4.0 x16
1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
Quad 1G RJ45 with Intel® I350-AM4
4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
4 USB 2.0 (Headers)
Supports 12V DC power input

Product SKUs
MBD-X12SPZ-LN4F	X12SPZ-LN4F
Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores
System Memory
Memory Capacity	8 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz
Memory Type	3200/2933/2666MHz ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C621A
SATA	Intel® C621A controller for 6 SATA3 (6 Gbps) ports 4 SATA ports via OCuLink; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Network Controllers	Quad LAN with 1GbE with Intel® I350-AM4
Input / Output
LAN	4 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 port(s) (4 via header) 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 header)
DOM	1 SuperDOM (Disk on Module) ports
TPM	1 TPM Header & Chip both
Expansion Slots
PCI-E	2 PCI-E 4.0 x16
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2242/2280 Key: M-Key
System BIOS
BIOS Type	256MB SPI Flash with AMI BIOS
BIOS Features	ACPI 6.2 UEFI 2.8 SMBIOS 2.8 SMBIOS 3.3 or later Plug and Play (PnP) PCI FW 3.0
Management
Software	SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	ACPI Power Management, ATX Power connector, +12V DC Power Input, M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
PC Health Monitoring
Voltage	VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 6 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V
LED	UID/Remote UID Power LED
Temperature	CPU thermal trip support
FAN	6x 4-pin fan headers (up to 6 fans) System level control PWM fan speed control Dual Cooling Zone 6 fans with tachometer status monitoring
Other Features	RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
