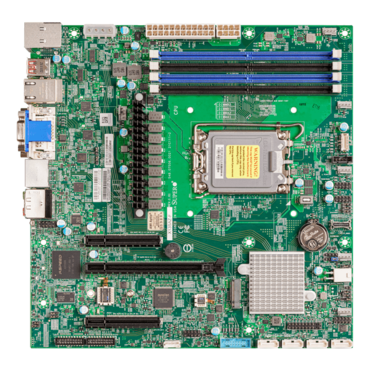

X13SAZ-F, Intel® R680E Chipset, LGA 1700, 2x COM, 2x 2.5 GbLAN, microATX Motherboard

SKU: 15066547
Manufacturer: SUPERMICRO
MPN: MBD-X13SAZ-F-O
Availability: USUALLY SHIPS WITHIN 3-5 DAYS

Price

$547.79

12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
Intel® R680E
Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
*Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
1 PCI-E 5.0 x16 slot,
2 PCI-E 4.0 x4 slots,
1 PCI-E 4.0 x4 OCulink port
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
1 VGA port, 2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port
Intel® R680E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Supports 12V DC power input
Onboard TPM2.0

Product SKUs
MBD-X13SAZ-F	X13SAZ-F
Physical Stats
Form Factor	Micro-ATX
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU	12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket LGA-1700 supported
Core	Up to 16 cores
System Memory
Memory Capacity	4 DIMM slots Up to 128GB ECC/non-ECC UDIMM, DDR5-4400MHz
Memory Type	4000/3200/2933/2666MHz
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel R680E
SATA	Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Dual LAN with Intel® Ethernet i225LM

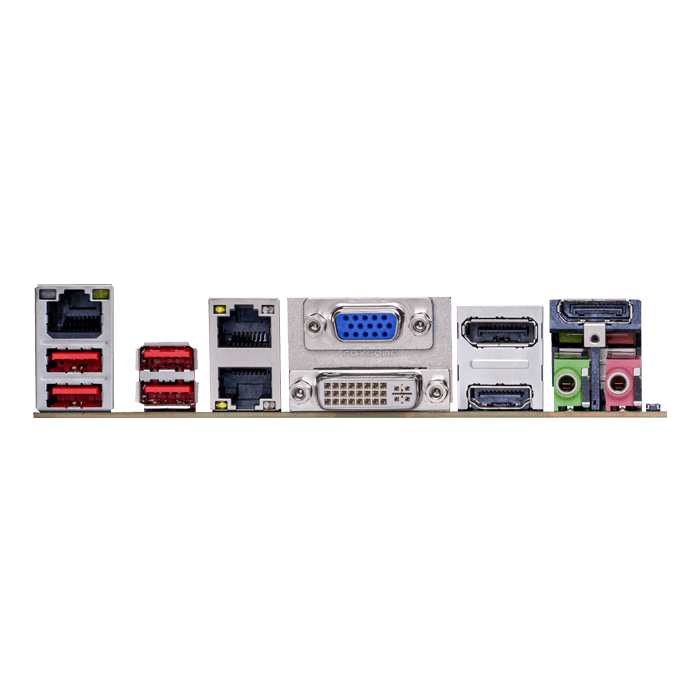

Input / Output
SATA	4 SATA3 (6Gbps) port(s)
USB	2 USB 2 port(s) (2 via header) 6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A) 2 USB 3.1 Gen1 port(s) (2 via header)
Video Output	1 VGA port(s), 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
Serial Port	2 COM Port(s) (2 header)
TPM	TPM Header & Chip both
Expansion Slots
PCI-E	1 PCI-E 5.0 x16, 2 PCI-E 4.0 x4 (in x8 slot)
M.2	M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup
Management
Software	SuperDoctor® 5, SUM, AMT, vPro, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
System Management Software	Wake-on-LAN, Watchdog, KVM with dedicated LAN
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage	VBAT, Memory temperature, CPU temperature, Chipset Voltage, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID
LED	Power LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
Other Features	RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN	5x 4-pin fan headers (up to 5 fans)
Operating Environment
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
