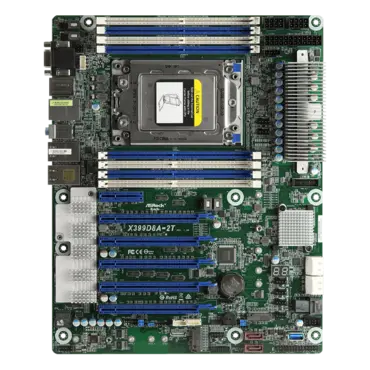

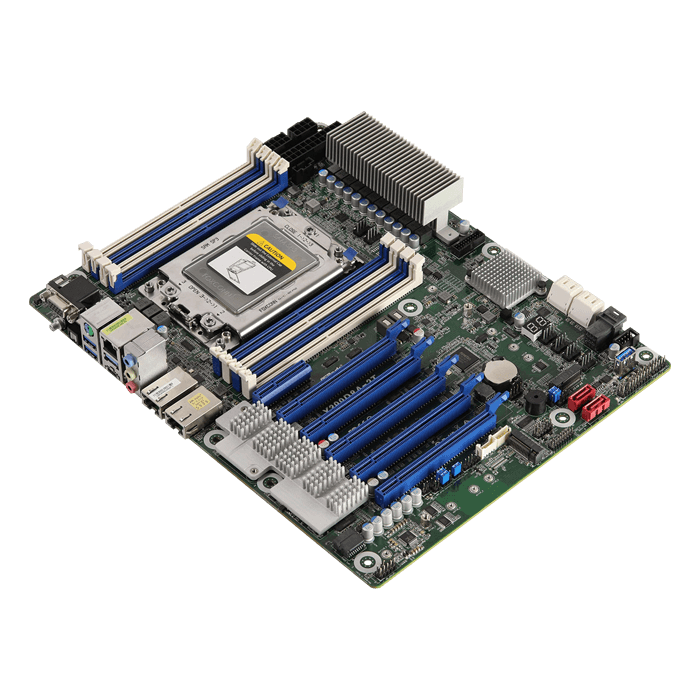

X399D8A-2T, AMD X399 Chipset, TR4, VGA, ATX Motherboard

SKU: 12841980

Manufacturer: ASROCK

MPN: X399D8A-2T

Availability: Available


Price: $462.93
or as low as $15/month
Quantity:
  1. Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
  2. Support quad channel DDR4 total 8 DIMM slots
  3. Support 8x SATA 6Gb/s by AMD X399 and 2x SATA 6Gb/s by Asmedia 1061
  4. Support 2x M.2 (PCIe3.0 x4) up to 22110 form factor
  5. Support 3x PCIe 3.0 x16?2x PCIe 3.0 x8
  6. Support Dual 10GbE by Intel X550-AT2
MB Physical Status
Form Factor - ATX
Dimensions -12'' x 9.6'' (30.5 cm x24.4 cm)
Processor System
CPU - Supports AMD Ryzen™ Threadripper™ Processors
Socket - AMD Socket TR4 4094P
Chipset - AMD X399
System Memory
Capacity - 8 x 288-pin DDR4 DIMM slots
- Max. 128GB, DDR4 ECC and non-ECC, Un-buffered Memory
Type
Voltage - 1.2V
Expansion Slot
PCIe 3.0 x 16 -5 slots
- Slot2: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied.
- Slot3: Gen3 x8 link
- Slot4: Gen3 x16 link, auto switch to x8 link if Slot5 is occupied.
- Slot5: Gen3 x8 link
- Slot6: Gen3 x16 link
PCIe 3.0 x 4 - Slot7: Gen3 x4 link
M.2 - 1x M-key (PCIe3.0 x4 or SATA 6Gb/s shared with SATA port) support 2230/2242/2260/2280/22110
- 1x M-key (PCIe3.0 x4) support 2230/2242/2260/2280/22110 ( Reserved BOM option for OCU Link).
Storage
SATA Controller - X399: 8x SATA 6Gb/s; 2x SATA DOM, 4 via mini-SAS HD, 2x SATA 7-pin (one shared with M.2)
Additional Storage Controller - Asmedia1061: 2x SATA 6Gb/s
Ethernet
Interface - 10Gbps/1000 Mbps
LAN Controller - 2 x RJ45 10GbEby Intel® X550-AT2
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support
IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management
Features - NMI
Graphics
Controller - ASPEED AST2500
VRAM - DDR4 4GB
Audio
Audio Codec - Realtek ALC892

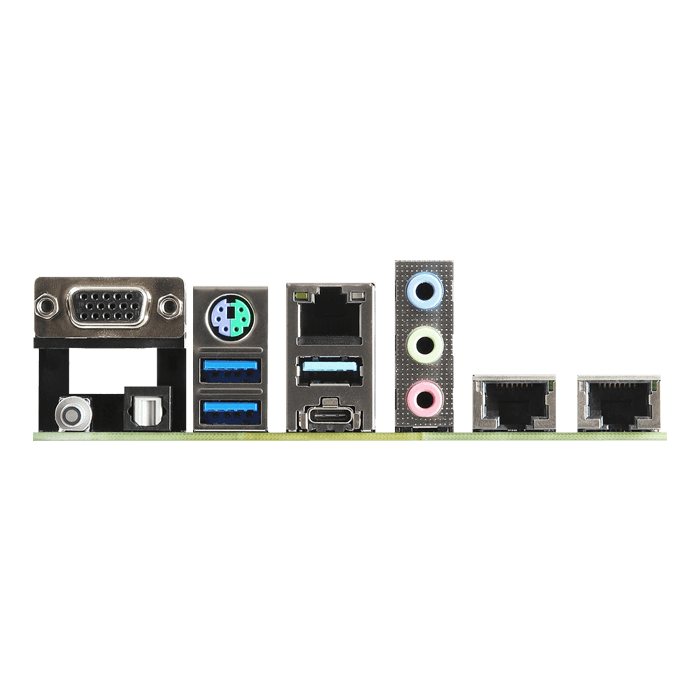

Rear Panel I/O
PS/2 KB/Mouse - 1
VGA Port - 1 x D-Sub
USB 3.1 Gen1 Port - 2
USB 3.1 Gen2 Port - 2 (1 type A, 1 type C)
Lan Port - 2 x RJ45: 2x 10GbE by Intel® X550-AT2
- 1x IPMI dedicated LAN"
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Audio - 1(3 jack)
SPDIF - 1
Internal Connector
COM Header - 1
SATA DOM - 2
Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, system fault LED, and front LAN LED)
TR1 Header - 1
TPM Header - 1
IPMB Header - 1
VGA Header - 1
Buzzer - 1
Fan Header - 6 x 6-pin Fans (1CPU/5 system)
ATX Power - 1x (24-pin) + 1x (8-pin) + 1x (8-pin)
USB 3.1 (Gen1) Header - 1 ( support 2 USB3.0)
USB 2.0 Header - 1 ( support 2 USB2.0)
Type A USB 3.1 (Gen1) Port - 1
PWR SMB Header - 2
NMI Button - 1
Front Panel - 1
Speaker Header - 1(4-pin)
BMC_SMB Header - 1
SGPIO Header - 2
PMBUS Mode Jumpers - 1
ME/SPS Recovery - N/A
Clear CMOS - 1 (short pin)
Onboard LED
80 Debug Port LED - 1
Fan Fail LED - 6 (Fan Fail LED only )
System BIOS
BIOS Type - 128Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
- Card side Temperature Sensing
- System TR Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: Voltage Monitoring: Vcore,VCCSA, VCCIO, VCCMAB, VCCMCD, 3v, 5v, 12v, 1.05V_PCH, 1.05V_PCH_PHY, +BAT, 3VSB, 5VSB, 5V_Dual, 5V_Dual2
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
