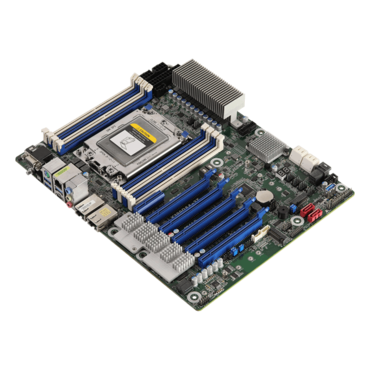

X399D8A-2T, AMD X399 Chipset, TR4, VGA, ATX Motherboard
- SKU: 12841980
- Manufacturer: ASROCK
- MPN: X399D8A-2T
- Availability: TEMPORARILY OUT OF STOCK
Price
$648.39
- Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
- Support quad channel DDR4 total 8 DIMM slots
- Support 8x SATA 6Gb/s by AMD X399 and 2x SATA 6Gb/s by Asmedia 1061
- Support 2x M.2 (PCIe3.0 x4) up to 22110 form factor
- Support 3x PCIe 3.0 x16?2x PCIe 3.0 x8
- Support Dual 10GbE by Intel X550-AT2
| MB Physical Status | |
|---|---|
| Form Factor | - ATX |
| Dimensions | -12'' x 9.6'' (30.5 cm x24.4 cm) |
| Processor System | |
| CPU | - Supports AMD Ryzen™ Threadripper™ Processors |
| Socket | - AMD Socket TR4 4094P |
| Chipset | - AMD X399 |
| System Memory | |
| Capacity | - 8 x 288-pin DDR4 DIMM slots
- Max. 128GB, DDR4 ECC and non-ECC, Un-buffered Memory |
| Type | |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | -5 slots
- Slot2: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied. - Slot3: Gen3 x8 link - Slot4: Gen3 x16 link, auto switch to x8 link if Slot5 is occupied. - Slot5: Gen3 x8 link - Slot6: Gen3 x16 link |
| PCIe 3.0 x 4 | - Slot7: Gen3 x4 link |
| M.2 | - 1x M-key (PCIe3.0 x4 or SATA 6Gb/s shared with SATA port) support 2230/2242/2260/2280/22110
- 1x M-key (PCIe3.0 x4) support 2230/2242/2260/2280/22110 ( Reserved BOM option for OCU Link). |
| Storage | |
| SATA Controller | - X399: 8x SATA 6Gb/s; 2x SATA DOM, 4 via mini-SAS HD, 2x SATA 7-pin (one shared with M.2) |
| Additional Storage Controller | - Asmedia1061: 2x SATA 6Gb/s |
| Ethernet | |
| Interface | - 10Gbps/1000 Mbps |
| LAN Controller | - 2 x RJ45 10GbEby Intel® X550-AT2
- Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE |
| Management | |
| BMC Controller | - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management |
| Features | - NMI |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 4GB |
| Audio | |
| Audio Codec | - Realtek ALC892 |

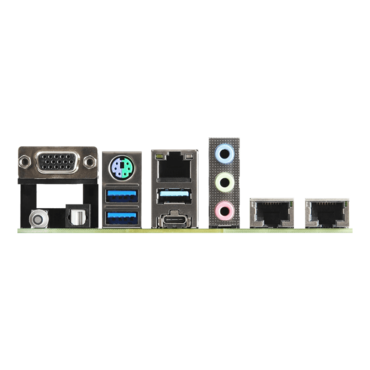

| Rear Panel I/O | |
| PS/2 KB/Mouse | - 1 |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 2 |
| USB 3.1 Gen2 Port | - 2 (1 type A, 1 type C) |
| Lan Port | - 2 x RJ45: 2x 10GbE by Intel® X550-AT2
- 1x IPMI dedicated LAN" - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Audio | - 1(3 jack) |
| SPDIF | - 1 |
| Internal Connector | |
| COM Header | - 1 |
| SATA DOM | - 2 |
| Auxiliary Panel Header | - 1 (includes chassis intrusion, location button & LED, system fault LED, and front LAN LED) |
| TR1 Header | - 1 |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| VGA Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 6 x 6-pin Fans (1CPU/5 system) |
| ATX Power | - 1x (24-pin) + 1x (8-pin) + 1x (8-pin) |
| USB 3.1 (Gen1) Header | - 1 ( support 2 USB3.0) |
| USB 2.0 Header | - 1 ( support 2 USB2.0) |
| Type A USB 3.1 (Gen1) Port | - 1 |
| PWR SMB Header | - 2 |
| NMI Button | - 1 |
| Front Panel | - 1 |
| Speaker Header | - 1(4-pin) |
| BMC_SMB Header | - 1 |
| SGPIO Header | - 2 |
| PMBUS Mode Jumpers | - 1 |
| ME/SPS Recovery | - N/A |
| Clear CMOS | - 1 (short pin) |
| Onboard LED | |
| 80 Debug Port LED | - 1 |
| Fan Fail LED | - 6 (Fan Fail LED only ) |
| System BIOS | |
| BIOS Type | - 128Mb AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU Temperature Sensing
- System Temperature Sensing - Card side Temperature Sensing - System TR Temperature Sensing |
| Fan | - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: Voltage Monitoring: Vcore,VCCSA, VCCIO, VCCMAB, VCCMCD, 3v, 5v, 12v, 1.05V_PCH, 1.05V_PCH_PHY, +BAT, 3VSB, 5VSB, 5V_Dual, 5V_Dual2 |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
