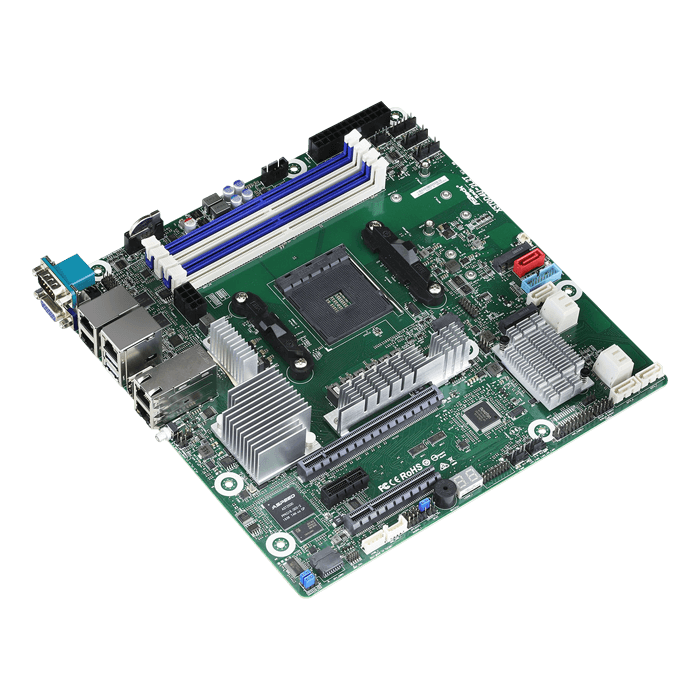

X570D4U-2L2T, AMD X570, AM4, DDR4-3200 128GB ECC UDIMM / 4, HDMI, M.2 / 2, USB 3.2 / 2, 10GbLAN / 2, GbLAN / 2, microATX Retail
Quantity:
- SKU: 13741304
- Manufacturer: ASROCK
- MPN: X570D4U-2L2T
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$585.34
As low as $48.78/ Month*
| Physical Status | |
| Form Factor | Micro-ATX |
| Dimensions | 9.6"x9.6" (244mmx 244mm) |
| Processor System | |
| CPU |
Supports: AMD Ryzen™ 5000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ 5000 Series Desktop Processors AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors 3rd Gen AMD Ryzen™ Desktop Processors 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| Socket | Single Socket AM4 (PGA1331) |
| Power Design | 105W |
| Chipset | AMD X570 |
| System Memory | |
| Capacity | 4 DIMM slots (2DPC) |
| Type |
Supports DDR4 260-pin ECC*/non-ECC UDIMM * ECC support varies by CPU |
| DIMM Size Per DIMM | ECC/non-ECC UDIMM: up to 32GB |
| DIMM Frequency |
3rd Gen AMD Ryzen™ Processors : up to 3200 MHz 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: up to 2666 MHz |
| Voltage | 1.2V |
| Expansion Slot | |
| PCIe x 16 |
SLOT6: PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| PCIe x 8 |
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| PCIe x 1 | SLOT5: PCIe 4.0 x1* *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics |
| Storage | |
| SATA Controller |
AMD X570 (12 SATA 6Gb/s, support RAID 0/1/10): 8 SATA 7-pin connectors, including 1 support SATA DOM 4 SATA via optional M2-HD M.2 device |
| M.2 slot |
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Desktop Processors with Radeon™ Vega Graphics |
| Ethernet | |
| Additional GbE Controller |
2 RJ45 (10GbE) by Intel® X550-AT2 2 RJ45 (1GbE) by Intel® i210 |
| Management | |
| BMC Controller | ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller |
ASPEED AST2500: 1 DB15, 1 (15-pin) header 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics: 1 HDMI |

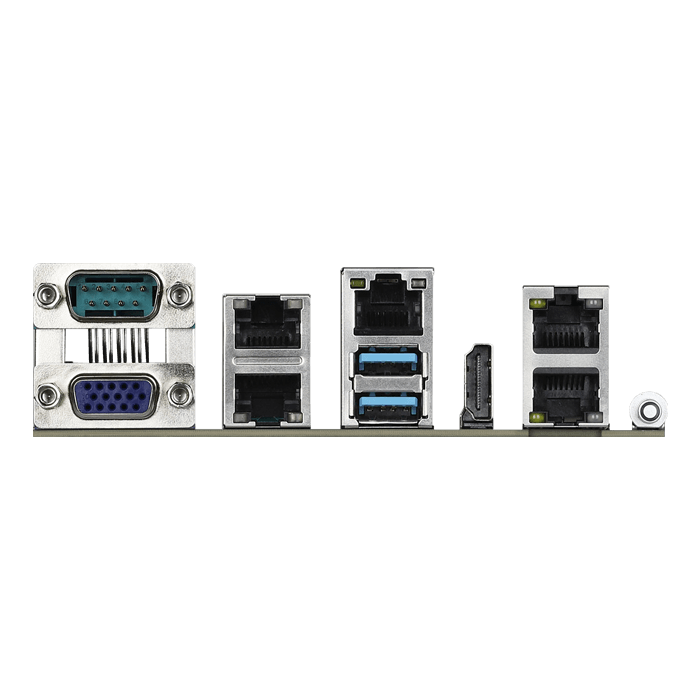

| Rear Panel I/O | |
| HDMI | 1 |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen2 Port | 2 Type-A (USB3.2 Gen2) |
| Lan Port | 2 RJ45(1GbE), 2 RJ45 (10GbE) |
| Dedicate LAN | 1 |
| Serial Port | 1 DB9 (COM) |
| UID Button/UID LED | 1 |
| Internal Connector | |
| Front Lan LED Connector | 1 for LAN3/LAN4 |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| TR1 Header | 1 |
| TPM Header | 1 (17-pin, LPC), 1 (13-pin, SPI) |
| IPMB Header | 1 |
| VGA Header | 1 |
| PMBus CONN | 1 |
| Buzzer | 1 |
| Fan Header | 3 (6-pin), 3 (4-pin) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| Speaker Header | 1 |
| BMC_SMB Header | 1 |
| Power Connector | 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V) |
| Clear CMOS | 1 (contact pads) |
| Onboard LED | |
| Standby PWR LED 5vsb | 1 |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing |
| Fan |
Fan Tachometer Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
