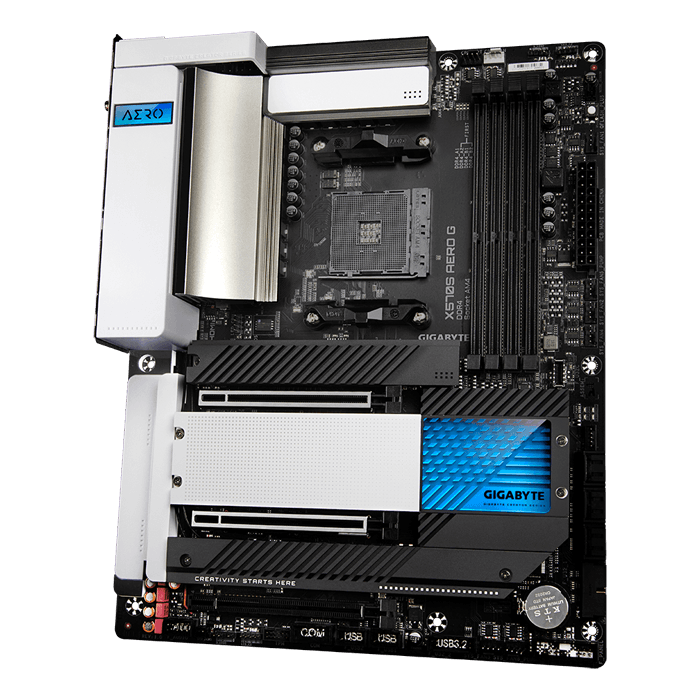

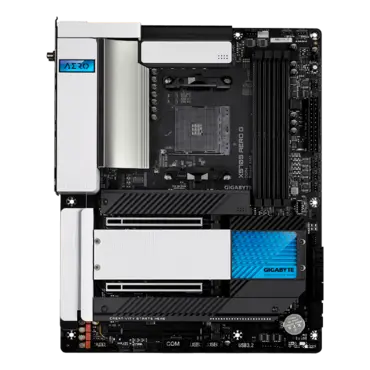

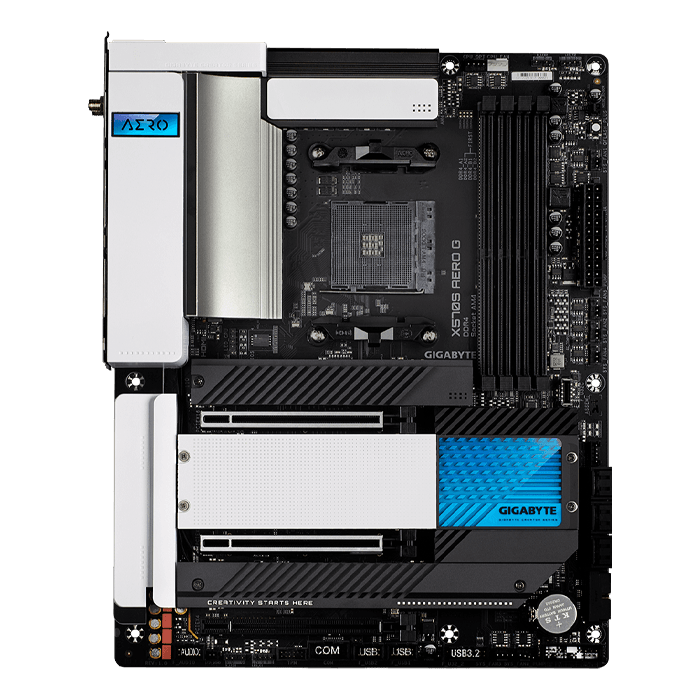

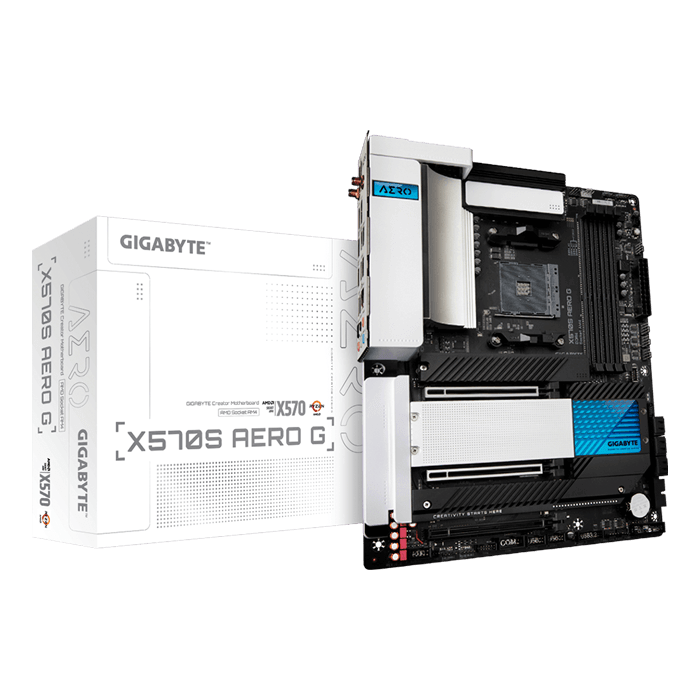

X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard
X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard
X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard
X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard
X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard

X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard

Quantity:
  • SKU: 14566179
  • Manufacturer: GIGABYTE
  • MPN: X570S AERO G
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$400.94
Quantity:
X570S AERO G, AMD X570 Chipset, AM4, DP, ATX Motherboard

GIGABYTE X570S AERO G. Creativity Starts Here. AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

CPU
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Chipset
  • AMD X570
Memory
  • AMD Ryzen™ 5000 Series processors:
    Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • AMD Ryzen™ 4000 G-Series processors:
    Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • AMD Ryzen™ 3000 Series processors:
    Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors:
    Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  • 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
    * Support for drawing tablets and 20V@3A of power delivery.
    * Support for DisplayPort 1.4 version and HDCP 2.3
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
* For AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors only.
Audio
  • Realtek® ALC1220-VB Audio CODEC
    * The back panel line out jack supports DSD audio.
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6 AX200
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.1
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode
  • AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  • AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x8 mode
  • AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x8 mode
  • AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  • Supporting PCIe 4.0* /3.0 x4 mode
    * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
    * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
  • AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
  • Supporting PCIe 4.0* /3.0 x4/x2 SSDs
    * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
  • Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
    * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs:
  • Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
    * For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
  • Support for RAID 0, RAID 1, and RAID 10
    * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 4 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Thunderbolt™ add-in card connector
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • 1 x Q-Flash Plus button

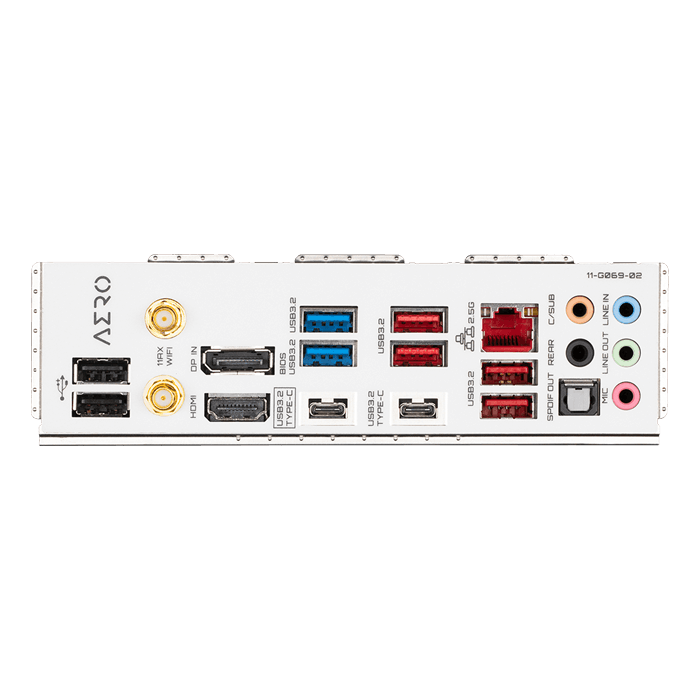

Back Panel Connectors
  • 2 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)? ? 1 x HDMI port
  • 1 x DisplayPort In port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 1 x USB Type-C® port, with USB 3.2 Gen 1 support
  • 4 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
