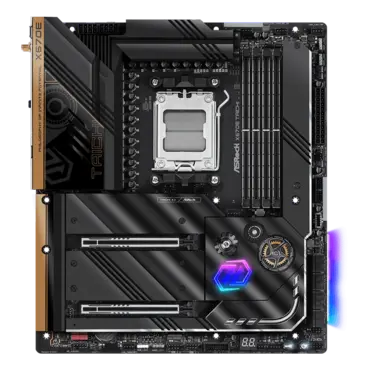

X670E Taichi, AMD X670 Chipset, AM5, E-ATX Motherboard
Quantity:
- SKU: 15132283
- Manufacturer: ASROCK
- MPN: X670E Taichi
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$462.30
X670E Taichi, AMD X670 Chipset, AM5, E-ATX Motherboard
Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.
- Supports AMD Ryzen™ 7000 Series Processors
- 24+2+1 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), ESS SABRE9218 DAC, WIMA Audio Caps, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4 & SATA3),
2 Hyper M.2 (PCIe Gen4x4),
8 SATA3 - 2 USB4 Type-C (Rear),
1 USB 3.2 Gen2x2 Type-C (Front),
5 USB 3.2 Gen2 Type-A (Rear),
7 USB 3.2 Gen1 (3 Rear, 4 Front),
4 USB 2.0 (Front) - Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Blazing M.2 Gen5 Fan Heatsink - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Ultra Low-Loss PCB - 24+2+1 Power Phase, 105A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Gaming - Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module - Killer DoubleShotTM Pro - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors - Supports ASRock Hyper BCLK Engine |
| Chipset | - AMD X670 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)* 1DPC 1R Up to 6600+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4800 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz* *Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics. USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead. |
| Audio | - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) - Individual PCB Layers for R/L Audio Channel - Impedance Sensing on Rear Out port - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 4 x SATA3 6.0 Gb/s Connectors** *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled. |
| USB | - 2 x USB4 Type-C (Rear) - 1 x USB 3.2 Gen2x2 Type-C (Front) - 5 x USB 3.2 Gen2 Type-A (Rear) - 7 x USB 3.2 Gen1 (3 Rear, 4 Front) - 4 x USB 2.0 (Front) *All USB ports support ESD Protection |
| Connector | - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP_3A supports the fan power up to 3A (36W). *****CHA_FAN1~6/WP support the fan power up to 2A (24W). CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use. |

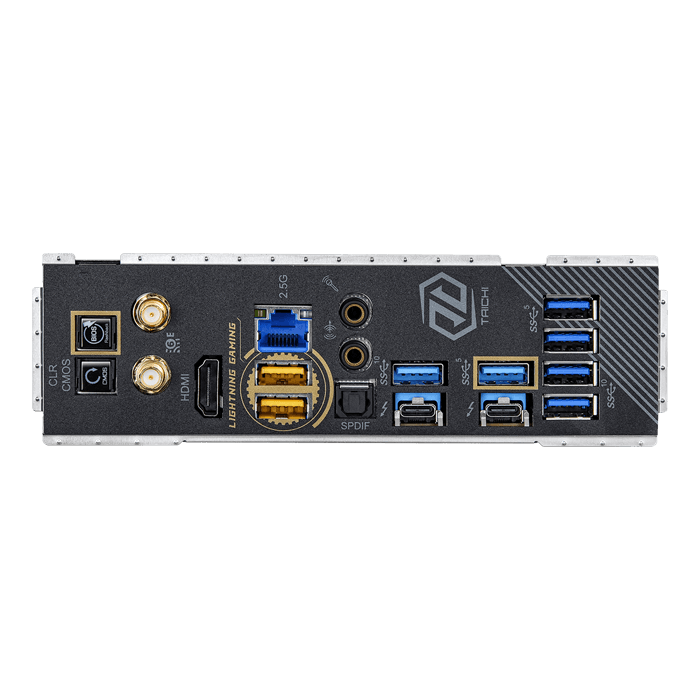

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.) - 3 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - Killer Control Center - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | - 1 x User Manual - 4 x SATA Data Cables - 1 x Wireless Dongle USB Bracket - 1 x Blazing M.2 Gen5 Fan Heatsink - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm - 8 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
