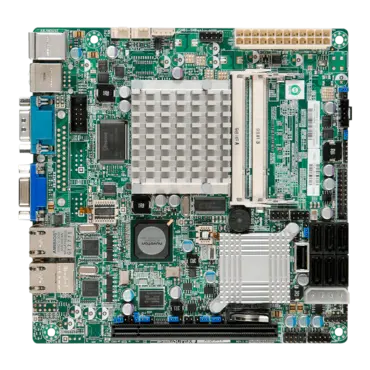

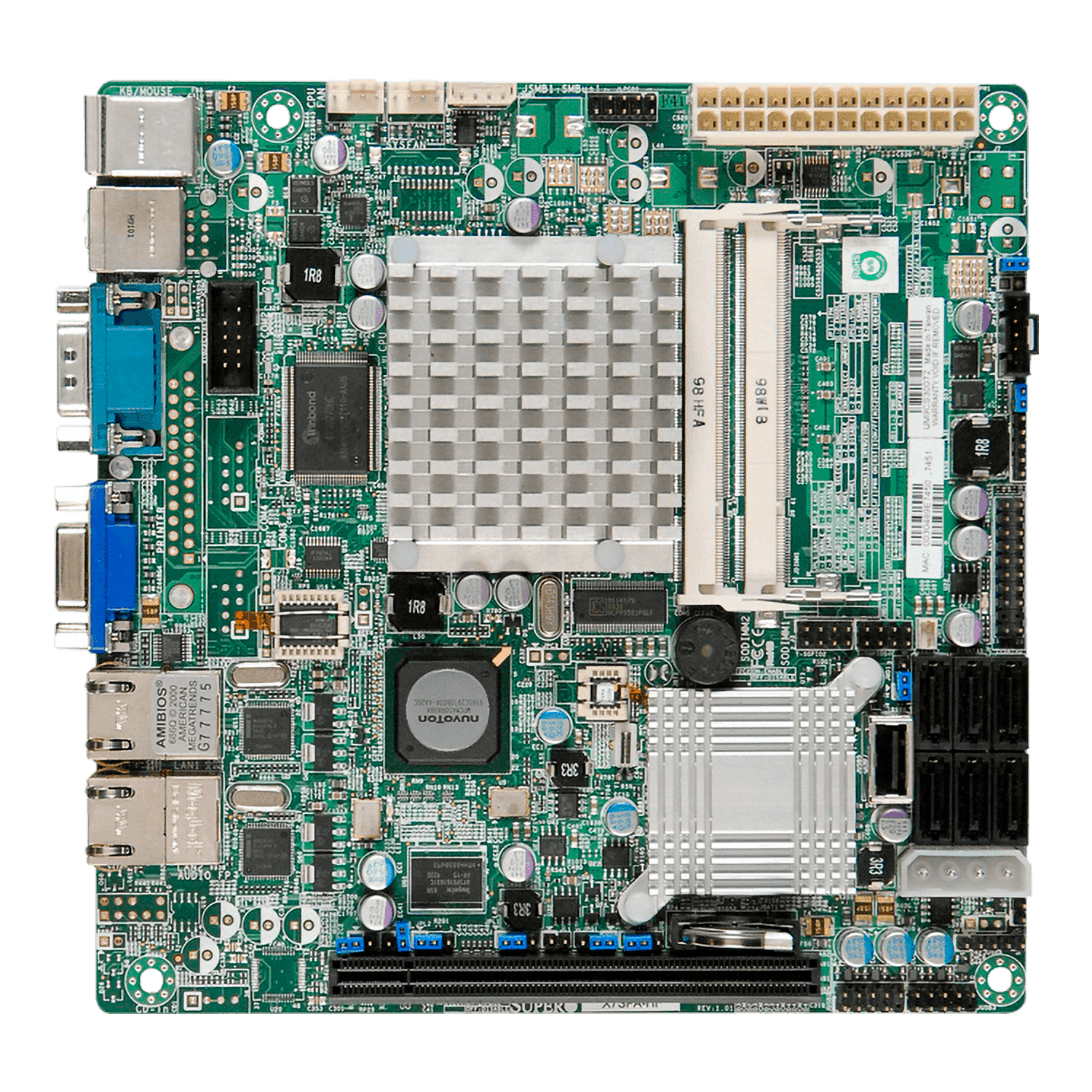

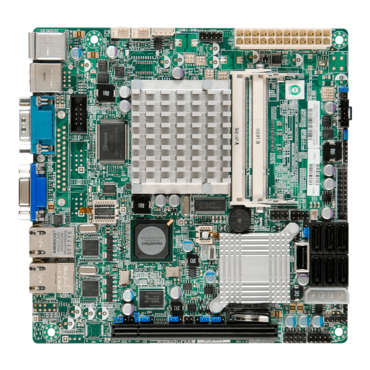

X7SPA-H-D525, Intel Atom D525 Dual-Core 1.8GHz, Intel ICH9R, DDR3-800 SODIMM 4GB / 2, VGA, GbLAN / 2, Mini-ITX, Retail

SKU: 5003581
Manufacturer: SUPERMICRO
MPN: X7SPA-H-D525-O
Availability: LOW STOCK

Price

$207.00

Intel® Atom™ D525 (Pineview-D)
Dual Core, 1.8GHz (13W) processor
Intel® ICH9R Express Chipset
Up to 4GB single channel unbuffered,
non-ECC DDR3 800MHz SO-DIMM
Dual Intel 82574L Gigabit LAN ports
6x SATA (3.0Gbps) Ports
RAID 0, 1, 5, 10 (Windows Only)
1 (x4) PCI-E 2.0 (in x16) slot
8x USB 2.0 ports (2 rear ports +
5 via headers + 1 Type A connector)
Integrated Intel GMA3150 Video
DOM Power connector

Product SKUs
MBD-X7SPA-H-D525 -O	X7SPA-H-D525 (Standard Retail Pack)
MBD-X7SPA-H-D525 -B	X7SPA-H-D525 (Bulk Pack)
Physical Stats
Form Factor	Mini ITX
Dimensions	6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU	Intel® Atom™ D525 processor
System Bus	DMI
System Memory
Memory Capacity	Two 204-pin SO-DIMM slots Supports up to 4GB of unbuffered, non-ECC DDR3 800MHz SO-DIMM (Single Channel) Some 1066MHz and 1333MHz memory can be used, but will operate at 800MHz Note: Supports 1-Gb and 2-Gb devices only - Intel D525 Memory Requirements
Memory Type	DDR3 800MHz unbuffered, non-ECC SO-DIMM
DIMM Sizes	2GB, 1GB
Memory Voltage	1.5V only
On-Board Devices
Chipset	Intel ICH9R Express chipset Dual Intel 82574L G-bit ethernet controller
SATA	Intel ICH9R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows Only)
Network Controllers	Dual Intel 82574L Gigabit Ethernet LAN Supports 10BASE-T, 100/1000BASE-TX, RJ45 output
Graphics	Integrated Intel GMA3150 video
Super I/O	Winbond 83627DHG chip
Input / Output
Serial ATA	6 Serial ATA ports (3Gb/s)
LAN	2x RJ45 LAN port
USB	8x USB 2.0 / 1.1 compatible 2 rear + 5 via headers + 1 Type A connector
VGA	D-Sub 15
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Ports	1x Fast UART 16550 serial port 1x Serial Header
System BIOS
BIOS Type	8Mb Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.3
OS Compatibility
Please see our OS Compatibility Chart
Chassis ( Optimized for X7SPA-H-D525 )
Expansion Slots
PCI-Express	1 (x4) PCI-E 2.0 (in x16) slot
Management
Software	SuperDoctor® III Watch Dog
Power Configurations	ACPI/APM Power Management Main Switch Override Mechanism Suspend to RAM (STR) Power-on mode control for AC power recovery Internal / External modem remote ring-on
PC Health Monitoring
Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, VBAT, Memory, Chipset CPU Core 1-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
FAN	Total of two 4-pin fan headers 2 x fans with tachometer monitoring Status monitor for speed control Status monitor for on / off control Support 3-pin fans (without speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan conn.
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 2 x Fan Connectors I2C temperature sensing logic Thermal Monitor 2 (TM2) Support
LED	CPU / System Overheat LED
Other Features	Chassis intrusion Detection Chassis intrusion Header SDDC Support
Operating Environment / Compliance
RoHS	RoHS Compliant 6/6, Pb Free
Environmental Spec.	Operating Temperature: 0°to 55°C Non-operating Temperature: -40°to 70°C Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)
Regulatory
FCC	Class B
