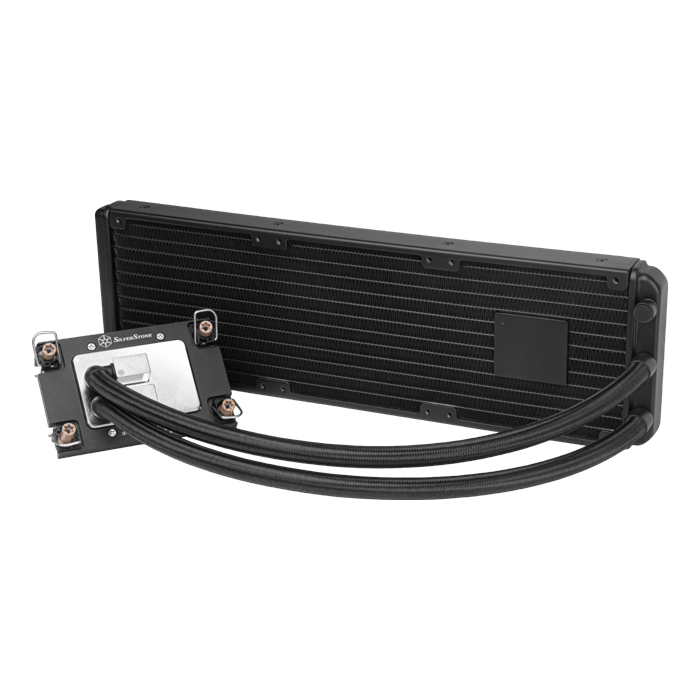

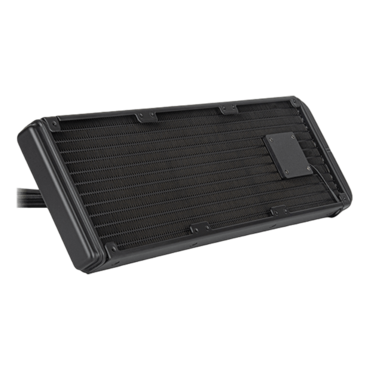

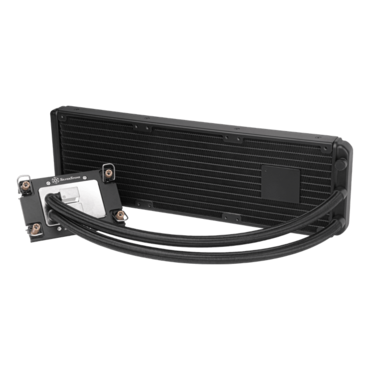

XE360-4677, 360mm Radiator, Liquid Cooling System
Optimum cooling guaranteed!

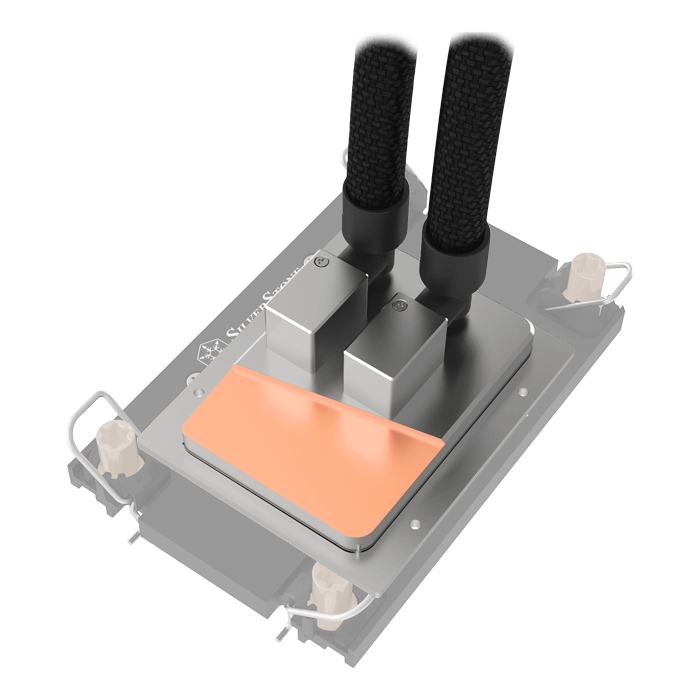

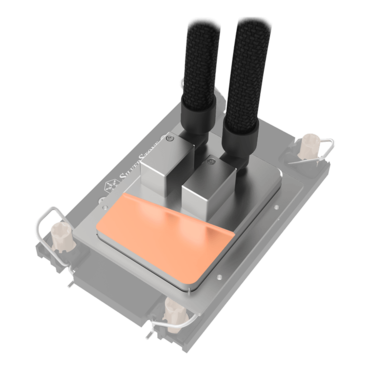

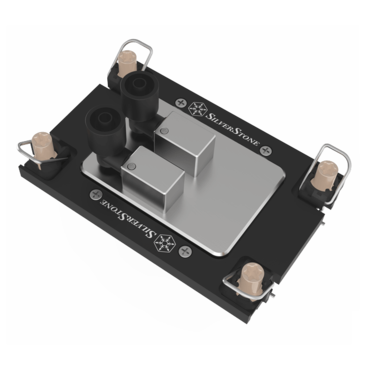

The water block is constructed with nickel-plated copper, incorporated with a copper base active cooling surface to ensure full coverage of process cores on Sapphire Rapids-based CPUs

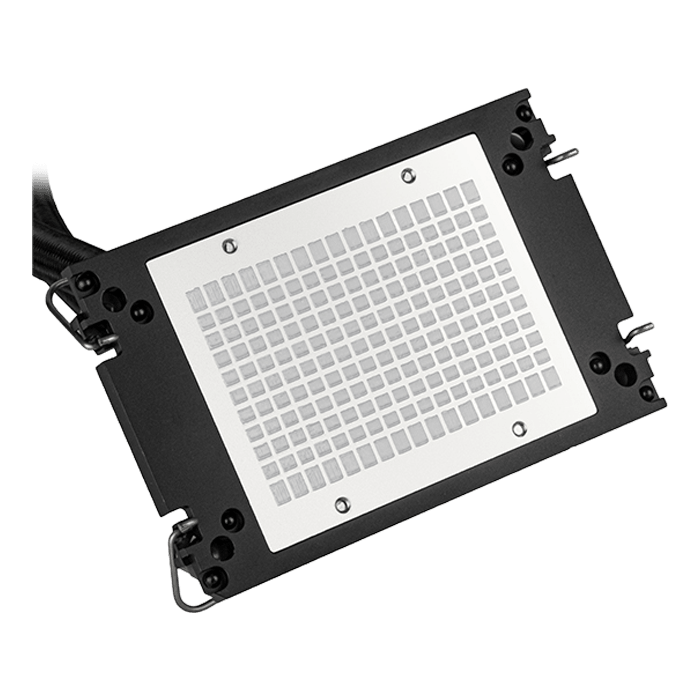

- Nickel plated copper water block with large-sized micro-channel copper base plate
- Water pump integrated within the radiator
- Aluminum alloy cavity pump strengthens the overall structure
- Three phase, six pole motor design

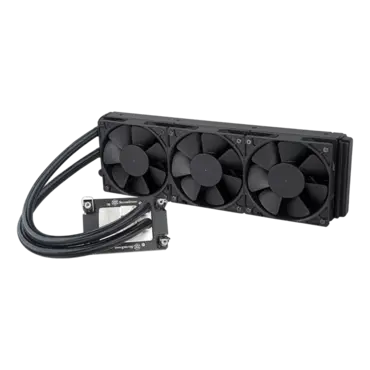

- 3 x 120mm radiator-optimized cooling fans
Model No. | SST-XE360-4677 |
Application | Intel LGA4677 (CPU Carrier not included) |

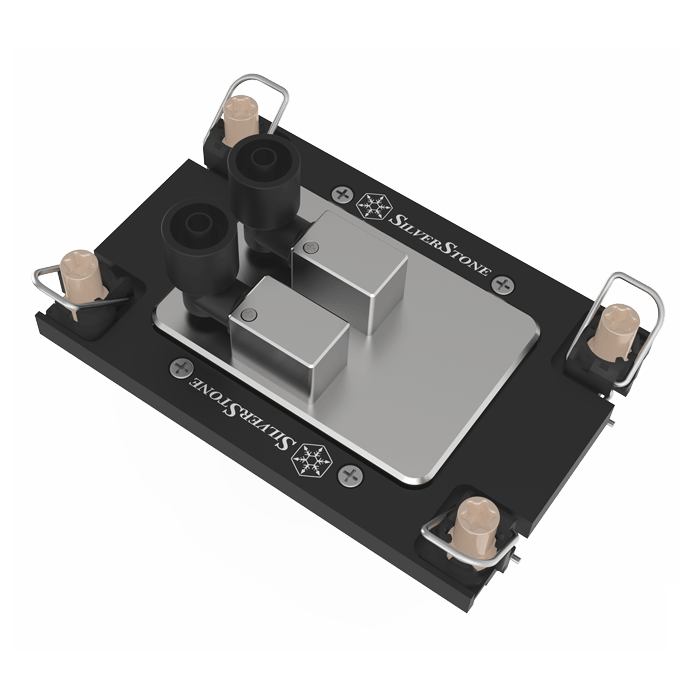

Water block | |
Dimension | 78mm (W) x 25mm (H) x 118mm (D) 3.07" (W) x 0.98" (H) x 4.65" (D) |
Material | Copper base with aluminum body |
Pump | |
Motor speed | 4000 ±10% RPM |
Rated Voltage | 12V |
Rated Current | 0.38A |
Connectors | 3 pin |
Radiator | |

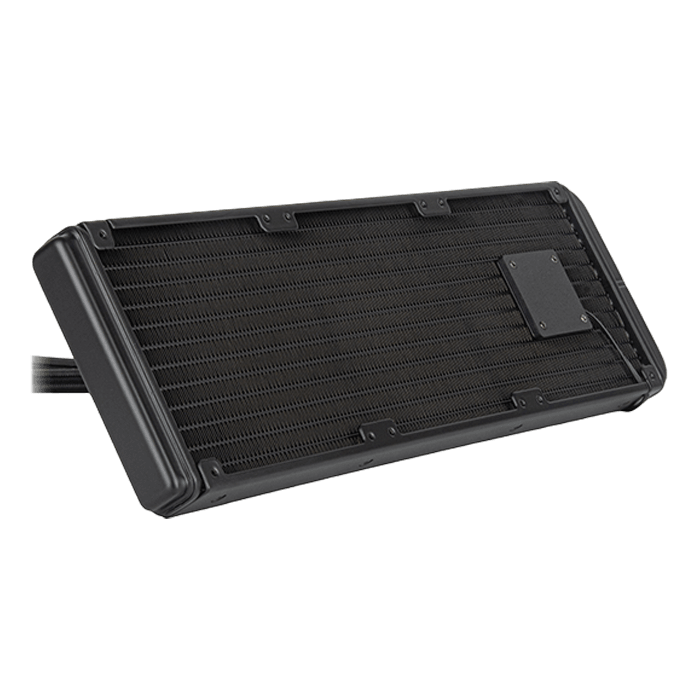

Dimension | 120mm (W) x 28mm (H) x 394mm (D) 4.72" (W) x 1.1" (H) x 15.5" (D) |
Material | Aluminum |
Tube | |
Length | 460mm |
Material | Rubber |
Fan | |
Dimension | 120mm (W) x 25mm (H) x 120mm (D) 4.72" (W) x 0.98" (H) x 4.72" (D) |
Speed | 600 ~ 2800 RPM |
Noise level | 46 dBA |
Rated Voltage | 12V |
Rated Current | 0.25A |
Max airflow | 87.72 CFM |
Max air pressure | 3.09mmH2O |
Connector | 4 pin PWM |
