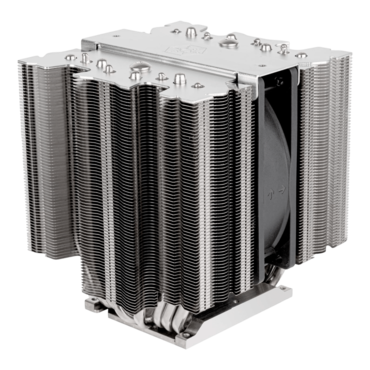

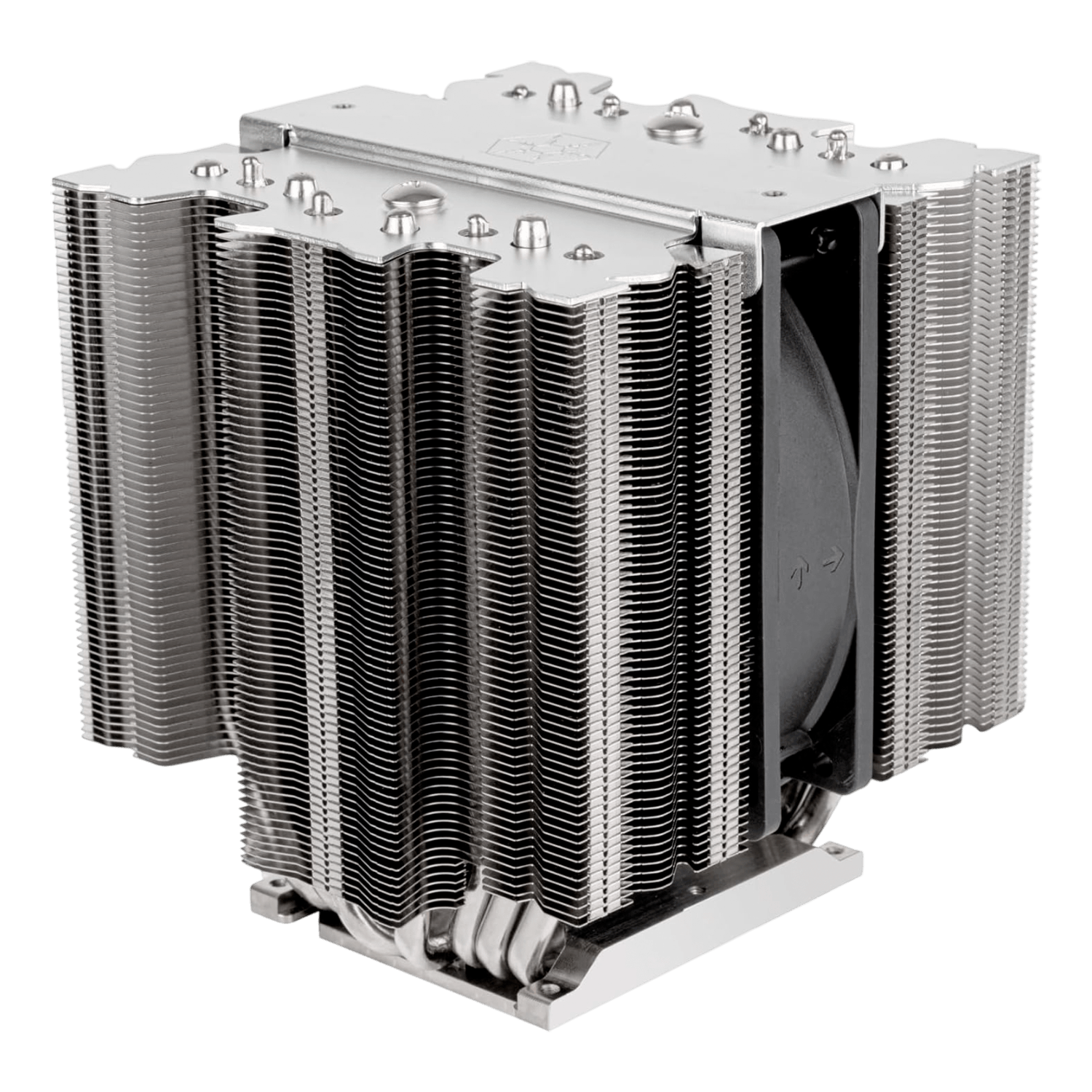

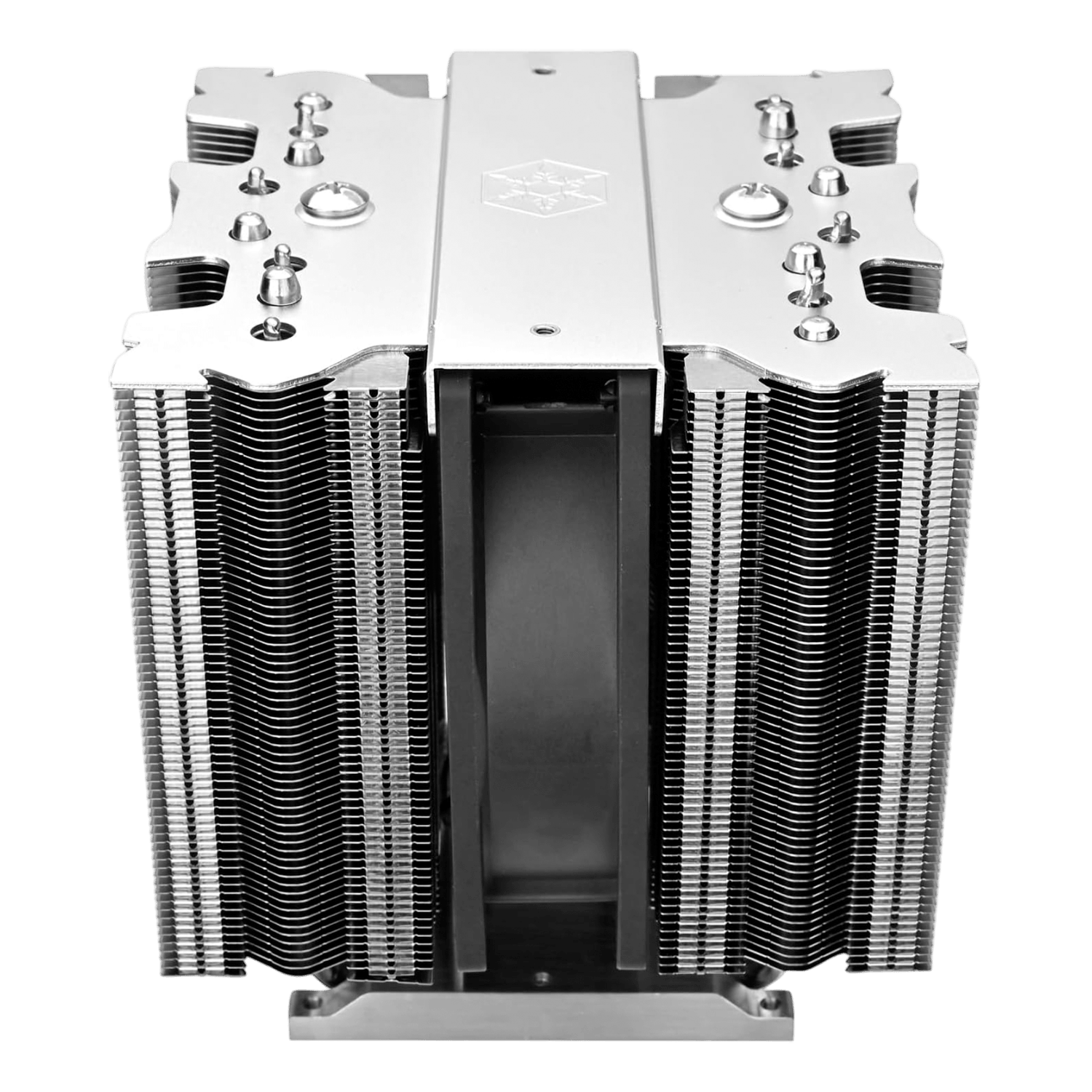

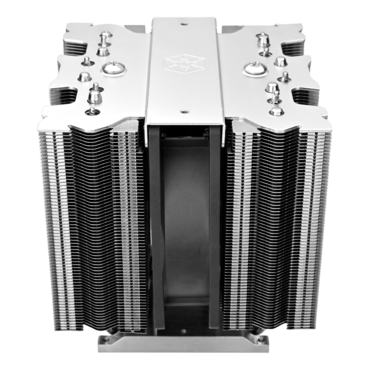

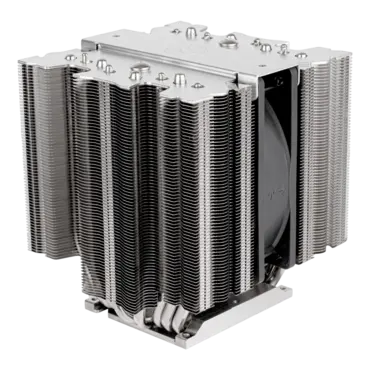

XED120 WS, 145mm Height, 450W TDP, Copper/Aluminum CPU Cooler
- SKU: 18578223
- Manufacturer: SILVERSTONE
- MPN: XED120S-WS
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
- Designed for optimal cooling in server-grade motherboards with dual CPU sockets
- Enhanced heat dissipation with front-to-back-directional airflow air duct for effective CPU and VRM cooling.
- Complies with 4U rackmount chassis standards, with a height of 145mm

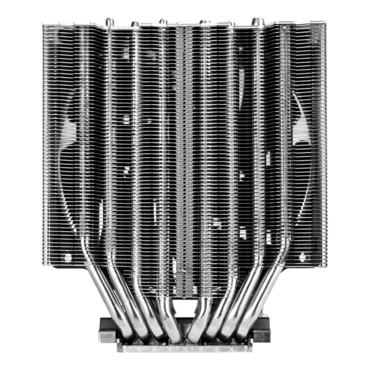

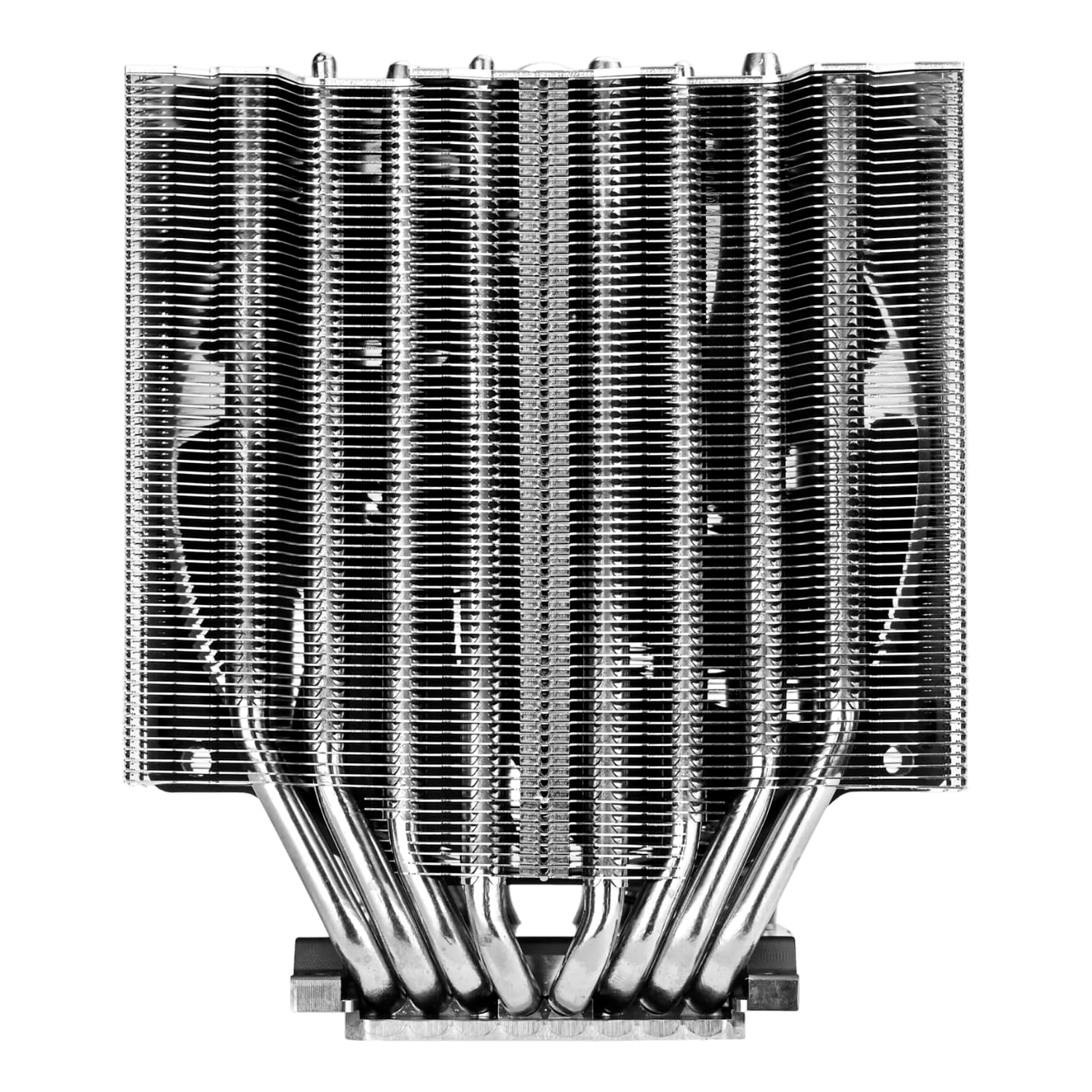

- Features 8 Ø6mm heat pipes and aluminum fins for superior cooling
- Includes a 120mm x 30mm PWM dual ball bearing fan

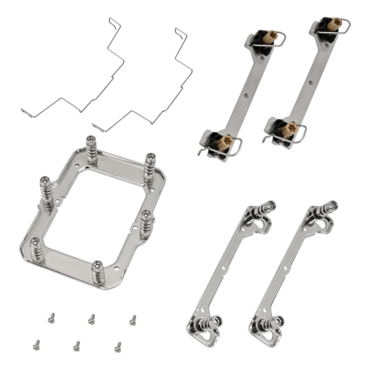

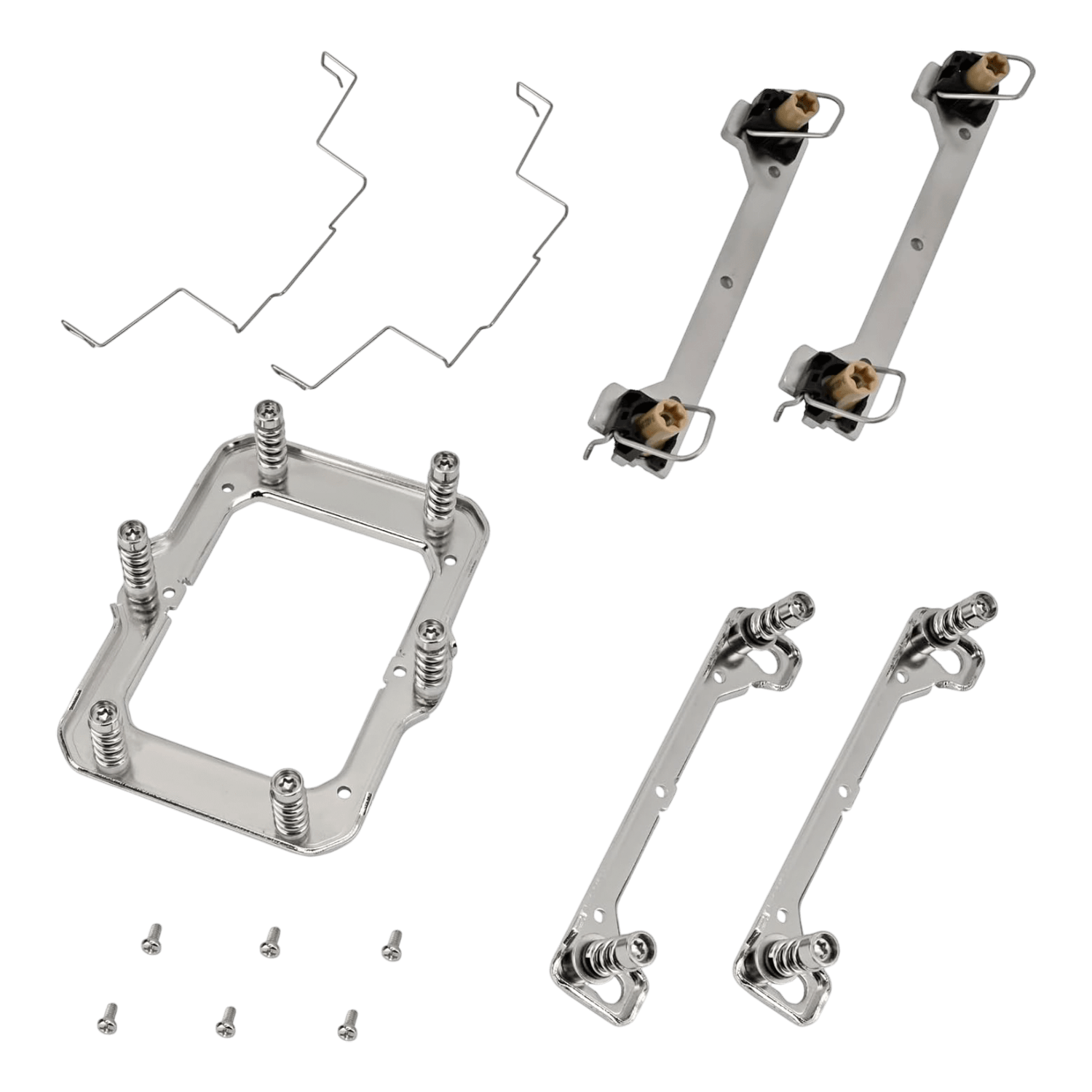

- Metal fan mounting bracket ensures stability and quiet operation
- Compatible with Intel LGA4677/4710 and AMD Socket SP5/SP6/sTR5/SP3/TR4/sWRX8/sWRX9
| Model No. | SST-XED120S-WS |
| Material | Copper heat pipes with aluminum fins |
| Application |
Intel LGA4677/4710(CPU Carrier not included) AMD Socket SP5/SP6/sTR5/SP3/TR4/sWRX8/sWRX9 |
| Fan | |
| Dimension |
120mm (W) x 30mm (H) x 120mm (D) 4.72" (W) x 1.18" (H) x 4.72" (D) |
| Speed | 500~3000 RPM |
| Noise level | 44.9 dBA |
| Rated Voltage | 12V |
| Rated Current | 0.35A |
| Max airflow | 102 CFM |
| Max air pressure | 8.24mmH2O |
| Connector | 4 pin PWM |
| Bearing | Dual Ball Bearing |
| MTTF | 70,000 hours |
| CPU TDP | 450W |
| Dimension |
120mm (W) x 145mm (H) x 120mm (D) 4.72" (W) x 5.71" (H) x 4.72" (D) |
| Net weight | 1.15kg |
