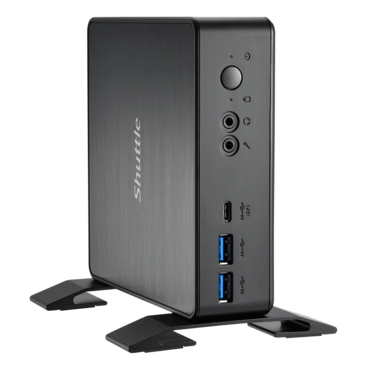

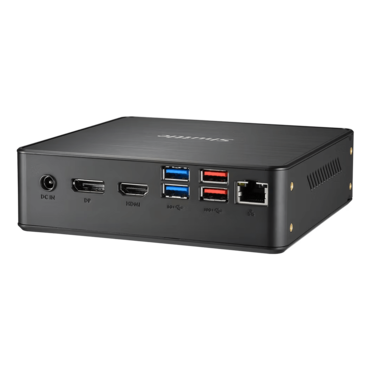

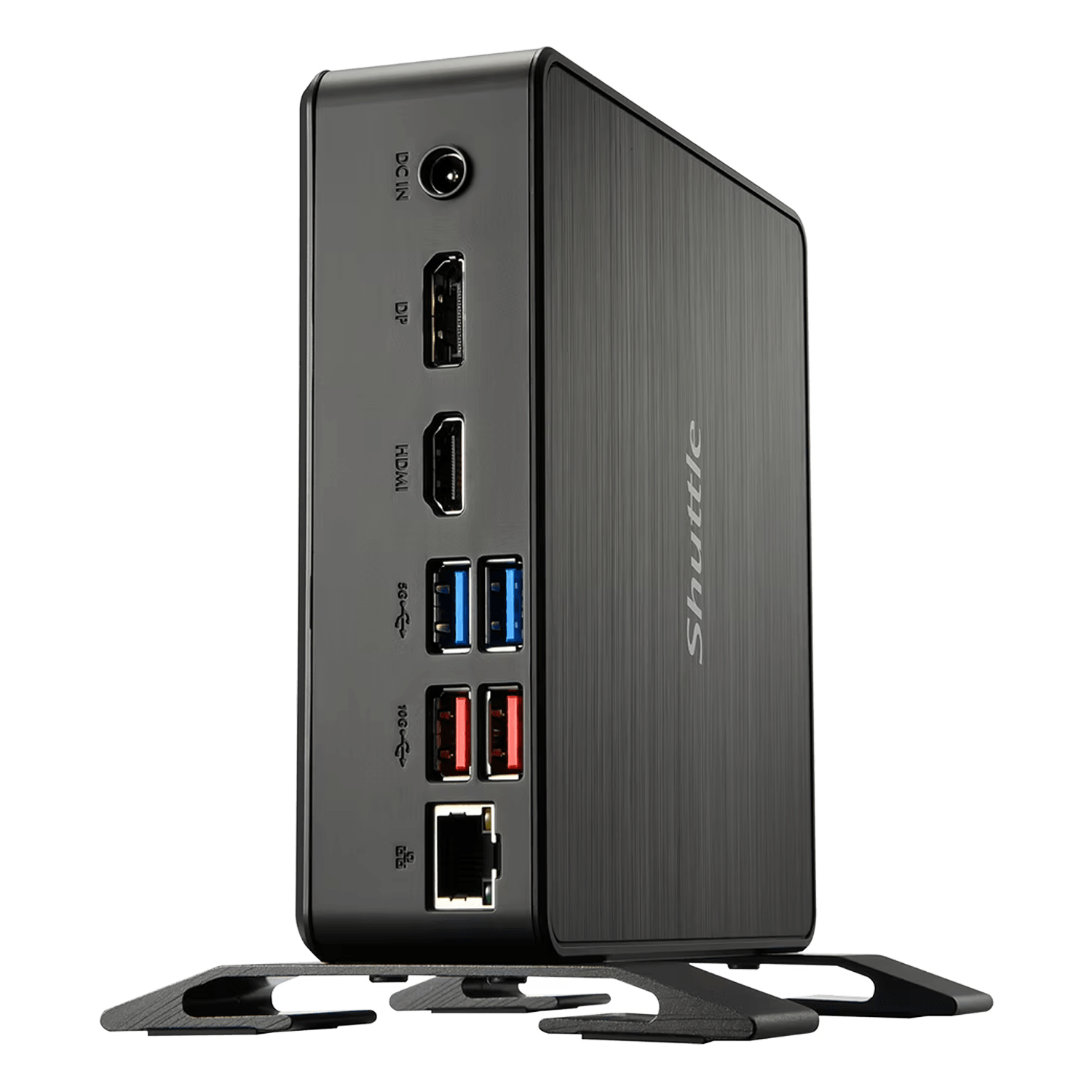

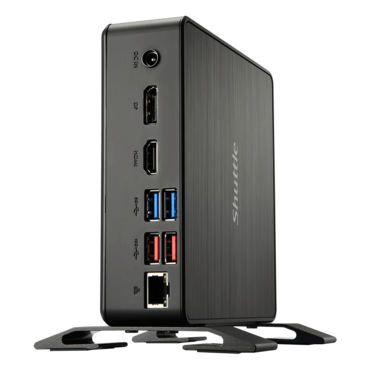

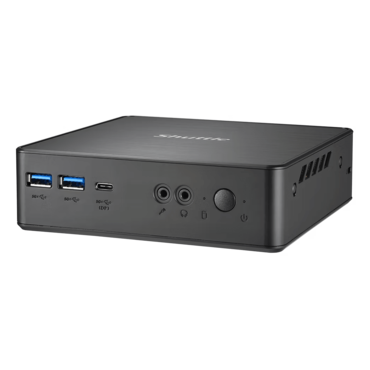

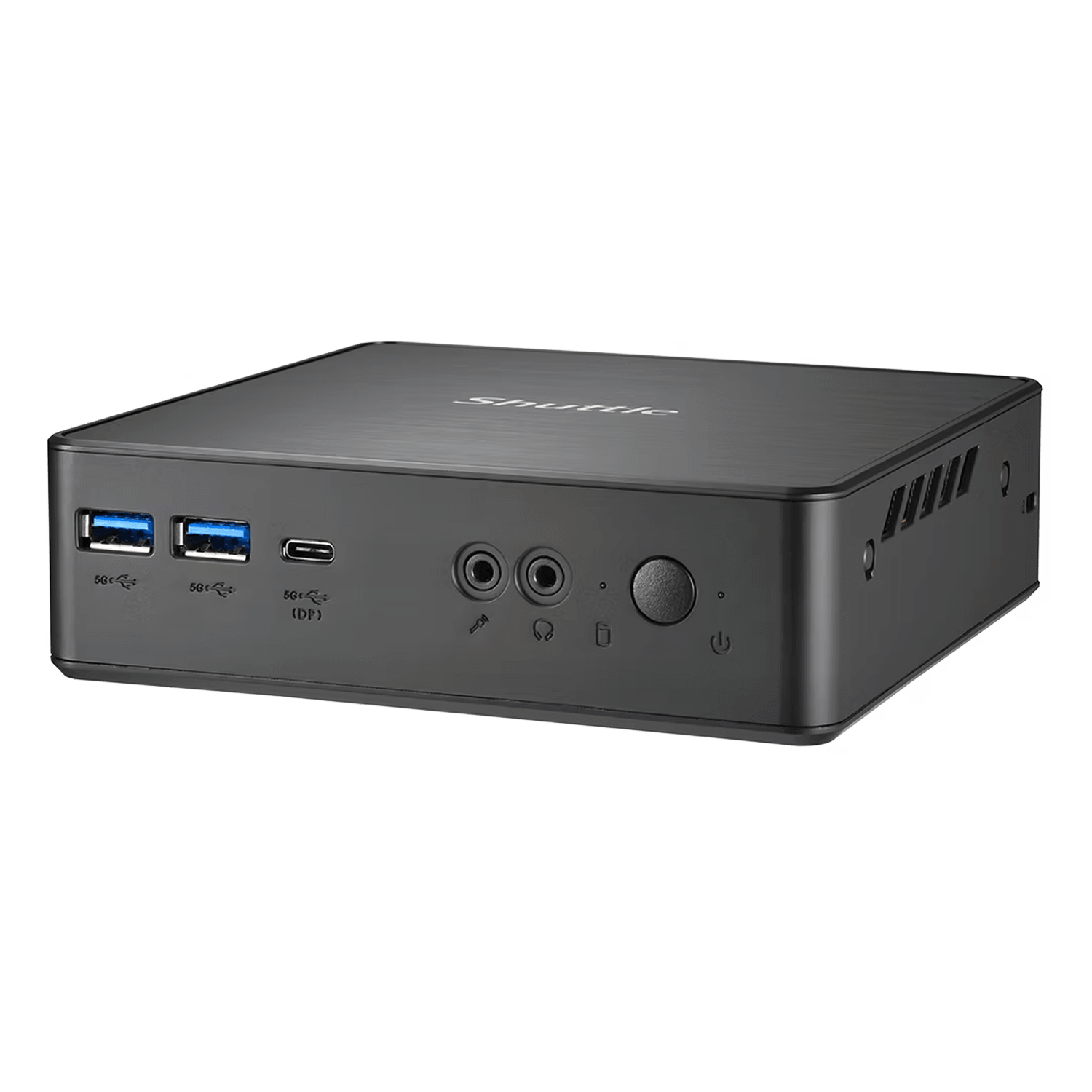

XPC Nano NC40U7, Intel® Core™ i7-1255U, 2x DDR4 SO-DIMM, 2x M.2, 1x 2.5" HDD/SSD, Intel® UHD Graphics, Slim PC Barebone
- SKU: 19929907
- Manufacturer: SHUTTLE
- MPN: NC40U7
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$889.99
| PROCESSOR | Intel® Alder Lake-U Intel® Core™ i7-1255U 15W CPU |
|---|---|
| MEMORY | 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual channel DDR4 3200 MHz |
| VIDEO GRAPHICS | Intel Ultra HD Graphics |
| VIDEO OUTPUT | HDMI + DisplayPort x 2 (USB-C x 1 supports DP 1.4a), Supports three displays |
| AUDIO | C-Media CM6542 HD Audio |
| ETHERNET | Intel i219 Gigabit LAN 10/100/1000 MB/s operation |
| WI-FI | Realtek RTL8188EE 802.11 b/g/n |
| STORAGE INTERFACE | SATA 6 GB/s |

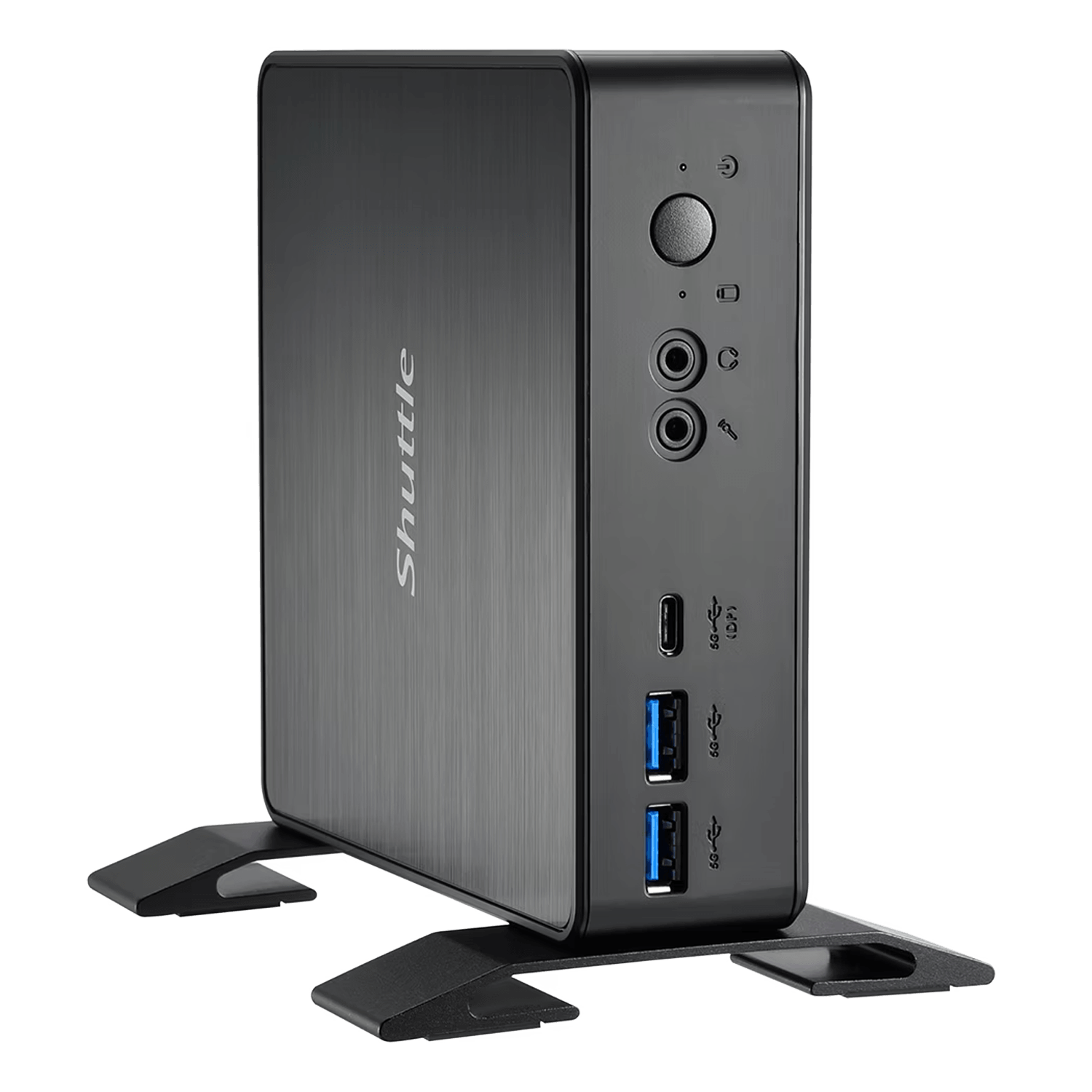

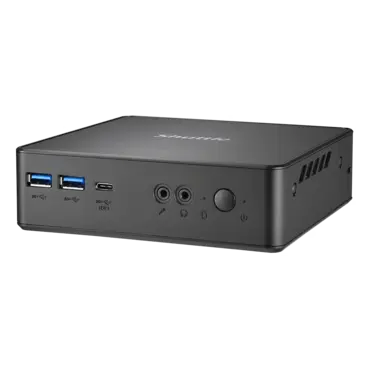

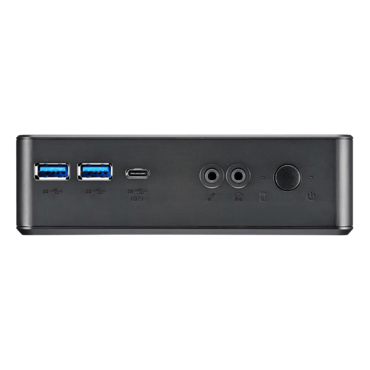

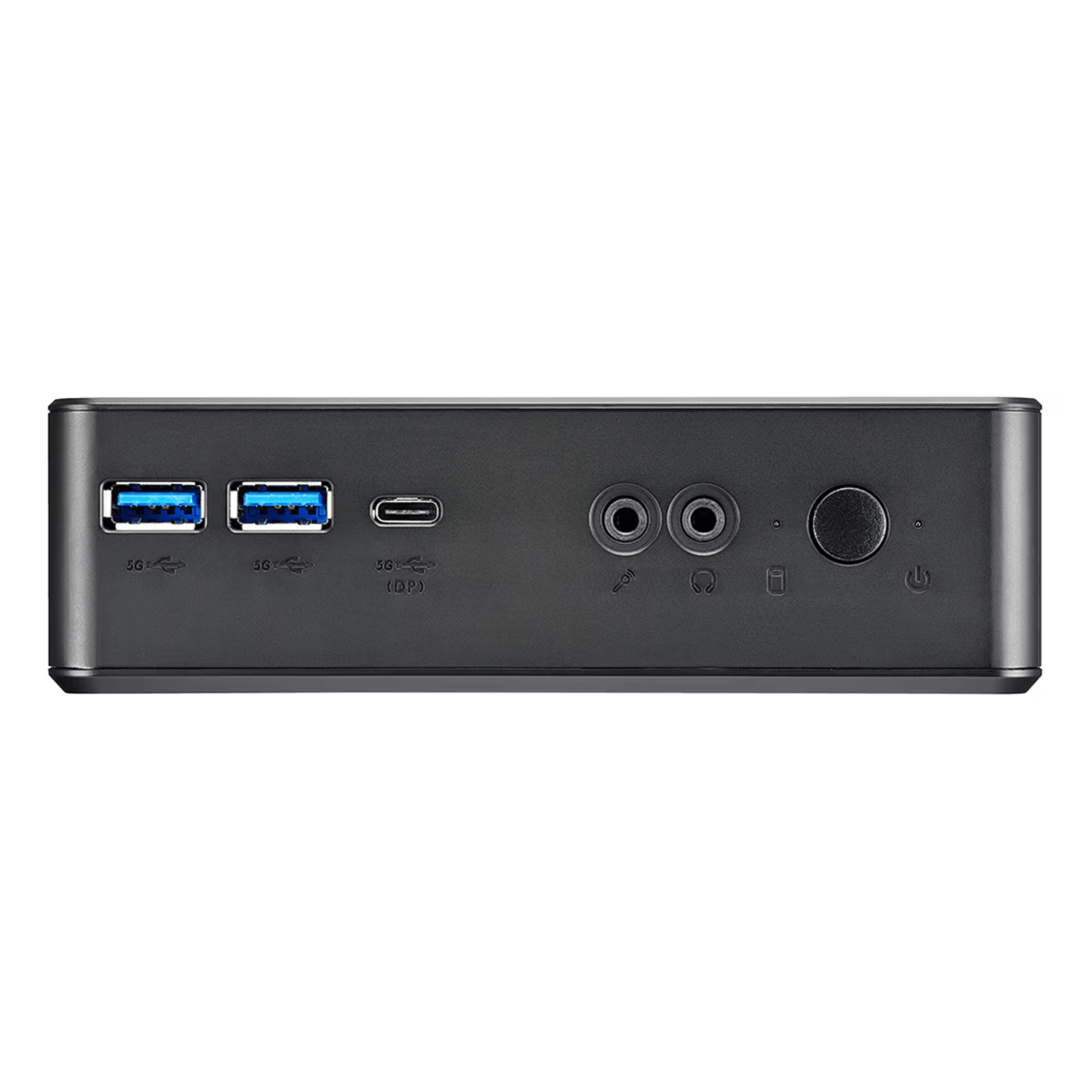

| FRONT PANEL |
(1) Power Button (1) Power LED (1) HDD LED (1) USB 3.1 Gen 1 Type A (1) USB 3.1 Gen 1 Type C (1) SD Card Reader |

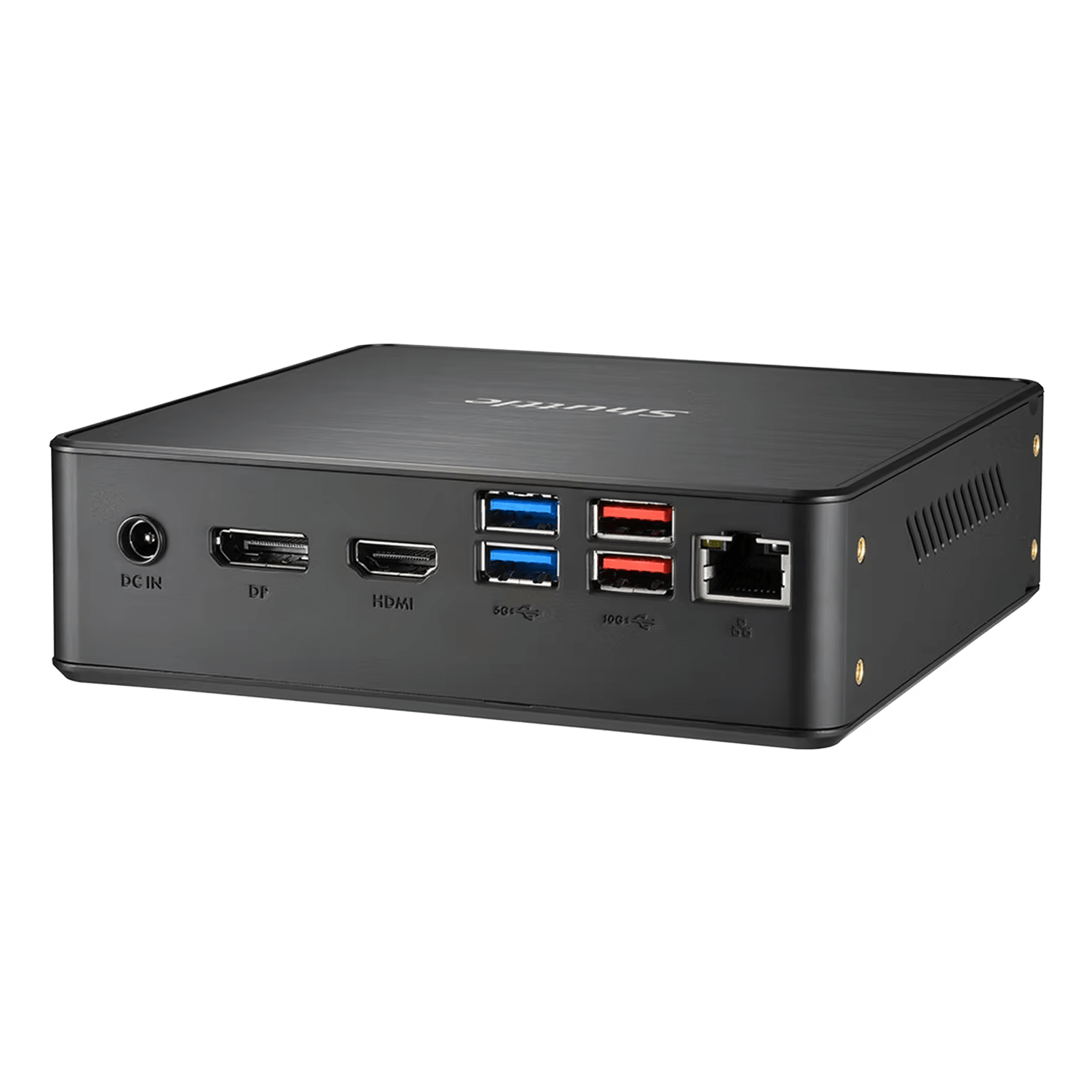

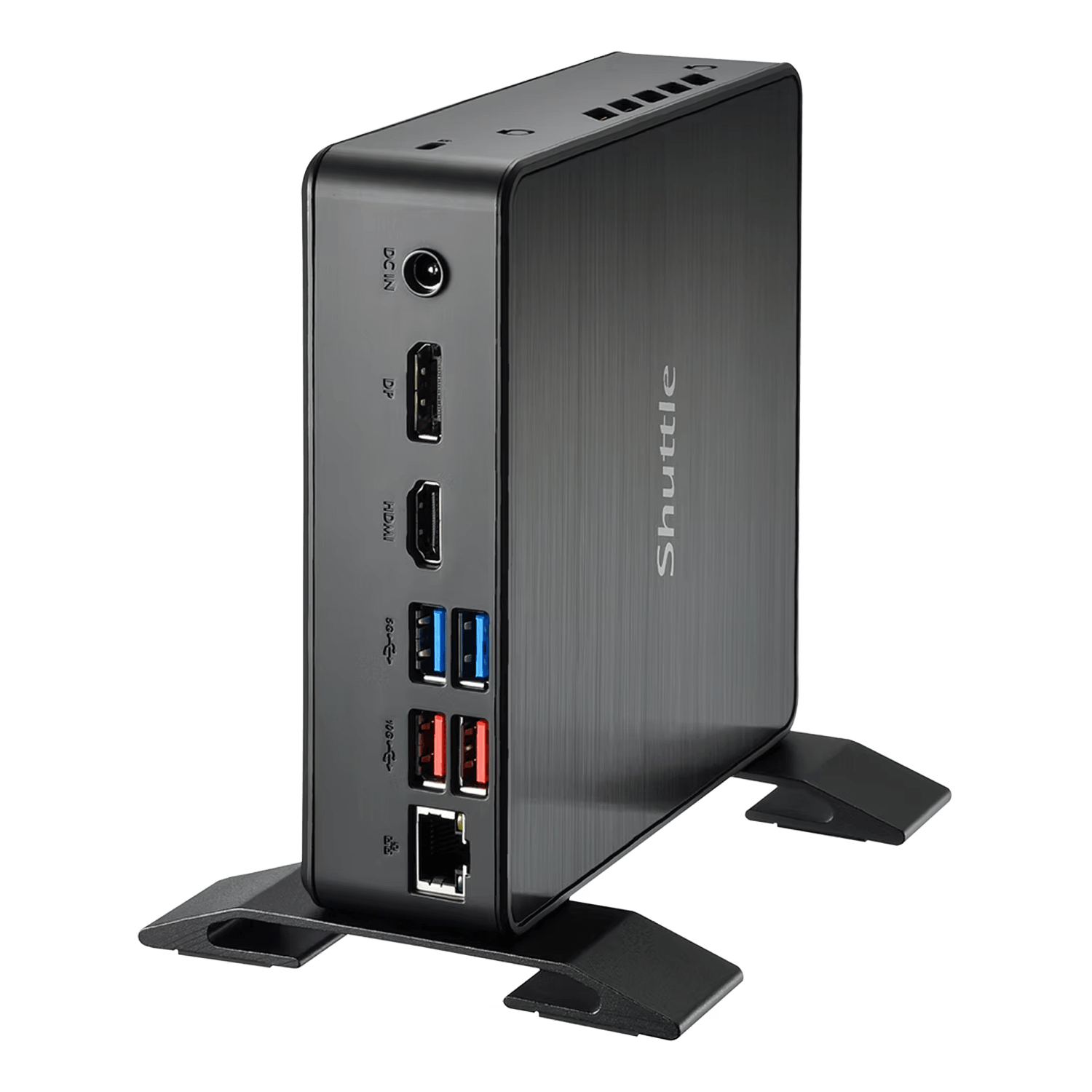

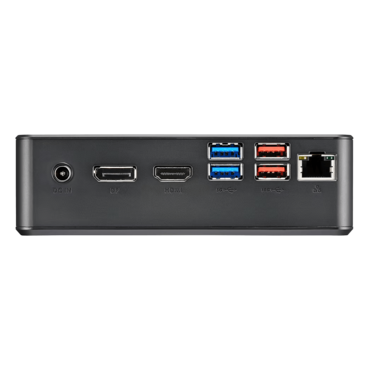

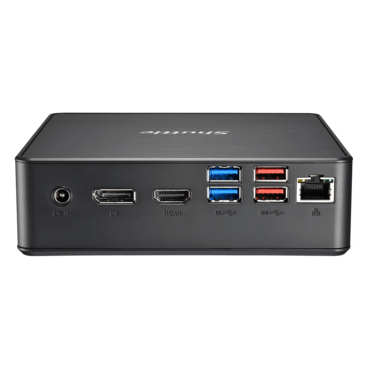

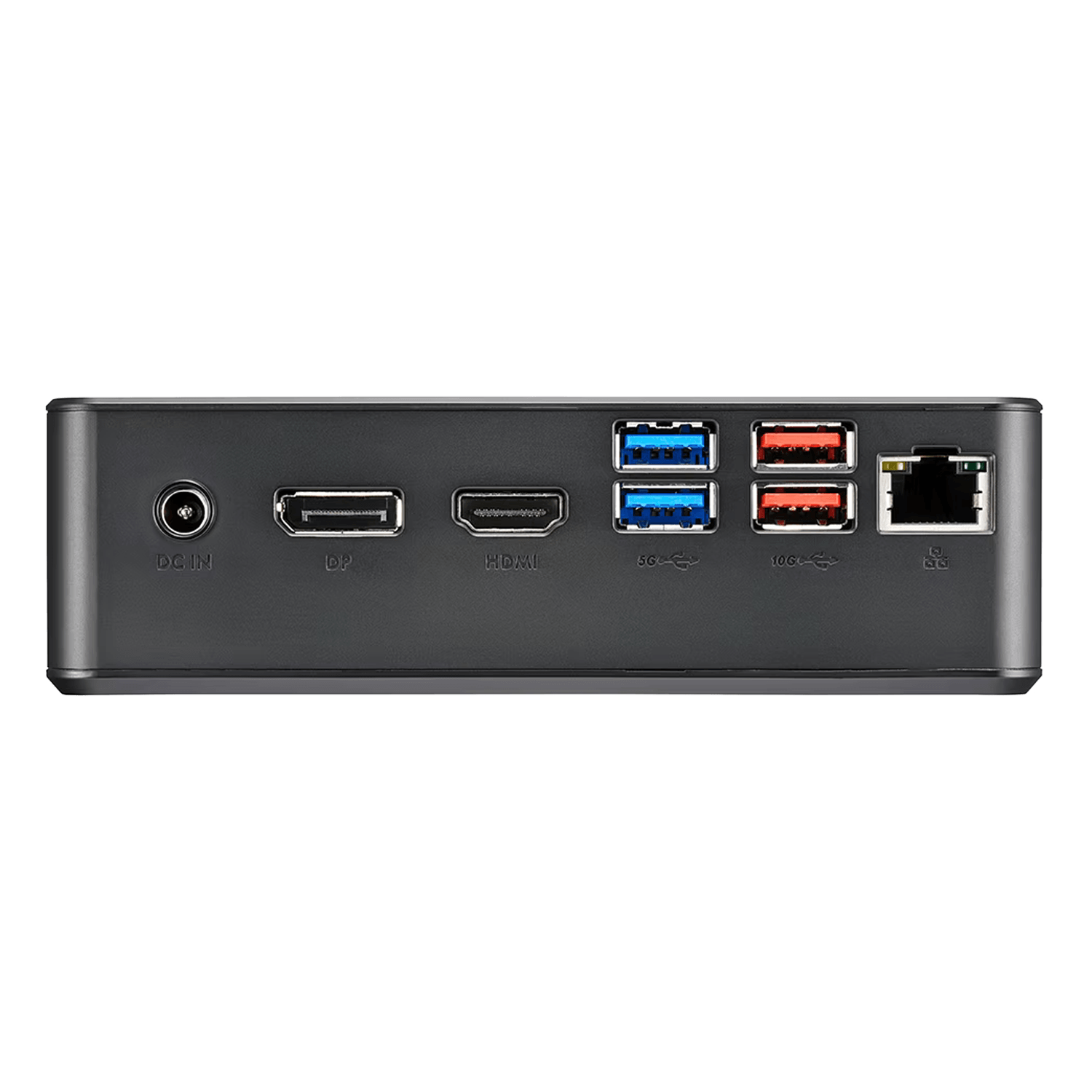

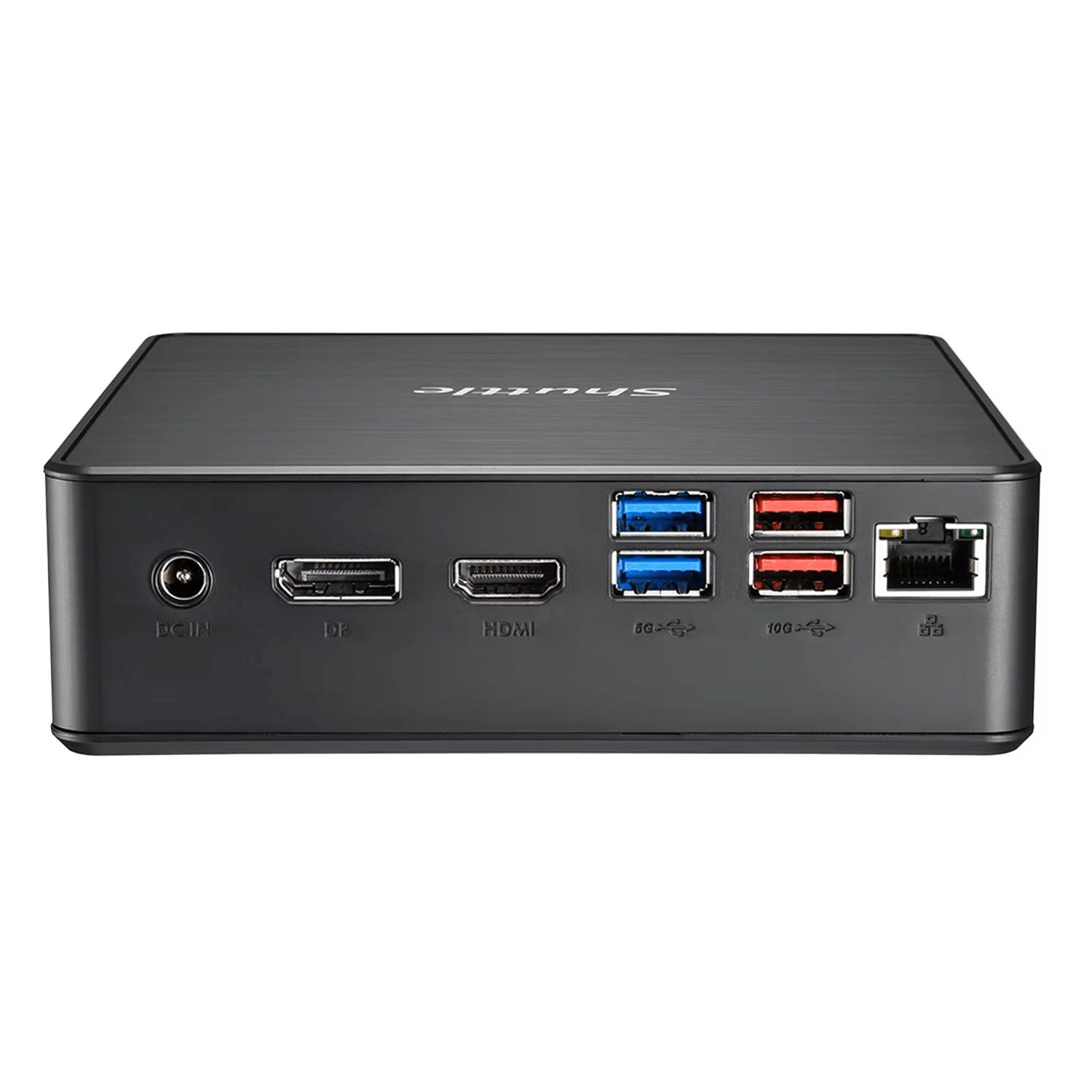

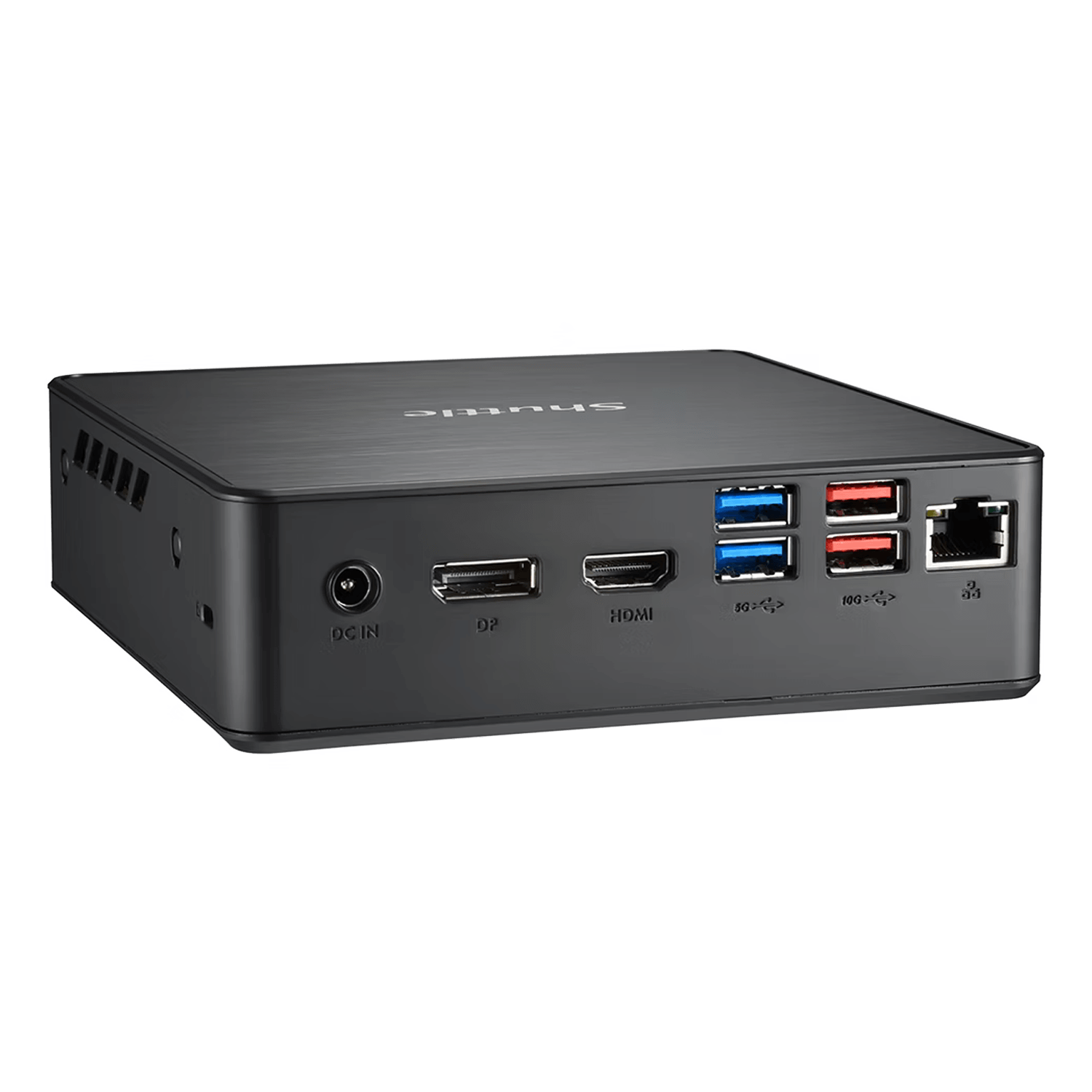

| BACK PANEL |
(1) HDMI 2.0a (1) DisplayPort 1.4a (2) USB 2.0 (1) RJ45 (1) DC-in jack (1) Headphone + MIC in combo jack (1) Kensington Lock (1) RS232 |
| DRIVE BAYS | (1) 2.5" 15mm SATA HDD/SSD |
| DIMENSIONS | 5.6(L) x 5.6(W) x 1.7(H) inches |
| POWER | Input: 100 - 240V AC (50/60Hz) Output: 19V 3.42A, 2 pin 65W power supply |
| ACCESSORIES |
Quick Guide Vertical stand Power adapter Power cord VESA mount VESA mount screws Driver DVD |
| EXPANSION SLOT |
M.2 2230 E key M.2 2280 M key (supports PCIe Gen 3 X4, SATA 6 GB/s) M.2 2280 M key (supports PCIe Gen 4 X4) 2.5" 15mm SATA |
| OS SUPPORT |
Windows 10 Linux |
