XPC Nano NS02AV2, 0.57L, Android, Rockchip RK33681, 2GB RAM, 16GB eMMC storage, Fanless, Media Player w/Digital Signage App, VESA mount
- SKU: 15066612
- Manufacturer: SHUTTLE
- MPN: NS02AV2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
XPC Nano NS02AV2, 0.57L, Android, Rockchip RK33681, 2GB RAM, 16GB eMMC storage, Fanless, Media Player w/Digital Signage App, VESA mount
NS02AV2 is one of the most affordable models Shuttle's product family of Mini PCs has on offer. It not only convinces by its stunning looks and reliable long-term performance alone, it also comes with an integrated Octa-Core ARM processor and pre-installed Android operating system. Featuring HDMI 2.0, 4x USB 2.0, Gigabit-LAN, WLAN-ac and a built-in card reader, they easily connect to diverse peripheral devices for different kinds of application. This product is particularly intended for digital signage and Thin Client applications.
NS02AV2 is one of the most affordable models Shuttle's product family of Mini PCs has on offer. It not only convinces by its stunning looks and reliable long-term performance alone, it also comes with an integrated Octa-Core ARM processor and pre-installed Android operating system. Featuring HDMI 2.0, 4x USB 2.0, Gigabit-LAN, WLAN-ac and a built-in card reader, they easily connect to diverse peripheral devices for different kinds of application. This product is particularly intended for digital signage and Thin Client applications.
| Processor | Rockchip RK3368 Octa-Core 64-bit SoC, 1.5 GHz max |
| Memory | 2 GB onboard |
| Video / Graphics | PowerVR SGX6110 GPU, supports H.265 videos |
| Video Output | HDMI 2.0 port |
| Audio | Realtek ALC5640-VB3 |
| Ethernet | RTL8211F-CG, 10/100/1000 Mbps Miracast support |
| Wi-Fi / Bluetooth | RTL8723BS 802.11 b/g/n 1T1R with Bluetooth 4.0 |
| Storage Interface | 16 GB eMMC onboard |
| Front Panel |
• Power button • Power LED • HDD LED • 2 × USB 2.0 ports • SD card reader |

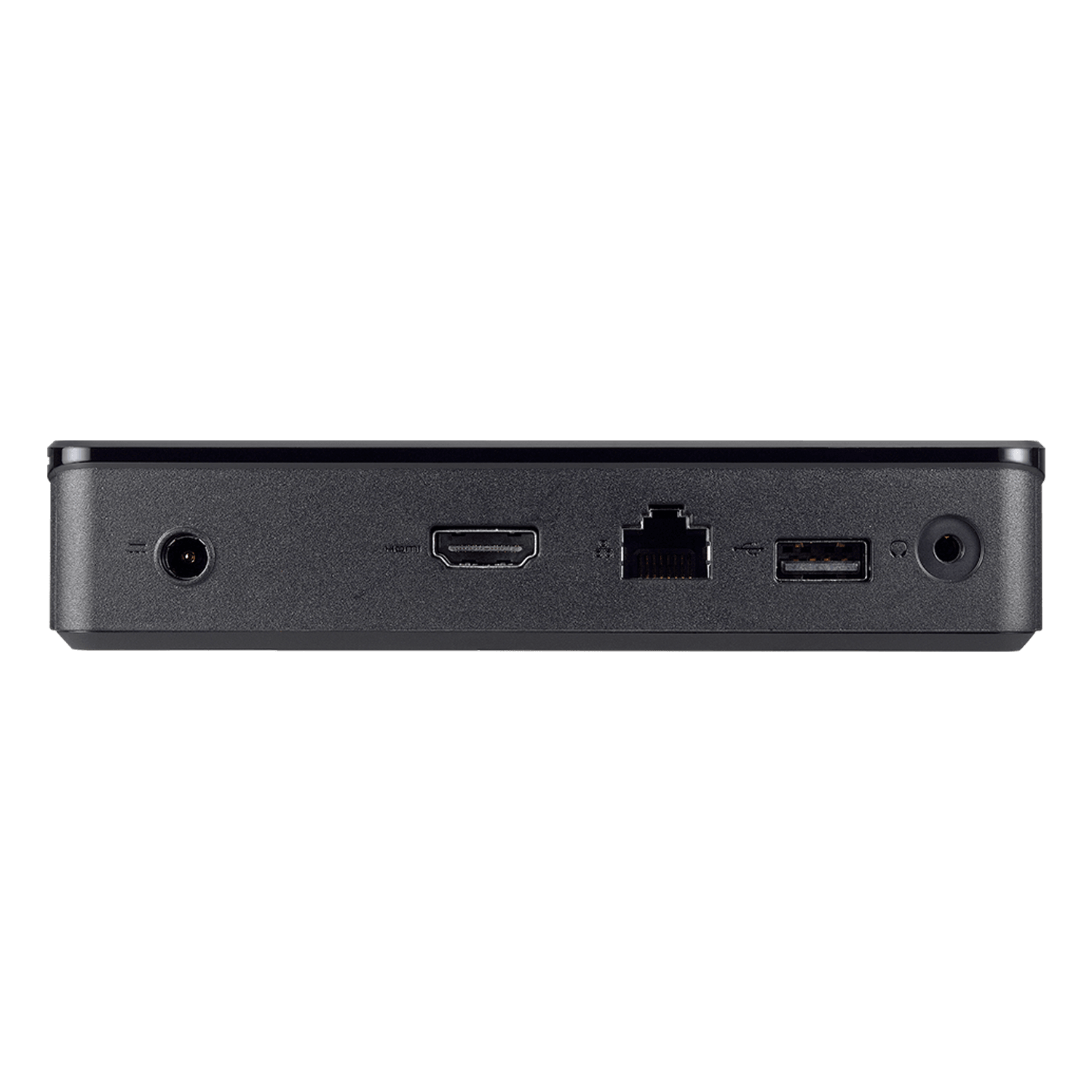

| Back Panel |
• HDMI 2.0 • 1 × USB 2.0 • RJ-45 Gigabit LAN port • Kensington lock • 3.5 mm line-out jack • DC-in |
| Power |
• Input: 100-240 V AC |
| Dimensions | 5.55(L) x 5.55(W) x 1.14(H) inches |
| Accessories |
• Quick Guide • HDD rack and cable (optional) • 12 V / 24 W power adapter • VESA mount and screws • Rubber mats |
| Expansion Slot | (1) 2.5" 7mm HDD |
| Operating System | Android 8.1 preinstalled |
