XPC Slim DL20NV2, Intel® Celeron® N4505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
- SKU: 15852767
- Manufacturer: SHUTTLE
- MPN: DL20NV2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
XPC Slim DL20NV2, Intel® Celeron® N4505, 2x DDR4 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
DL20NV2 fanless computer series follows Shuttle's DL10J, featuring fanless Slim PC barebones with 10 nm Intel "Jasper Lake" processors. Ideal for slim PCs and network-based setups, it offers optional LTE via Shuttle's WWN03 accessory. These Slim-PCs operate silently and include Intel UHD Graphics from the 11th gen, support 4K video acceleration, and an SSD or M.2 drive.
DL20NV2 fanless computer series follows Shuttle's DL10J, featuring fanless Slim PC barebones with 10 nm Intel "Jasper Lake" processors. Ideal for slim PCs and network-based setups, it offers optional LTE via Shuttle's WWN03 accessory. These Slim-PCs operate silently and include Intel UHD Graphics from the 11th gen, support 4K video acceleration, and an SSD or M.2 drive.
- Processor: Intel Celeron N4505
- Memory: 2x 260 pin DDR4 2933 MHz SODIMM slots, Max 16GB (1x 16GB or 2x 8GB)
- Storage: Two M.2 slots (1× M.2-2280, 1× M.2-2230), 1× SATA 2,5", card reader
- Chassis: Semi-rugged chassis made of metal, compact format 7.5"(L) × 6.5"(W) × 1.7"(H)
| PROCESSOR | Intel® Jasper Lake N4505 Dual Core processor |
|---|---|
| MEMORY | 2 x DDR4 2933 MHz SODIMM slots Supports dual channel up to 16GB (8GB x 2) |
| VIDEO GRAPHICS | Intel HD graphics |
| VIDEO OUTPUT | HDMI 2.0b + DisplayPort + VGA, Supports triple independent displays |
| AUDIO | Realtek ALC897/ALC662/ALC888S, 2 channel HD audio |
| ETHERNET | Intel i211 Gigabit LAN 10/100/1000 MB/sec Supports Wake on LAN function |
| STORAGE INTERFACE | SATA III 6 GB/s for HDD/SSD SD Card Reader |

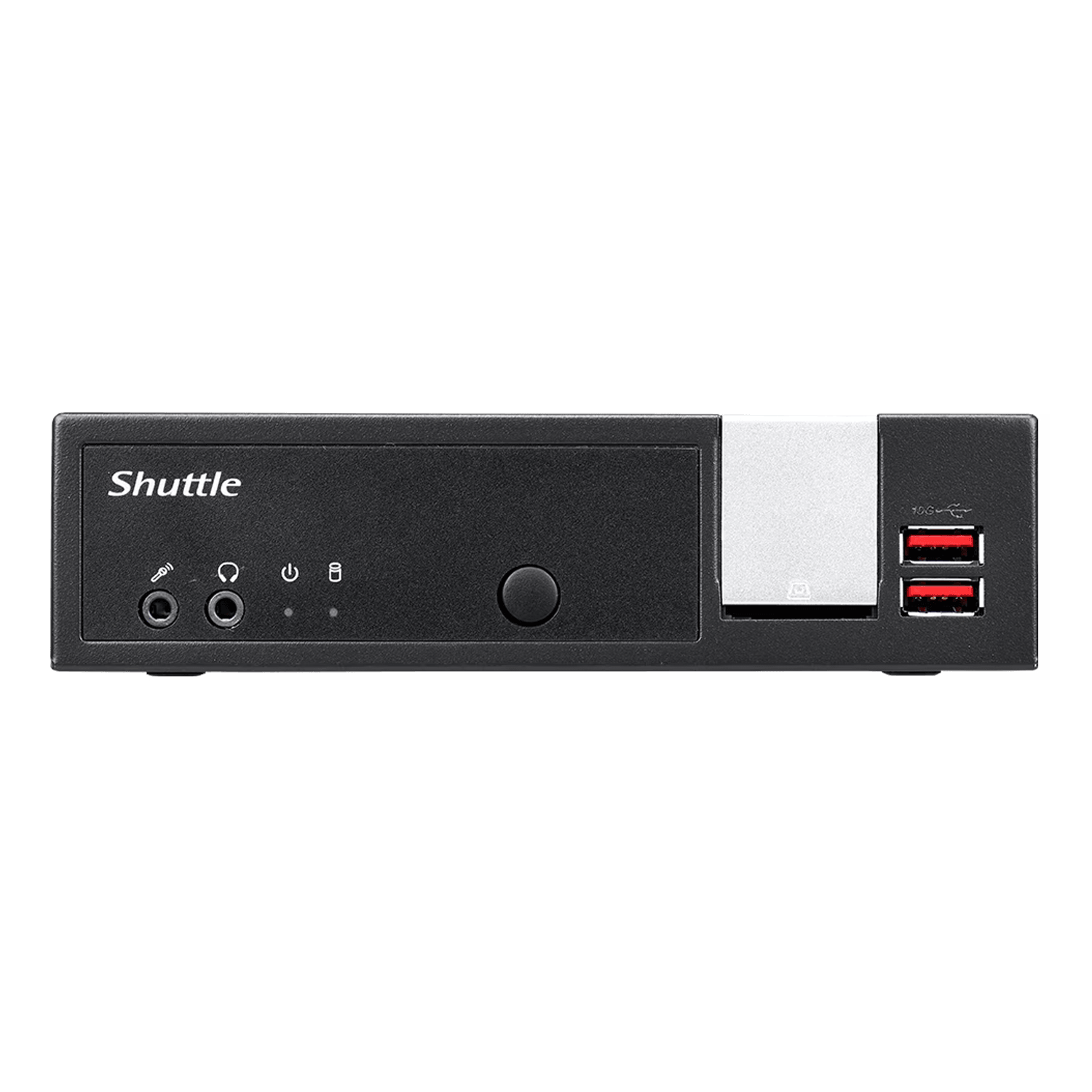

| FRONT PANEL |
(1) Power Button (1) Power LED (1) HDD LED (2) USB 3.2 Gen 2 (1) SD Card Reader (SD card boot not supported) (1) MIC-in (1) Headphone out |

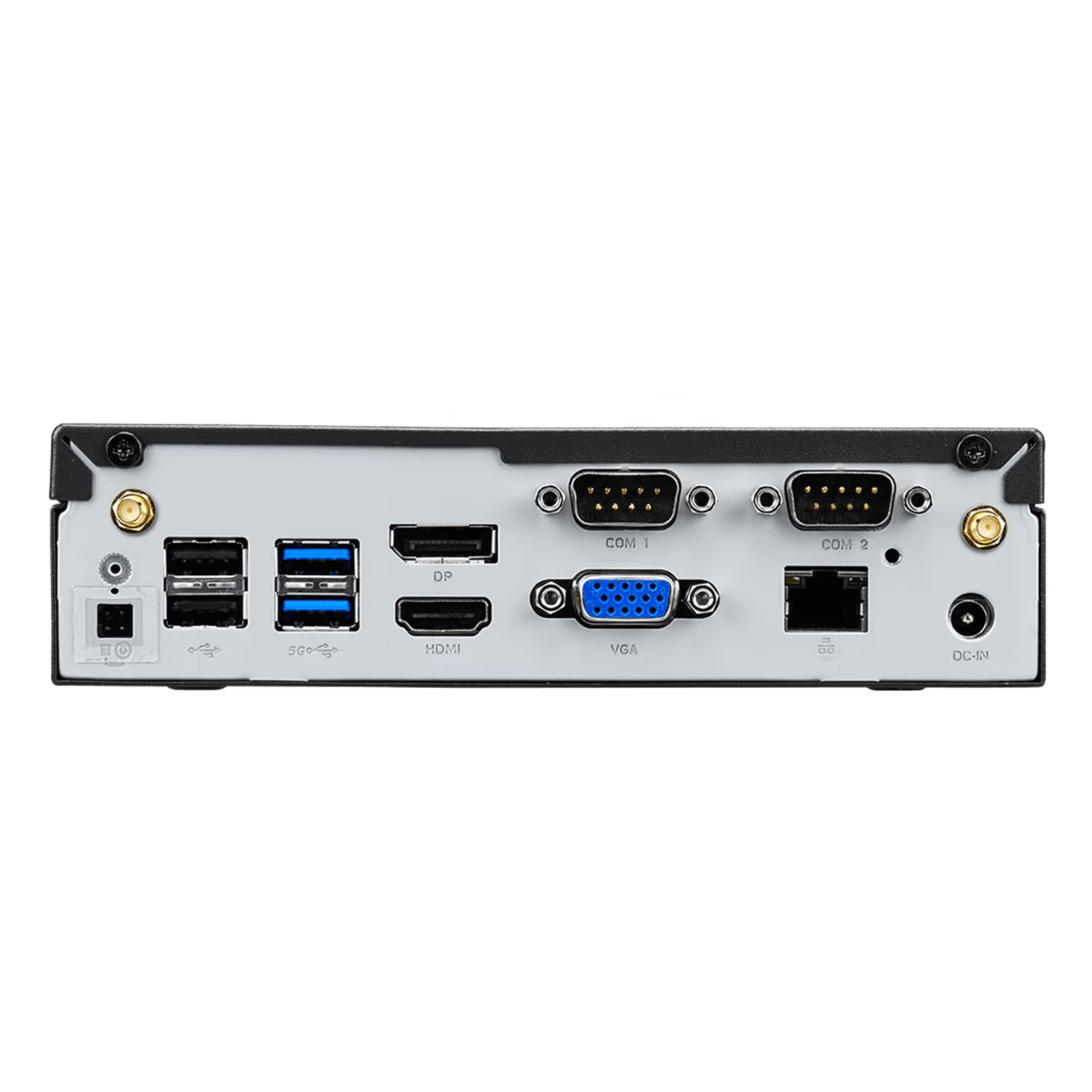

| BACK PANEL |
(1) RJ45 Gigabit LAN (1) HDMI 2.0b (1) DisplayPort 1.4a (1) VGA (2) USB 3.2 Gen 1 (2) USB 2.0 (1) External power on/Clear CMOS header (2) Antenna hole (1) DC-in (1) RS232/RS422/RS485 (1) RS232 |
| DRIVE BAYS | (1) 2.5" HDD / SSD drive bay (max 12.5mm) |
| DIMENSIONS | 7.5(L) x 6.5(W) x 1.7(H) inches |
| POWER | Input: 100 - 240V AC Output: 19V 2.1A or 12V/3.33A DC 40W 19V power adapter |
| ACCESSORIES |
Quick Guide Screw pack 40W power adapter Power cord WLN-M (optional WLAN w/ antenna) VESA mount VESA mount screws Driver DVD WWN03 (optional LTE kit w/ antenna) |
| EXPANSION SLOT | (1) M.2 2280 Type M (1) M.2 2230 Type E key socket |
| OS SUPPORT | Windows 10 64bit, Windows 11 64 bit, Linux 64 bit |
