XPC Slim DL30N, Intel® N100, 1x DDR5 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone
- SKU: 19933714
- Manufacturer: SHUTTLE
- MPN: DL30N
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$429.99
XPC Slim DL30N, Intel® N100, 1x DDR5 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, PC Barebone

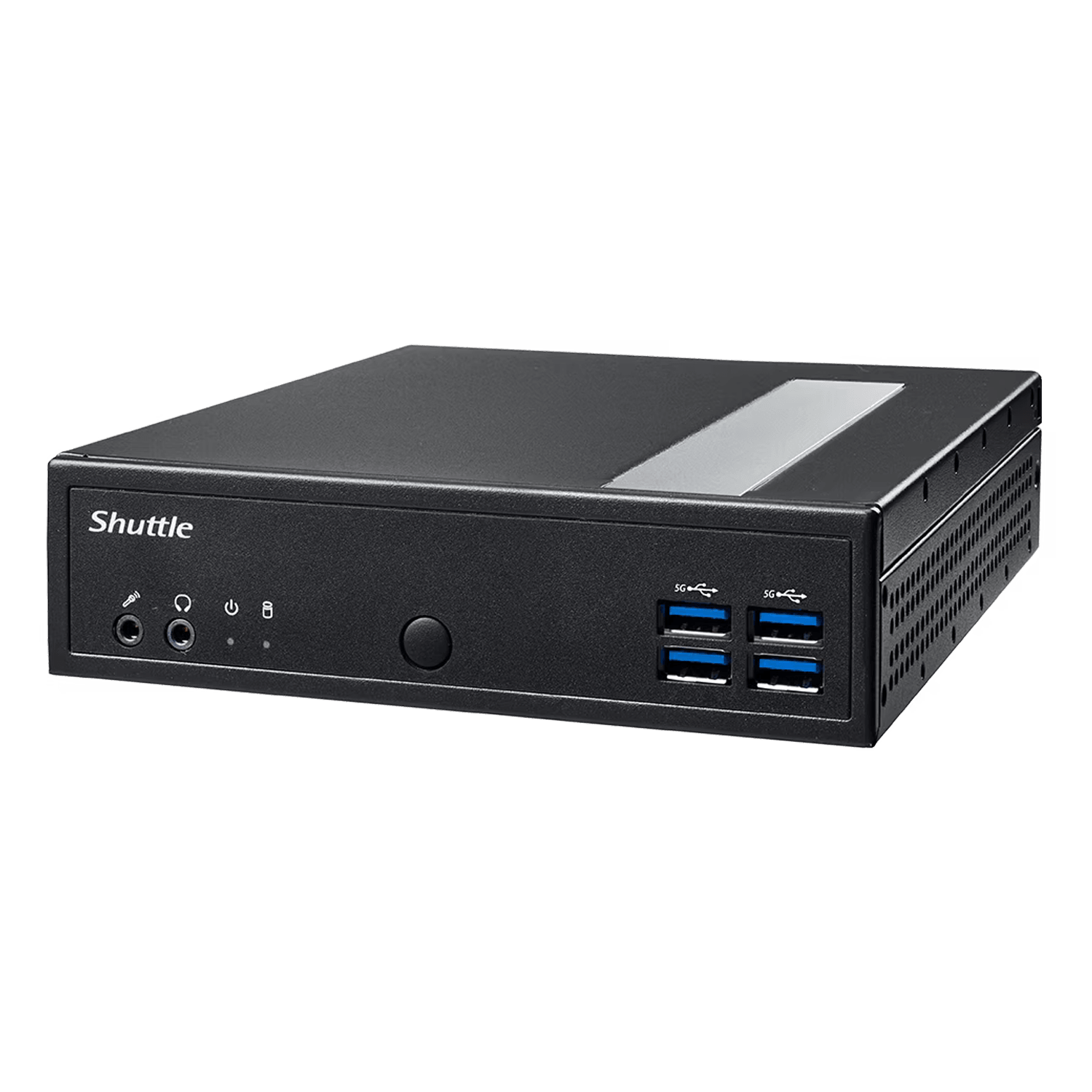

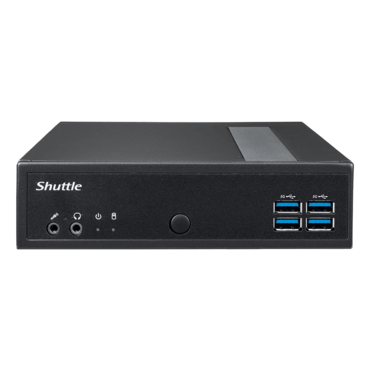

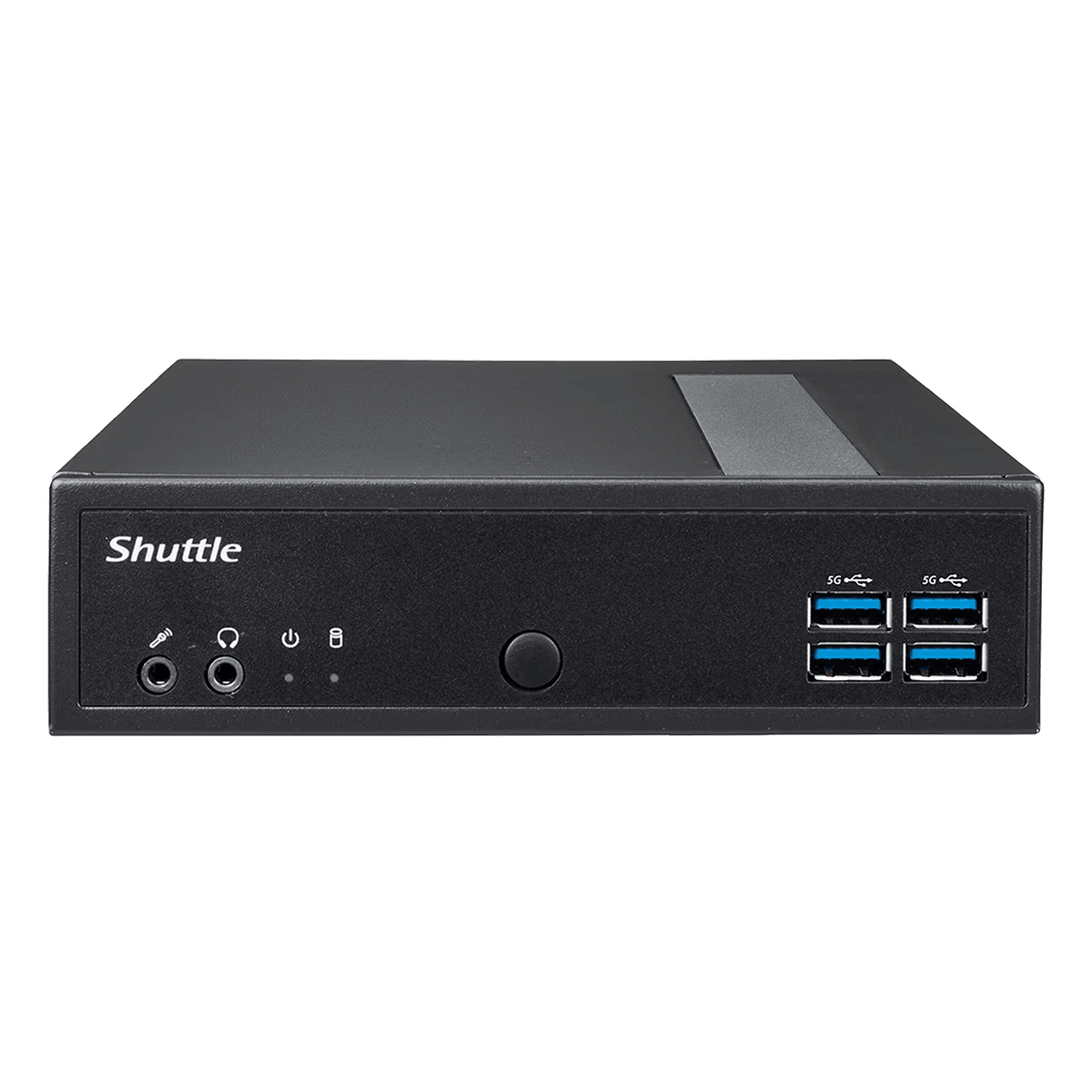

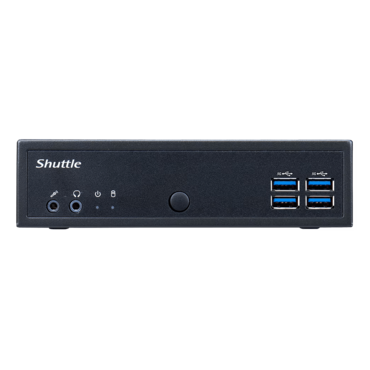

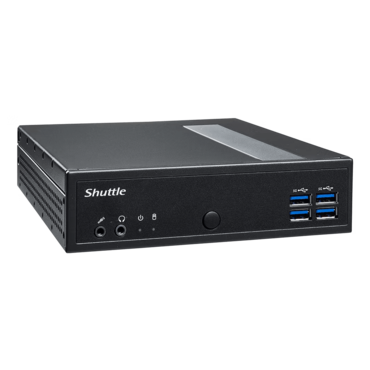

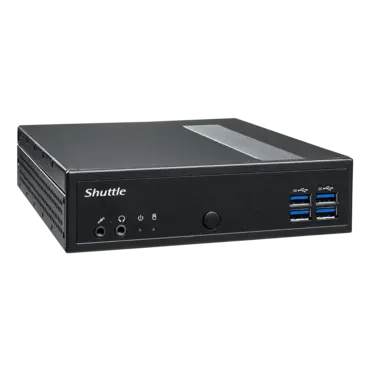

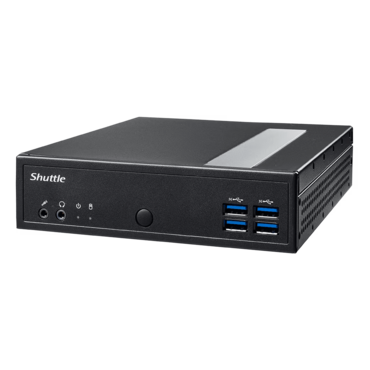

The DL30N fanless computer series, a fanless PC, features Intel® Alder Lake-N processors and supports DDR5 memory. With three independent display outputs, dual Intel® 2.5G Ethernet ports, and versatile network options, it ensures reliable multitasking. Offering up to 8x USB 3.2 Gen1, 2x COM ports, HDMI 2.0b, DisplayPort 1.4a, and VGA ports, it seamlessly integrates various applications like digital signage, kiosks, POS machines, and IoT/edge computing. Operating at low power reduces operational costs.
The DL30N fanless computer series, a fanless PC, features Intel® Alder Lake-N processors and supports DDR5 memory. With three independent display outputs, dual Intel® 2.5G Ethernet ports, and versatile network options, it ensures reliable multitasking. Offering up to 8x USB 3.2 Gen1, 2x COM ports, HDMI 2.0b, DisplayPort 1.4a, and VGA ports, it seamlessly integrates various applications like digital signage, kiosks, POS machines, and IoT/edge computing. Operating at low power reduces operational costs.
- Processor: Intel® Processor N100
- Memory: 1x 262 pin DDR5 4800 MHz SODIMM slot (Max 16GB)
- Storage: Space for 2.5" drive and two M.2 slots (1x M.2-2280, 1x M.2-2230)
- Chassis: Semi-rugged chassis made of metal, compact format 7.5"(L) × 6.5"(W) × 1.7"(H)
| PROCESSOR | Intel® Alder Lake-N up to 7W CPU, Intel® Processor N100 |
|---|---|
| MEMORY | Supports DDR5 4800 MHz SODIMM memory, Max 16GB |
| VIDEO GRAPHICS | Intel UHD graphics |
| VIDEO OUTPUT | HDMI 2.0b + DisplayPort 1.4a + VGA, Supports triple independent displays |
| AUDIO | 2 channel HD audio |
| ETHERNET | Intel I226-LM Dual LAN 10/100/1000/2500 MB/sec Supports Wake on LAN function |
| STORAGE INTERFACE | SATA III for HDD/SSD |
| FRONT PANEL |
(1) Power Button (1) Power LED (1) HDD LED (4) USB 3.2 Gen 1 (1) MIC-in (1) Headphone out |
| BACK PANEL |

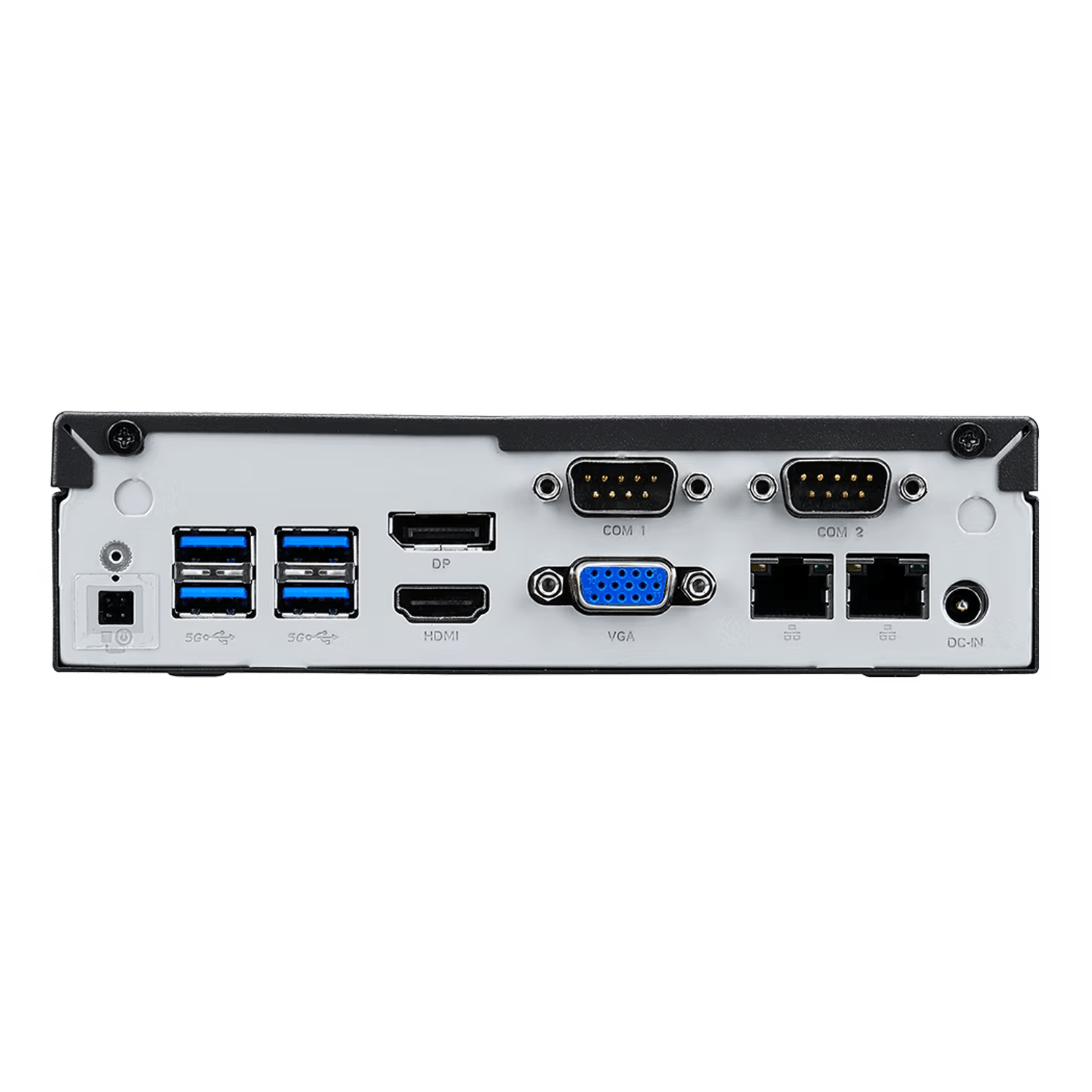

(2) Intel® 2.5 Gigabit LAN w/ LED (1) HDMI 2.0b (1) DisplayPort 1.4a (1) VGA (4) USB 3.2 Gen 1 (1) External power on/Clear CMOS header (2) Antenna hole (1) DC-in (1) RS232/RS422/RS485 (1) RS232 |
| DRIVE BAYS | (1) 2.5" HDD / SSD drive bay (max height 9.5mm) |
| DIMENSIONS | 7.5(L) x 6.5(W) x 1.7(H) inches |
| POWER | Input: 100 - 240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V power adapter |
| ACCESSORIES |
Quick Guide Screw pack 65W power adapter Power cord VESA mount VESA mount screws Driver DVD WLN-M (optional WLAN w/ antenna) |
| EXPANSION SLOT | (1) M.2 2280 Type M (1) M.2 2230 Type E key socket |
| OS SUPPORT | Windows 11 64 bit, Ubuntu Linux |
| CERTIFICATION | CB, BSMI, cTUVus, FCC, CE, RCM, VCCI, UKCA |
