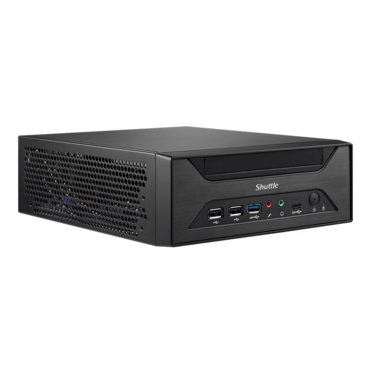

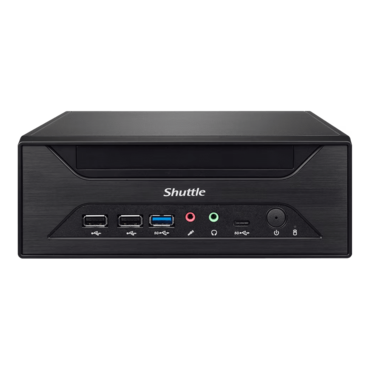

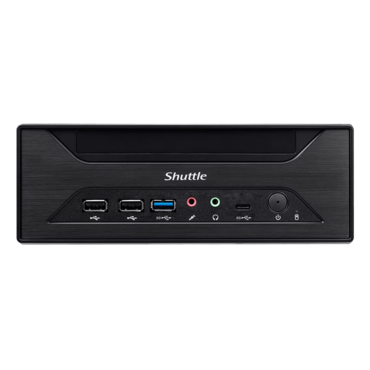

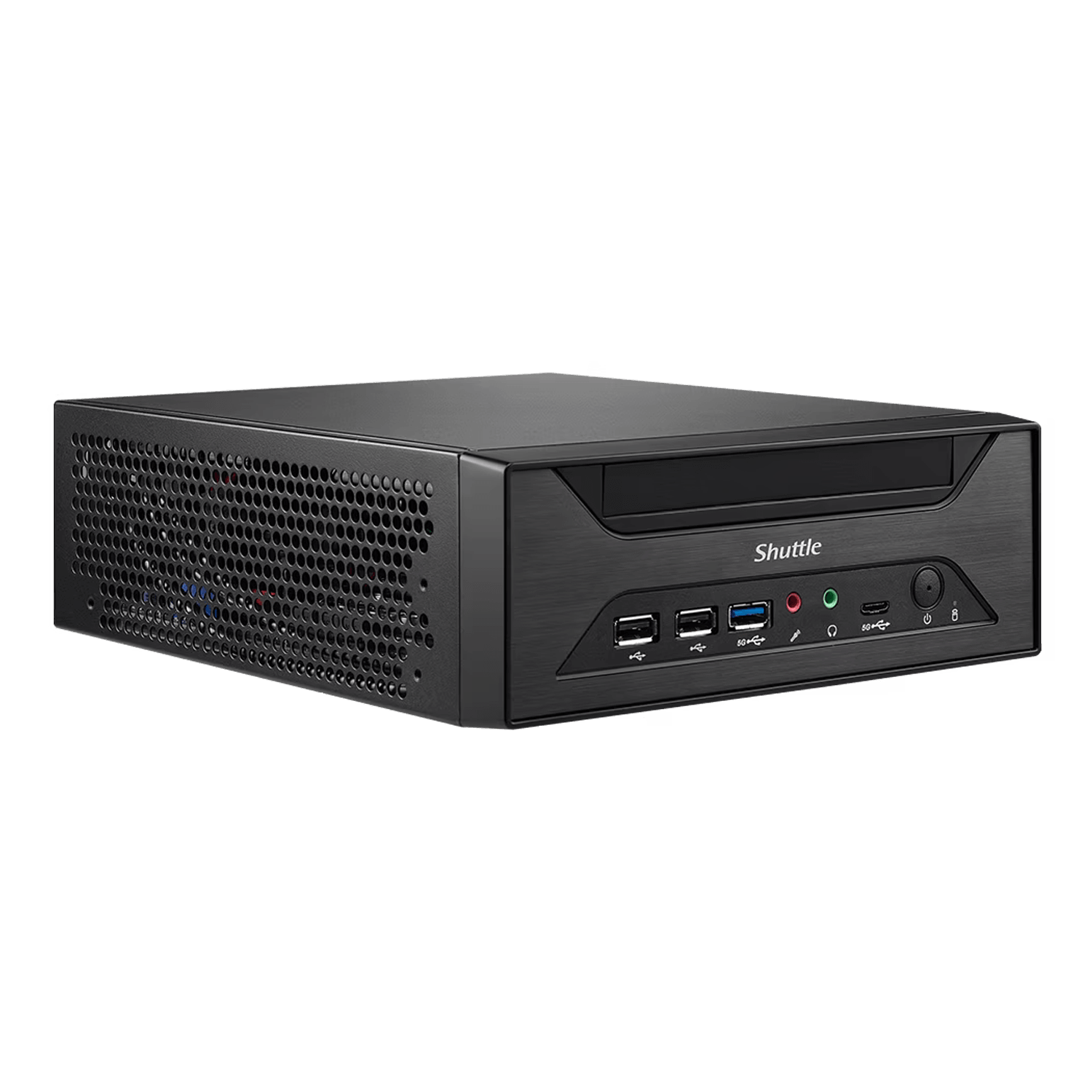

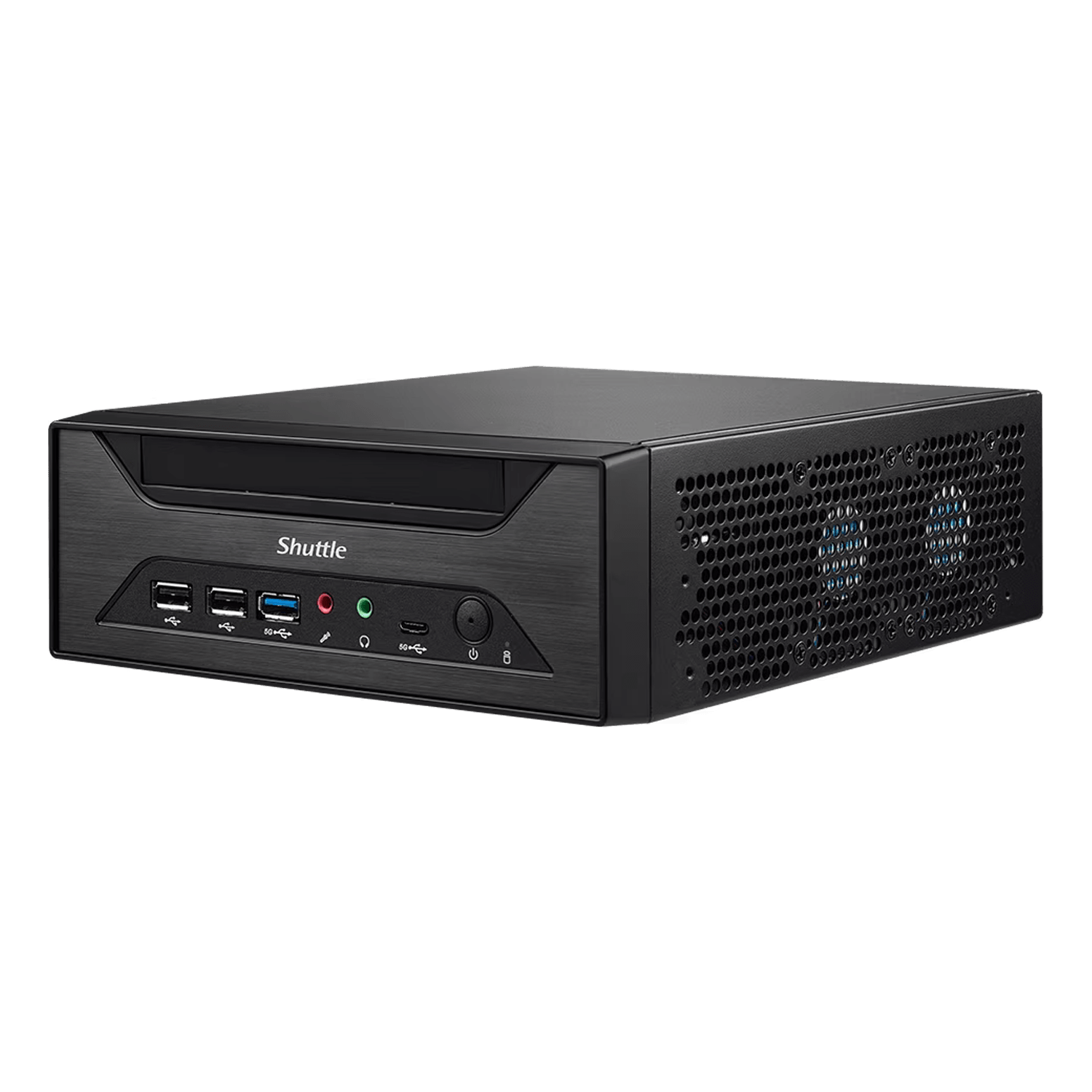

XPC Slim XH610, Intel® H610 Chipset, 2x DDR4 SO-DIMM, 1x M.2, 2x 2.5" HDD/SSD, 1x Slim ODD, PC Barebone
- SKU: 15399457
- Manufacturer: SHUTTLE
- MPN: XH610
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
XPC Slim XH610, Intel® H610 Chipset, 2x DDR4 SO-DIMM, 1x M.2, 2x 2.5" HDD/SSD, 1x Slim ODD, PC Barebone

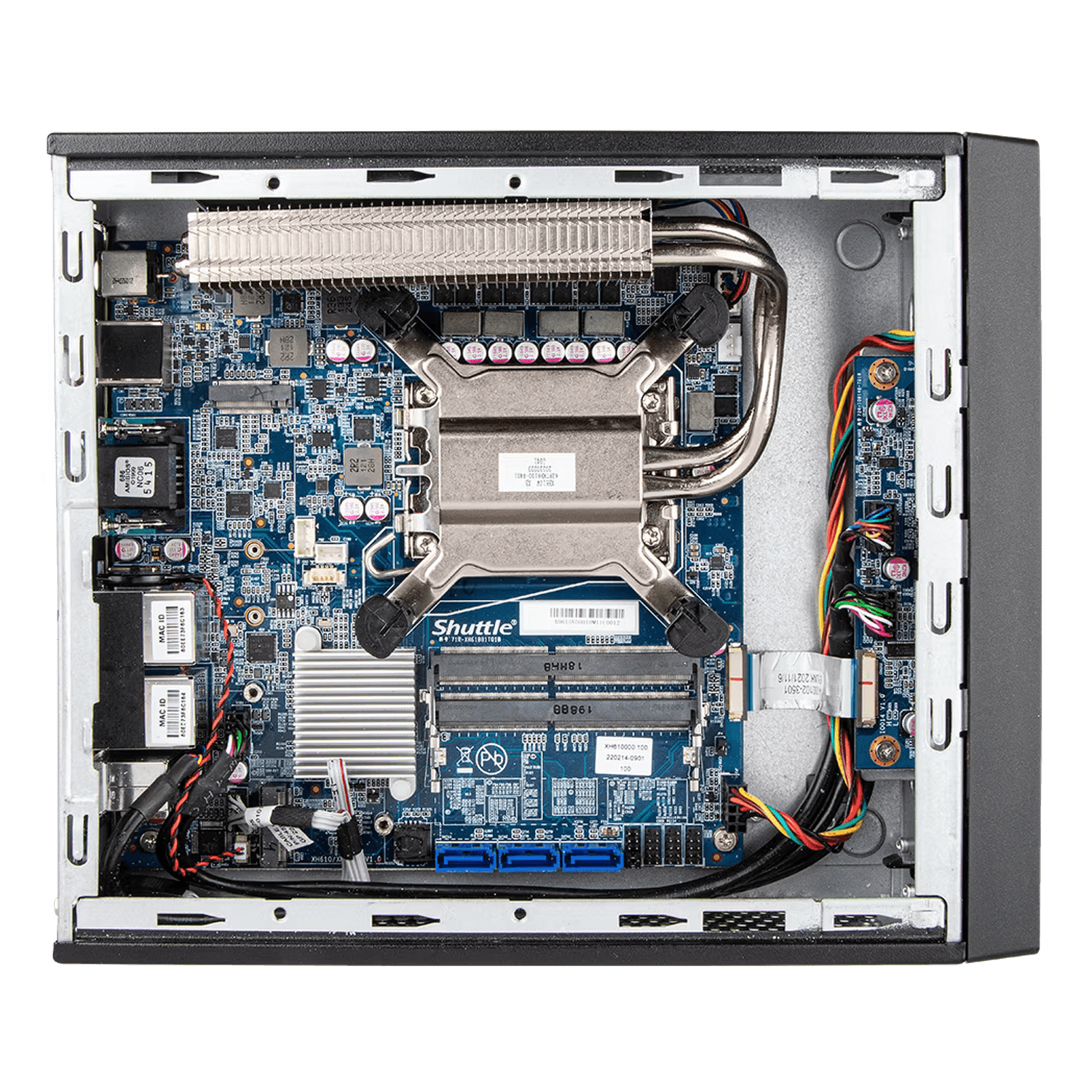

XH610 semi-ruggedized computer replaces a bulky tower PC with efficiency, and flexibility and features a compact design and accommodates an optical drive, two 2.5" drives, and an M.2 SSD in a sturdy chassis. It supports Gen. 12/13/14 Intel Core processors (LGA1700) with efficient heatpipe cooling. Versatile connectivity is for various uses, from office to industry, and includes two Ultra HD displays, VGA, dual LAN, USB 3.2 Gen 1/2.0 ports, and up to five serial ports.
XH610 semi-ruggedized computer replaces a bulky tower PC with efficiency, and flexibility and features a compact design and accommodates an optical drive, two 2.5" drives, and an M.2 SSD in a sturdy chassis. It supports Gen. 12/13/14 Intel Core processors (LGA1700) with efficient heatpipe cooling. Versatile connectivity is for various uses, from office to industry, and includes two Ultra HD displays, VGA, dual LAN, USB 3.2 Gen 1/2.0 ports, and up to five serial ports.
- Processors: Intel Core 12th/13th/14th generation (LGA1700)
- Memory: 2x 260 pin DDR4 3200/2933 MHz SODIMM slots, 32GB per DIMM (Max 64GB)
- Storage: 1x M.2 2280 (NVMe/SATA), 2x SATA 2.5", 1x 5.25"bay for slimline optical drive
- Chassis: Semi-rugged chassis made of aluminum, 9.4"(L) × 7.9"(W) × 2.9"(H)
| FORM FACTOR | Mini-ITX MB 3.5 L chassis |
|---|---|
| PROCESSOR |
Support Intel® 12/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700
CPU max. TDP 65W * BIOS v2.03 and updated version support Raptor Lake (13th) CPU |
| CHIPSET | Intel H610 Express chipset |
| MEMORY | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 3200 MHz |
| VIDEO OUTPUT | HDMI + Display + D-Sub (VGA) port triple display |
| AUDIO | Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio |
| ETHERNET |
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface NVMe interface |
| ONBOARD CONNECTORS |
(3) SATA connectors (1) 1x4 pin USB 2.0 header (2) 4pin fan connectors (1) SATA power connector(5V) (1) SATA power connector(12V) (1) Auto power on header (1) RS232 voltage switch (4) RS232 connectors (1) Battery connector |

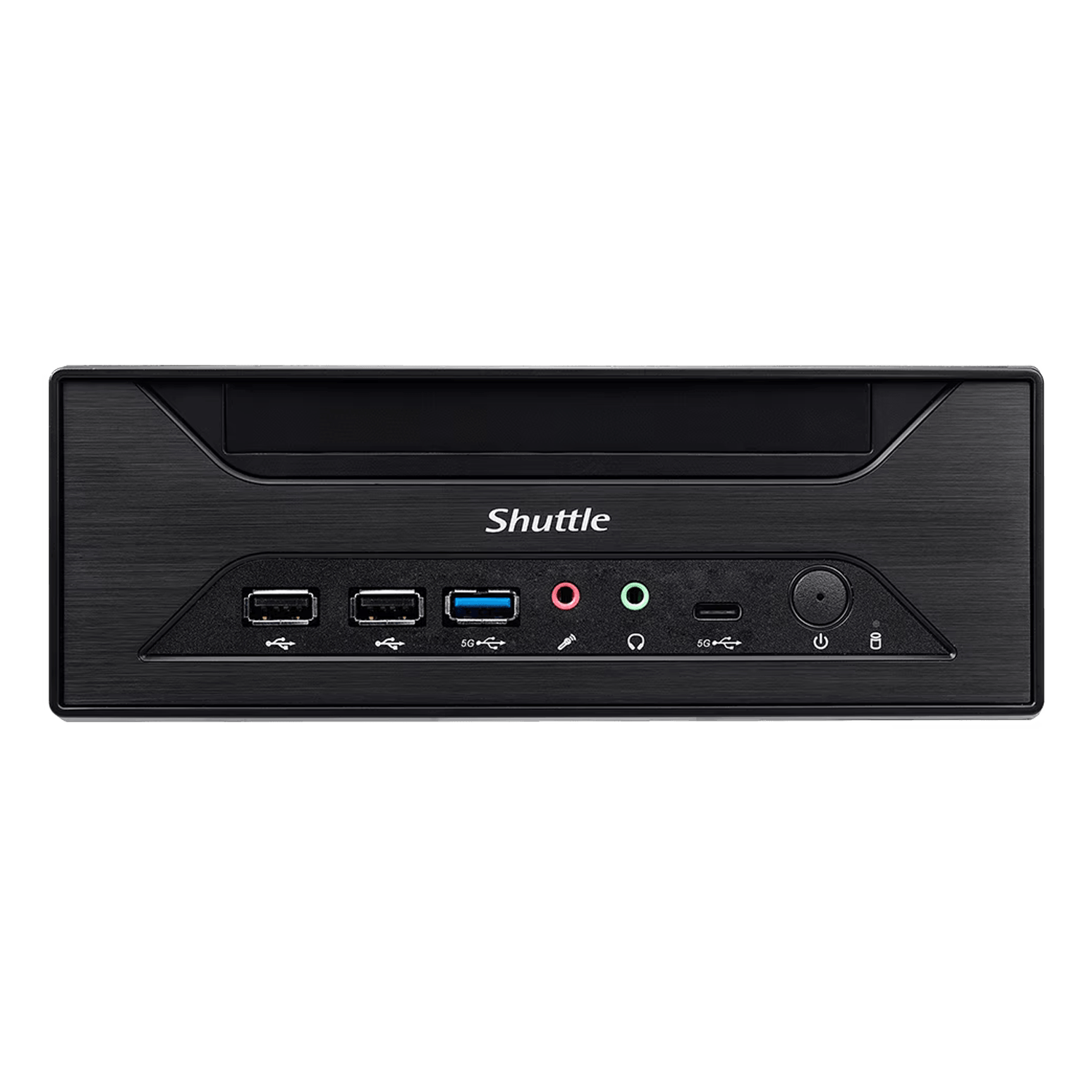

| FRONT PANEL |
(2) USB 2.0 ports (2) USB 3.2 Gen1 ports (Include Type C x 1) (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED |

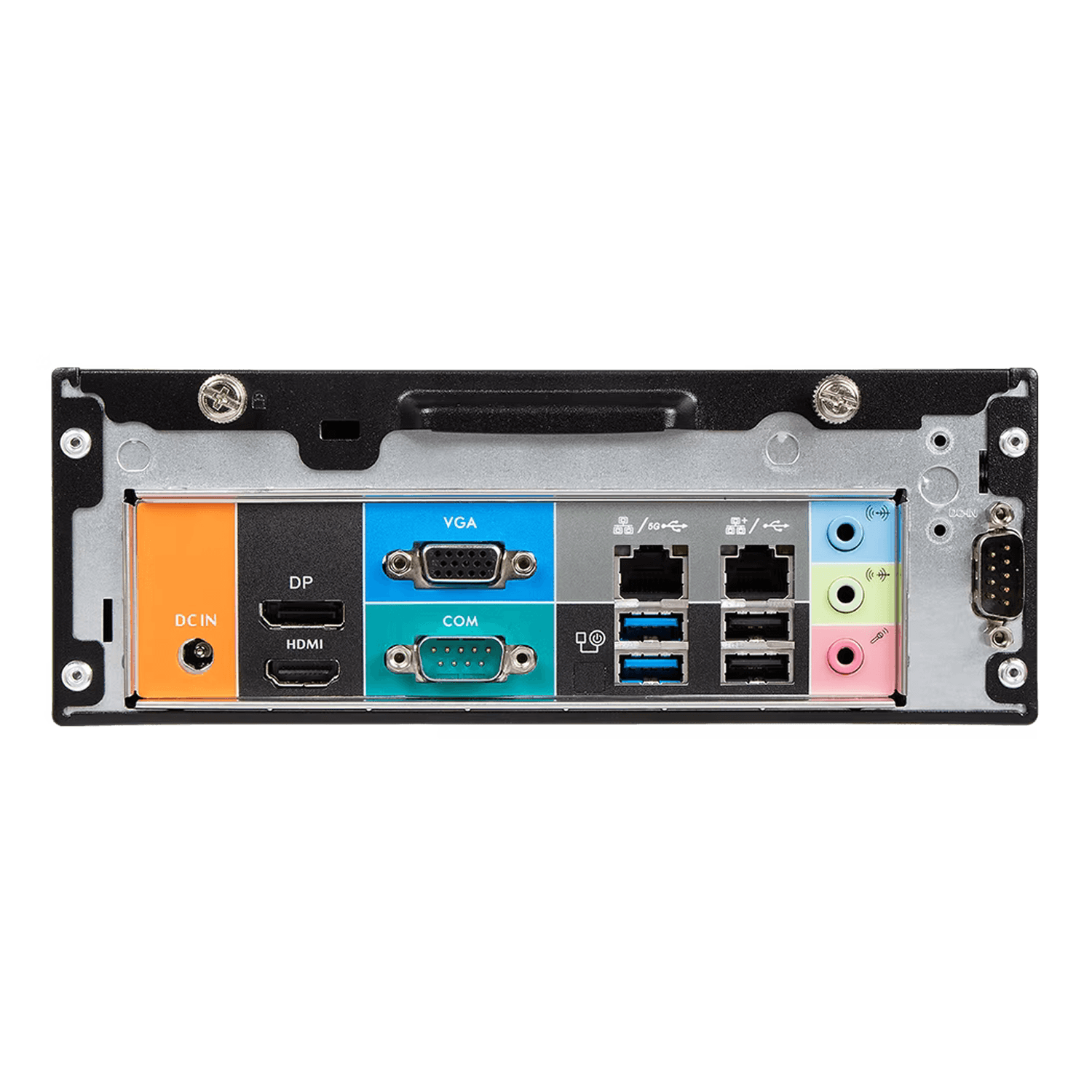

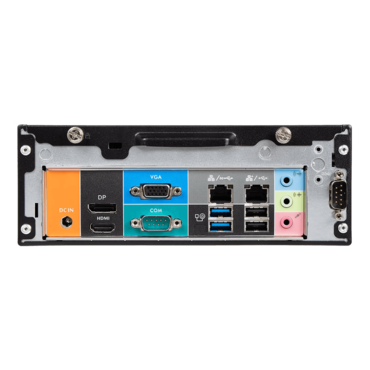

| BACK PANEL |
(2) RJ45 Gigabit LAN port w/LED (1) Display port (1) HDMI (1) D-Sub (VGA) port (2) USB 2.0 ports (2) USB 3.2 Gen1 ports (1) RS232 (1) RS232/RS422/RS485 (1) Line in port (1) Line out port (1) MIC in port (1) External 4pin header (1) DC in (1) Kensington lock (2) Wireless Antenna fixture |
| DRIVE BAYS |
(1) 2.5" HDD / SSD bay (1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD |
| DIMENSIONS | XH610V: 240(L) x 200(W) x 72(H) mm XH610 : 238(L) x 200(W) x 72(H) mm |
| POWER | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES |
XPC Multilanguage Quick User Guide XPC DVD Driver 1* Power cord 1* SATA cable (pre-install for HDD) 1* SATA cable (pre-install for ODD) 1* 4 pin to SATA power cable Screws |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket |
| OS SUPPORT | Windows 10/11 64 bit O.S Linux |
| REMARK | 1. PHD4 3.5" HDD rack accessory can support XH310/XH310V/XH310R/XH310RV/XH610/XH610V |
| OPERATING TEMPERATURE | 0?~50? |
