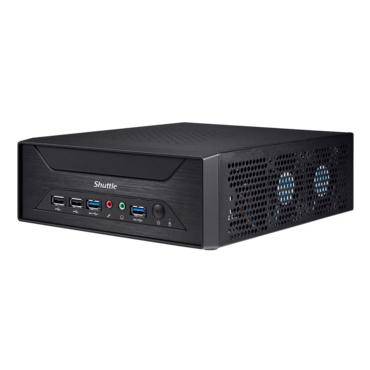

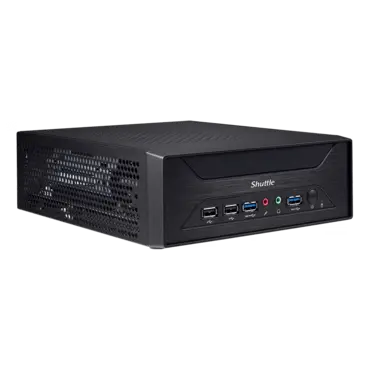

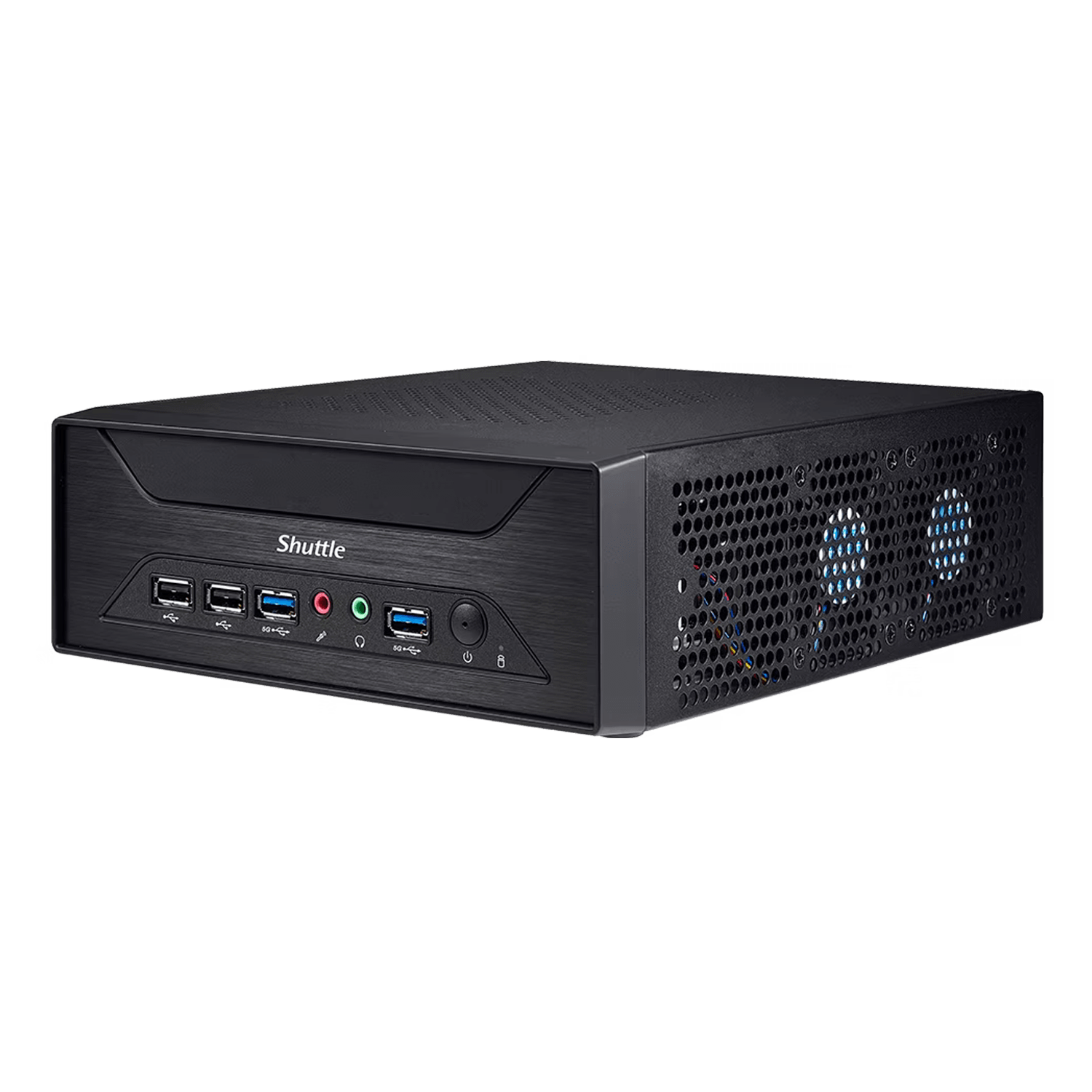

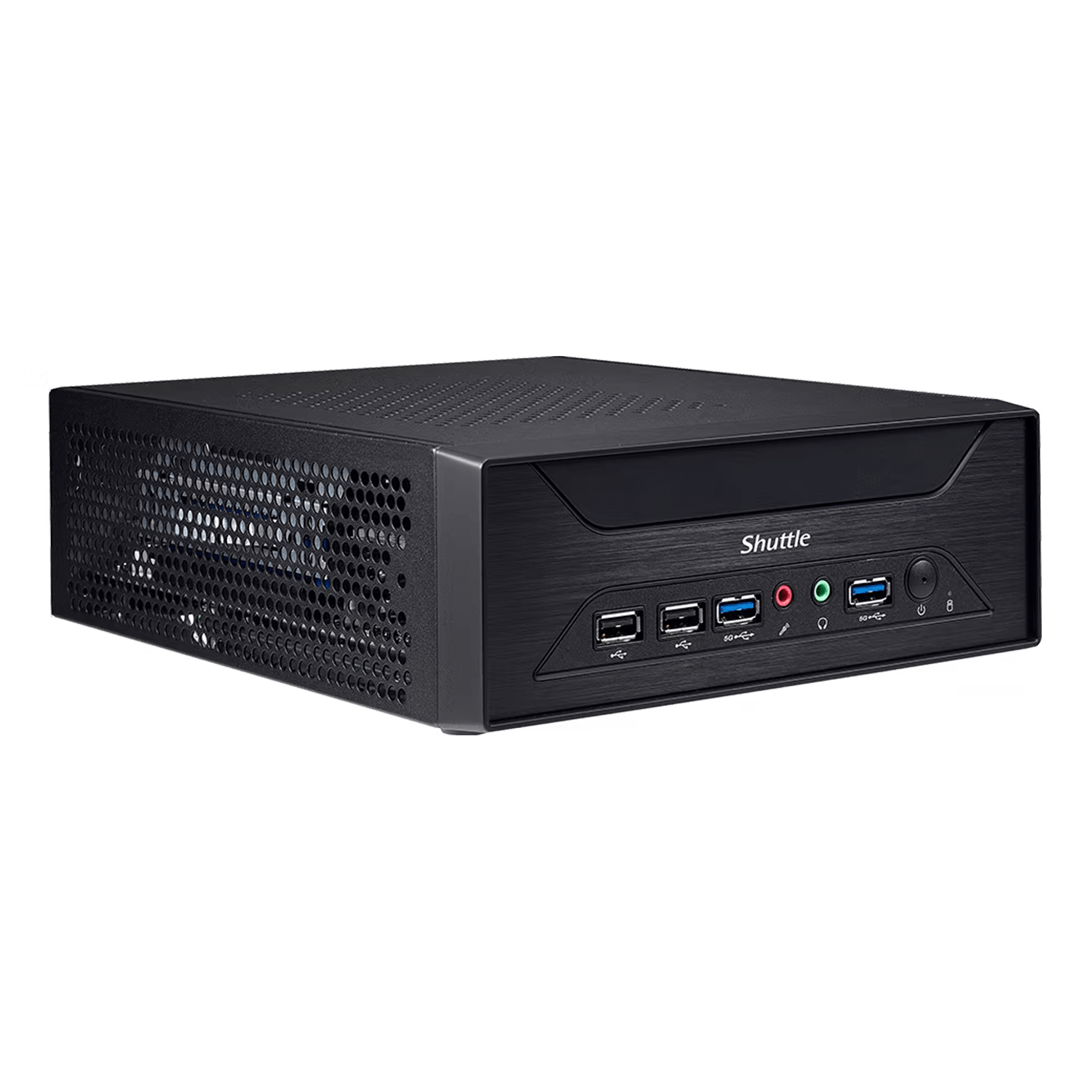

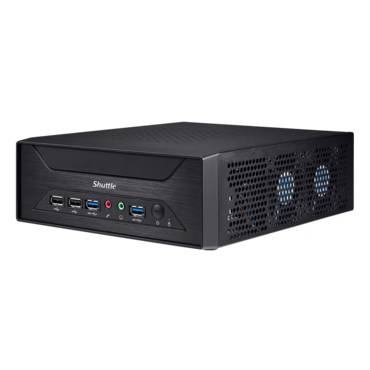

XPC Slim XH610G, Intel® H610 Chipset, 2x DDR5 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, 1x PCIe x16 Slot, PC Barebone
- SKU: 19920596
- Manufacturer: SHUTTLE
- MPN: XH610G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$614.99
XPC Slim XH610G, Intel® H610 Chipset, 2x DDR5 SO-DIMM, 1x M.2, 1x 2.5" HDD/SSD, 1x PCIe x16 Slot, PC Barebone
XH610G is a compact 3-liter mini-PC designed for AIoT computing. Powered by Intel’s H610 chipset, it supports Intel 14th Gen LGA1700 processors, providing efficient performance for AI data processing and media tasks. With integrated Intel UHD graphics, it delivers fast image processing and smooth 4K triple display output. Ideal for graphic design, entertainment, and AI applications, the XH610G combines cutting-edge technology with versatility for a wide range of modern computing needs.
XH610G is a compact 3-liter mini-PC designed for AIoT computing. Powered by Intel’s H610 chipset, it supports Intel 14th Gen LGA1700 processors, providing efficient performance for AI data processing and media tasks. With integrated Intel UHD graphics, it delivers fast image processing and smooth 4K triple display output. Ideal for graphic design, entertainment, and AI applications, the XH610G combines cutting-edge technology with versatility for a wide range of modern computing needs.
- Processor: Supports Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU, max. TDP 65W
- Memory: 2x DDR5 SODIMM slots, 32GB per DIMM (Max 64GB), DDR5 5600 MHz
- Storage: 1x 2.5" HDD/SSD bay, 2x M.2 2280 M key slots (NVMe + SATA / SATA only)
- Chassis Dimensions: 9.84" (L) x 7.87" (W) x 3.09" (H)
| FORM FACTOR | 3L chassis |
|---|---|
| PROCESSOR | Support Intel® 12th/13th/14th Generation Core™ i3/i5/i7/i9, Pentium®, Celeron® LGA1700 CPU max. TDP 65W |
| CHIPSET | Intel H610 Express chipset |
| MEMORY | 2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB) DDR5 5600 MHz |
| VIDEO OUTPUT | (2)HDMI 2.0b + (1)DisplayPort Support triple independent display |
| AUDIO | Realtek ALC888S High Definition Audio |
| ETHERNET |
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan Supports 10/100/1000 Mb/Sec. Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface NVMe interface |
| ONBOARD CONNECTORS | (1) Raiser card slot (1) SATA connector w/power (1) 4 Pin fan connectors |

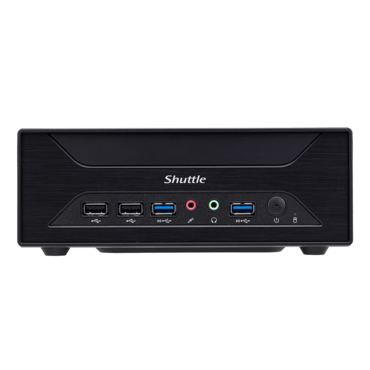

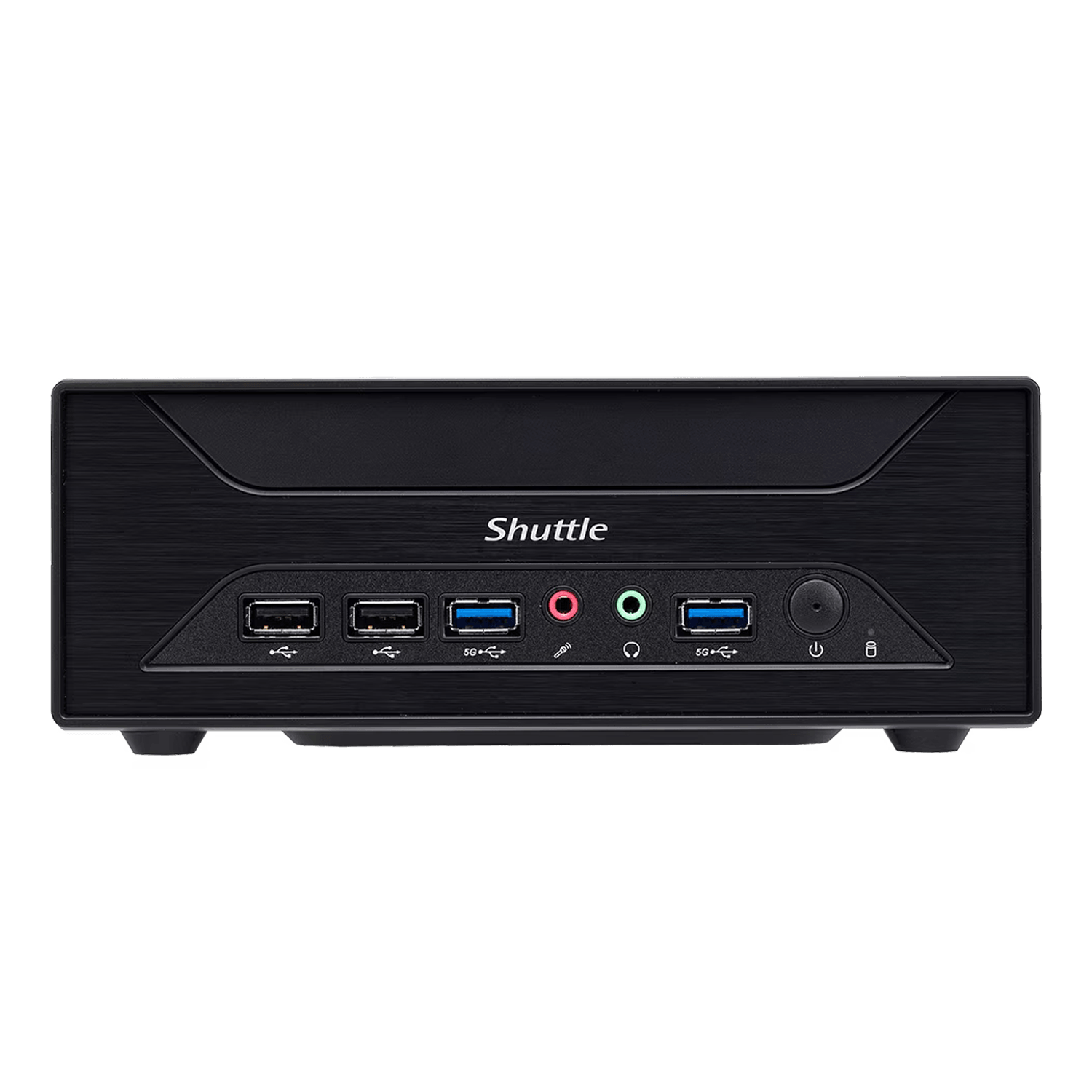

| FRONT PANEL |
(2) USB 2.0 ports (2) USB 3.2 Gen 1 ports (1) Microphone-In (1) Earphone-Out (1) Power-On button (1) Power LED (1) HDD LED |

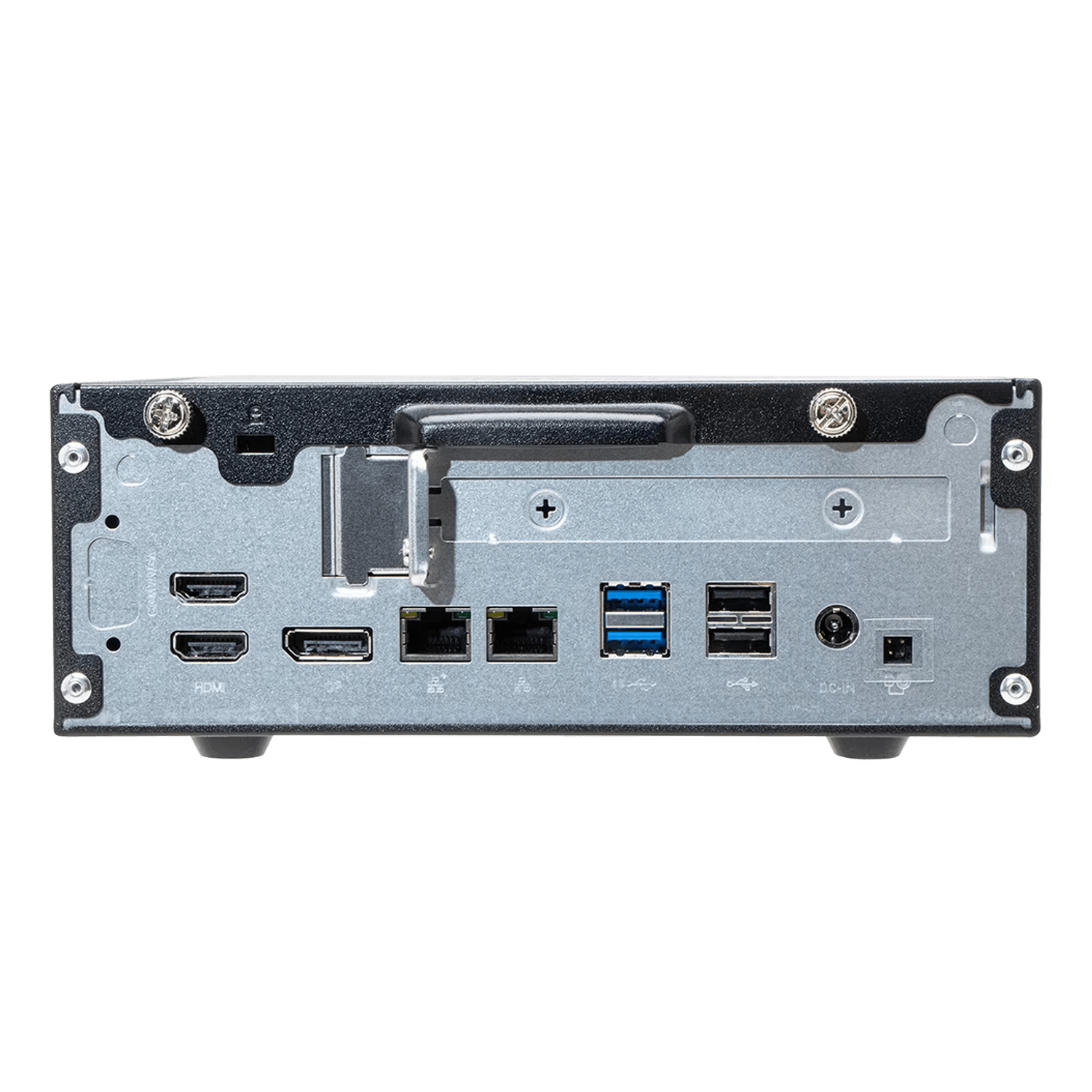

| BACK PANEL |
(2) RJ45 LAN port (2) HDMI (2) USB 2.0 ports (2) USB 3.2 Gen 1 ports (1) DP (2) Antenna Hole (1) DC in |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 250(L) x 200(W) x 78.5(H) mm |
| POWER | Input:100- 240V AC Output: 19.5V/9.23A 180W Adapter |
| ACCESSORIES |
XPC Multilanguage Quick User Guide XPC DVD Driver 1* Power cord 1*180W adapter 1*Screw pack 1*VESA bracket 1*VESA screw pack " Optional " WLN-M , PS01 |
| EXPANSION SLOT |
(1) M.2 2280 M key slot (NVMe+SATA) (1) M.2 2280 M key slot (SATA only) (1) M.2 2230 E key slot (PCIe Gen 3x1, USB 2.0, CNVi) (1) PCI-E X16 |
| OS SUPPORT | Windows 11 64 bit O.S Linux |
| NET WEIGHT | 1.9 Kg |
| CERTIFICATION |
Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI ,UKCA, RCM , VCCI |
| OPERATING TEMPERATURE | 0°C~50°C |
