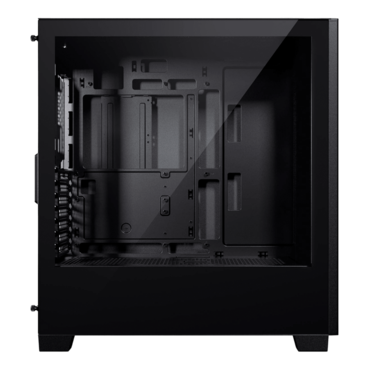

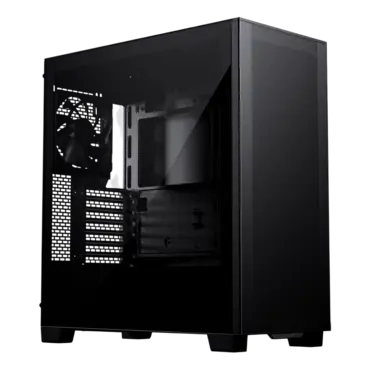

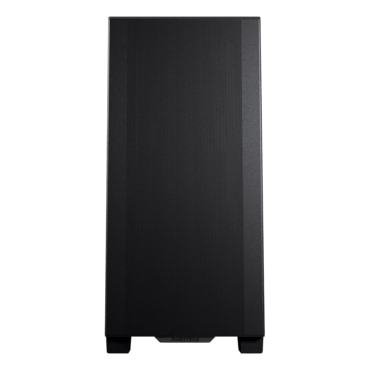

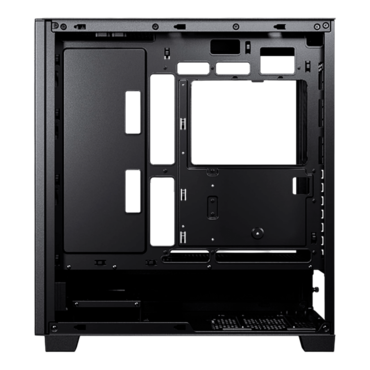

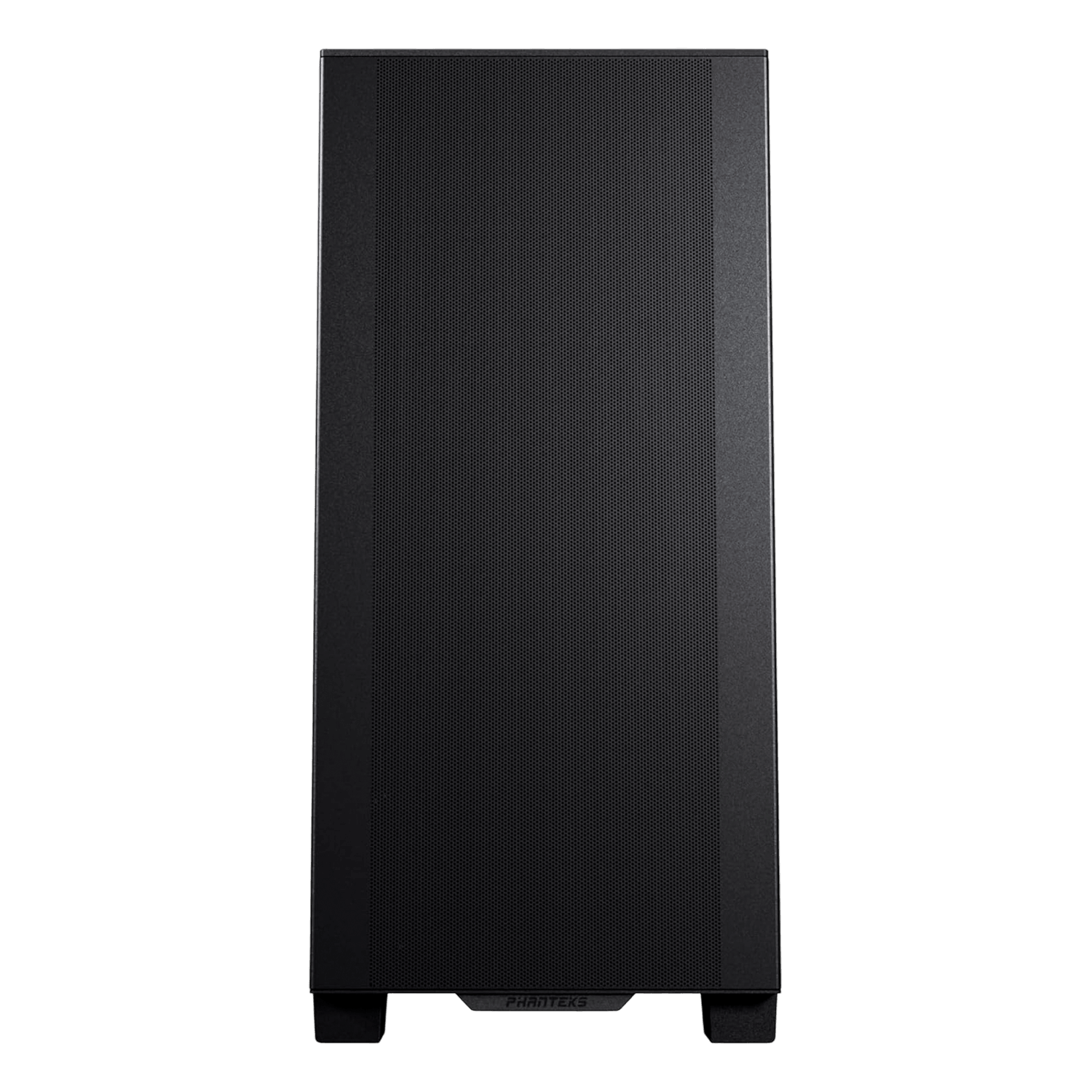

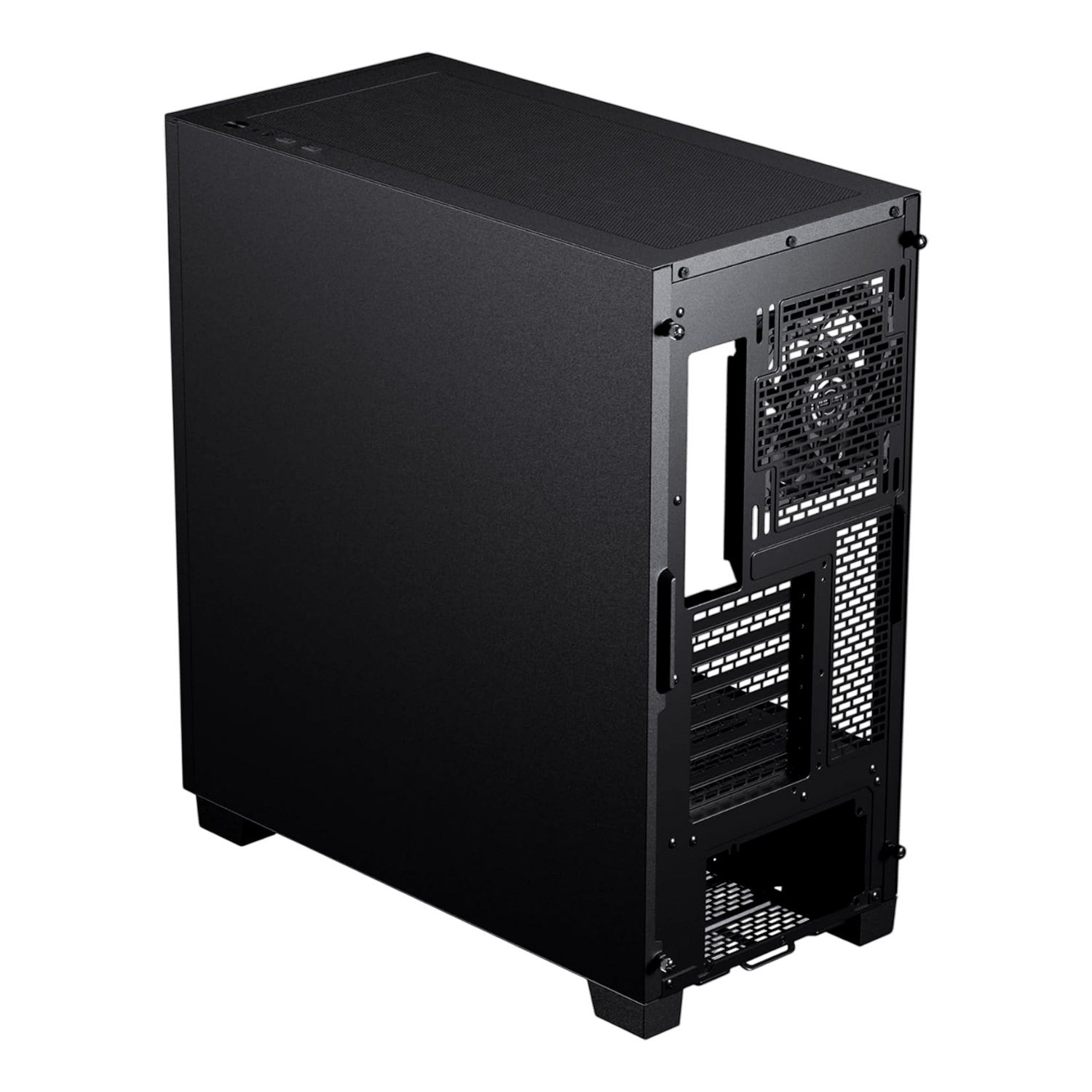

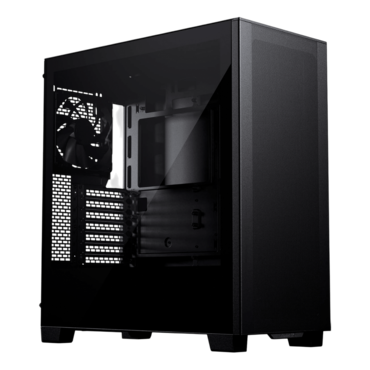

XT Pro, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
- SKU: 17551442
- Manufacturer: PHANTEKS
- MPN: PH-XT523P1_BK01
- Availability: TEMPORARILY OUT OF STOCK
Price
$95.57
- Dedicated top 360 radiator space in the top.
- Triple 120mm positions on the midplate for direct GPU cooling.
- A total of 10x 120 fans | 6x 140 + 3x 120 fan locations
| General | |
| Model No. | PH-XT523P1_BK01 |
| UPC Code | PH-XT523P1_BK01 |
| Case Dimensions | 450 x 230 x 500 mm | 17.7×9.05×19.68 in |
| Form Factor | Mid-Tower |
| Mainboard Support |
E-ATX* | ATX | Micro-ATX | Mini-ITX *Up to 280mm wide |
| Materials | Steel chassis | Tempered glass | ABS plastic |
| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support |
3-slots Riser Cable sold separately |
| Internal 2.5″ Bay |
2 + 1x 3.5″ HDD |
| Internal 3.5″ Bay | 2 |
| Front I/O |
1x USB-C 3.0 1x USB 3.0 Microphone | Headphone combo Power Button Reset Button |
| Fans | |
| Total Fans |
120 mm | 140 mm 10x | 6x |
| Top | 3x | 2x |
| Front | 3x| 2x |
| Side | – | – |
| Rear | 1x | 1x |
| Midplate | 3x | – |
| Radiators | |
| Top | Max. 360 | – |
| Front | Max. 240 | – |
| Side | – | – |
| Rear | 120 | – |
| Midplate | – | – |
| Clearance | |
| CPU Cooler | Height: 184 mm | 7.24 in |
| GPU | Length: 415 mm | 16.33 in |
| GPU | Width: 184 mm | 7.24 in |
| Power Supply | Length: 270 mm | 10.62 in |
| Top Radiator | Length x Width x Height: 415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in |
| Front Radiator | Length x Width: 170 x 132 mm | 6.69 x 5.19 in |
| Side Radiator | Length x Width: – |
| Midplate Radiator | Length x Width: – |
| Extra | |
| Net Weight | 7.55 kg | 16.64 lbs |
| Gross Weight | 9.45 kg | 20.83 lbs |
| Warranty | 5 Years limited |
| Scope of Delivery |
1x XT Pro chassis 1x M25-120 black fan |
| Accessory | 30x Zip ties |
| Screws |
30x Mainboard | SSD screws 4x Power supply screws 8x HDD screws 4x Thumb screws 12x 30mm Fan Screw 1x Mainboard stand-off 1x Stand-off removal tool |
