XT V3, Tempered Glass, No PSU, microATX, Black, Mini Tower Case
- SKU: 19477424
- Manufacturer: PHANTEKS
- MPN: PH-XT325V_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$104.14
XT V3, Tempered Glass, No PSU, microATX, Black, Mini Tower Case
The XT V3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT V3 is a micro-ATX powerhouse ready for any cooling challenge.
| Model No. | PH-XT325V_DBK01 |
| UPC Code | 886523303794 |
| Case Dimensions | 460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in |
| Form Factor | Compact microATX tower |
| Mainboard Support | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 4 |
| Vertical GPU Support | No |
| Internal 2.5? Positions | 2 + 1x 3.5? HDD |
| Internal 3.5? Positions | 1 + 2x 2.5? SSD |
| Front I/O |
1x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone | Headphone combo Power button |

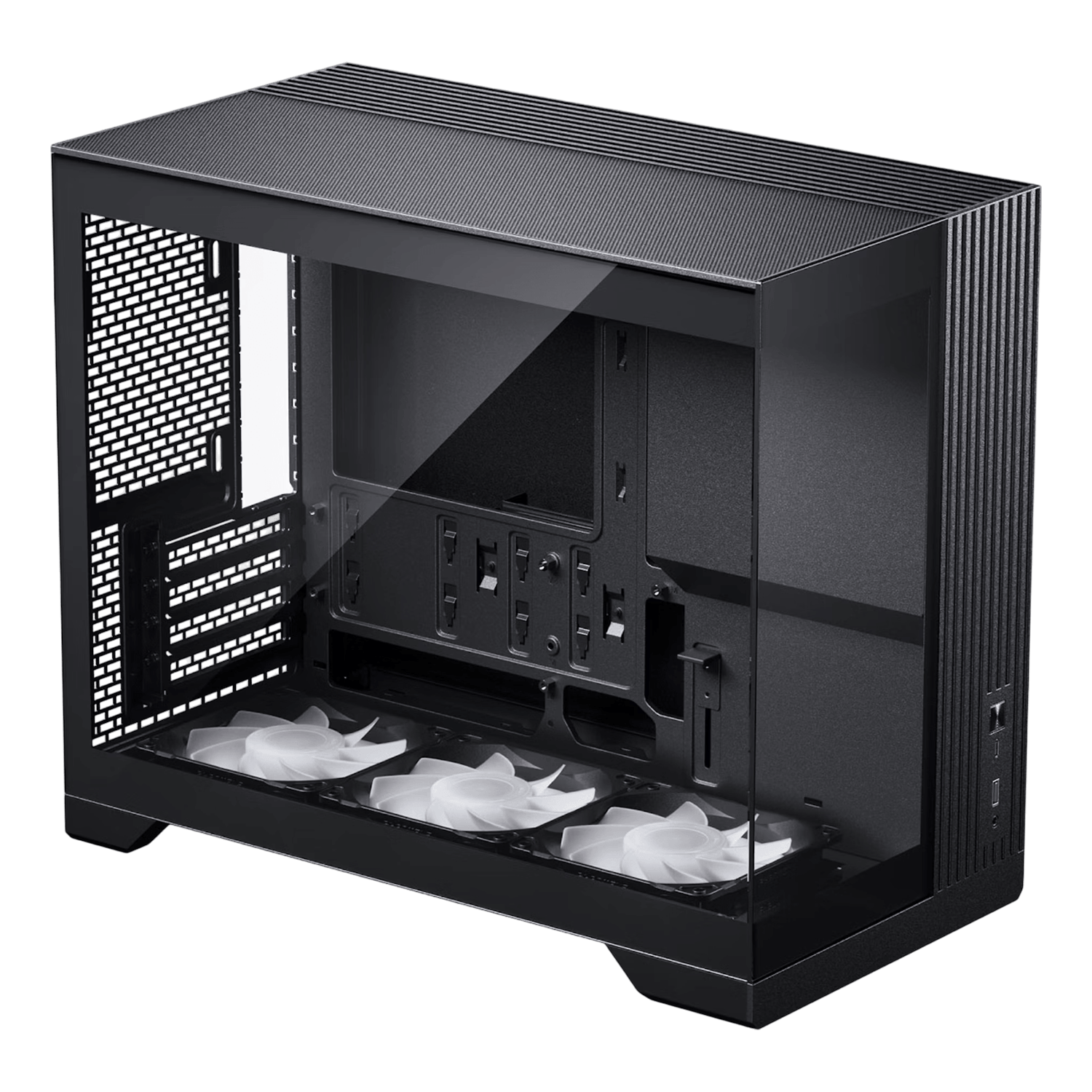

| Fan Support (120mm | 140mm) |
Total: 7 | – Top: 3 | – Front: – | – Side: – | – Rear: 1 | – Bottom: 3 | – |
| Radiator Support (120mm | 140mm) |
Top: Max. 360 | – Front: – | – Rear: – | – Bottom: – | – |
| Clearance – CPU Cooler Height | 175 mm | 6.88 in |
| Clearance – GPU Length | 430 mm | 15.94 in (Without front fans installed) |
| Clearance – GPU Width | 175 mm | 6.88 in |
| Clearance – Power Supply | 150 mm | 5.90 in |
| Top 360 Radiator (L x W x H) | 410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in |
| Net Weight | 6.05 kg | 13.33 lbs |
| Gross Weight | 7.20 kg | 15.87 lbs |
| Warranty | 5 Years Limited |
| Scope of Delivery |
1x XT V3 chassis 1x SSD bracket (Pre-installed) 1x HDD bracket (Pre-installed) |
| Accessory Box |
9x Zip ties 1x Stand-off removal tool 1x GPU support |
| Screws |
17x Mainboard / SSD screws 5x Power supply screws 4x HDD screws 1x Mainboard stand-off |
