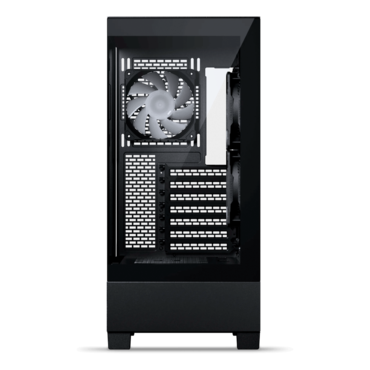

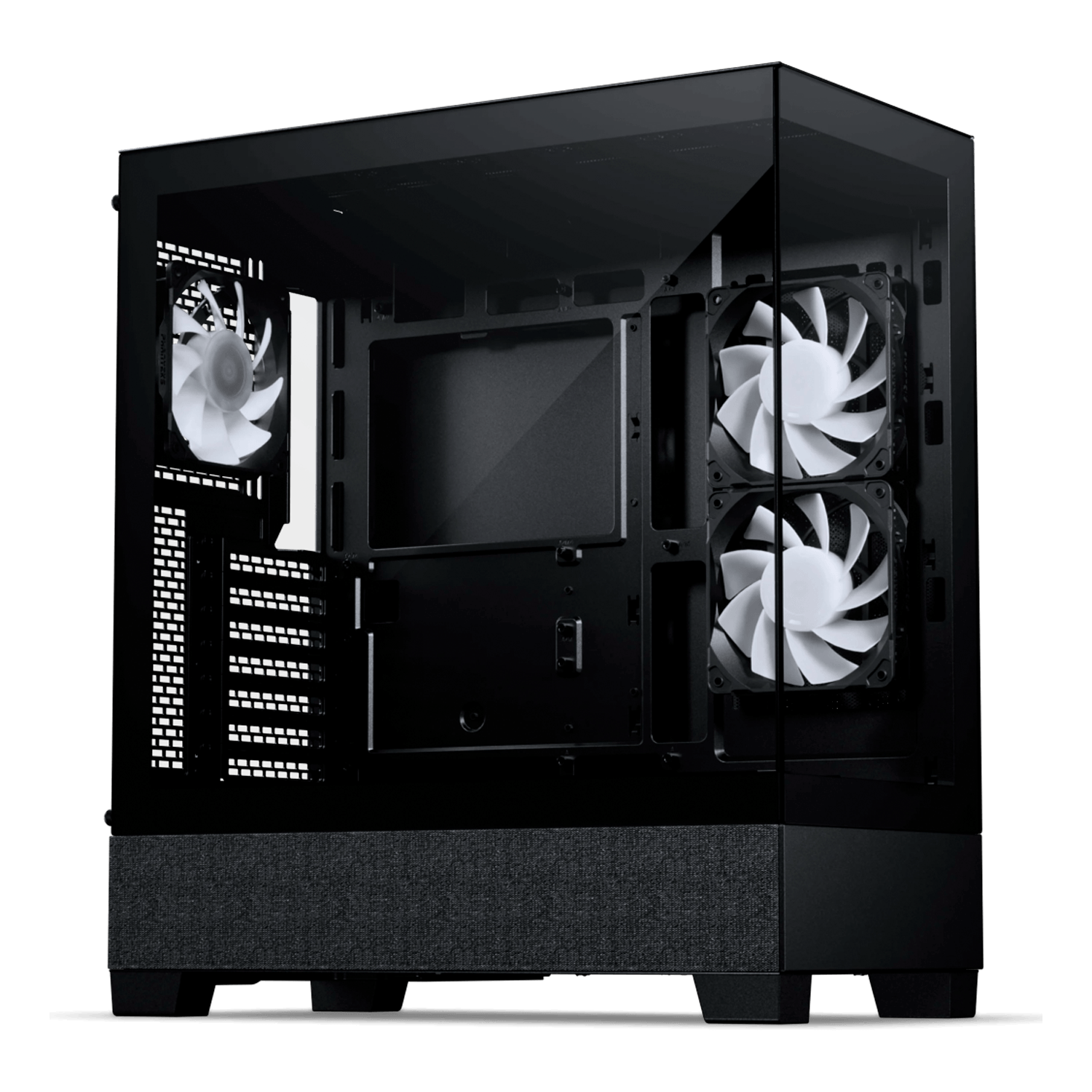

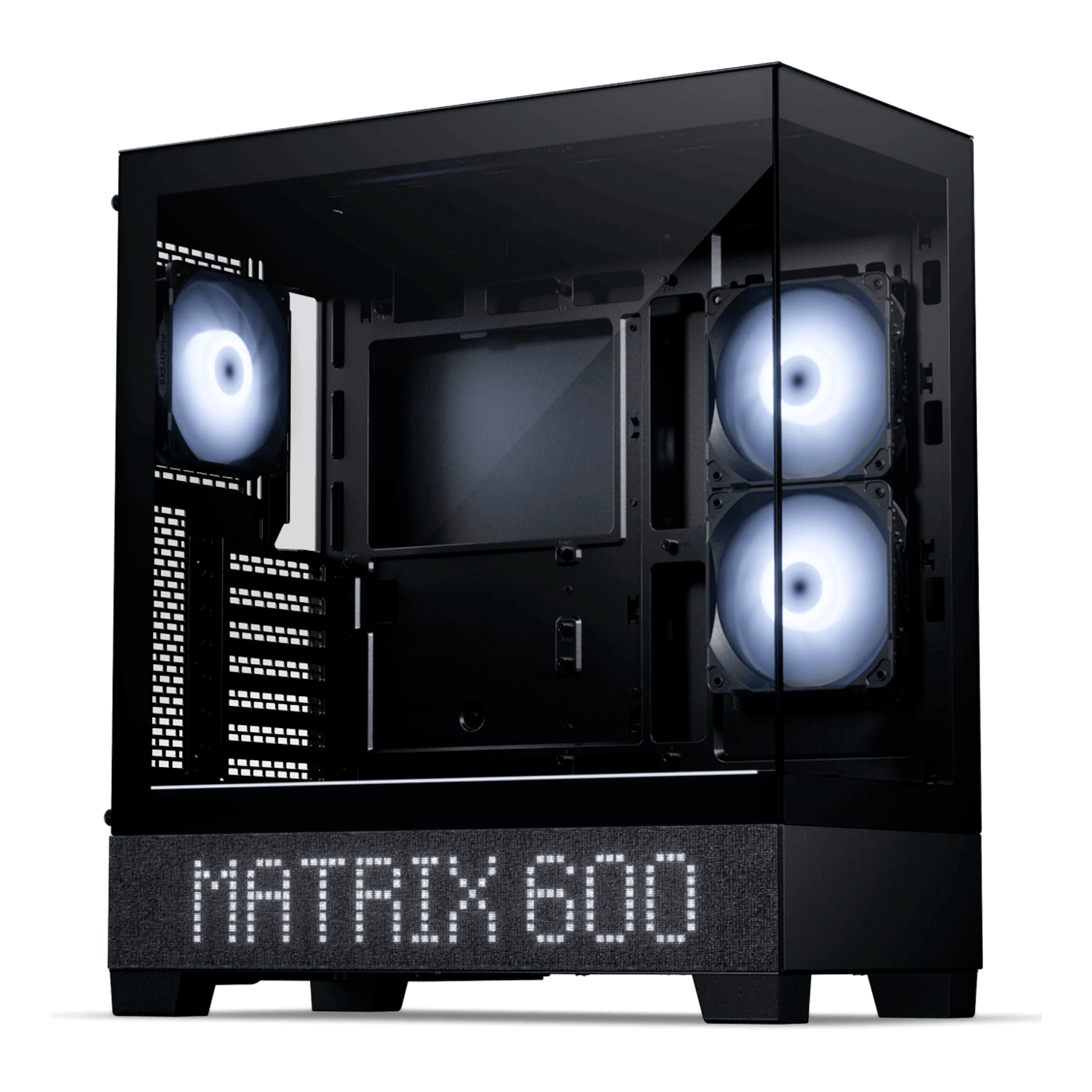

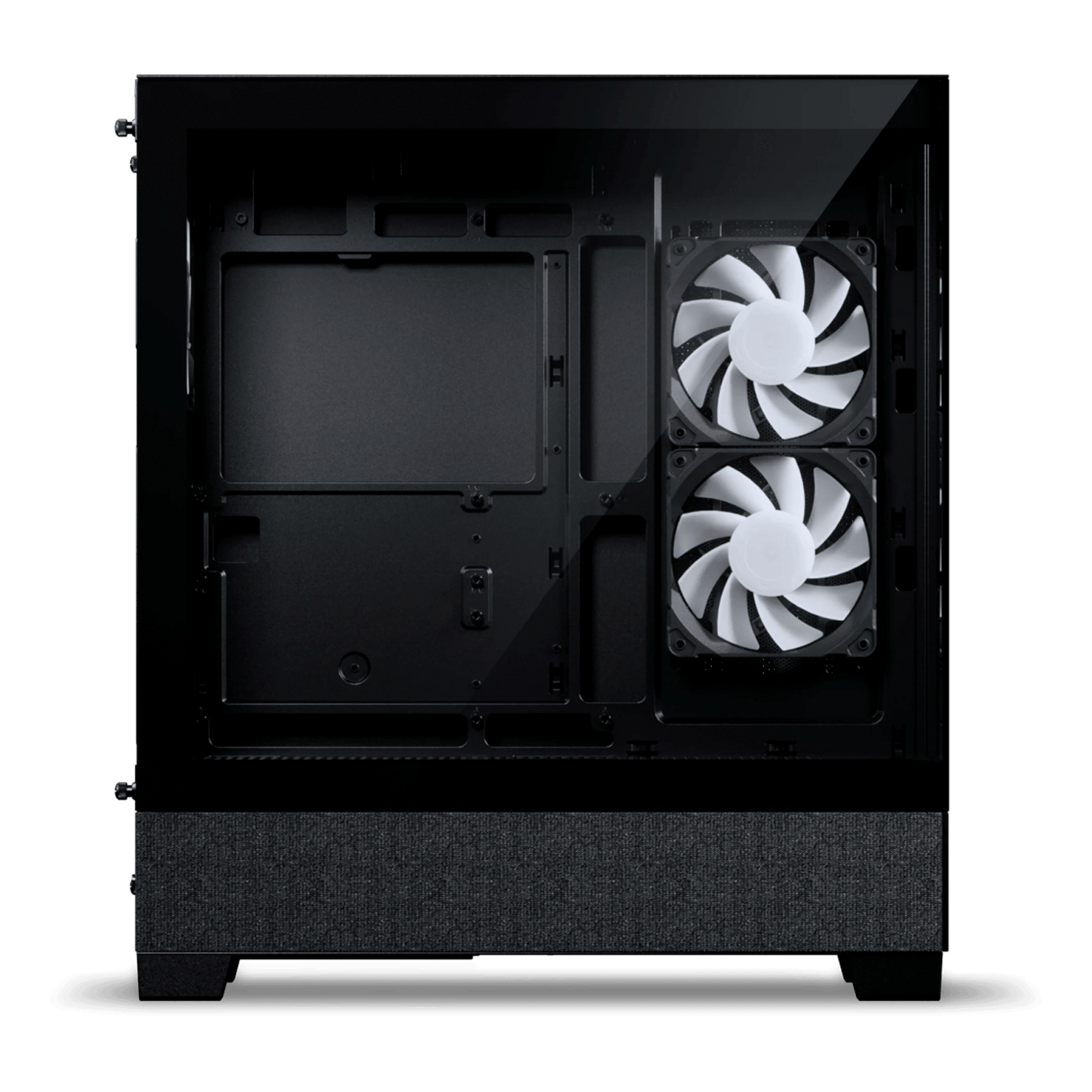

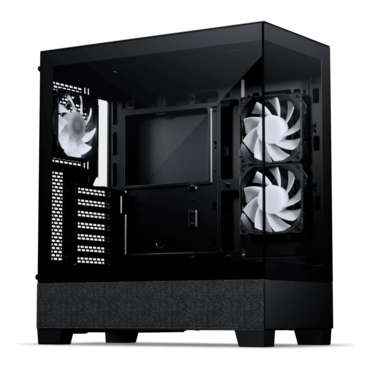

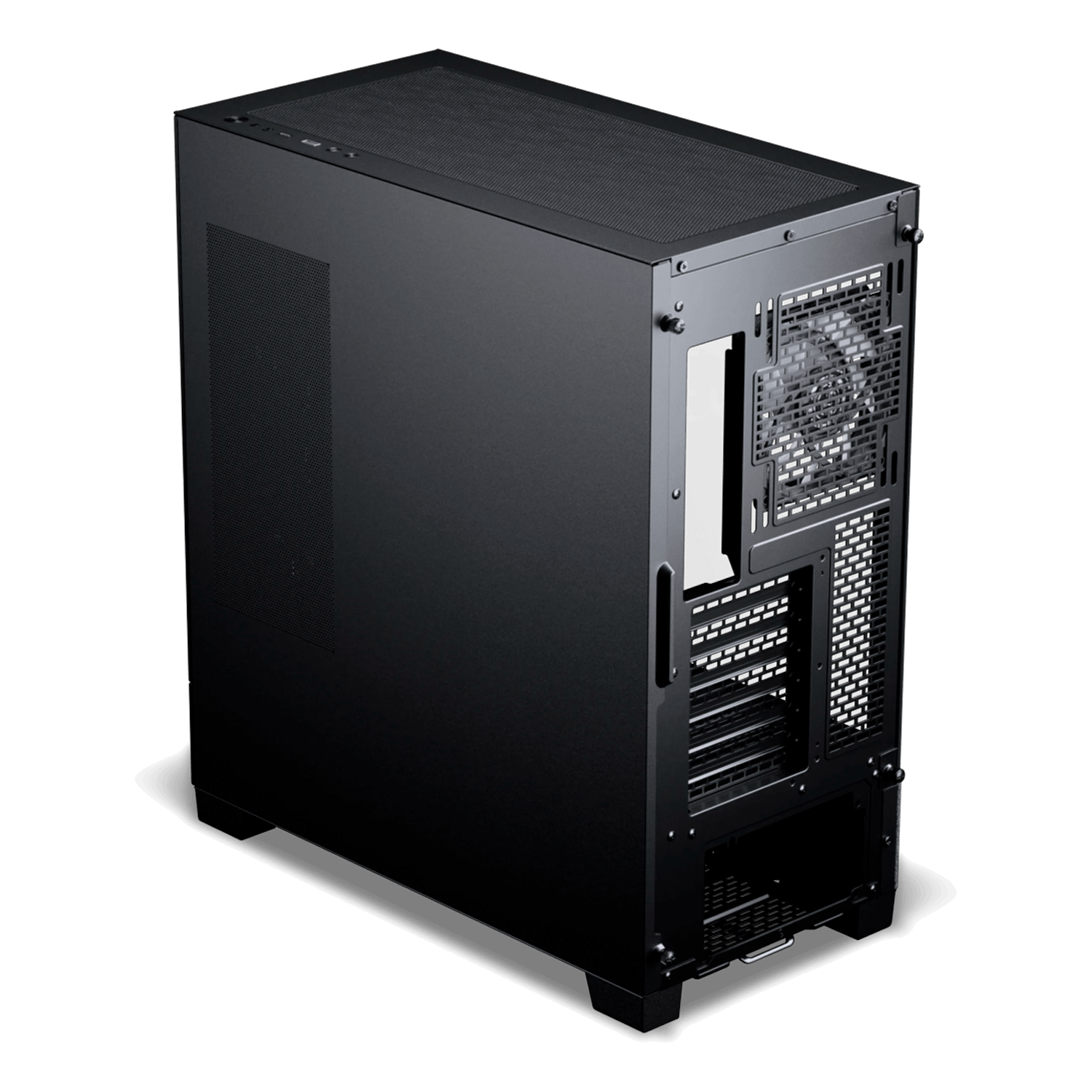

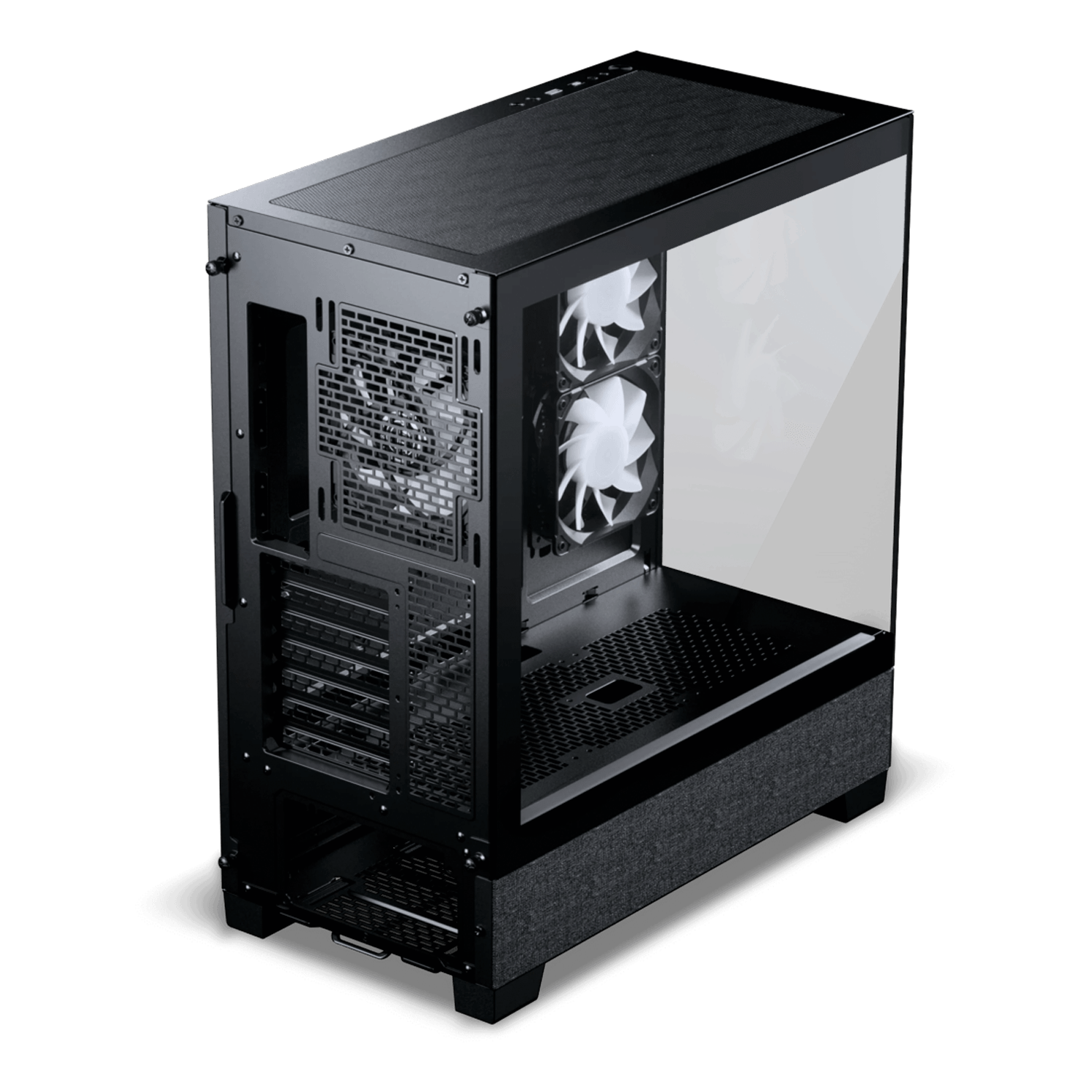

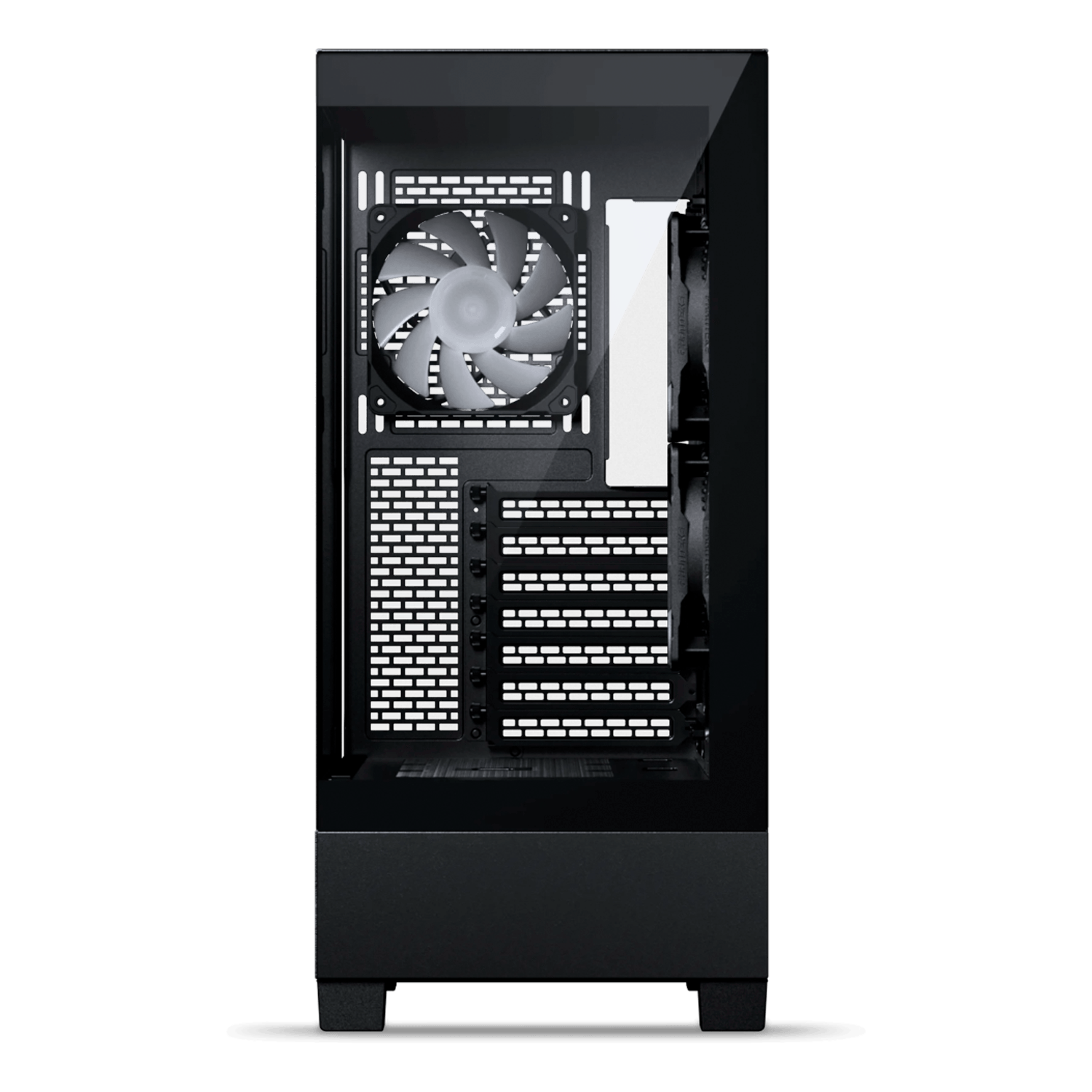

XT View Matrix, Tempered Glass, No PSU, E-ATX, Black, Mid Tower Case
- SKU: 19763466
- Manufacturer: PHANTEKS
- MPN: PH-XT523VM1_DBK01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
| Case Specifications | ||
| Dimension | 440 x 230 x 500mm / 17.32 x 9.06 x 19.69in (DxWxH) | |
| Form Factor | Mid-Tower | |
| Material(s) | Steel Chassis, Polyester Fabric, Tempered Glass Window, ABS Plastic | |
| Mainboard Support |
ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide) |
|
| Rear Connect Motherboard | ATX | |
| Front I/O |
1x USB 3.0, 1x USB-C 3.2 Gen2x2, Microphone/Headphone Combo, Power Button, Reset Button, DRGB Mode Button, DRGB Color Button |
|
| Connectors |
Front I/O, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E, Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard |
|
| Expansion & Drive Bays | ||
| Expansion Slots | 7 | |
| Vertical GPU Support | Yes, with optional bracket (PH-PGPUKT5.0) | |
| Internal 3.5” | 2x (if 0x SSD installed) | |
| Internal 2.5” | 2x (if 1x HDD installed) | |
| Cooling | 120mm (Fan) | 140mm (Fan) |
| Top | 3x | 2x |
| Side | 2x (2x included) | - |
| Rear | 1x (1x included) | 1x |
| Bottom | 3x | - |
| Liquid Cooling | 120mm (Radiator) | 140mm (Radiator) |
| Top | Up to 360 | - |
| Side | Up to 240 | - |
| Rear | - | - |
| Bottom | - | - |
| Clearance | ||
| Graphic Card Length | 415mm | |
| CPU Cooler Height | 184mm | |
| PSU Length | 270mm | |
| Top Radiator | 415 x 138 x 60mm | |
| Side Radiator | 305 x 120 x 62mm (only with Vertical GPU) | |
