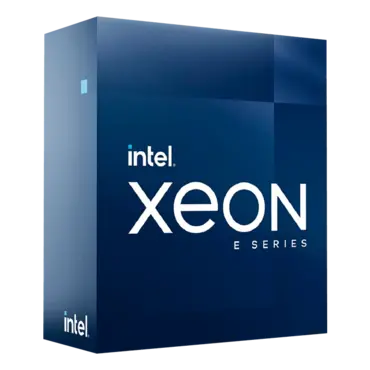

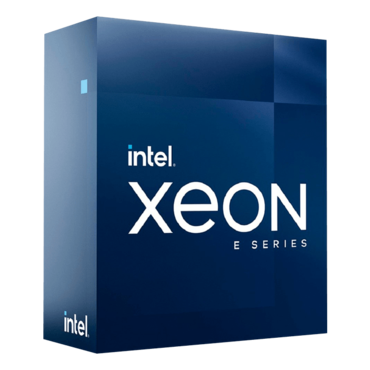

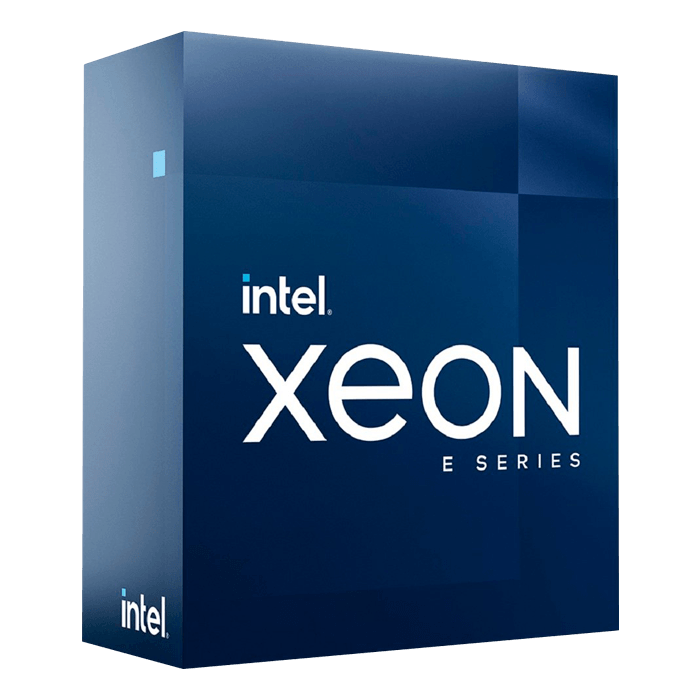

Xeon® E-2374G 4-Core 3.7 - 5.0GHz Turbo, LGA 1200, 80W TDP, Retail Processor

  • SKU: 14721192
  • Manufacturer: INTEL
  • MPN: BX80708E2374G
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Product Collection Intel® Xeon® E Processor
Code Name Products formerly Rocket Lake
Vertical Segment Server
Processor Number E-2374G
Status Launched
Launch Date Q3'21
Lithography 14 nm
Use Condition Server/Enterprise
CPU Specifications
Total Cores 4
Total Threads 8
Max Turbo Frequency 5.00 GHz
Intel® Turbo Boost Technology 2.0 Frequency 5.00 GHz
Processor Base Frequency 3.70 GHz
Cache 8 MB Intel® Smart Cache
Bus Speed 8 GT/s
TDP 80 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-3200
Max # of Memory Channels 2
ECC Memory Supported Yes
Intel® Optane™ Persistent Memory Supported No
Processor Graphics
Processor Graphics Intel® UHD Graphics P750
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.30 GHz
Graphics Video Max Memory 64 GB
Execution Units 32
4K Support Yes, at 60Hz
Max Resolution (HDMI) 4096 x 2160 @60 Hz
Max Resolution (DP) 5120 x 3200 @ 60 Hz
Max Resolution (eDP - Integrated Flat Panel) 5120 x 3200 @ 60 Hz
DirectX Support 12.1
OpenGL Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported 1
Device ID 0x4C9A
Expansion Options
Scalability 1S Only
PCI Express Revision 4.0
Microprocessor PCIe Revision Gen 4
PCI Express Configurations Up to 1x16+1x4, 2x8+1x4, 1x8+3x4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Package Size 37.5 mm x 37.5 mm
Advanced Technologies
Intel® Turbo Boost Technology 2.0
Intel vPro® Platform Eligibility Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® Transactional Synchronization Extensions No
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® SPS
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Maximum Enclave Page Cache (EPC) Size for Intel® SGX 0.5 GB
