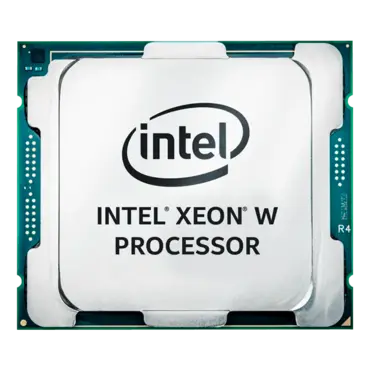

Xeon® W-1270TE 8-Core 2.0 - 4.4GHz Turbo, LGA 1200, 35W, OEM Processor
Quantity:
- SKU: 13856163
- Manufacturer: INTEL
- MPN: CM8070104420706
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$412.25
| Essentials | |
| Product Collection | Intel® Xeon® W Processor |
| Code Name | Products formerly Comet Lake |
| Vertical Segment | Embedded |
| Processor Number | W-1270TE |
| Status | Launched |
| Launch Date | Q2'20 |
| Lithography | 14 nm |
| Use Conditions | Embedded Broad Market Commercial Temp |
| CPU Specifications | |
| # of Cores | 8 |
| # of Threads | 16 |
| Processor Base Frequency | 2.00 GHz |
| Max Turbo Frequency | 4.40 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 4.40 GHz |
| TDP | 35 W |
| Supplemental Information | |
| Embedded Options Available | Yes |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2933 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 45.8 GB/s |
| ECC Memory Supported | Yes |
| Processor Graphics | |
| Processor Graphics | Intel® UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.15 GHz |
| Graphics Video Max Memory | 64 GB |
| Graphics Output | eDP/DP/HDMI/DVI |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI) | 4096x2160@30Hz |
| Max Resolution (DP) | 4096x2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4096x2304@60Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 04 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x9BC6 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | Up to 1x16, 2x8, 1x8+2x4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015B |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel vPro® Platform Eligibility | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
