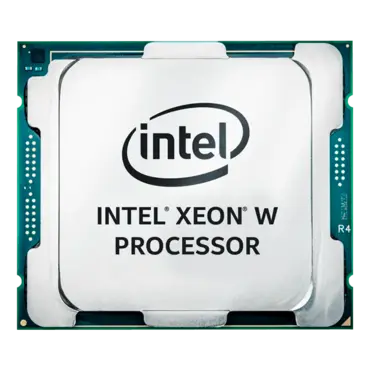

Xeon® W-1290E 10-Core 3.5 - 4.8GHz Turbo, LGA 1200, 95W, OEM Processor

Quantity:
  • SKU: 13643925
  • Manufacturer: INTEL
  • MPN: CM8070104420510
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$603.56
Quantity:
Essentials
Product Collection Intel® Xeon® W Processor
Code Name Products formerly Comet Lake
Vertical Segment Embedded
Processor Number W-1290E
Status Launched
Launch Date Q2'20
Lithography 14 nm
Use Conditions Embedded Broad Market Commercial Temp
CPU Specifications
# of Cores 10
# of Threads 20
Processor Base Frequency 3.50 GHz
Max Turbo Frequency 4.80 GHz
Cache 20 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency 4.80 GHz
TDP 95 W
Supplemental Information
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2933
Max # of Memory Channels 2
Max Memory Bandwidth 45.8 GB/s
ECC Memory Supported Yes
Processor Graphics
Processor Graphics Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 64 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (HDMI) 4096x2160@30Hz
Max Resolution (DP) 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel) 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported 3
Device ID 0x9BC6
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015W
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel® Thermal Velocity Boost Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel vPro® Platform Eligibility Yes
Intel® Hyper-Threading Technology Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology Yes
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® OS Guard Yes
Intel® Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
