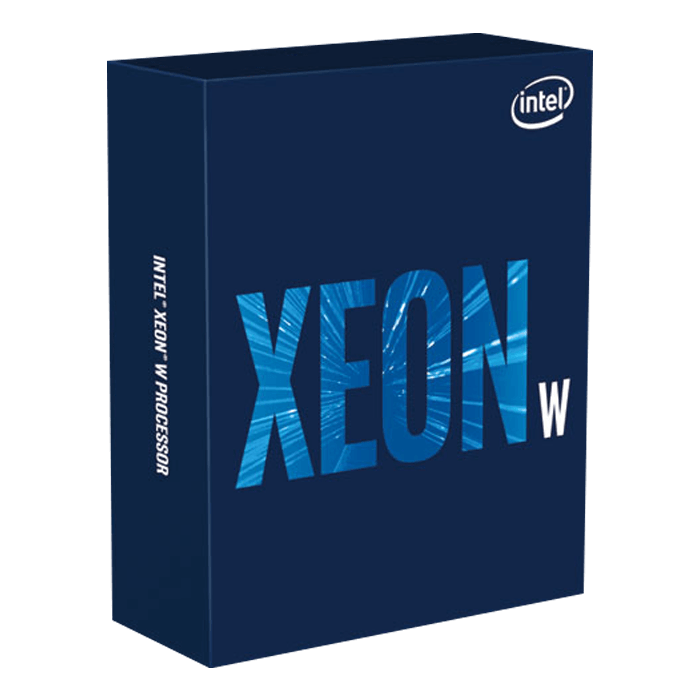

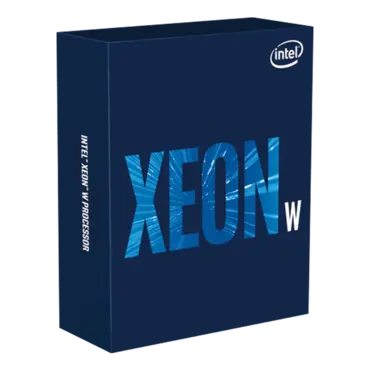

Xeon® W-1390 8-Core 2.8 - 5.2GHz Turbo, LGA 1200, 80W TDP, Processor
Quantity:
- SKU: 14451585
- Manufacturer: INTEL
- MPN: BX80708W1390
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$558.23
| Essentials | |
| Product Collection | Intel® Xeon® W Processor |
| Code Name | Products formerly Rocket Lake |
| Vertical Segment | Workstation |
| Processor Number | W-1390 |
| Status | Launched |
| Launch Date | Q2'21 |
| Lithography | 14 nm |
| Included Items | This product is available in tray and box. For boxed product, a thermal solution is included. |
| Use Conditions | Workstation |
| CPU Specifications | |
| # of Cores | 8 |
| # of Threads | 16 |
| Processor Base Frequency | 2.80 GHz |
| Max Turbo Frequency | 5.20 GHz |
| Intel® Thermal Velocity Boost Frequency | 5.20 GHz |
| Cache | 16 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 5.10 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency | 5.00 GHz |
| TDP | 80 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Datasheet | View now |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 50 GB/s |
| ECC Memory Supported | Yes |
| Processor Graphics | |
| Processor Graphics | Intel® UHD Graphics P750 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Video Max Memory | 64 GB |
| Execution Units | 32 |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI) | 4096x2160@60Hz |
| Max Resolution (DP) | 5120 x 3200 @60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 5120 x 3200 @60Hz |
| DirectX* Support | 12. |
| OpenGL* Support | 04. |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x4C90 |
| OpenCL* Support | 3.0 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 4.0 |
| PCI Express Configurations | Up to 1x16+1x4, 2x8+1x4, 1x8+3x4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019B |
| Intel® Thermal Velocity Boost Temperature | 70 °C |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel vPro® Platform Eligibility | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Gaussian and Neural Accelerator 2.0 | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
