| Essentials |
| Product Collection |

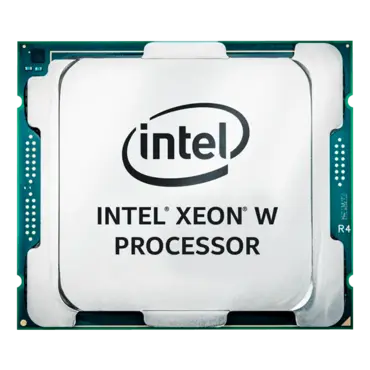

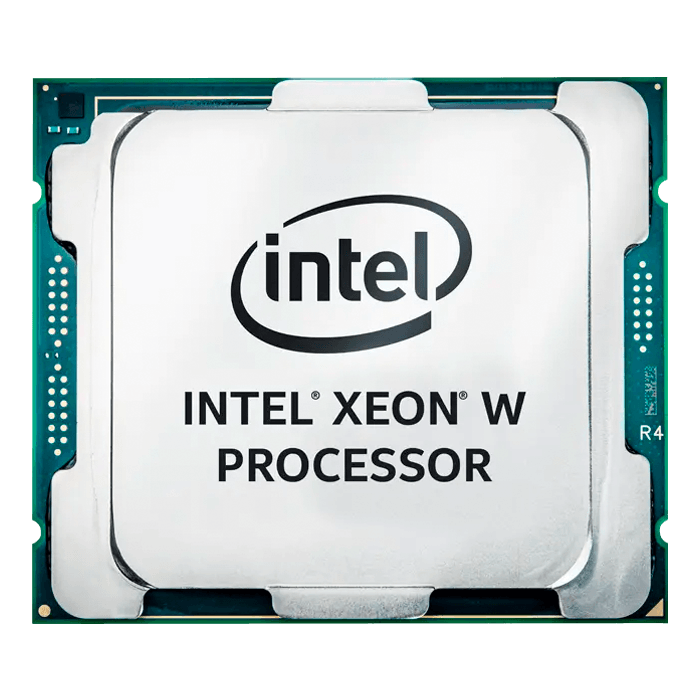

Intel® Xeon® W Processor |
| Code Name |
Products formerly Ice Lake |
| Vertical Segment |
Workstation |
| Processor Number |
W-3375 |
| Status |
Launched |
| Launch Date |
Q3'21 |
| Lithography |
10 nm |
| CPU Specifications |
| # of Cores |
38 |
| # of Threads |
76 |
| Processor Base Frequency |
2.50 GHz |
| Max Turbo Frequency |
4.00 GHz |
| Cache |
57 MB |
| Bus Speed |
8 GT/s |
| # of UPI Links |
0 |
| TDP |
270 W |
| Supplemental Information |
| Embedded Options Available |
No |
| Memory Specifications |
| Max Memory Size (dependent on memory type) |
4 TB |
| Memory Types |
DDR4-3200 |
| Maximum Memory Speed |
3200 MHz |
| Max # of Memory Channels |
8 |
| ECC Memory Supported |
Yes |
| Intel® Optane™ Persistent Memory Supported |
No |
| Expansion Options |
| Scalability |
1S Only |
| PCI Express Revision |
4 |
| Max # of PCI Express Lanes |
64 |
| Package Specifications |
| Sockets Supported |
FCLGA4189 |
| TCASE |
80°C |
| Package Size |
77.5mm x 56.5mm |
| Advanced Technologies |
| Intel® Speed Select Technology – Core Power |
No |
| Intel® Speed Select Technology – Turbo Frequency |
No |
| Intel® Deep Learning Boost (Intel® DL Boost) |
Yes |
| Intel® Speed Select Technology - Performance Profile |
No |
| Intel® Speed Select Technology - Base Frequency |
No |
| Intel® Resource Director Technology (Intel® RDT) |
No |
| Intel® Speed Shift Technology |
Yes |
| Intel® Turbo Boost Max Technology 3.0 |
No |
| Intel® Turbo Boost Technology |
2.0 |
| Intel vPro® Platform Eligibility |
No |
| Intel® Hyper-Threading Technology |
Yes |
| Intel® Virtualization Technology (VT-x) |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® Transactional Synchronization Extensions |
Yes |
| Intel® 64 |
Yes |
| Instruction Set Extensions |
Intel® AVX-512 |
| # of AVX-512 FMA Units |
2 |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Intel® Volume Management Device (VMD) |
Yes |
| Security & Reliability |
| Intel® AES New Instructions |
Yes |
| Intel® Software Guard Extensions (Intel® SGX) |
No |
| Intel® Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| Mode-based Execute Control (MBE) |
Yes |
| Intel® Total Memory Encryption |
No |
| Intel® Platform Firmware Resilience Support |
No |
