Z690-A WIFI DDR4 PRO, Intel® Z690 Chipset, LGA 1700, DP, ATX Motherboard

Quantity:
  • SKU: 14665489
  • Manufacturer: MSI
  • MPN: Z690AWIFDDR4
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$203.10
Quantity:

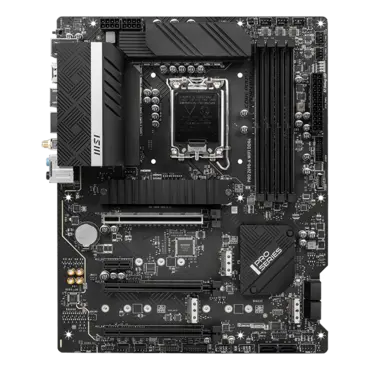

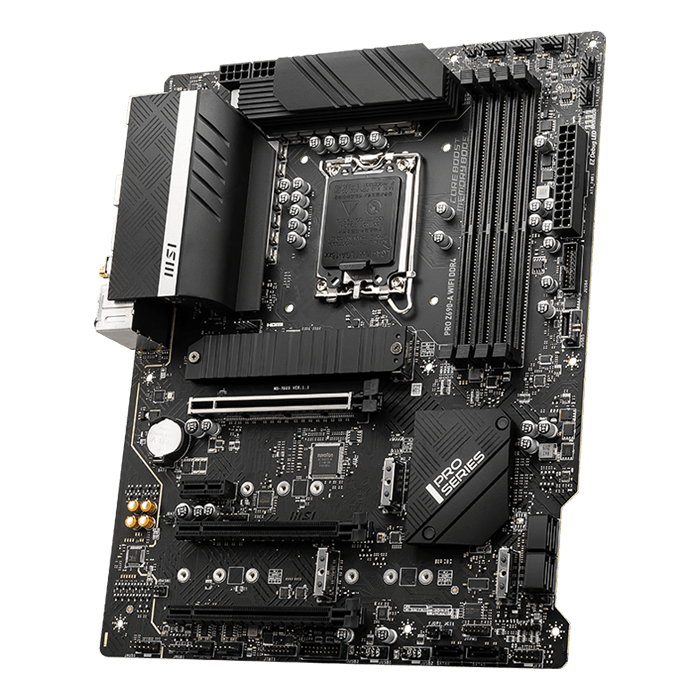

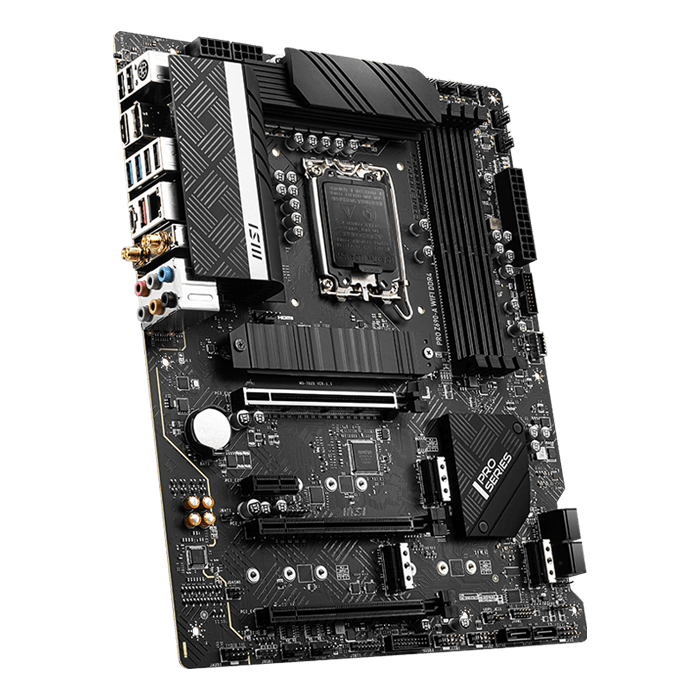

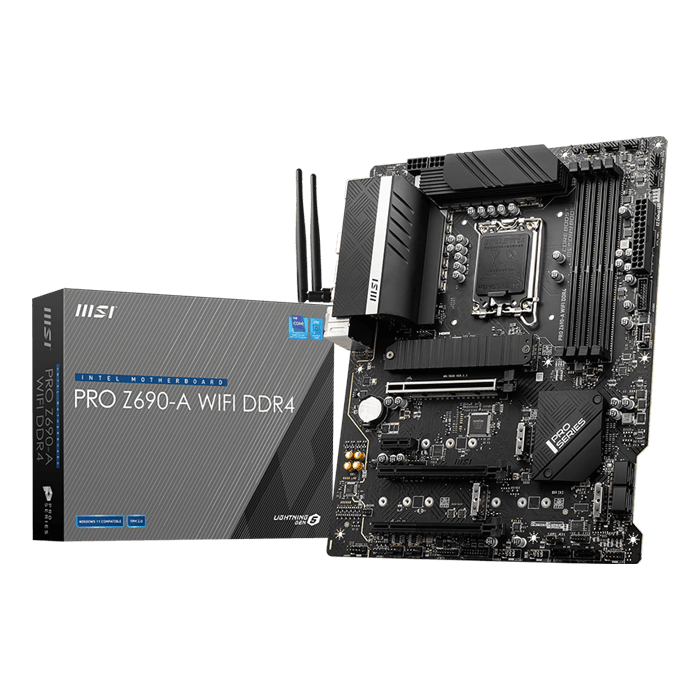

Z690-A WIFI DDR4 PRO, Intel® Z690 Chipset, LGA 1700, DP, ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
Processor

Supports 12th Gen Intel ® Core™ Processors, Pentium ® Gold and Celeron ® Processors 1

Processor socket LGA1700

  1. Please go to intel.com for compatibility information
Chipset

Intel ® Z690 Chipset

Memory
  • 4x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) 1
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5200+ MHz
      • 1DPC 2R Max speed up to 4800+ MHz
      • 2DPC 1R Max speed up to 4400+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel ® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory
Expansion Slot
  • 3x PCIe x16 slots
    • PCI_E1 (from CPU)
      • Supports up to PCIe 5.0 x16
    • PCI_E3 & PCI_E4 (from Z690 chipset)
      • Supports up to PCIe 3.0 x4& 3.0 x1
  • 1x PCIe 3.0 x1 slot (from Z690 chipset)
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPU
  • Supports AMD ® CrossFire Technology
Storage
  • 6x SATA 6Gb/s ports (from Z690 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 slot (from CPU)
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from Z690 chipset)
      • Support up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_3 slot (from Z690 chipset)
      • Support up to PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_4 slot (from Z690 chipset)
      • Support up to PCIe 4.0x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
    • Intel ® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
    • Support Intel ® Smart Response Technology for Intel Core™ processors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
  • Intel ® Z690 Chipset
    • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
    • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
    • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
    • 4x USB 2.0 Type-A ports on the back panel
  • USB 2.0 Hubs GL850G
    • 4x USB 2.0 ports are available through the internal USB connectors
Audio

Realtek ® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN
  • 1x Intel ® I225-V 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH ®

Intel ® Wi-Fi 6

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Tuning controller connector
  • 1x TBT connector (Supports RTD3)
LED Feature
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

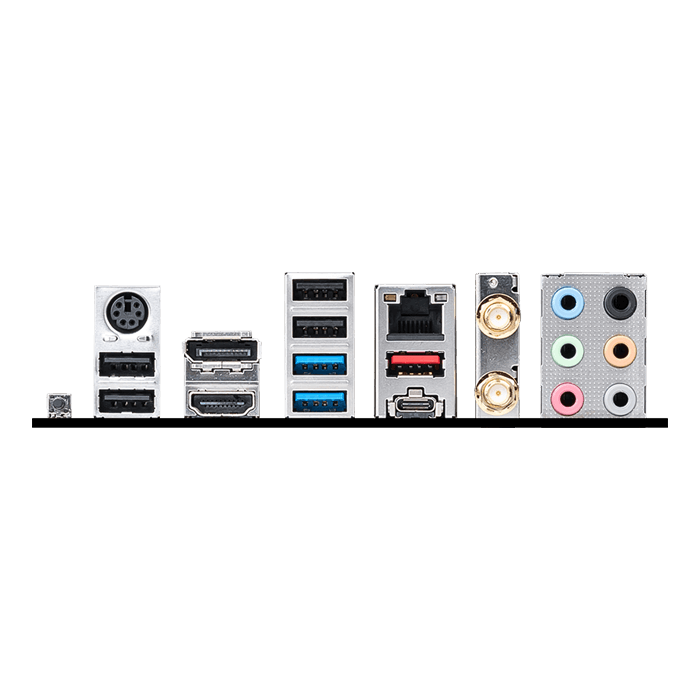

Back panel ports
  • 1x Keyboard / Mouse
  • 1x DisplayPort
  • 4x USB 2.0
  • 1x LAN port
  • 2x WIFI / Bluetooth
  • 6x Audio connector
  • 1x Flash BIOS Button
  • 1x HDMI
  • 2x USB 3.2 Gen 1 5Gbps Type-A
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C
  • 1x USB 3.2 Gen 2 10Gbps Type-A

Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting

9 mounting holes

Operating System

Support for Windows ® 11 64-bit, Windows ® 10 64-bit
