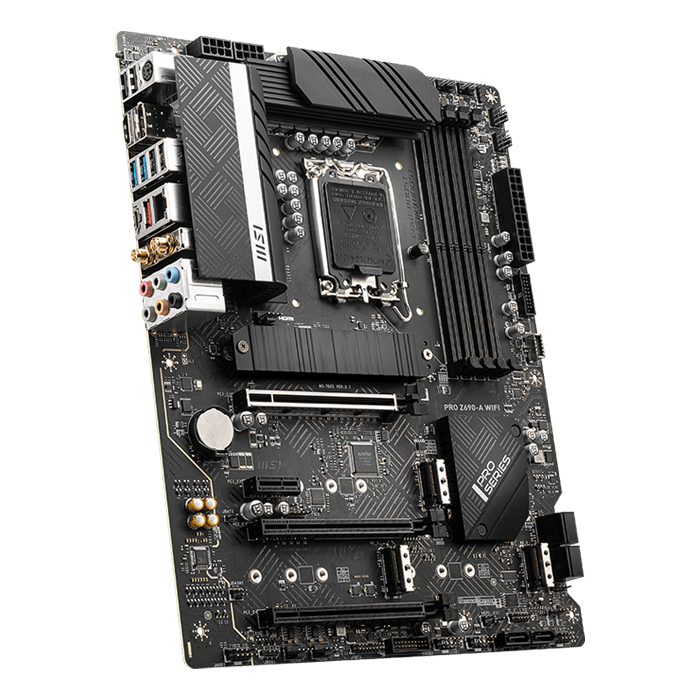

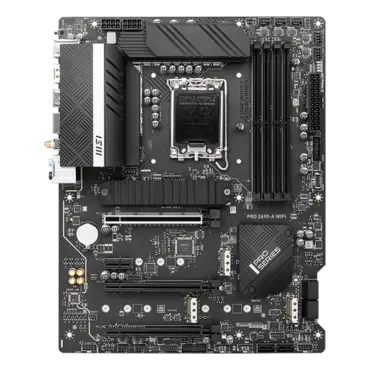

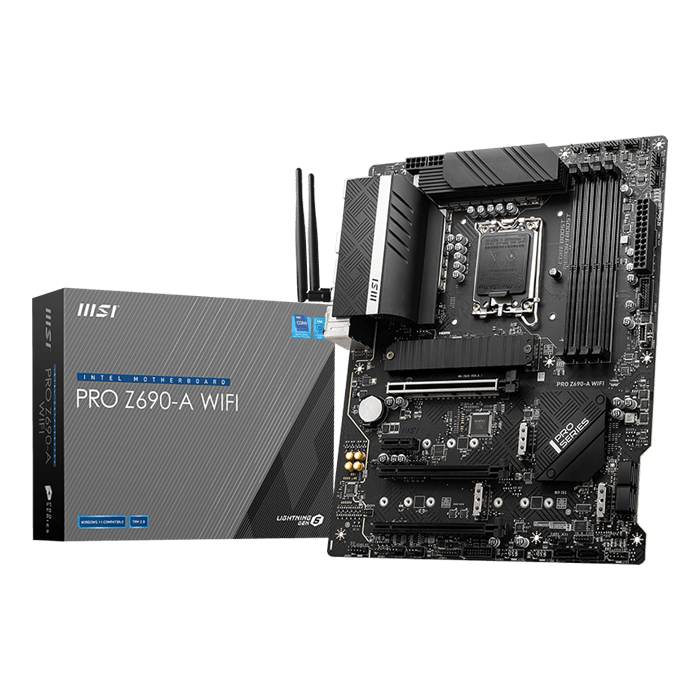

Z690-A WIFI PRO, Intel® Z690 Chipset, LGA 1700, DP, ATX Motherboard

1. Please go to intel.com for compatibility information

• 4x DDR5 memory slots, supporting up to 128GB ¹
• Supports 1R 4800 MHz (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5400+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Intel ^® XMP 3.0 OC
• Supports Dual Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer www.msi.com for more information on compatible memory

• 3x PCIe x16 slots
  • PCI_E1 (from CPU)
    • Supports up to PCIe 5.0 x16
  • PCI_E3 & PCI_E4 (from Z690 chipset)
    • Supports up to PCIe 3.0 x4 & 3.0 x1
• 1x PCIe 3.0 x1 slot (from Z690 chipset)

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz ^{1 2}
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz ^{1 2}

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

• Supports AMD ^® CrossFire ^™ Technology

• 6x SATA 6Gb/s ports (from Z690 chipset)
• 4x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (from Z690 chipset)
    • Supports PCIe 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (from Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • Intel ^® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
• Support Intel ^® Smart Response Technology for Intel Core™ processors

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

• Intel ^® Z690 Chipset
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
  • 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
  • 4x USB 2.0 Type-A ports on the back panel
• USB Hub GL850G
  • 4x USB 2.0 ports are available through the internal USB connectors

Realtek ^® ALC897 Codec

• 7.1-Channel High Definition Audio

• 1x Intel ^® I225-V 2.5Gbps LAN controller

Intel ^® Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2 ² , FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11.
2. Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11.

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

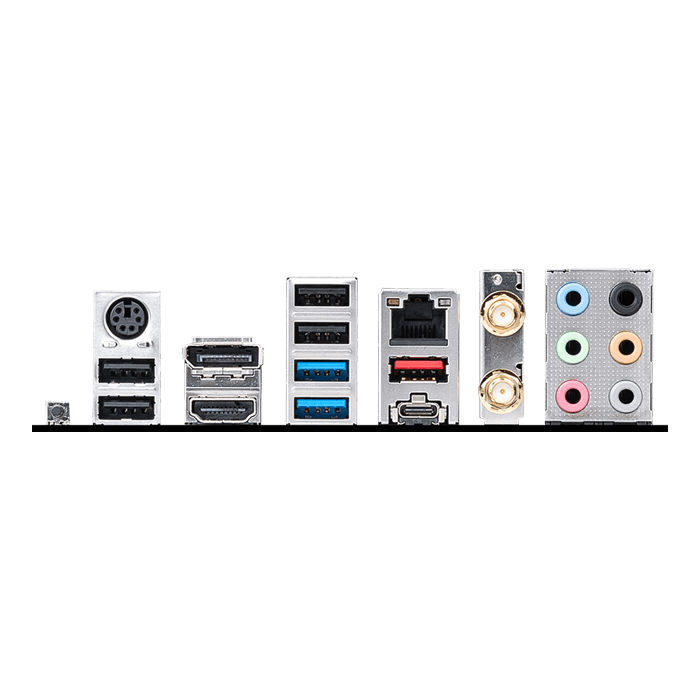

• 1x Keyboard / Mouse
• 1x DisplayPort
• 4x USB 2.0
• 1x LAN port
• 2x WIFI / Bluetooth
• 6x Audio connector
• 1x Flash BIOS Button
• 1x HDMI
• 2x USB 3.2 Gen 1 5Gbps Type-A
• 1x USB 3.2 Gen 2x2 20Gbps Type-C
• 1x USB 3.2 Gen 2 10Gbps Type-A

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
