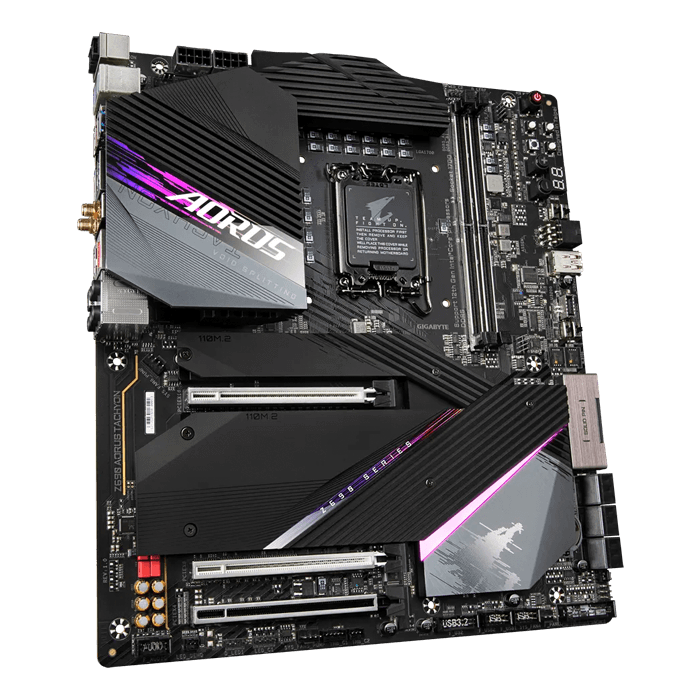

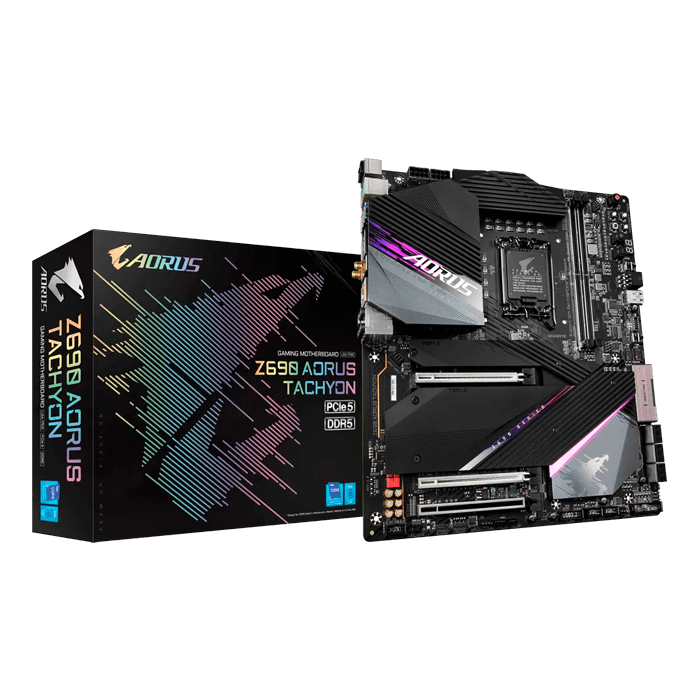

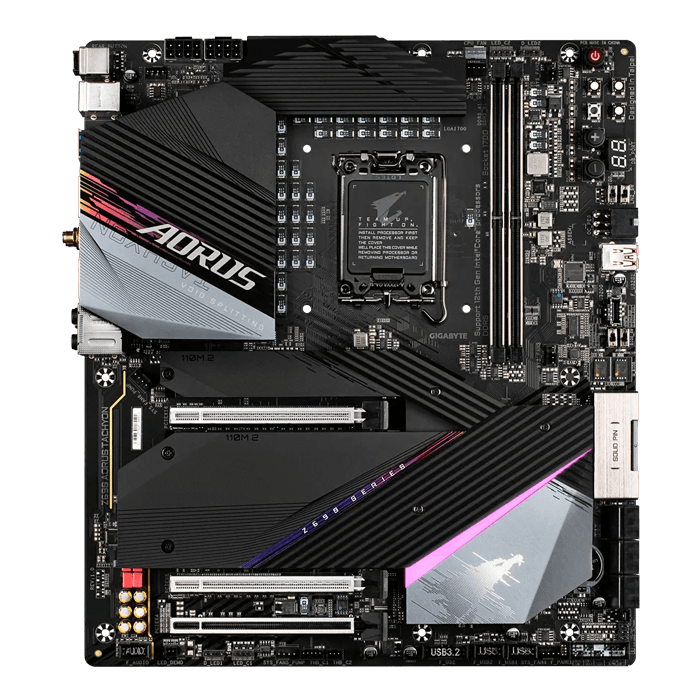

Z690 AORUS TACHYON, Intel® Z690 Chipset, LGA 1700, HDMI, E-ATX Motherboard
Z690 AORUS TACHYON, Intel® Z690 Chipset, LGA 1700, HDMI, E-ATX Motherboard
Z690 AORUS TACHYON, Intel® Z690 Chipset, LGA 1700, HDMI, E-ATX Motherboard
Z690 AORUS TACHYON, Intel® Z690 Chipset, LGA 1700, HDMI, E-ATX Motherboard

Z690 AORUS TACHYON, Intel® Z690 Chipset, LGA 1700, HDMI, E-ATX Motherboard

Quantity:
  • SKU: 14670247
  • Manufacturer: GIGABYTE
  • MPN: Z690 AORUS TACHYON
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$638.23
Quantity:
Z690 AORUS TACHYON, Intel® Z690 Chipset, LGA 1700, HDMI, E-ATX Motherboard

Intel® Z690 AORUS Motherboard with 15+1+2 Phases Digital VRM Design, Overclocking Kit, DDR5 XTREME MEMORY Design, 4x PCIe 4.0 M.2 with Thermal Guards, Intel® 2.5GbE LAN, Intel® WIFI 6E 802.11ax , 120dB Hi-Res Audio with WIMA, Dual USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus

  • Support 12th Gen Intel® Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 15+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Exclusive onboard Overclocking Kit for extreme overclocking
  • Intel® WIFI 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
  • Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • 4 x  Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
  • Dual SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
CPU
  1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z690 Express Chipset
Memory
  1. Support for DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  2. 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® ALC1220-VB CODEC
    * The back panel line out jack supports DSD audio.
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2/4/5.1/7.1-channel
  5. Support for S/PDIF Out
LAN
  1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6E AX210
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
  1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
ASMedia® USB 3.2 Gen 2 controller:
  1. 1 x USB 3.2 Gen 2 Type-A port (red) onboard
Chipset+USB 3.2 Gen 1 Hub:
  1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x 6-pin OC_PEG power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 4 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  15. 1 x USB 3.2 Gen 2 Type-A port (red)
  16. 1 x USB 3.2 Gen 1 header
  17. 2 x USB 2.0/1.1 headers
  18. 1 x noise detection header
  19. 2 x Thunderbolt™ add-in card connectors
  20. 2 x temperature sensor headers
  21. Voltage Measurement Points
  22. 1 x Clear CMOS jumper
  23. 1 x power button (PW_SW)
  24. 1 x reset button (RST_SW)
  25. 1 x Clear CMOS button (CMOS_SW)
  26. 1 x Cold Reset button (RTY_SW)
  27. 1 x Protection Mode button (LIMP_MODE)
  28. 2 x BIOS switches (BIOS_SW/SB)
  29. 1 x CPU Ratio up button (RATIO_UP)
  30. 1 x CPU Ratio down button (RATIO_DW)
  31. 1 x OC Trigger switch (TGR)
  32. 1 x Reserved switch (RSV_SW)

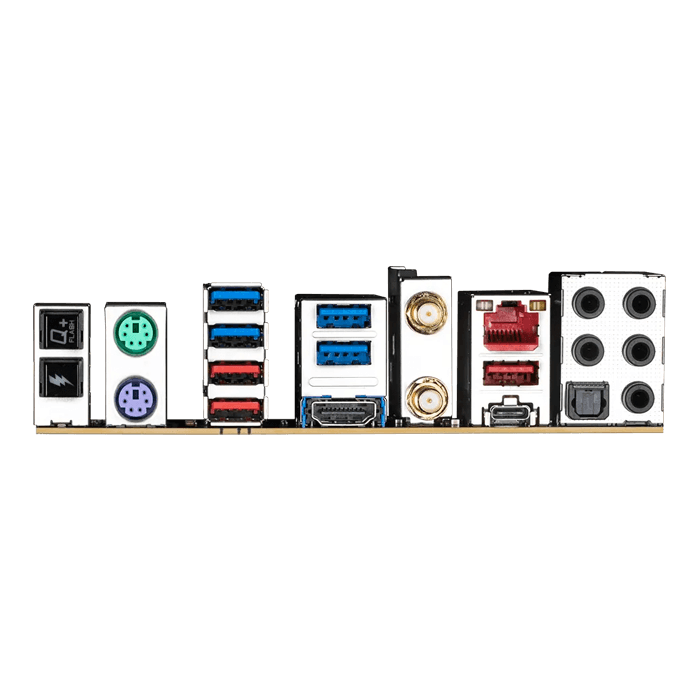

Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x OC Ignition button
  3. 1 x PS/2 keyboard port
  4. 1 x PS/2 mouse port
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x HDMI port
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  8. 3 x USB 3.2 Gen 2 Type-A ports (red)
  9. 4 x USB 3.2 Gen 1 ports
  10. 1 x RJ-45 port
  11. 1 x optical S/PDIF Out connector
  12. 5 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  7. Noise detection
BIOS
  1. 2 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. E-ATX Form Factor; 30.5cm x 27.0cm
Price
$638.23
As low as $53.19/ Month*
$638.23
