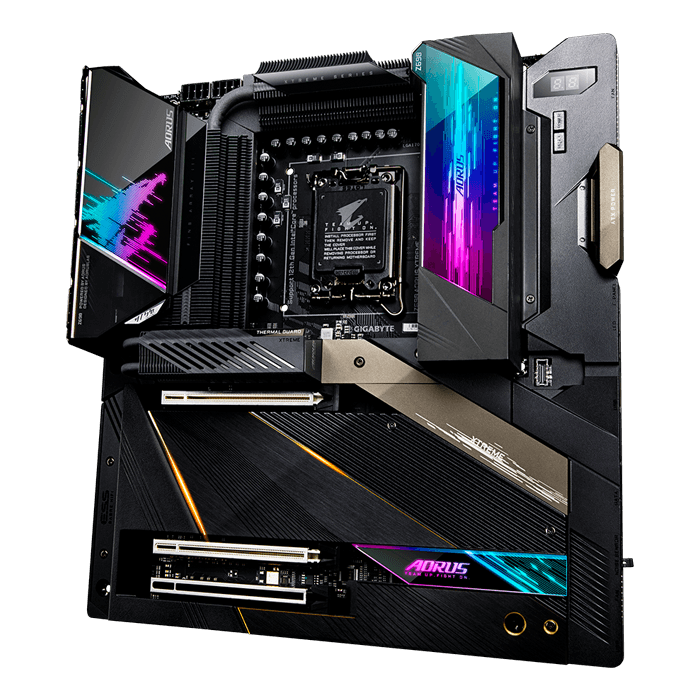

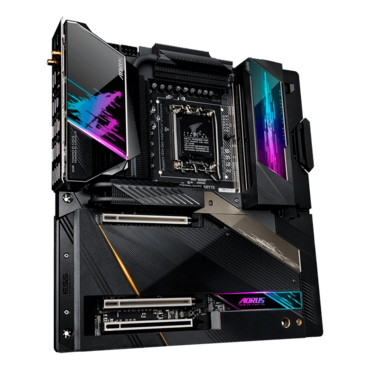

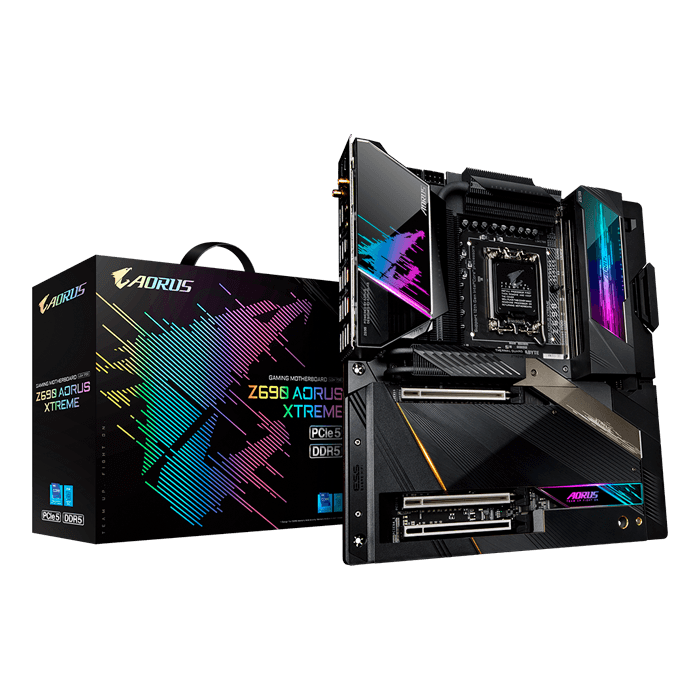

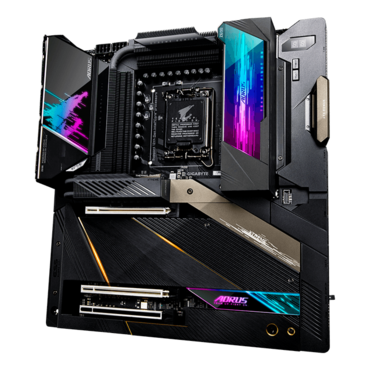

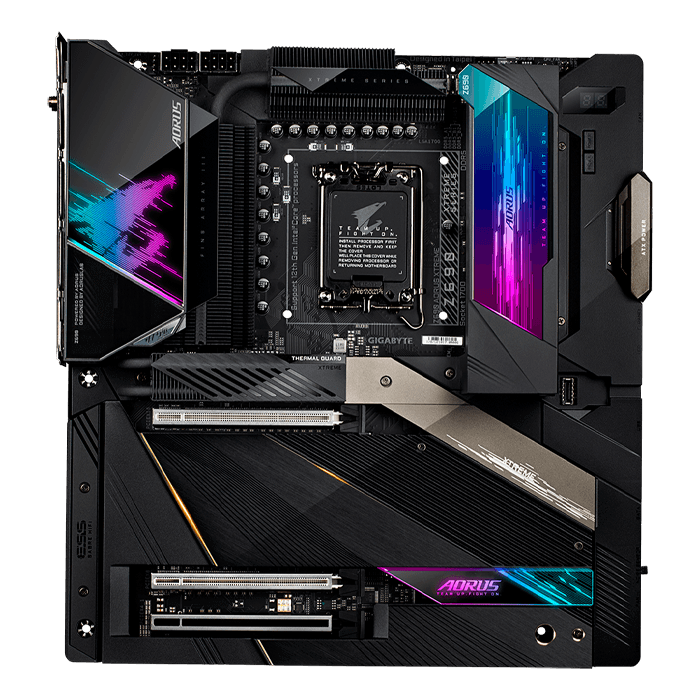

Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard
Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard
Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard
Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard
Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard

Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard

  • SKU: 14680890
  • Manufacturer: GIGABYTE
  • MPN: Z690 AORUS XTREME
  • Availability: TEMPORARILY OUT OF STOCK
Price
$1,045.33
Quantity:
Z690 AORUS XTREME, Intel® Z690 Chipset, LGA 1700, 2x Thunderbolt™ 4, E-ATX Motherboard

GIGABYTE Z690 AORUS XTREME. Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake's performance in all its gaming glory.

  • Support 12th Gen Intel® Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • Direct 20+1+2 Phases VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Thermal Reactive Armor with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II and NanoCarbon Baseplate
  • Intel® Thunderbolt 4 onboard
  • Intel® WIFI 6E 802.11ax 2T2R & BT5 with 2 x AORUS Antenna
  • Essential USB Hex Audio Card and bundled Essential USB DAC
  • AQUANTIA® 10GbE BASE-T LAN and Intel® 2.5GbE LAN with cFosSpeed
  • 4 x Ultra-Fast NVMe PCIe 4.0 / 3.0 x4 M.2 with Thermal Guards XTREME
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  • L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)
Chipset
  • Intel® Z690 Express Chipset
Memory
  • Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:
  • 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
  • 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
  • DTS® Sound Unbound™
  • High Definition Audio
  • 2-channel
  • Support for S/PDIF Out
    * The line out jack and the optical S/PDIF out connector can only be used one at a time.
LAN
  • Marvell® AQtion AQC113C 10GbE LAN chip
    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Communication module Intel® Wi-Fi 6E AX210
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
    (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset+Intel® Thunderbolt™ 4 Controller:
  • 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 2 Hub:
  • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB header (with the included front USB header extension cable)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 4 x system fan/water cooling pump headers
  • 1 x noise detection header
  • 1 x AORUS RGB Memory Armor power header
  • 2 x addressable LED strip + RGB LED strip combo extension cable headers
  • 4 x SATA 6Gb/s connectors
  • 4 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 2 x USB 3.2 Gen 1 headers
  • 1 x USB 2.0/1.1 header
  • 2 x temperature sensor headers
  • 1 x power button
  • 1 x reset button

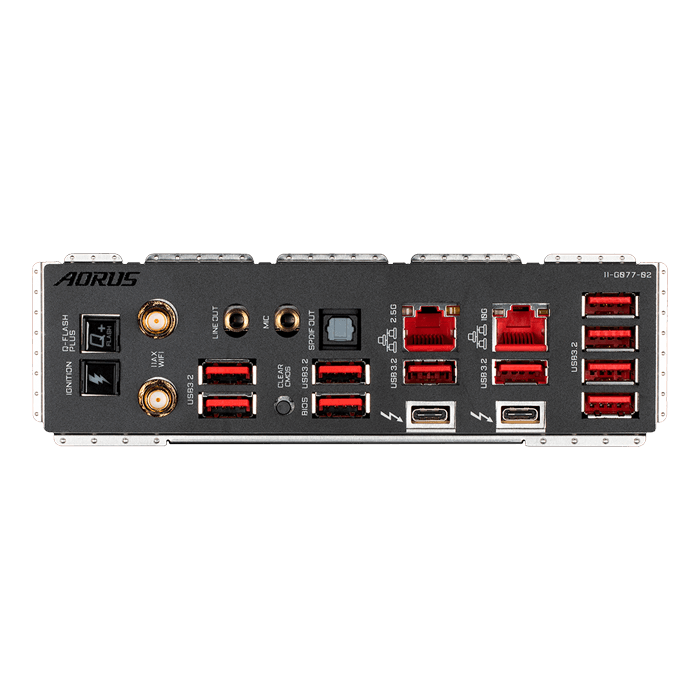

Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 1 x OC Ignition button
  • 1 x Clear CMOS button
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)
  • 10 x USB 3.2 Gen 2 Type-A ports (red)
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
    * The mic in jack supports only mono microphone input.
I/O Controller
  • iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
Operating System
  • Support for Windows 10 64-bit
Form Factor
  • E-ATX Form Factor; 30.5cm x 28.5cm
