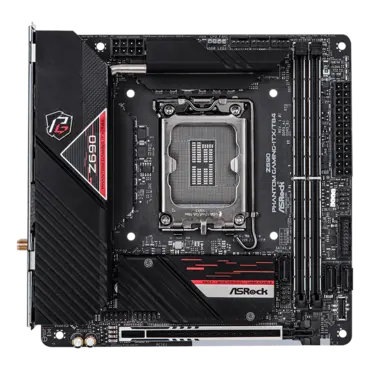

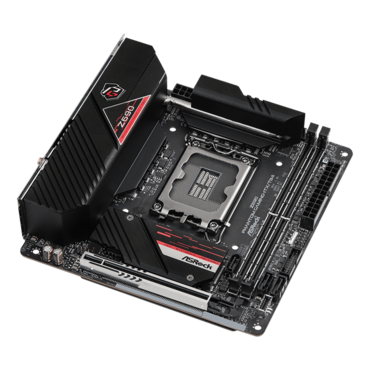

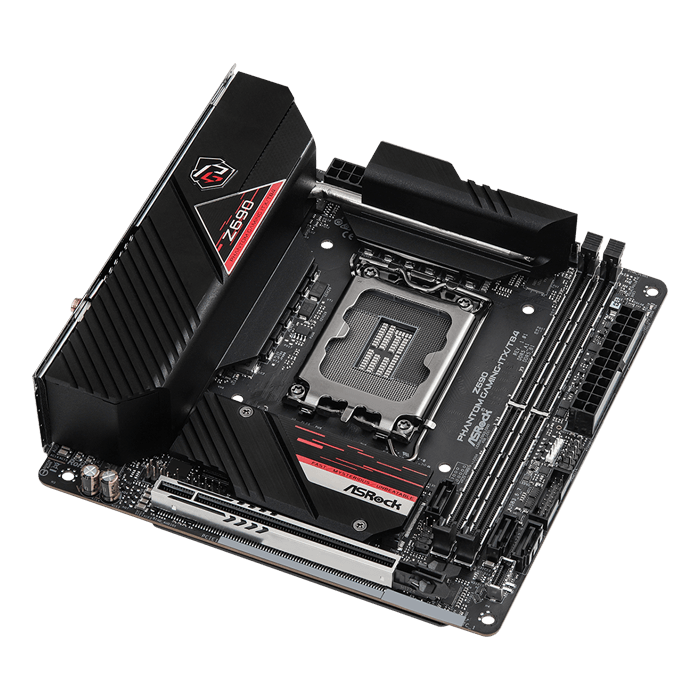

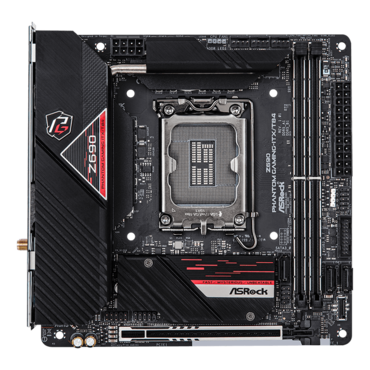

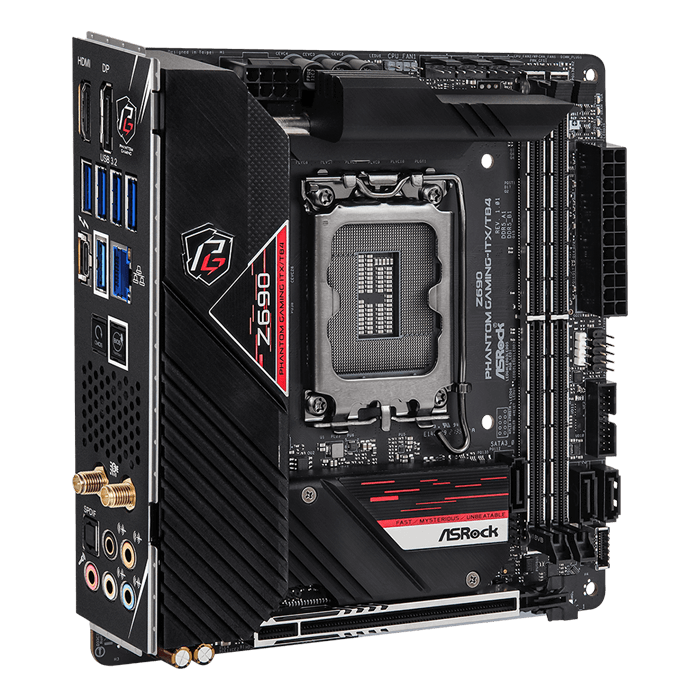

Z690 Phantom Gaming-ITX/TB4, Intel® Z690 Chipset, LGA 1700, Thunderbolt™ 4, Mini-ITX Motherboard
Quantity:
- SKU: 14690711
- Manufacturer: ASROCK
- MPN: Z690 Phantom Gaming-ITX/TB4
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$223.08
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 11 Phase SPS Dr.MOS Power Design
- Supports DDR5 6400MHz (OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Thunderbolt™ Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec,
- Nahimic Audio
- 3 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- Thunderbolt™ 4/USB4 Type-C
- 1 USB 3.2 Gen2x2 Front Type-C
- 4 Rear USB 3.2 Gen2 Type-A
- 3 USB 3.2 Gen1 (1 Rear, 2 Front)
- Killer E3100 2.5G LAN
- Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
| Unique Feature |
ASRock USB 4.0 - ASRock USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) ASRock USB 3.2 Gen2 - ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy - Premium 90A Power Choke - 105A SPS (Smart Power Stage) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 10 Layer PCB Killer 2.5G LAN 802.11ax Wi-Fi 6E Killer DoubleShot™ Pro ASRock Auto Driver Installer ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU |
- Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 11 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® Z690 |
| Memory |
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 - 15μ Gold Contact in DIMM Slots *Supports DDR5 4800 (1DPC) natively.
|
| BIOS |
- 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU CORE/Cache, CPU GT, VCCIN_AUX, VDD_CPU, VDD_IMC, +0.82V PCH, +1.05V PCH, +1.8V PROC, +1.05V PROC, VDD, VDDQ, VPP Voltage Multi-adjustment |
| Graphics |
- Intel® Xe Graphics Architecture (Gen 12) - Three graphics output options: HDMI, DisplayPort 1.4 and Intel® Thunderbolt™ 4 ports - Supports Triple Monitor - Supports Intel® Thunderbolt™ 4 with max. resolution up to 8K (7680x4320) @ 60Hz** - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with DisplayPort 1.4, HDMI 2.1 TMDS Compatible and Intel® Thunderbolt™ 4 Ports
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Supports two 4K displays or one 8K display |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio |
| LAN |
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless LAN |
- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for
supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
| Slots |
- 1 x PCIe Gen5x16 Slot* - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots
Supports NVMe SSD as boot disks |
| Storage |
- 3 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
*Supports Intel® Optane™ Technology (M2_2 only)
Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| RAID |
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 5
|
| Connector |
- 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x Chassis Fan Connector (4-pin)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. *****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. |

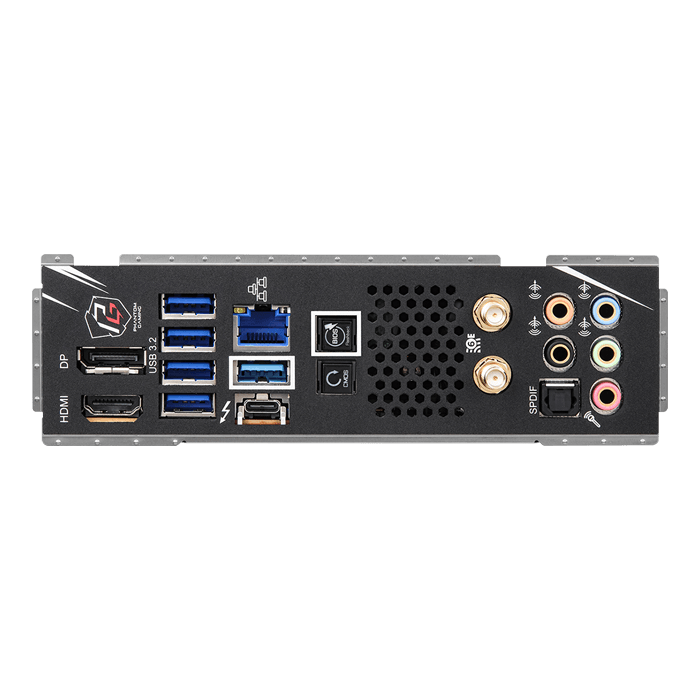

| Rear Panel I/O |
- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Port (Supports ESD Protection) - 1 x USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
|
| Software and UEFI |
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories |

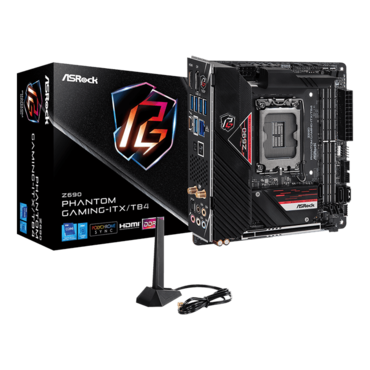

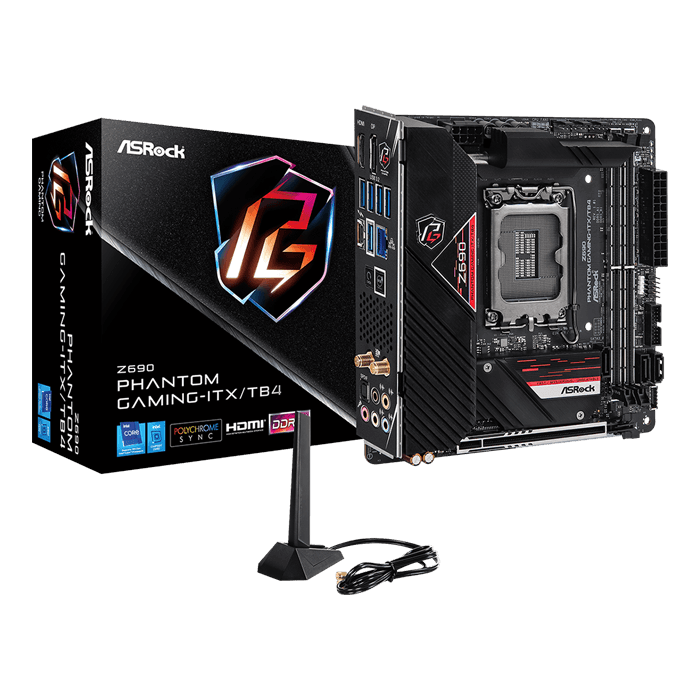

- Quick Installation Guide, Support CD - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 2 x Screws for M.2 Sockets |
| Hardware Monitor |
- Fan Tachometer: CPU, CPU/Water Pump, Chassis Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU/Water Pump Fan - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCCSA, VDD_CPU, VCCIN_AUX, +1.05V PCH, +1.05V PROC |
| Form Factor |
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 10 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
