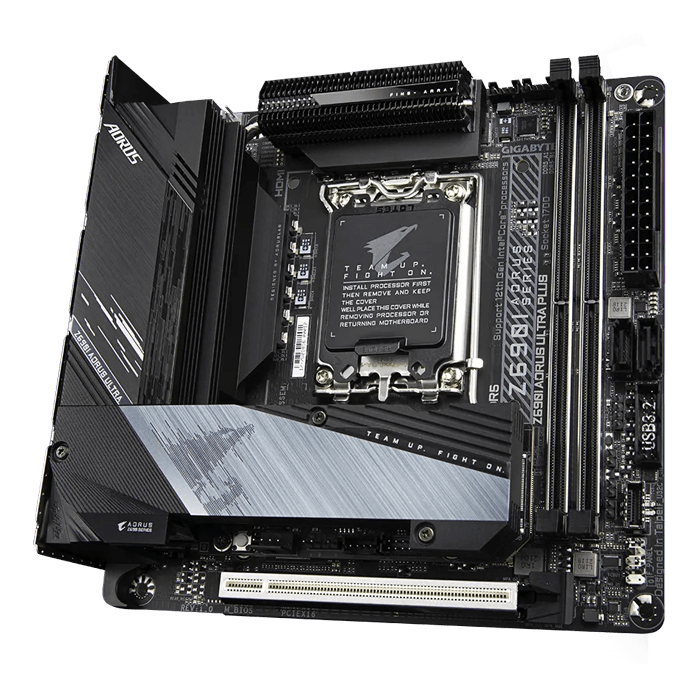

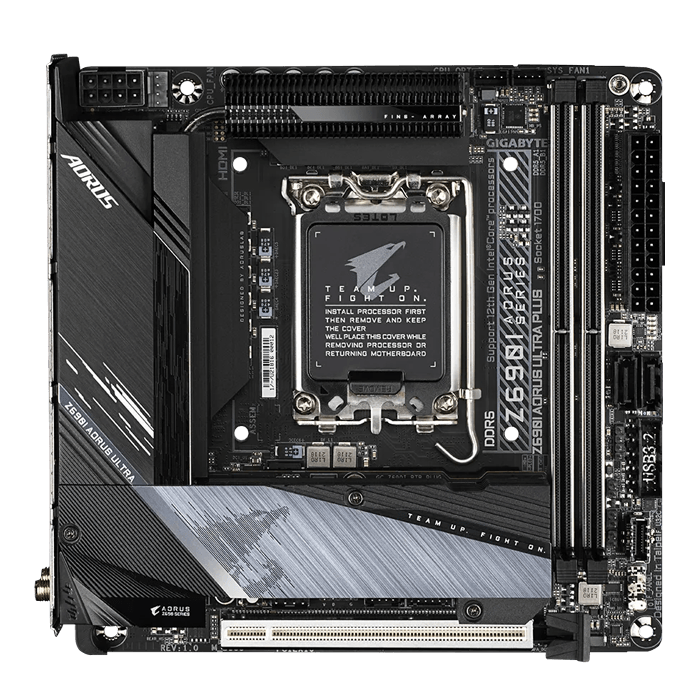

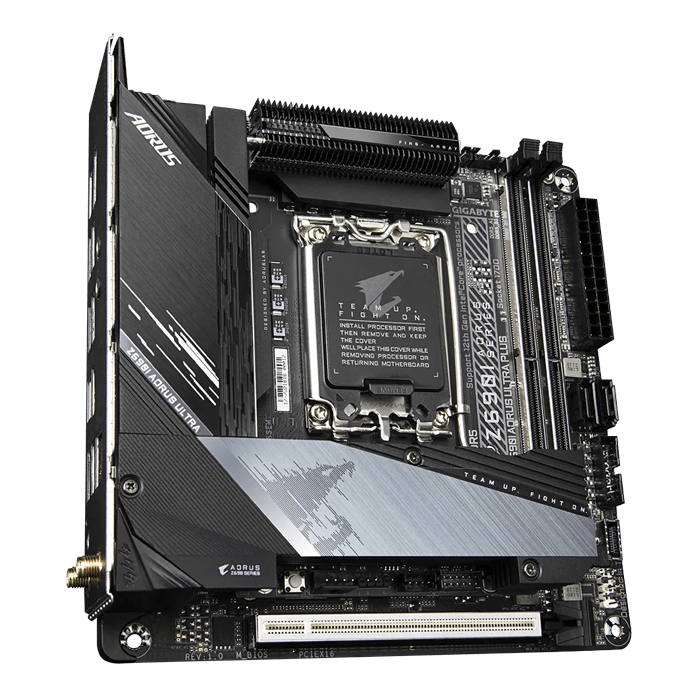

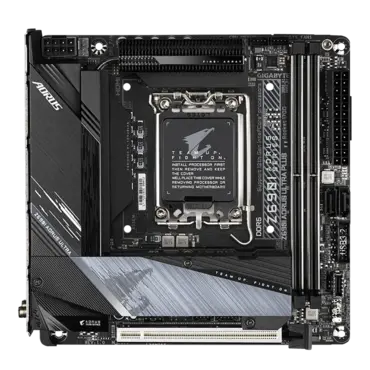

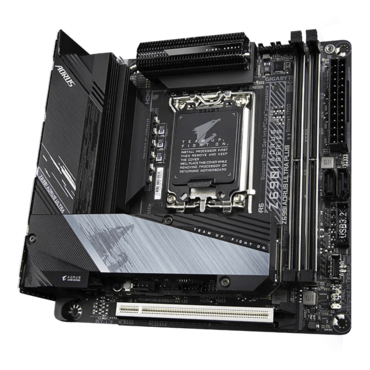

Z690I AORUS ULTRA PLUS, Intel® Z690 Chipset, LGA 1700, DP, Mini-ITX Motherboard

Quantity:
  • SKU: 15048956
  • Manufacturer: GIGABYTE
  • MPN: Z690I AORUS ULTRA PLUS
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$376.00
Quantity:
  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Intel® Optane™ Memory Ready
  • Direct 10+2+1 Phases Digital VRM Solution with 105A Power Stage*
  • Advanced Thermal Design with Fins- Array II, Thermal Guard III and Heatpipe
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Intel® WIFI6E 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC4080 and WIMA for Rear 120dB SNRHDMI 2.0 supports Premium 4K
  • Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strip
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
CPU
  1. LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z690 Express Chipset
Memory
  1. Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  2. 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
  • 1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
    * Support for DisplayPort 1.4 version and HDCP 2.3
    * The DisplayPort does not support HDMI connection by adapter. (Graphics specifications may vary depending on CPU support.)
Audio
  1. Realtek® ALC4080 CODEC
  2. Support for DTS:X® Ultra
  3. High Definition Audio
  4. 2-channel
LAN
  1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 6E AX411
  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
    ** Does not support system Wake-on-WLAN from hibernation (S4).
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
  2. (The PCI Express x16 slots conform to PCI Express 5.0 standard.)
Storage Interface CPU:
  1. 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 2 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1

Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  5. 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x external power connector(Note 1)
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
  7. 1 x addressable LED strip header(Note 1)
  8. 1 x RGB LED strip header
  9. 2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))
  10. 2 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header(routed from the adapter card on the rear panel)
  13. 1 x speaker header
  14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 1 x USB 2.0/1.1 header(Note 1)
  17. 1 x reset button(Note 1)
  18. 1 x reset jumper
  19. 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
(Note 2) The connector is on the back of GC-Z690I BTB PLUG.

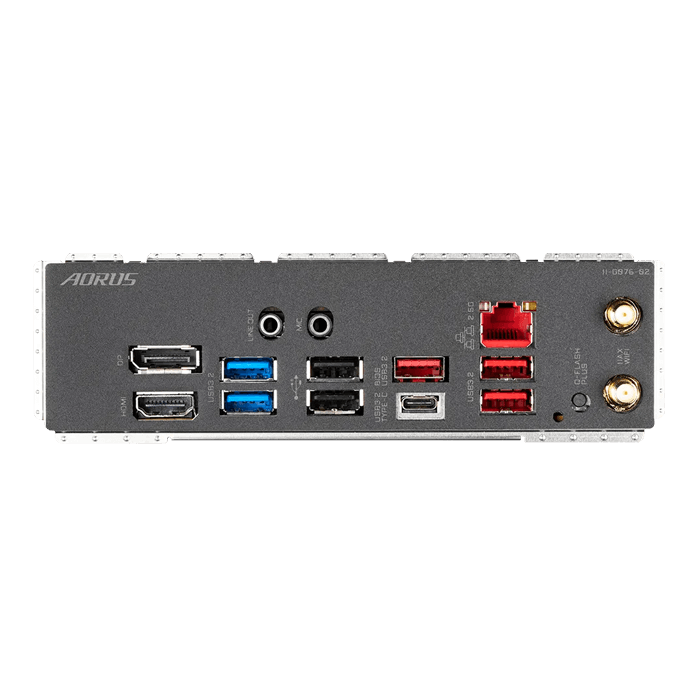

Back Panel Connectors
  1. 2 x SMA antenna connectors (2T2R)
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  5. 3 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x USB 3.2 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x Q-Flash Plus button
  9. 1 x RJ-45 port
  10. 2 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
