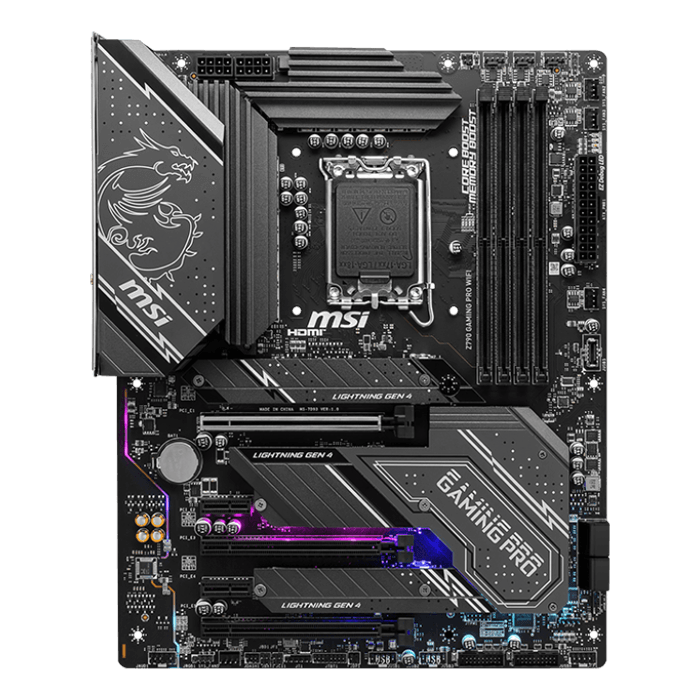

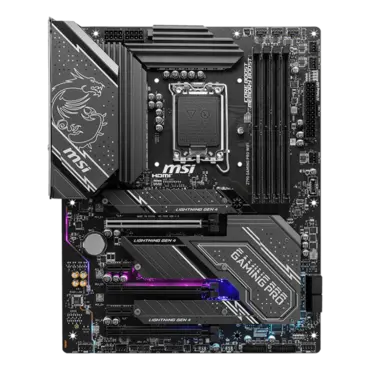

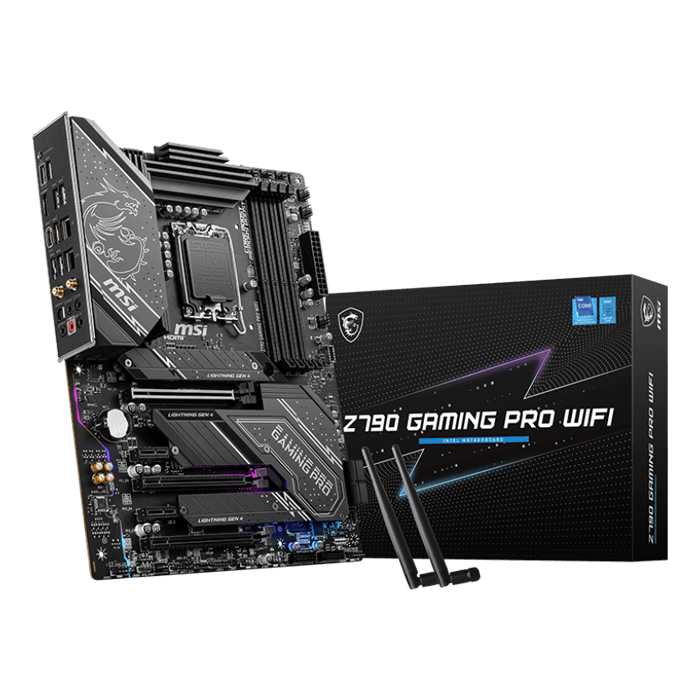

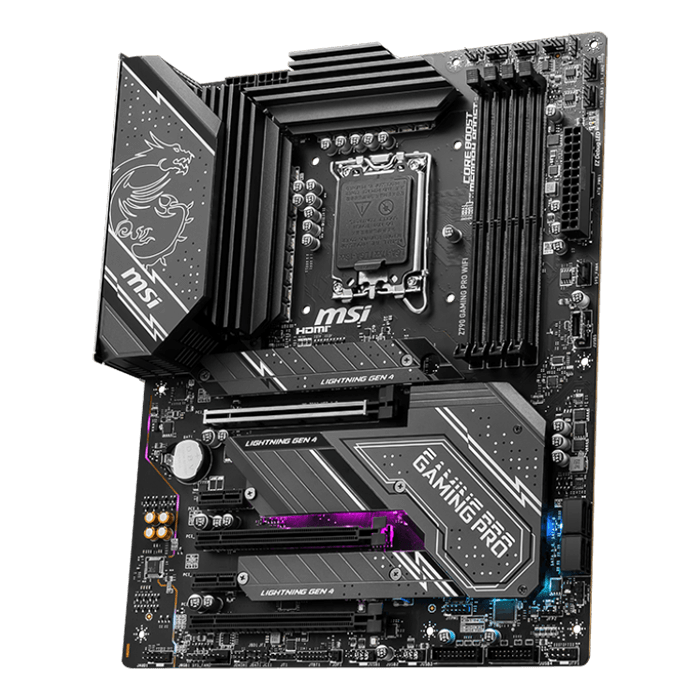

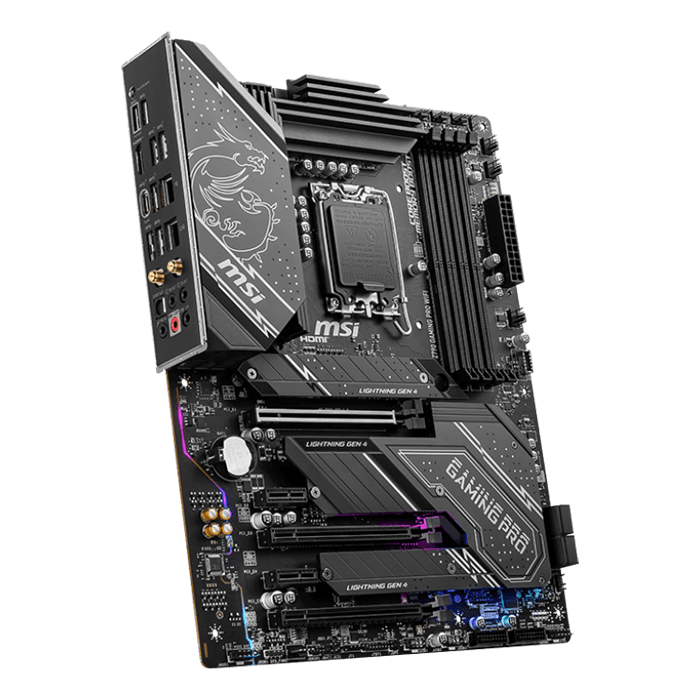

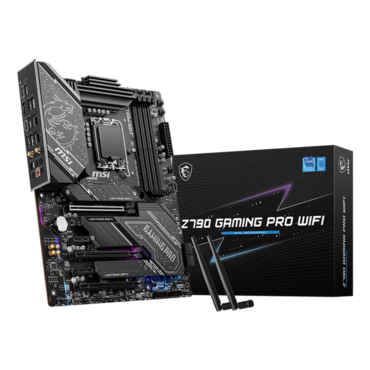

Z790 GAMING PRO WIFI, Intel® Z790 Chipset, LGA 1700, ATX Motherboard
Z790 GAMING PRO WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
CHIPSET | INTEL Z790 |
CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
MEMORY | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
SLOT | 3x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset) |
STORAGE | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Realtek® RTL8125BG 2.5Gbps LAN Realtek® RTL8111H 1Gbps LAN |
WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE | 4x EZ Debug LED |

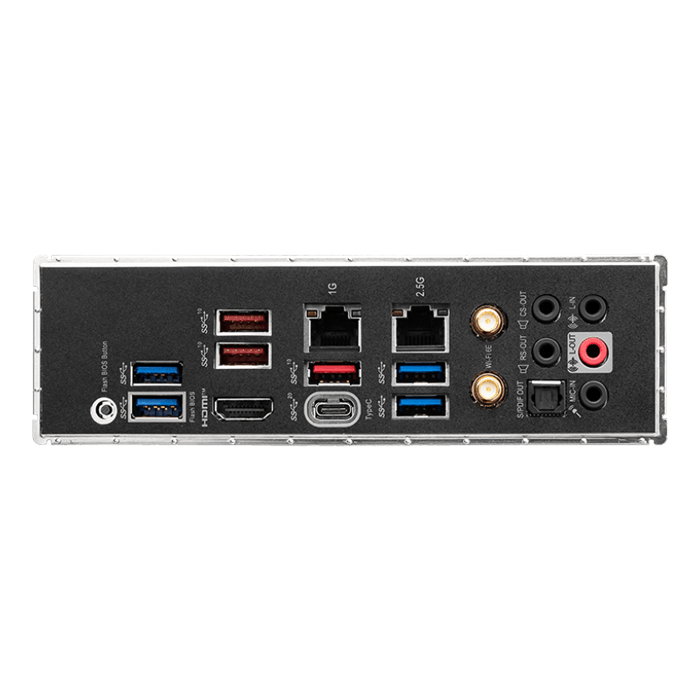

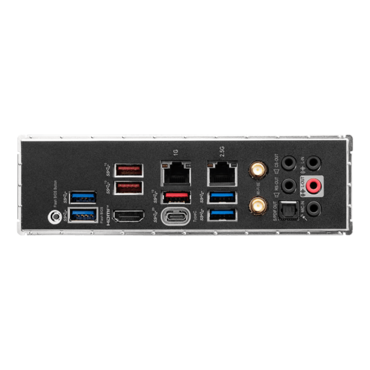

BACK PANEL PORTS | 4x USB 3.2 Gen 1 5Gbps Type-A 3x USB 3.2 Gen 2 10Gbps Type-A 1x 1G LAN 1x 2.5G LAN Port 2x Wi-Fi / Bluetooth Antenna 5x HD Audio Connectors 1x Flash BIOS Button 1x HDMI™ 1.4 Port 1x USB 3.2 Gen 2x2 20Gbps Type-C 1x Optical S/PDIF OUT |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB INFO | ATX 243.84mmx304.8mm |
BOX CONTENT | |
UPC | 0824142326565 |
