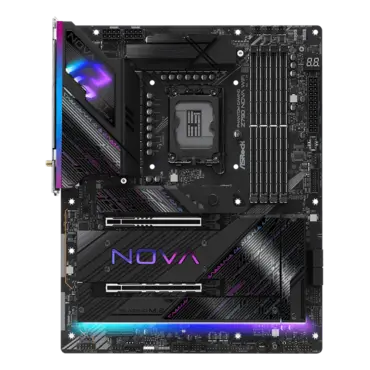

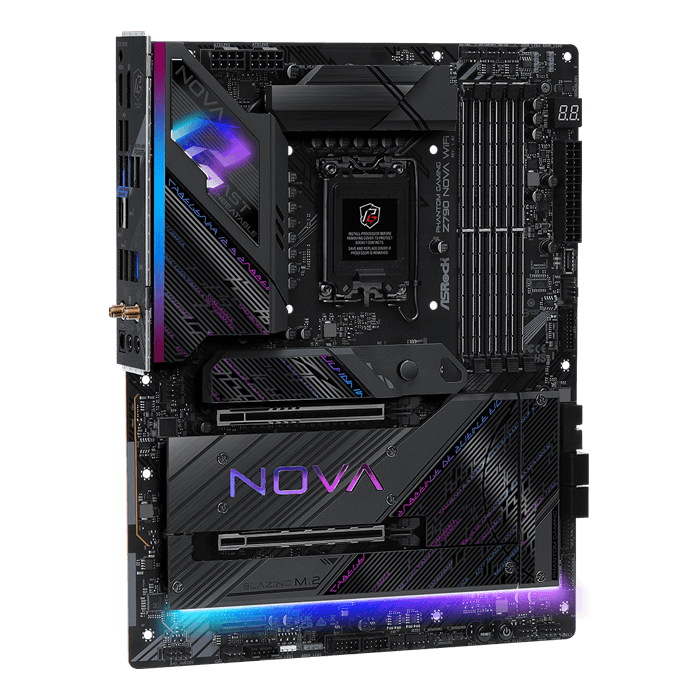

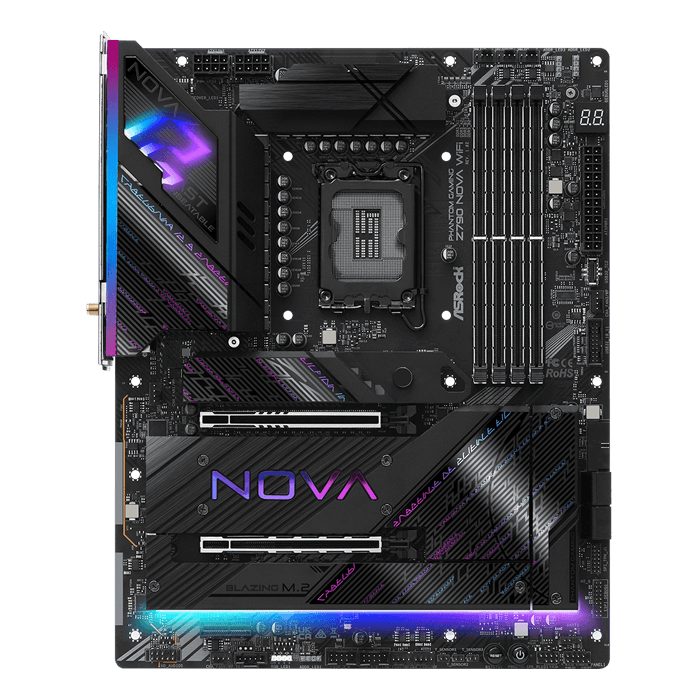

Z790 Nova WiFi, Intel® Z790 Chipset, LGA 1700, ATX Motherboard

Quantity:
  • SKU: 17029574
  • Manufacturer: ASROCK
  • MPN: Z790 NOVA WIFI
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$375.02
Quantity:
Z790 Nova WiFi, Intel® Z790 Chipset, LGA 1700, ATX Motherboard

Nova is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 20+1+1 Power Phase, SPS for VCore+GT,
    8-Layer 2OZ PCB
  • 4 x DDR5 DIMMs, supports up to 8000+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC4082 7.1 CH HD Audio Codec,
    Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4),
    4 Hyper M.2 (PCIe Gen4 x4),
    1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
    4 USB 3.2 Gen2 Type-A (Rear)
    7 USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  • Intel® Killer 2.5G LAN
  • 802.11be WiFi 7 + Bluetooth
  • Supports Graphics Card Holder,
    Toolless Multi-Layer M.2 Heatsink
Unique Feature Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 20+1+1 Power Phase, 90A SPS for VCore+GT with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
- ASRock Lightning Gaming Ports
EZ Update
- ASRock Auto Driver Installer
CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Supports ASRock Hyper BCLK Engine
Chipset - Intel® Z790
Memory - Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)*
- Max. capacity of system memory: 192GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0*

* 1DPC 1R Up to 8000+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 3600 MHz Natively.
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Graphics - Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Rear Out port
- Nahimic Audio
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software
Wireless LAN - 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/be
- Supports 2.4GHz/5GHz/6GHz* frequency band
- Supports 320MHz channel bandwidth with 6GHz* frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO

* Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 7 functionality.
Slots CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE3)*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

* Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
Storage CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB - 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
- 4 x USB 3.2 Gen2 Type-A (Rear)
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Connector - 3 x Thermistor Cable Headers
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x VRM Fan Connector (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
****** VRM_FAN supports the VRM fan power up to 2A (24W).

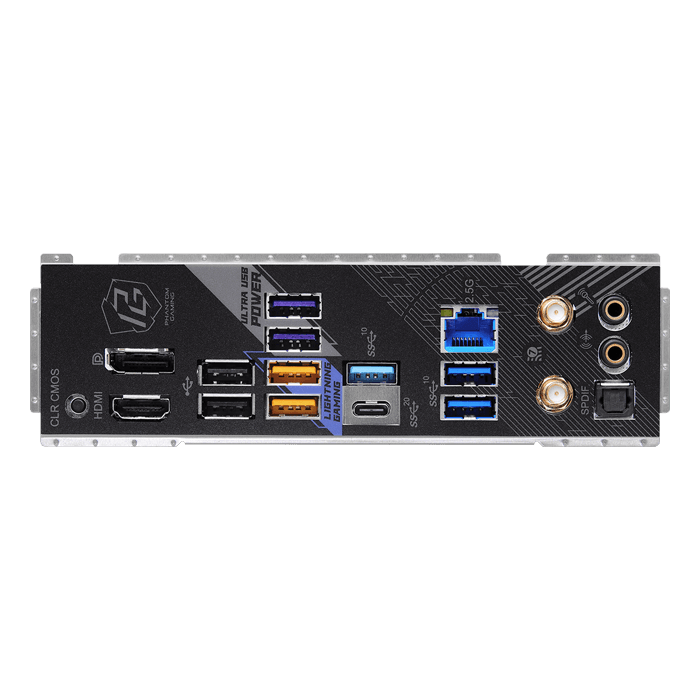

Rear Panel I/O - 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) *
- 3 x USB 3.2 Gen1 Ports *
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x Clear CMOS Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)

* USB32_12 support Ultra USB Power. USB32_34 are Lightning Gaming Ports.
Software and UEFI Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories - 1 x User Manual
- 4 x SATA Data Cables
- 1 x Graphics Card Holder
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 1 x ARGB Splitter Cable
- 3 x Thermistor Cables
- 5 x Screws for M.2 Sockets
- 5 x Standoffs for M.2 Sockets
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB
OS - Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
