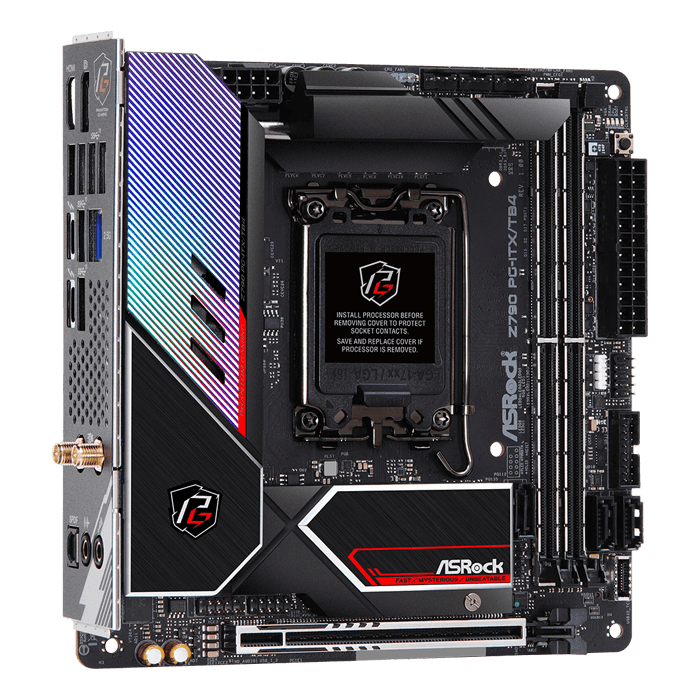

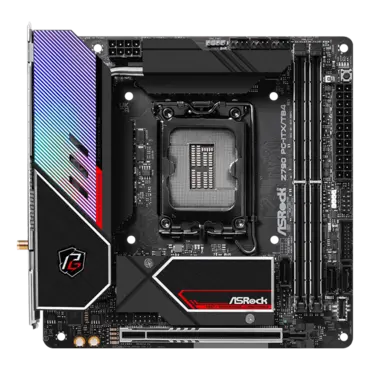

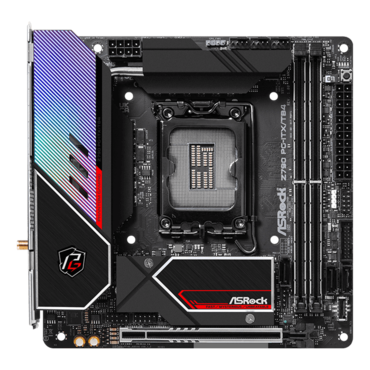

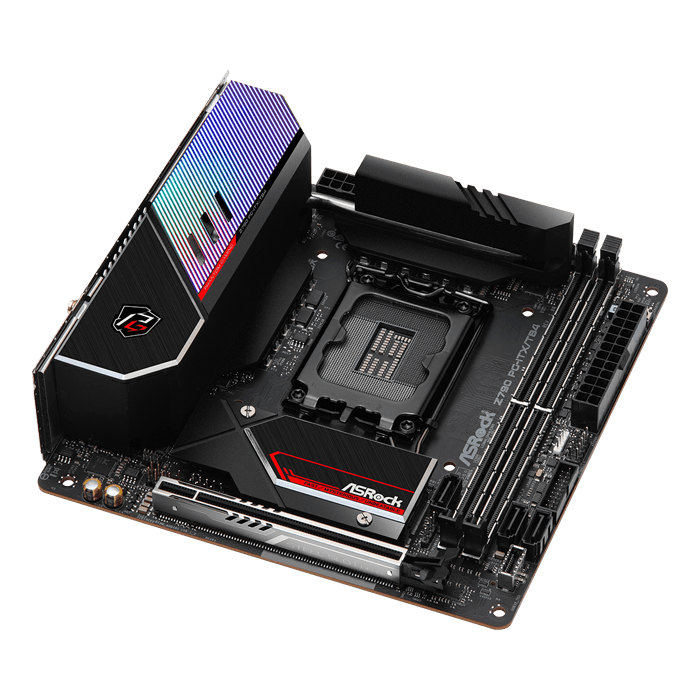

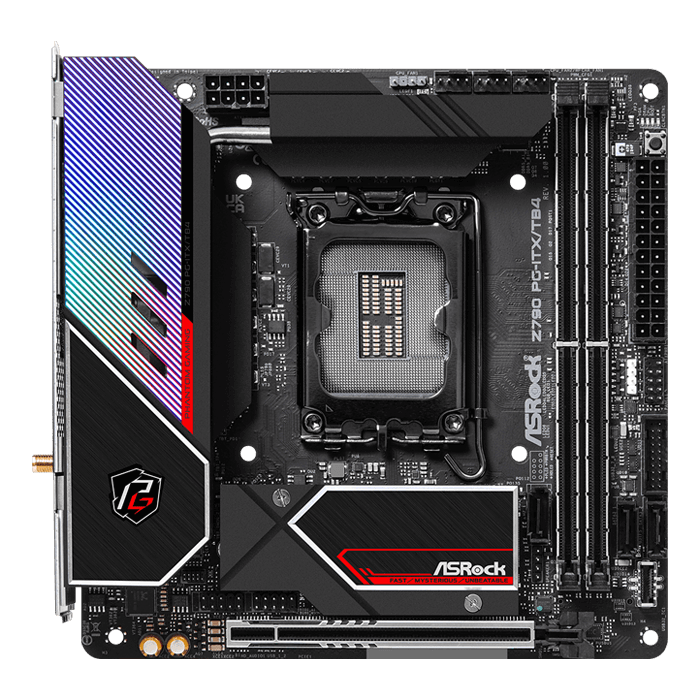

Z790 PG-ITX/TB4, Intel® Z790 Chipset, LGA 1700, 2 x Thunderbolt™ 4, Mini-ITX Motherboard

Quantity:
  • SKU: 15154698
  • Manufacturer: ASROCK
  • MPN: Z790 PG-ITX/TB4
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$382.52
Quantity:
  • Supports 13th Gen & 12th Gen Intel® Core™ Processors
  • SPS Phase Power Design
  • 2 x DDR5 DIMMs, supports
  • 1 PCIe 5.0 x16
  • Graphics Output Options: 2 USB4 Type-C, 1 HDMI, 1 DisplayPort
  • 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Nahimic Audio
  • 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 2 Hyper M.2 (PCIe Gen4x4), 3 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 6 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 2 USB 2.0 (Front)
  • Killer 2.5G LAN
  • Killer 802.11ax Wi-Fi 6E + Bluetooth
Platform • Mini-ITX Form Factor
• 10 Layer PCB
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® Z790
Memory • Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
• Max. capacity of system memory: 96GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0
*1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 5800+ MHz (OC), 5200 MHz Natively.
Expansion Slot CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset:
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
* Supports PCIe riser cards to extend one x16 slot to two x8 slots
* Supports NVMe SSD as boot disks
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics

• Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Intel® Xe Graphics Architecture (Gen 12)

• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 2 x Intel® ThunderboltTM 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz*
* Supports two 4K displays or one 8K display
* Only the CPU's embedded graphics can be displayed through Thunderbolt ports. If you want to display to a Thunderbolt monitor, please use CPU models with embedded graphics.
* Thunderbolt graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• Individual PCB Layers for R/L Audio Channel
• Impedance Sensing on Rear Out port
• Nahimic Audio
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Killer® E3100X
• Supports Killer LAN Software
• Supports Killer DoubleShotTM Pro
Wireless LAN • 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
* Wi-Fi 6E (6GHz band) will be supported by Microsoft® Win- dows® 11. The availability will depend on the different regula- tion status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
* A 6GHz compatible router is required for 6E functionality.
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO
• Supports Killer LAN Software
• Supports Killer DoubleShotTM Pro
USB • 2 x USB4 ThunderboltTM 4 Type-C (Rear)
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 6 x USB 3.2 Gen2 Type-A (Rear)
• 2 x USB 3.2 Gen1 (Front)
• 2 x USB 2.0 (Front)
* All USB ports support ESD Protection

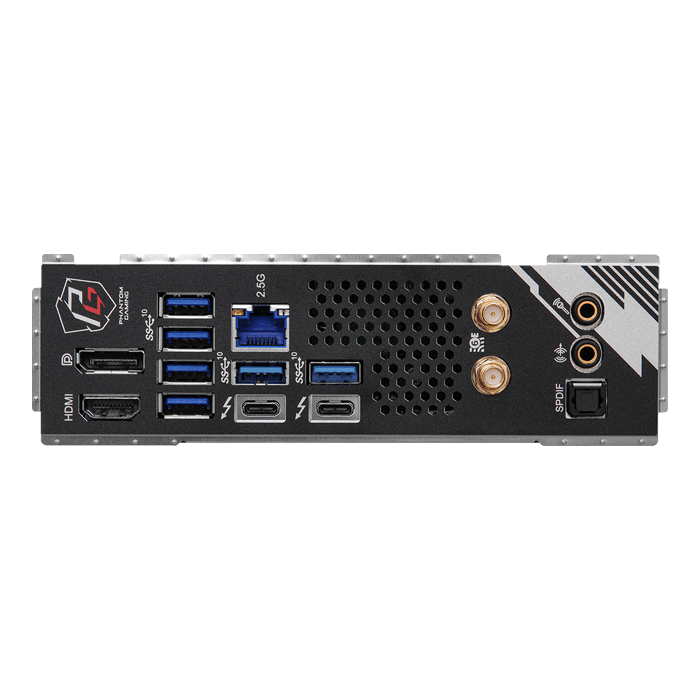

Rear Panel I/O • 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 2 x USB4 ThunderboltTM 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*
• 6 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 1 x RJ-45 LAN Port
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging
Storage CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 3 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe stor- age devices
Connector • 1 x RGB LED Header*
• 1 x Addressable LED Header**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 1 x Chassis Fan Connector (4-pin)*****
• 1 x 24 pin ATX Power Connector (Hi-Density Power Con- nector)
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec- tor)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connec- tor)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Clear CMOS Button
* Supports in total up to 12V/3A, 36W LED Strip
** Supports in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
**** CPU_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
***** CHA_FAN1 supports the fan power up to 1A (12W).
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microsoft® Windows® 11 64-bit
Certifica- tions • FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
