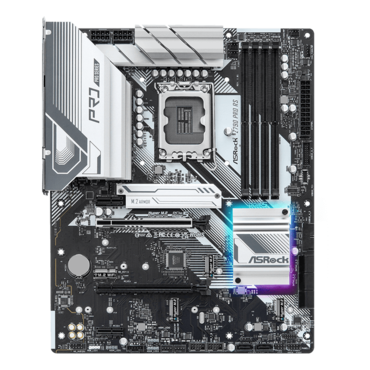

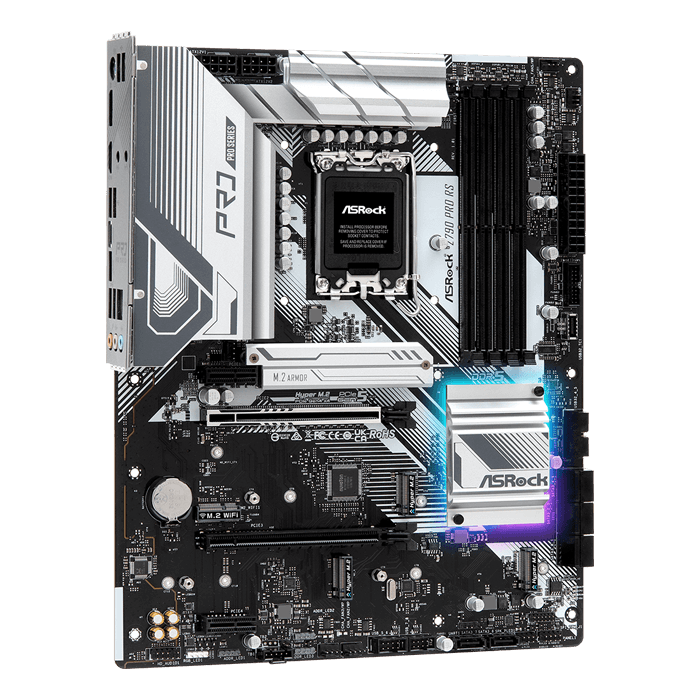

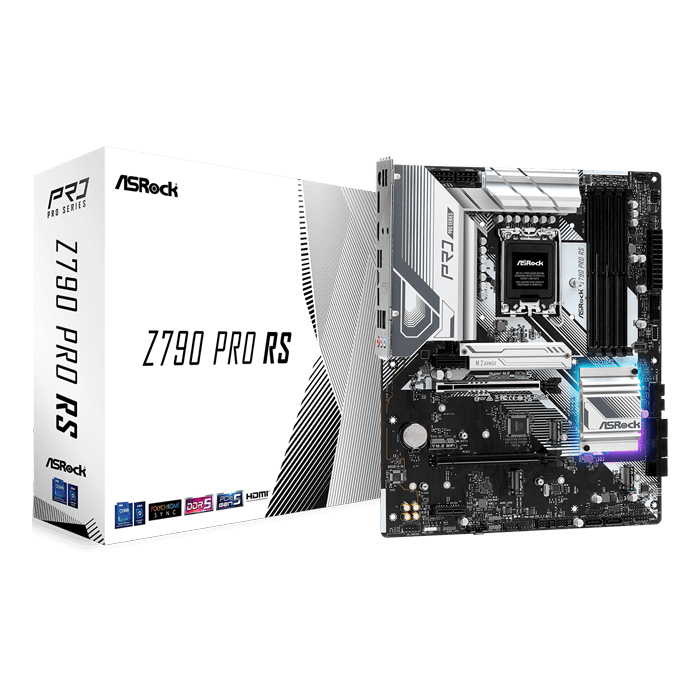

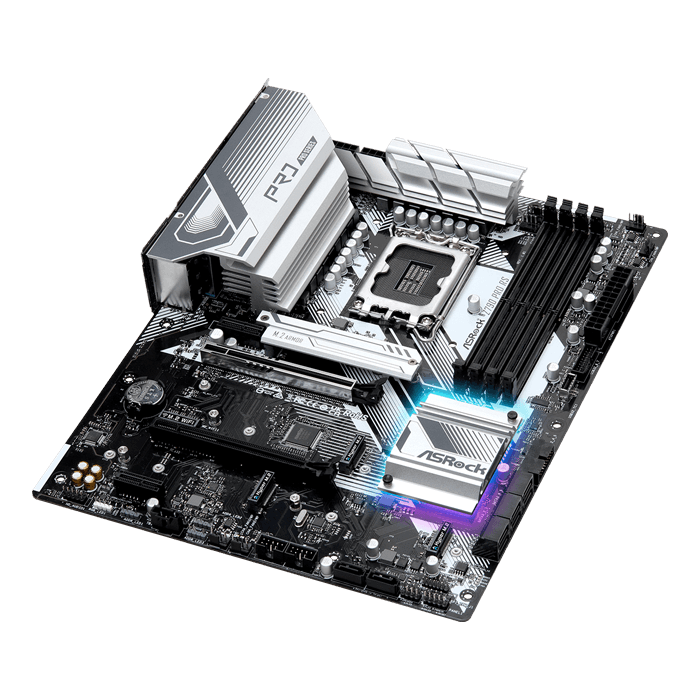

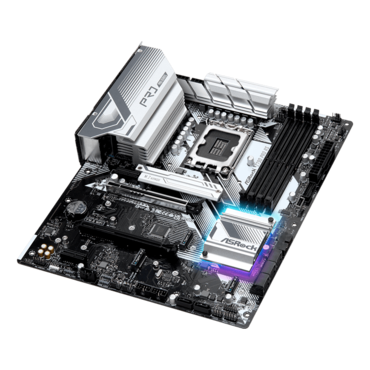

Z790 Pro RS, Intel® Z790 Chipset, LGA 1700, ATX Motherboard
Quantity:
- SKU: 15154885
- Manufacturer: ASROCK
- MPN: Z790 Pro RS
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$154.08
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs, Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 16+1+1 Power Phase, 60A SPS for VCore+GT - Flexible Integrated I/O Shield - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® Z790 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *If M2_2 is occupied, PCIE1 will downgrade to x8 mode. Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 8 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M2_2 is occupied, PCIE1 will downgrade to x8 mode. Either M2_1 or M2_2 can be used at a time. |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 12 x USB 3.2 Gen1 (8 Rear, 4 Front) - 3 x USB 2.0 (3 Front) *All USB ports support ESD Protection |
| Connector | - 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. |

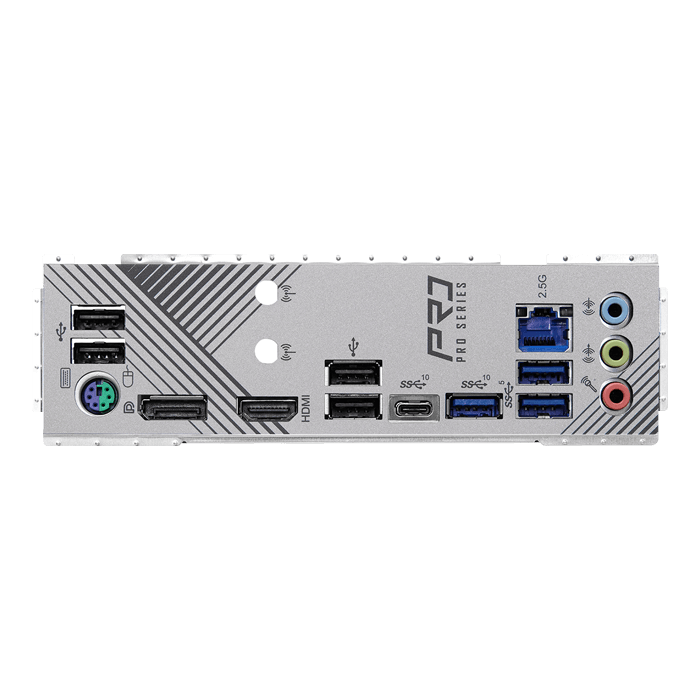

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 8 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 4 x Screws for M.2 Sockets - 1 x Graphics Card Holder |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
| OS | - Microsoft® Windows® 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
