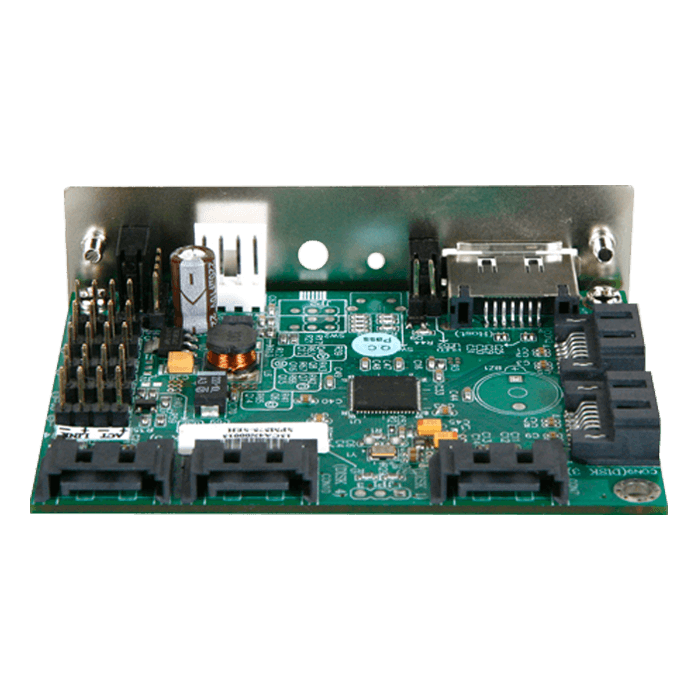

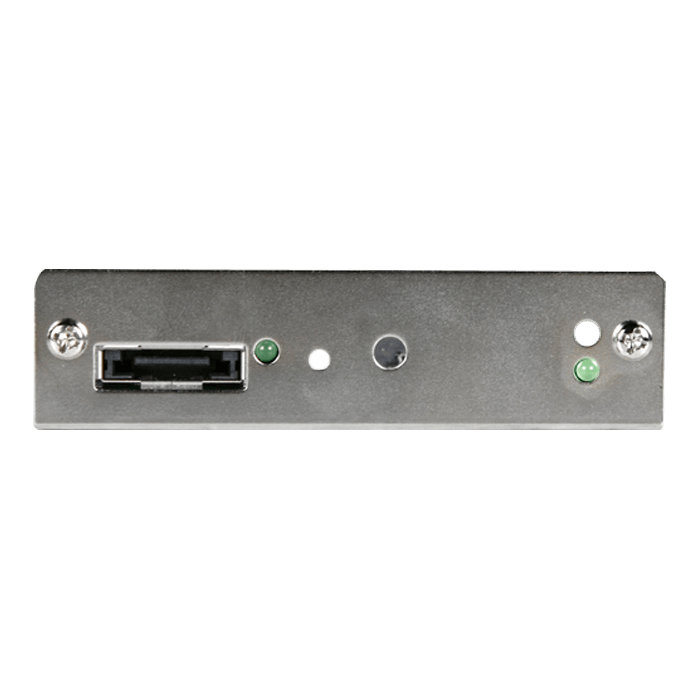

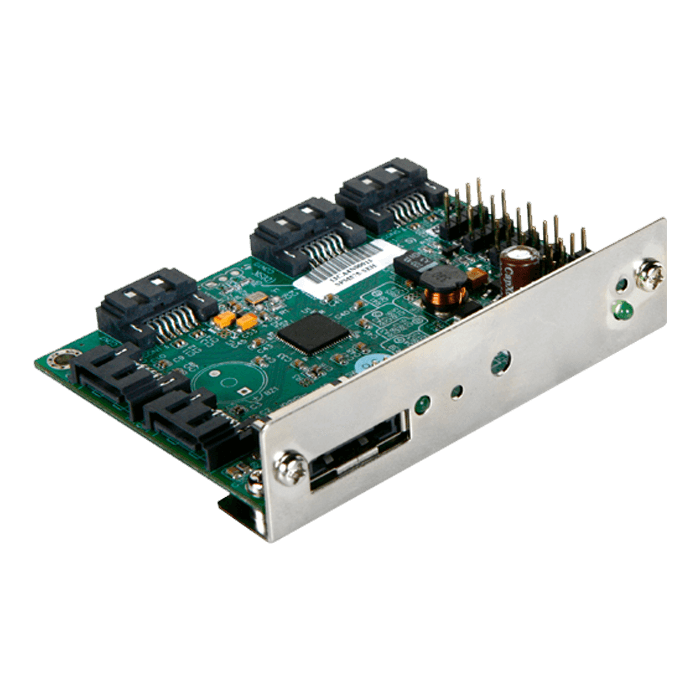

ZAGE-D-5SAES-PM eSATA Port Multiplier 1:5 Device Adapter
ZAGE-D-5SAES-PM eSATA Port Multiplier Bridgeboard is designed to provide a high-performance link between a single eSATA host port and 5 SATA device ports, which supports host and device link rates of 3.0/6.0 Gb/s with auto-negotiation, giving users the flexibility to choose SATA II or III hard drives.
ZAGE-D-5SAES-PM eSATA Port Multiplier Bridgeboard is designed to provide a high-performance link between a single eSATA host port and 5 SATA device ports, which supports host and device link rates of 3.0/6.0 Gb/s with auto-negotiation, giving users the flexibility to choose SATA II or III hard drives.
ZAGE-D-5SAES-PM eSATA Port Multiplier 1:5 Device Adapter
- Centronic bracket for device
- Convert 5 internal SATA L-type ports to 1 external SATA (eSATA) I-type connector
- Supports 5 SATA devices
- Supports FIS-based and Command-based switching
- Supports host and device link rate of 3.0 Gb/s and 6.0 Gb/s with auto-negotiation and hot swap
- Chipset: JMicron 575
Model Number | ZAGE-D-5SAES-PM |
RoHS Compliance | Yes |
Dimensions (WxHxD) | 3.90" x 1.00" x 1.40"
99.1 mm x 25.4 mm x 35.6 mm |
