- Compliant with ATX 3.1 and PCIe Gen 5 standards, supporting 12V-2x6 PCIe connectors
- Latest PCIe Gen 5 standard to support up to 2x power excursion
- High efficiency with 80 PLUS Titanium certification
- 24/7 continuous power output with 50? operating temperature
- Fully modular design with SilverStone’s 3rd generation modular interface

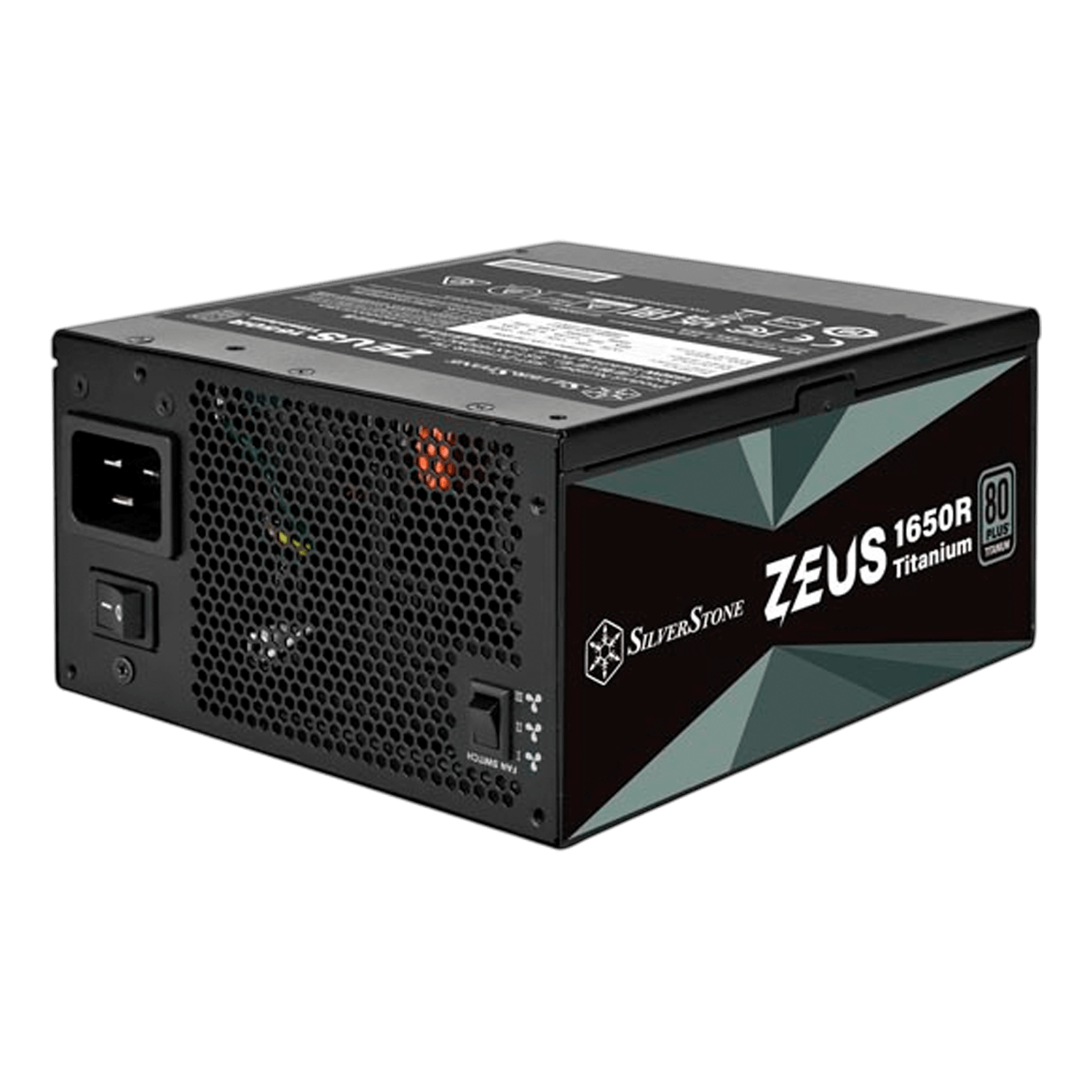

- Silent running 135mm FDB fan with 3-type fan switch
- All Japanese electrolytic capacitors
- Compact design with a 180mm depth for easy system integration

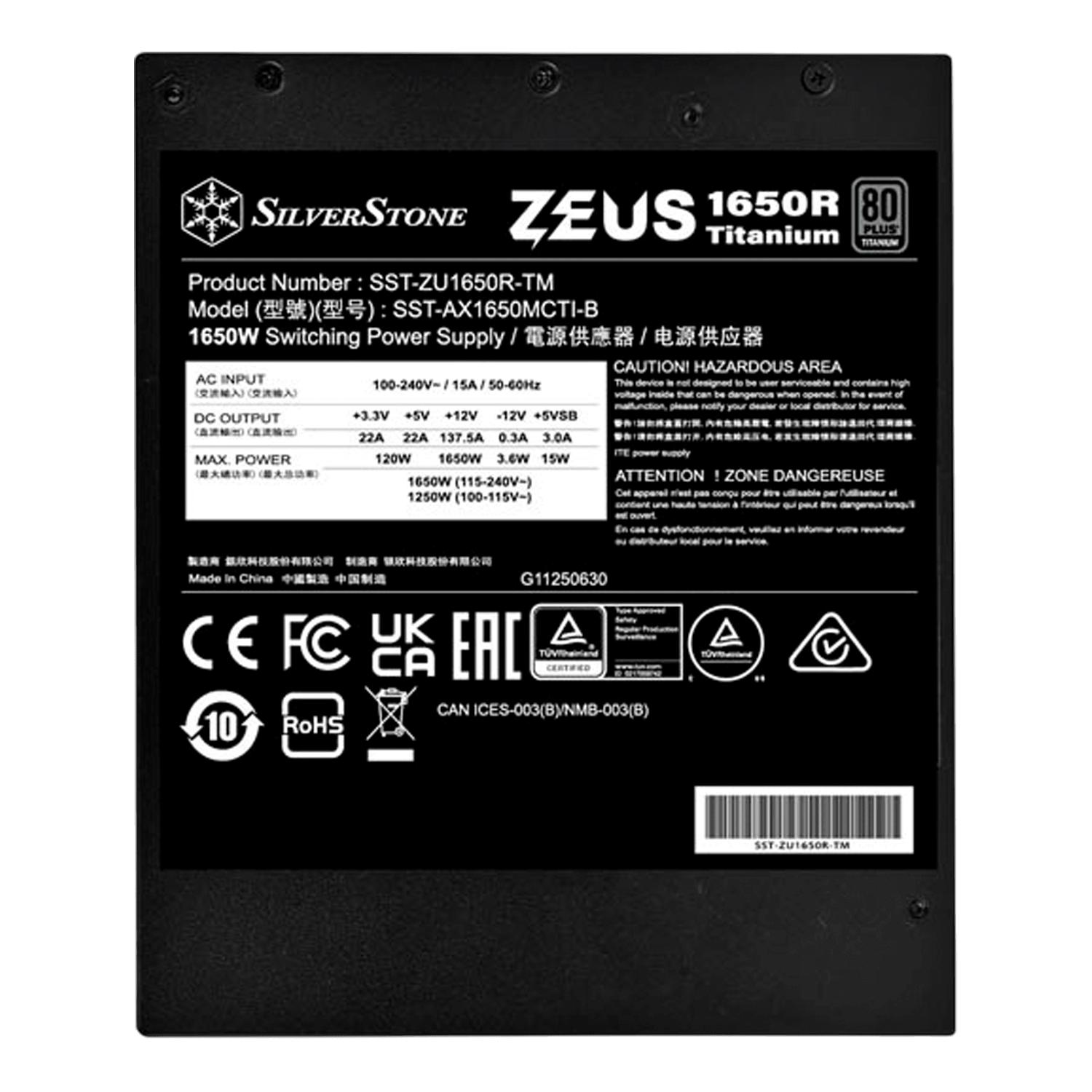

Product No. | SST-ZU1650R-TM | ||||||||||||||||||||||||||||||||||||||||||
Model (safety certification) | SST-AX1650MCTI-B | ||||||||||||||||||||||||||||||||||||||||||
Color | Black (lead-free paint) | ||||||||||||||||||||||||||||||||||||||||||
Max. DC Output | 1650W | ||||||||||||||||||||||||||||||||||||||||||
Power density | 710.6W/L | ||||||||||||||||||||||||||||||||||||||||||
Load Range |
|
||||||||||||||||||||||||||||||||||||||||||
Combined +3.3V & +5V | 120W | ||||||||||||||||||||||||||||||||||||||||||
Combined +12V | 1650W | ||||||||||||||||||||||||||||||||||||||||||
Input Voltage | 90 ~ 264 Vrms | ||||||||||||||||||||||||||||||||||||||||||
Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||||||||
PFC | Active PFC (PF>0.9 at full load) | ||||||||||||||||||||||||||||||||||||||||||
Efficiency | ≥91% & <93% overall efficiency | ||||||||||||||||||||||||||||||||||||||||||
MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||||||||
Operating temperature | 0°C ~ 50°C | ||||||||||||||||||||||||||||||||||||||||||
Protection |
Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Short Circuit Protection Under Voltage Protection No load operation |
||||||||||||||||||||||||||||||||||||||||||
Connectors |

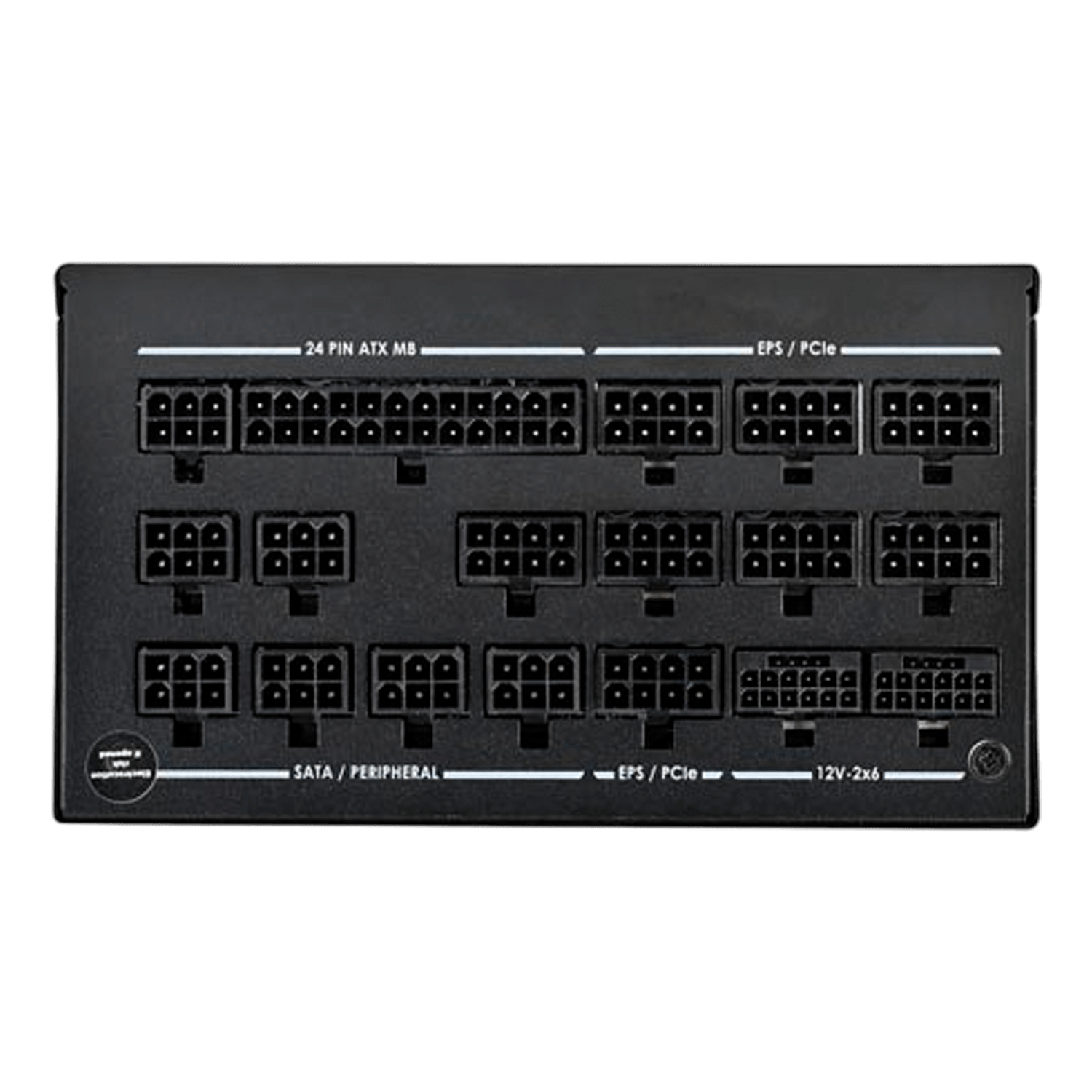

1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 3 x 12+4-Pin 12V-2x6 connectors 12 x 8 / 6-Pin PCIe connectors 16 x SATA connectors 6 x 4-Pin Peripheral connectors |
||||||||||||||||||||||||||||||||||||||||||
Cooling System | Silent 135mm FDB fan | ||||||||||||||||||||||||||||||||||||||||||
Noise Level | 18 dBA minimum | ||||||||||||||||||||||||||||||||||||||||||
Certification | 80 PLUS Titanium | ||||||||||||||||||||||||||||||||||||||||||
Form factor | ATX (PS2) | ||||||||||||||||||||||||||||||||||||||||||
Dimension | 150mm (W) x 86mm (H) x 180mm (D) | ||||||||||||||||||||||||||||||||||||||||||
Weight | 3.87 kg |
