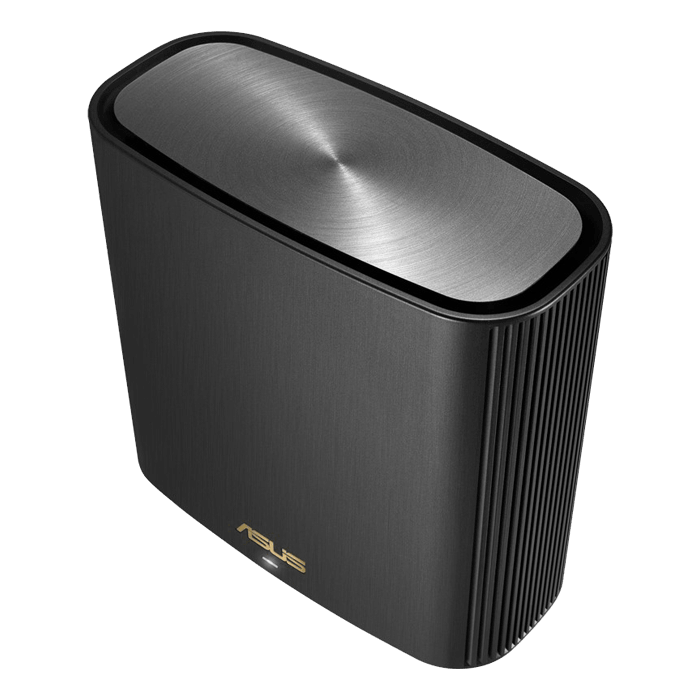

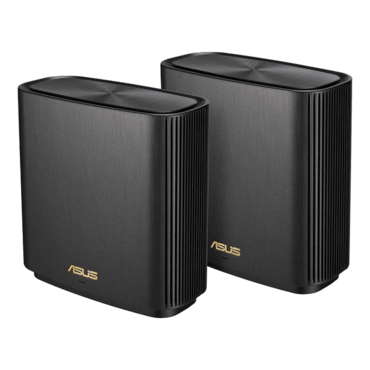

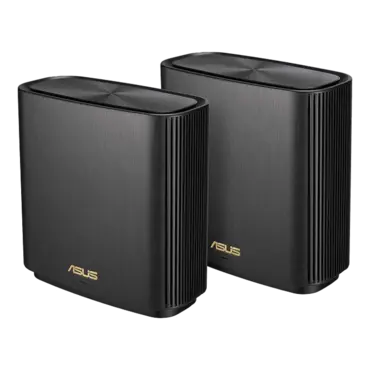

ZenWiFi AX Charcoal WiFi Mesh System (XT8 2 Pack), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 1201 / 4804 Mbps, 3xRJ45, 1x USB 3.0, Retail Wireless Router
Quantity:
- SKU: 13209601
- Manufacturer: ASUS
- MPN: ZENWIFI AX 2PK CHARCOAL
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$386.91
ZenWiFi AX Charcoal WiFi Mesh System (XT8 2 Pack), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 1201 / 4804 Mbps, 3xRJ45, 1x USB 3.0, Retail Wireless Router
ASUS ZenWiFi AX Charcoal WiFi Mesh System (XT8 2 Pack). The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
| Coverage | Very large homes |
| Data Rate |
802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 300 Mbps 802.11ac (5GHZ-1):up to 867 Mbps 802.11ac (5GHZ-2):up to 3466 Mbps 802.11ax (2.4GHz) : up to 574 Mbps 802.11ax (5GHZ-1):up to 1201 Mbps 802.11ax (5GHZ-2):up to 4804 Mbps |
| Antenna | Internal antenna x 6 |
| Transmit/Receive |
2.4 GHz 2 x 2 5 GHz-1 2 x 2 5 GHz-2 4 x 4 |
| Processor | 1.5 GHz quad-core processor |
| Memory |
256 MB Flash 512 MB RAM |
| Wi-Fi Technology |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4G Hz, 5 GHz-1, 5 GHz-2 |
| Encryption | WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control |
Firewall: SPI intrusion detection, DoS protection Access control:Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN Support |
IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |
| Ports |
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.1 Gen 1 x 1 |
| Features |
Range Boost Router app MU-MIMO Smart Connect Traffic Analyzer Adaptive QoS AiProtection Pro Parental Control Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3 VPN server : PPTP Server, OpenVPN Server, IPSec server VPN client : PPTP client, L2TP client, OpenVPN client NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay Mac OS Backup Enhanced media server (AiPlayer app compatible) - Image : Jpeg - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management IPTV support Roaming Assist OFDMA Beamforming |
| Button | WPS Button, Reset Button, Power Switch |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.75 A current |
| OS Support |
Windows® 10 Windows® 8 Windows® 7 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 |
| Dimensions | 160 x 75 x 161.5 mm |
| Weight | 716 g |
| Package Content |
ZenWiFi AX RJ-45 Cable Power Adapter Quick Start Guide Warranty Card |
