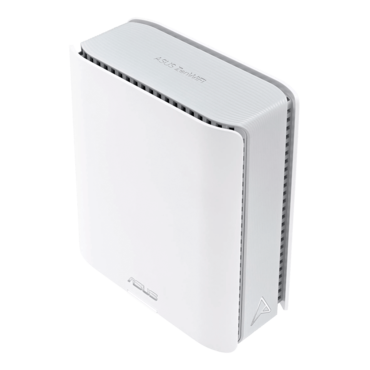

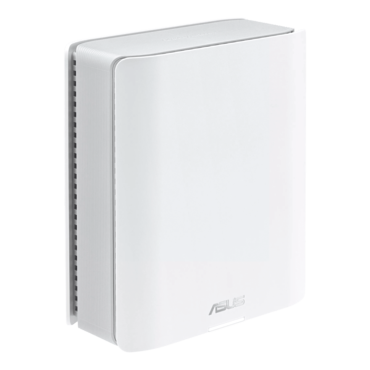

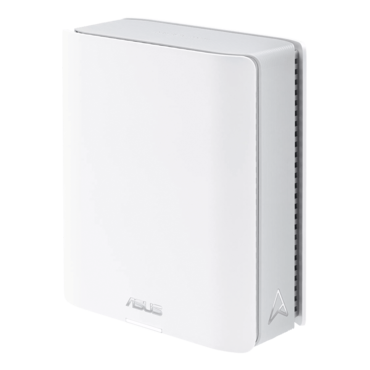

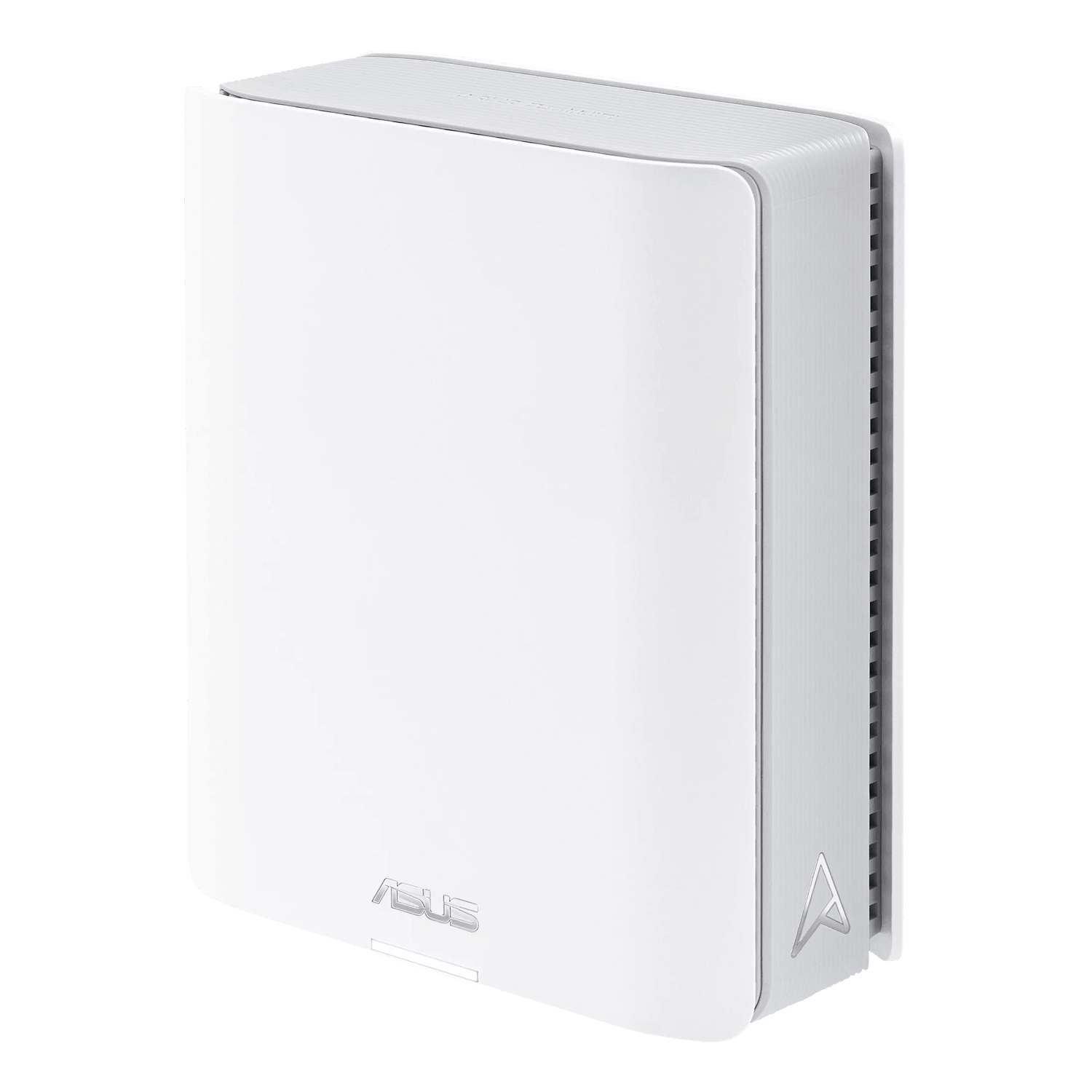

ZenWiFi BT10 (W-1-PK), IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 688 / 5764 / 11529 Mbps, 2xRJ45, 1x USB 3.0, Wireless Mesh System
- SKU: 18002377
- Manufacturer: ASUS
- MPN: BT10(W-1-PK)
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$383.73
ZenWiFi BT10 (W-1-PK), IEEE 802.11be, Tri-Band 2.4GHz / 5GHz / 6GHz, 688 / 5764 / 11529 Mbps, 2xRJ45, 1x USB 3.0, Wireless Mesh System
ASUS ZenWiFi BT10 Triband WiFi 7 Mesh, 18 Gbps, 3000 sq.ft 1pk, Dual 10G Ports, Security and Parental Controls Included, Smart Home Master SSIDs, 4G 5G Mobile Tethering
ASUS ZenWiFi BT10 Triband WiFi 7 Mesh, 18 Gbps, 3000 sq.ft 1pk, Dual 10G Ports, Security and Parental Controls Included, Smart Home Master SSIDs, 4G 5G Mobile Tethering
- Tri-band WiFi 7 speeds up to 18 Gbps with 6GHz WiFi, MLO, and 4K-QAM
- AI-powered Smart AiMesh extends coverage up to 6000 sq. ft. (2-pack) ,plus advanced security
- Eight internal antennas and ten high-power front-end modules eliminate WiFi dead zones
- 24/7 end-to-end protection with commercial-grade AiProtection Pro and advanced VPNs
- Establish up to three SSIDs for IoT devices and parental controls with Smart Home Master Network
- Dual 10G WAN/LAN Ethernet ports and flexible WAN or wired backhaul configuration with auto detection
- 4G LTE and 5G Mobile Tethering for always-on internet
| Model | ASUS ZenWiFi BT10 |
| Model Name |
BT10(W-1-PK) BT10(W-2-PK) BT10(W-3-PK) |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE18000 ultimate BE performance : 688+5764+11529 Mbps |
| WiFi Data Rate |
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 5764 Mbps WiFi 7 (802.11be) (6GHz): up to 11529 Mbps |
| Antenna | Internal antennas x 8 |
| Transmit / Receive |
2.4GHz 2x2 5GHz 4x4 6GHz 4x4 |
| Processor | 2.0GHz quad-core processor |
| Memory | RAM 2GB , Flash 256MB |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth |
| Operating Frequency |
2.4 GHz 5 GHz 6 GHz |
| Operating Mode |
Wireless Router Mode AiMesh Node Mode Access Point Mode |

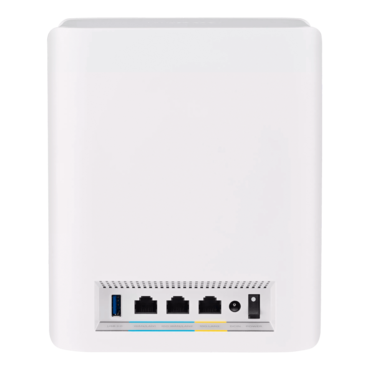

| I/O Ports |
10G WAN/LAN x 1 10G LAN x 1 1G WAN/LAN x 1 USB 3.0 x1 |
| Buttons | WPS button, Reset button, Power switch |
| LED Indicator | Power x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12V with max. 3A current |
| Package Content |
ZenWiFi BT10 RJ45 cable Power adapter Warranty card Quick start guide |
| Product Dimensions | 159 x 72 x 186 mm |
| Remark | Content may vary in different regions and packages. |
| AiMesh |
AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control |
"Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Reward Parental Control - Safe Browsing Customized Internet Schedule |
| Router APP | APP: ASUS Router APP |
| Guest Network |
"The Guest Network provides Internet connection for guests but restricts access to your local network." Support Guest Network |
| Security |
AiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS Security Scan Firewall |
| AiProtection |
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN |
Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| Traffic Control |
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traditional QoS Traffic Monitor Traffic Analyzer • Website History |
| WAN |
Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS |
| LAN |
DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address Wake on LAN (WOL) |
| Wireless |
MU-MIMO UTF-8 SSID WiFi MAC Address Filter Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application |
4G / 5G Auto Mobile Tethering HDD Hibernation Safely Remove Disk Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges AiCloud |
| Administration |
Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
| Smart Home | Support Google Assistant |
