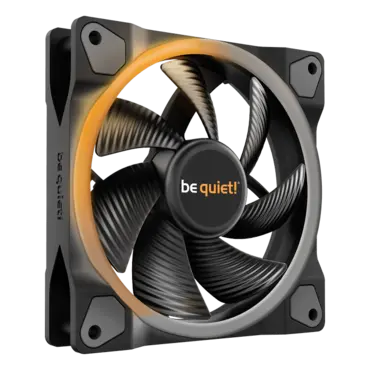

Light Wings High-Speed 120mm, 2500 RPM, 52.3 CFM, 31 dBA, Cooling Fan
- SKU: 14688157
- Manufacturer: be quiet!
- MPN: BL073
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$31.90
Light Wings High-Speed 120mm, 2500 RPM, 52.3 CFM, 31 dBA, Cooling Fan
be quiet! Light Wings High-Speed (BL073). Light Wings 120mm PWM high-speed offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 18 LEDs
- Nine silence-optimized fan blades for high pressure and low noise-generating turbulences
- Remarkable performance-to-noise ratio with 31dB(A) at 2,500rpm
- Long life rifle-bearing gives an operating lifetime of 60,000 hours
- Three-year manufacturer’s warranty
| General data | |
| Model | Light Wings 120mm PWM-high-speed |
| Dimensions (mm) | 120 x 120 x 25 |
| Fan speed @ 100% PWM / 12V (rpm) | 2500 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 52.3 / 88.86 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 2.6 |
| Lighting | ARGB LED |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Color option | Black |
| Mechanical specifications | |
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Weight incl. fixed cables (kg) | 0.210 |
| Push pin fixing | - |
| Screw fixing | ✓ |
| Cables / Connectors | |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
| Performance / Noise | |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 52.3 / 88.86 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 2.6 |
| Noise level @ 100% PWM / 12V (dB(A)) | 31 |
| Lifespan (h / 25°C) | 60,000 |
| Electrical specifications | |
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Rated Current LED (A) | 0.6 |
| Accessories | |
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| Silica gel washer | - |
| Others | - |
| Safety certification | |
| Approvals | CE / RoHs / RU / WEEE |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BL073 |
| EAN code | 4260052188774 |
| Dimensions, package (L x W x H), (mm) | 153 x 133 x 29.5 |
| Gross weight, package (kg) | 0.277 |
| Pieces per packaging unit | 30 |
| Dimensions, shipping box (L x W x H), (mm) | 418 x 325 x 182 |
| Gross weight, shipping box (kg) | 9.01 |
