Our Custom Workstation Configuration offer a massive amount of options to help our customers get the job done. As such, you can expect equally massive-sized cases offered in our Custom Workstation Configurators. The Xigmatek Elysium Full Tower Case is a perfect example of such gargantuan-sized cases that support SSI-EEB dual-XEON workstation boards. Specifically, the ASUS Z9PE-D16/2L motherboard was used to offer large amounts of RAM utilization, and support for the Intel Xeon E5-2630 V2 six-core processors selected for this Custom Workstation Configuration. Appropriately, a Kingston 64GB (4 x 16GB) DDR3-1600 ECC Registered RAM kit was chosen for this Custom Workstation Configuration, by the end-user, and is a great starting point for any dual-XEON Custom Workstation Configuration. In a growing trend, the EVGA GeForce GTX 660 SuperClocked graphics card seems to be one of the most popular choices for our workstations; most likely due to the fact that our customer’s don’t want a basic graphics card, but still want something with power, should they need graphics processing on demand.

Custom assembly SKU 8100297

C602 Liquid Cooled Workstation

CONFIGURATION

See what components went into this custom computer build:

Computer Cases

XIGMATEK Elysium Black Full Tower Case w/ Window, HPTX, 10 slots, No PSU, Steel

Desktop Power Supplies

LEPA G1600-MA, 80 PLUS Gold 1600W, Fully Modular, ATX Power Supply

Motherboards

ASUS Z9PE-D16/2L, Intel C602, LGA 2011 / 2, DDR3-1866 512GB LRDIMM / 16, VGA, GbLAN / 2, SSI EEB Retail Motherboard

Server Processors

INTEL 2 x Xeon E5-2630 v2 Six-Core 2.6 - 3.1GHz TB, LGA 2011, 7.2 GT/s QPI, 15MB L3 Cache, DDR3, 22nm, 80W, Retail Processor

CPU Coolers and Heatsinks

DYNATRON R17, 110mm Height, 165W TDP, Copper/Aluminum CPU Cooler

CPU Coolers and Heatsinks

DYNATRON R17, 110mm Height, 165W TDP, Copper/Aluminum CPU Cooler

All Thermal Compound

ARCTIC SILVER AS5-3.5G, 3.5g, 9 W/m.k, Grey Thermal Paste

Desktop Memory

KINGSTON 64GB (4 x 16GB) Dual-Rank PC3-12800 DDR3 1600MHz CL11 1.5V SDRAM DIMM, ECC Registered Memory

Video Cards

EVGA GeForce® GTX 660 SuperClocked 1046MHz, 2GB GDDR5 6008MHz, PCIe x16 SLI, DP + HDMI + 2 x DVI, Retail

Solid State Drives

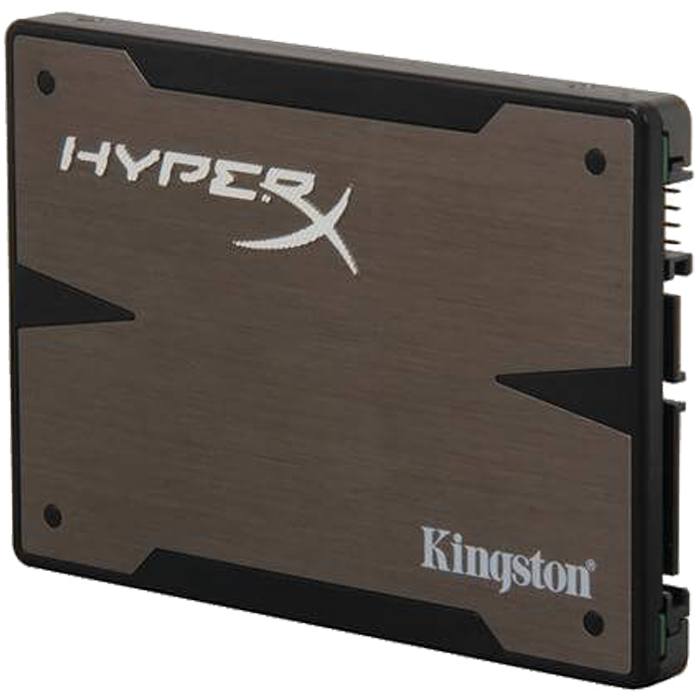

KINGSTON 240GB HyperX 3K SH103S3/240G 9.5mm, 555 / 510 MB/s, MLC, SATA 6Gb/s, 2.5-Inch Retail SSD

Desktop Hard Disk Drives

WESTERN DIGITAL 1TB WD VelociRaptor®, SATA 6 Gb/s, 10000 RPM, 64MB cache

Storage Subsystem Configuration

RAID 5 - Fault Tolerance (Minimum 3 HDD's Required)

SATA RAID Controllers

Broadcom MegaRAID SAS 9240-8i SAS/SATA RAID Controller, 8-ports, 6 Gb/s, Levels 0/1/5/10/50, PCIe x8, Full-height/Low-Profile, Retail w/ Cables

Server Hot-Swap Kits and Backplanes

ISTARUSA BPN-DE350SS, 3x 5.25" to 5x 3.5", SAS/SATA 6Gb/s, HDD, Black Hot Swap Module

Storage Subsystem Configuration

RAID 5 (fault tolerance), min 3 hard drives and RAID controller required

Server Hot-Swap Kits and Backplanes

ISTARUSA BPN-DE350SS, 3x 5.25" to 5x 3.5", SAS/SATA 6Gb/s, HDD, Black Hot Swap Module

External Optical Drives

ASUS BW-12B1ST, BD 12x / DVD 16x / CD 48x, Blu-ray Disc Burner, SATA, 5.25-Inch, Black, Retail Optical Drive

All Card Readers

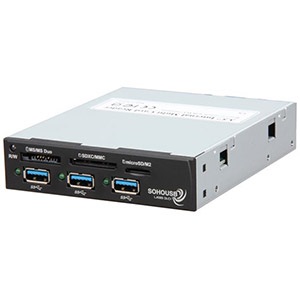

KOUTECH RCM430 USB 3.0 Front Panel / Card Reader, 3.5" Bay, USB 3.0 Type A

Ethernet Network Adapters

INTEL 1Gbps Ethernet Network Adapter, ET E1G42ETBLK, (2x RJ45)

LCD Monitors

ASUS VE228H 21.5", Full HD 1920 x 1080 TFT WideScreen LED, 5ms, Black LCD Monitor

LCD Monitors

ASUS VE228H 21.5", Full HD 1920 x 1080 TFT WideScreen LED, 5ms, Black LCD Monitor

Keyboards and Bundles

MICROSOFT 600, Wired USB, Black, Keyboard & Mouse

All Operating Systems

MICROSOFT Windows 7 Ultimate 64-bit Edition w/ SP1, OEM w/ Media
