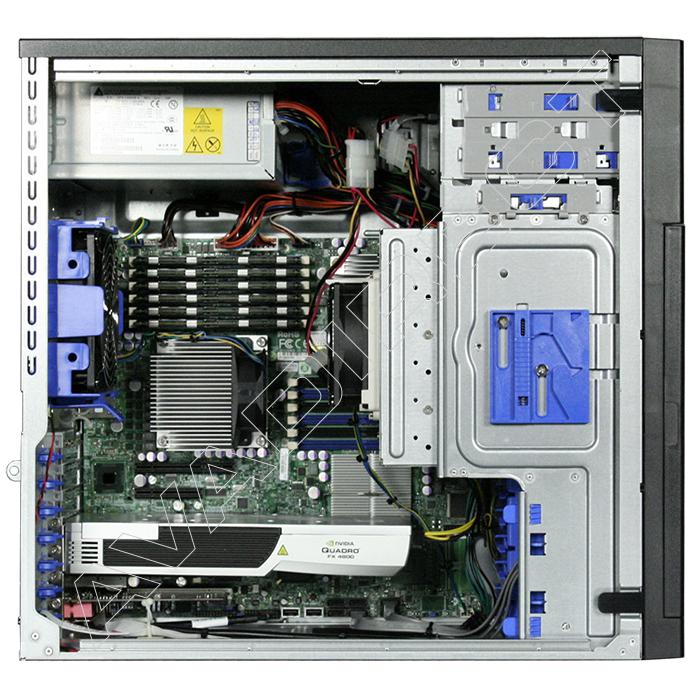

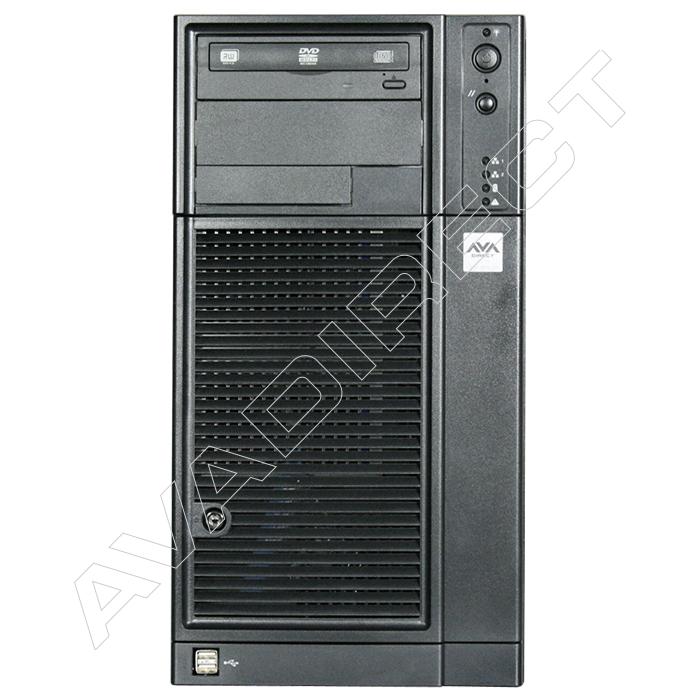

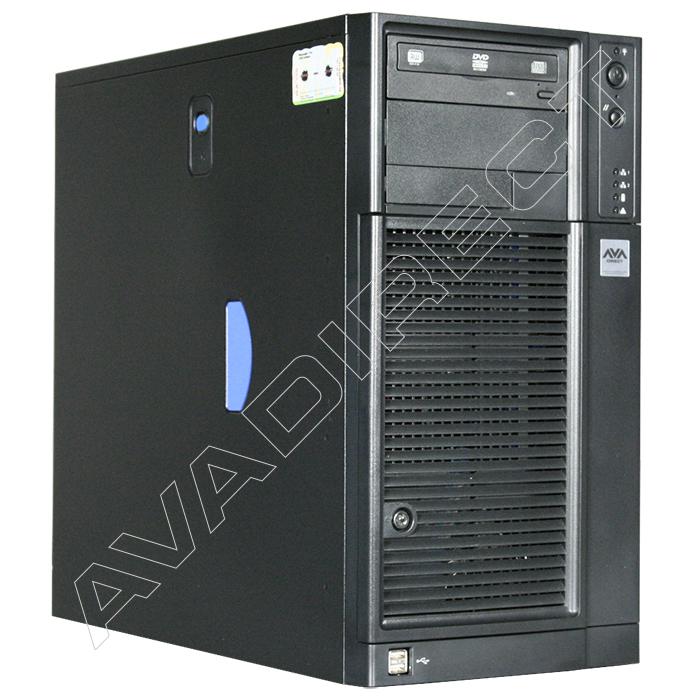

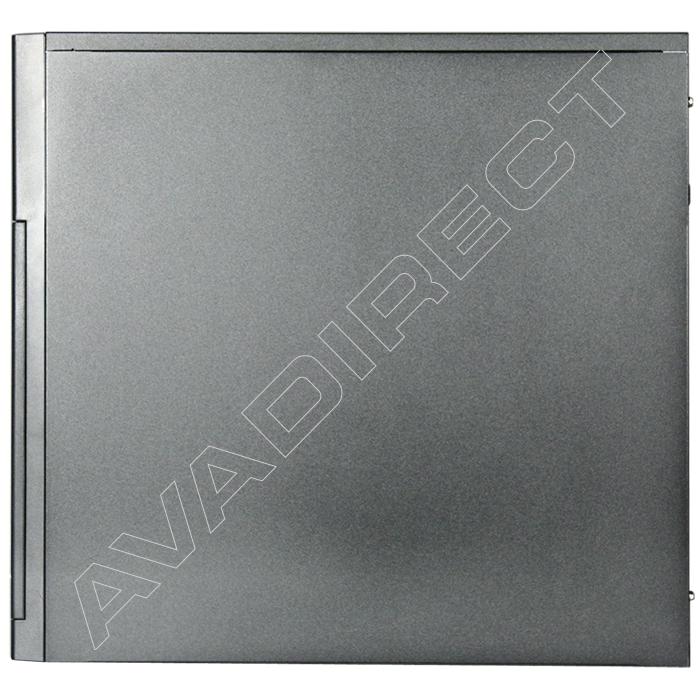

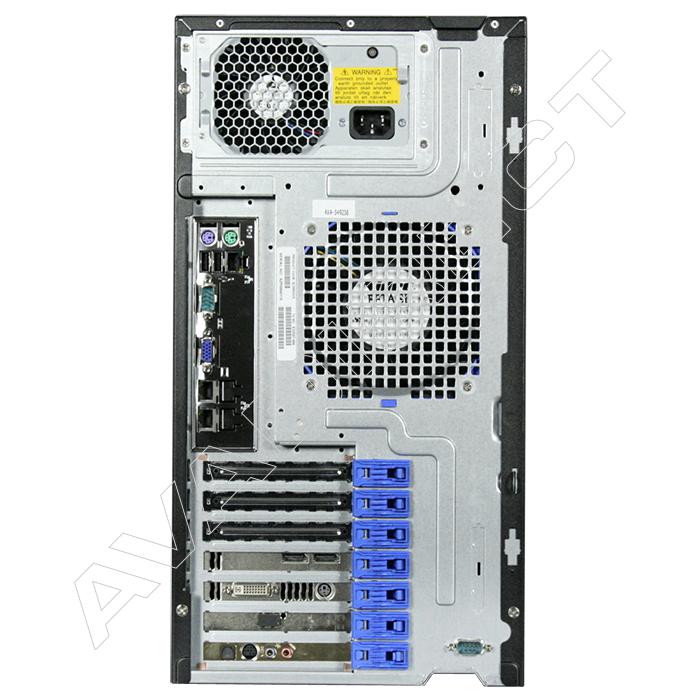

Custom Intel Supermicro Graphics Server

CONFIGURATION

See what components went into this custom computer build:

SC5650WS Black Pedestal / 6U Rack Server Chassis, SAS/SATA HDD /6, 1000W PSU

Chassis

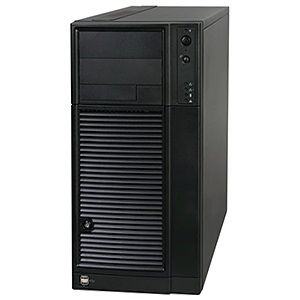

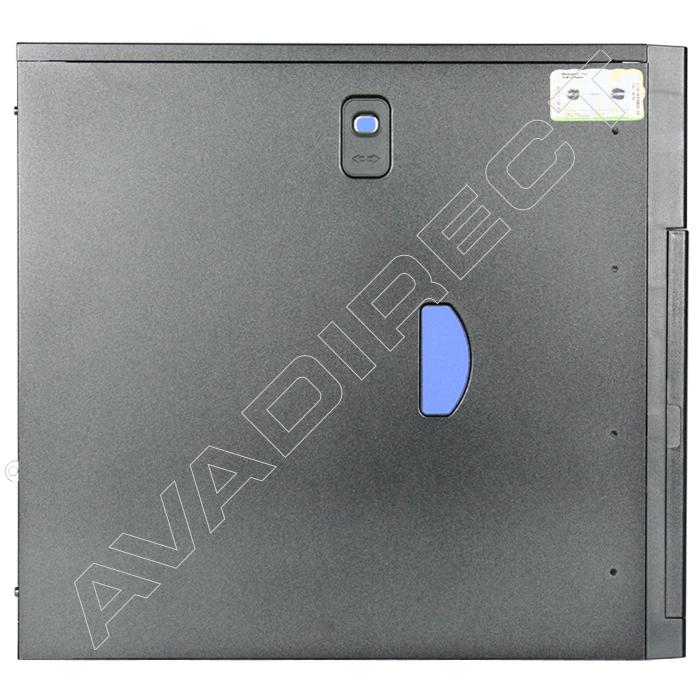

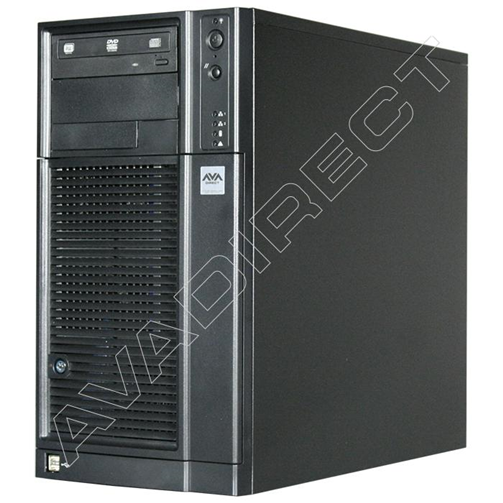

INTEL SC5650WS Black Pedestal / 6U Rack Server Chassis, SAS/SATA HDD /6, 1000W PSU

X8DTi-F, LGA1366 /2, Intel® 5520, 6.4 GT/s QPI, DDR3-1333MHz ECC/UECC 192GB/48GB /12, PCIe x16, SATA 3 Gb/s RAID 5 /6, VGA, GbLAN /2, IPMI, EATX, Retail

Motherboards

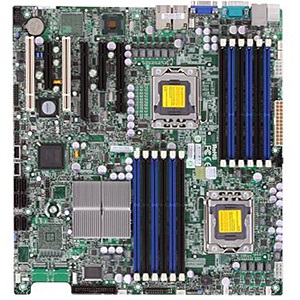

SUPERMICRO X8DTi-F, LGA1366 /2, Intel® 5520, 6.4 GT/s QPI, DDR3-1333MHz ECC/UECC 192GB/48GB /12, PCIe x16, SATA 3 Gb/s RAID 5 /6, VGA, GbLAN /2, IPMI, EATX, Retail

2 x Xeon® X5650 Six-Core Processor 2.66GHz, LGA1366, 6.4 GT/s QPI, 12MB L3 Cache, HT EM64T EIST TB VT, 32nm, 95W, Retail w/o Fan

Server Processors

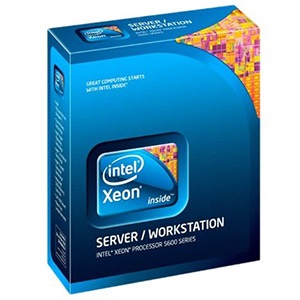

INTEL 2 x Xeon® X5650 Six-Core Processor 2.66GHz, LGA1366, 6.4 GT/s QPI, 12MB L3 Cache, HT EM64T EIST TB VT, 32nm, 95W, Retail w/o Fan

2 x STS100A Thermal Solution for Server Chassis, Socket 1366, 80W, Aluminum

Heatsinks and CPU Coolers

INTEL 2 x STS100A Thermal Solution for Server Chassis, Socket 1366, 80W, Aluminum

IC Diamond® 7 Carat, 1.5g, 4.5 W/m.k, Grey Thermal Paste

All Thermal Compound

Innovation Cooling IC Diamond® 7 Carat, 1.5g, 4.5 W/m.k, Grey Thermal Paste

24GB (6 x 4GB) ValueRAM™ Dual-Rank PC3-10600 DDR3 1333MHz CL9 SDRAM DIMM, ECC Registered

Server Memory

KINGSTON 24GB (6 x 4GB) ValueRAM™ Dual-Rank PC3-10600 DDR3 1333MHz CL9 SDRAM DIMM, ECC Registered

RAID 1 - Mirroring (Minimum 2 HDD's Required)

Storage Subsystem Configuration

RAID 1 - Mirroring (Minimum 2 HDD's Required)

iHAS124 Black 24x DVD±RW Dual-Layer Burner, SATA, OEM

5.25 Inch Optical Drives

LITE-ON iHAS124 Black 24x DVD±RW Dual-Layer Burner, SATA, OEM

PRO/1000 PF Server Adapter, Fiber Connection, PCIe x4

Ethernet Network Adapters

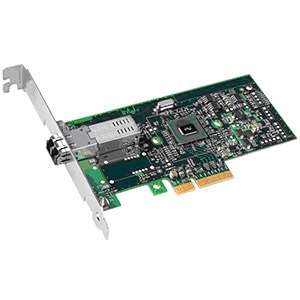

INTEL PRO/1000 PF Server Adapter, Fiber Connection, PCIe x4

Wireless Desktop 3000, Keyboard & Mouse, Black, 2.4 GHz RF Wireless, USB, Retail

Keyboards and Bundles

MICROSOFT Wireless Desktop 3000, Keyboard & Mouse, Black, 2.4 GHz RF Wireless, USB, Retail
